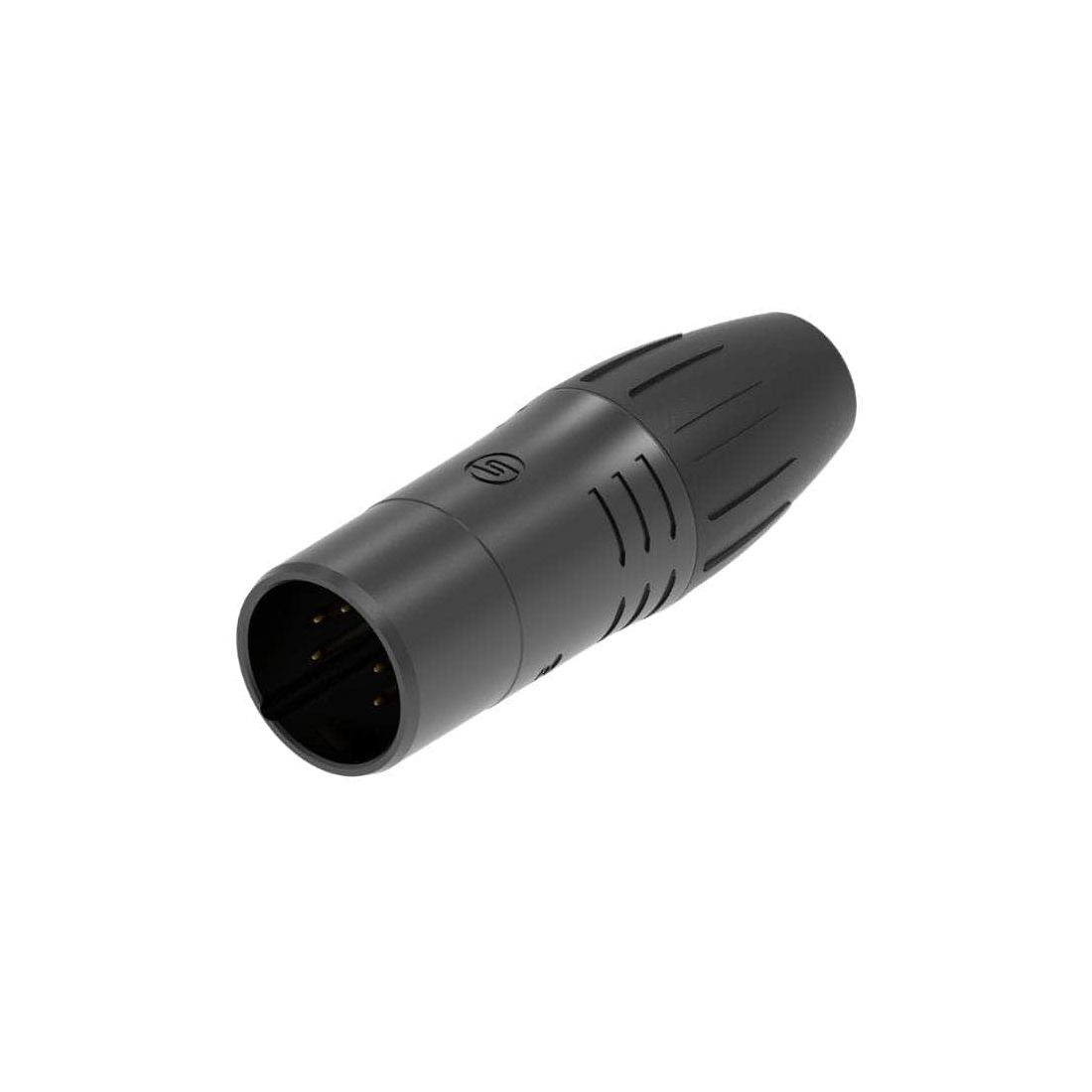

Seetronic-SCWM5-B Select New
Seetronic SCWM5-B is a professional 5-pin XLR male cable connector designed for reliable signal transmission in demanding lighting and entertainment environments. Featuring a rugged zinc alloy housing with black plating and gold-plated contacts, it ensures stable connectivity and long-term durability for professional DMX data connections.
With an IP65 protection rating, the SCWM5-B is suitable for both indoor and outdoor applications where dust...
Product Information
SKU: 1621000251
GTIN: 810087375133
HS-Code: 85444290
Seetronic SCWM5-B is a professional 5-pin XLR male cable connector designed for reliable signal transmission in demanding lighting and entertainment environments. Featuring a rugged zinc alloy housing with black plating and gold-plated contacts, it ensures stable connectivity and long-term durability for professional DMX data connections.
With an IP65 protection rating, the SCWM5-B is suitable for both indoor and outdoor applications where dust and moisture resistance are required. It supports cable outer diameters of 5-8 mm and includes a secure latch-lock system and integrated strain relief, making it ideal for touring, stage lighting, and permanent installations where dependable DMX connectivity is essential.

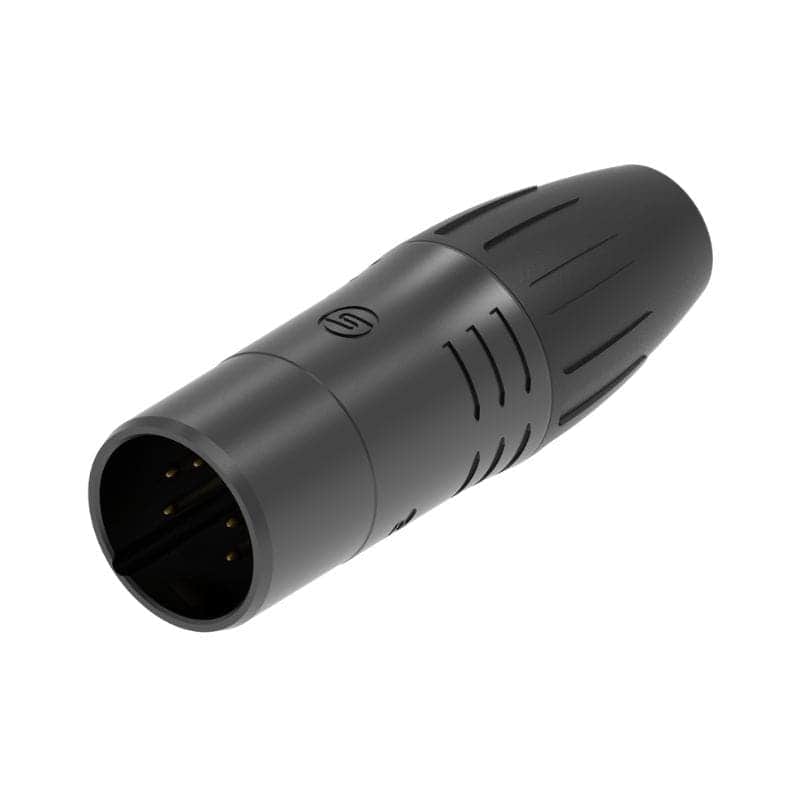

Gallery
Specification
- • Connection Type: XLR
- • Gender: Male
- • Capacitance between contacts: ≤ 7 pF
- • Contact resistance: ≤ 3 mΩ
- • Dielectric strength: 1.5 kV DC
- • Insulation resistance: > 10 GΩ (initial)
- • Rated current per contact: 7.5 A
- • Rated voltage: < 50 V
- • Cable O.D.: 5–8 mm
- • Insertion force: ≤ 20 N
- • Withdrawal force: ≤ 20 N
- • Service life: > 1000 mating cycles
- • Cable size: Max. 1.0 mm² / 18 AWG
- • Locking device: Latch lock
- • Boot: PA
- • Contacts: Cu alloy
- • Contact plating: Au
- • Insert: PA
- • Housing: Zinc alloy
- • Housing plating: Black plating
- • Strain relief: POM
- • Flame-retardant grade: UL 94 HB
- • Protection class: IP65
- • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
