Seetronic-SAC3FCB Select New

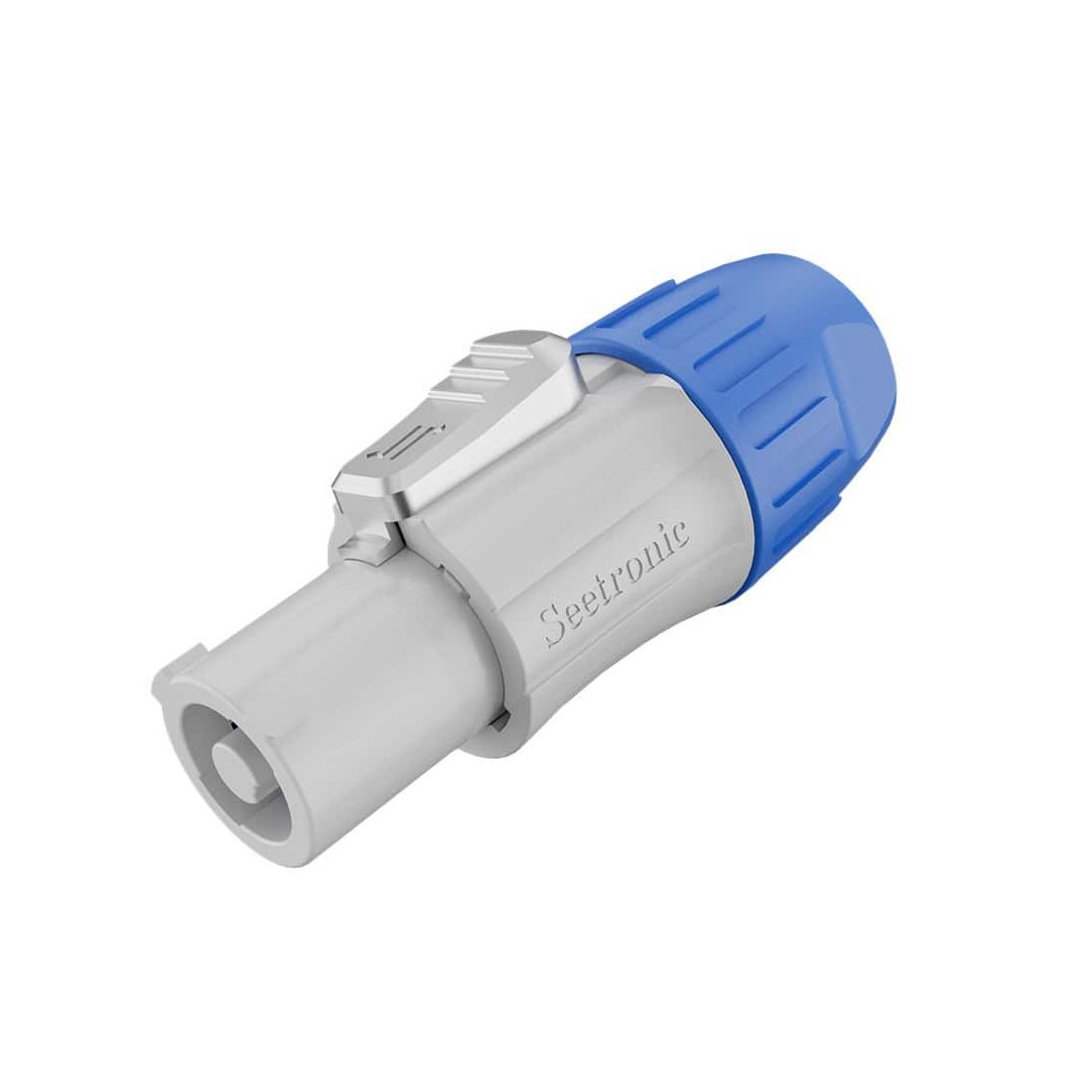

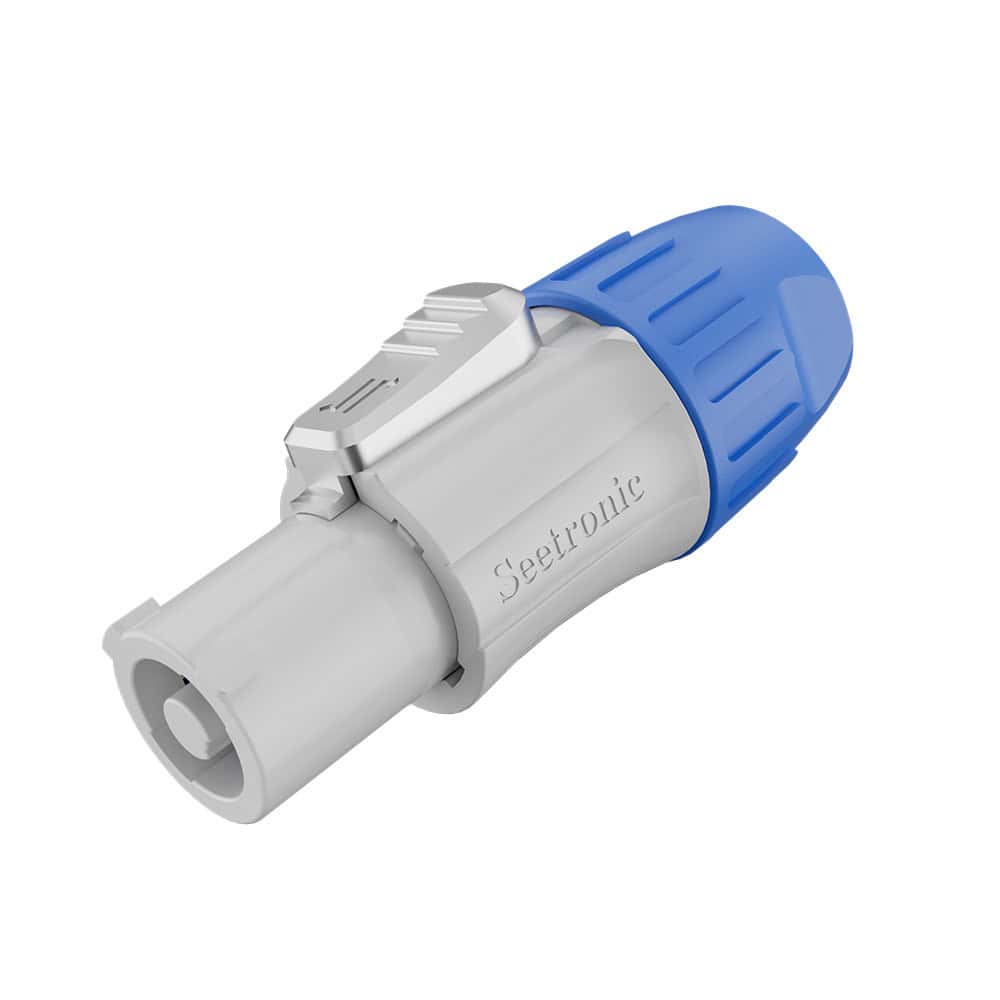

Seetronic SAC3FCB is a professional 3-core power-out cable connector designed for reliable indoor power distribution in lighting, audio, and entertainment systems. Featuring contacts for line, neutral, and protective earth, it ensures stable power transmission for demanding professional applications.
Rated up to 20A @ 250V AC, the SAC3FCB features a fast and secure latch-lock system to prevent accidental disconnection. Designed for cables with an...
Product Information
SKU: 1621000253
GTIN: 810087375157
HS-Code: 85444290
Seetronic SAC3FCB is a professional 3-core power-out cable connector designed for reliable indoor power distribution in lighting, audio, and entertainment systems. Featuring contacts for line, neutral, and protective earth, it ensures stable power transmission for demanding professional applications.
Rated up to 20A @ 250V AC, the SAC3FCB features a fast and secure latch-lock system to prevent accidental disconnection. Designed for cables with an outer diameter of 8-12 mm, it includes screw-type terminals for secure installation and is compatible with SAC3MCB plugs and SAC3MPB sockets. Ideal for touring racks, stage equipment, and professional power distribution setups.
Gallery
Specification
- • Number of contacts: 2 + PE
- • Rated current: 20 A
- • Rated voltage: 250 V AC
- • Contact resistance: ≤ 5 mΩ
- • Dielectric strength: 4000 V DC
- • Insulation resistance: > 1000 MΩ
- • Service life: > 1000 mating cycles
- • Cable size: 2.5 mm²

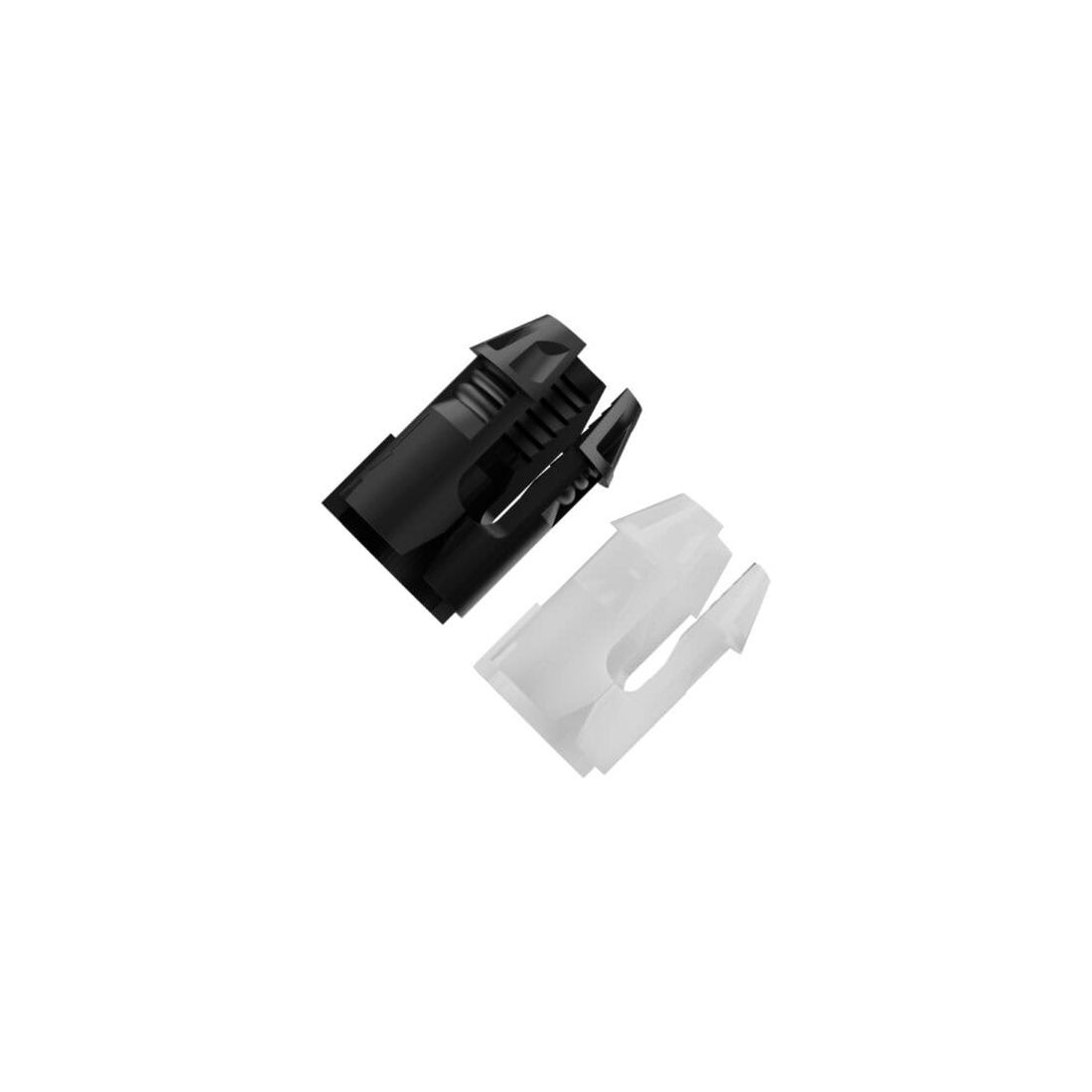

- • Cable O.D. (white strain relief): 8–11 mm
- • Cable O.D. (black strain relief): 11–12 mm
- • Type of terminals: Screw type terminals
- • Housing: PA
- • Contacts: Cu alloy
- • Contact surface: Ag
- • Flame-retardant rating: UL 94-V0
- • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
