Seetronic SCMM3-B-BK is a professional 3-pin XLR male cable connector designed for reliable signal transmission in audio, lighting, and control systems. Built with a durable black-plated metal housing and silver-plated contacts, it ensures excellent conductivity and stable performance for professional audio and DMX applications. The SCMM3-B-BK supports cable outer diameters from 3.5-8 mm and includes interchangeable cable clamps for flexible cable...
Read More

Product Information

SKU: 1621000241
GTIN: 810087375065
HS-Code: 85444290

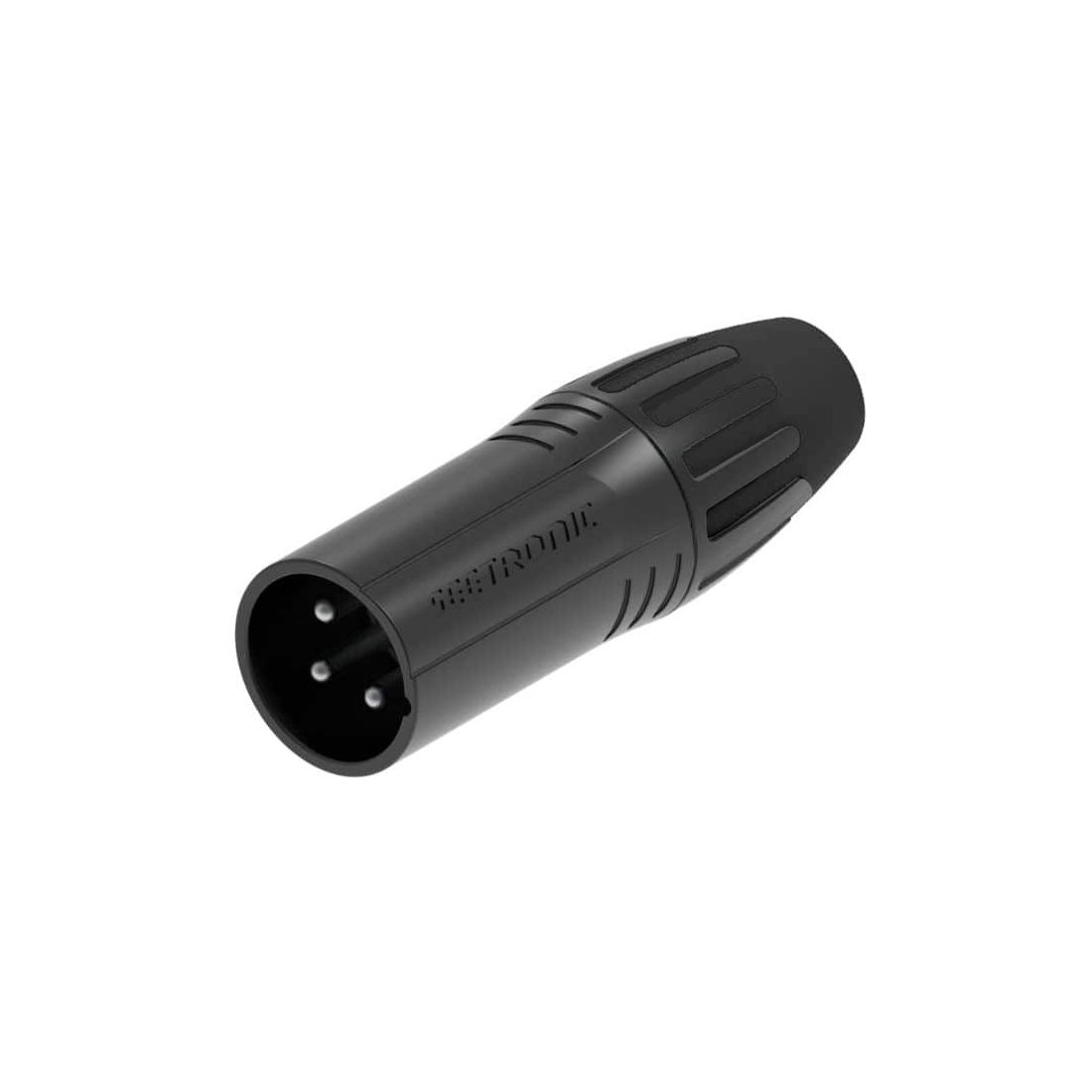

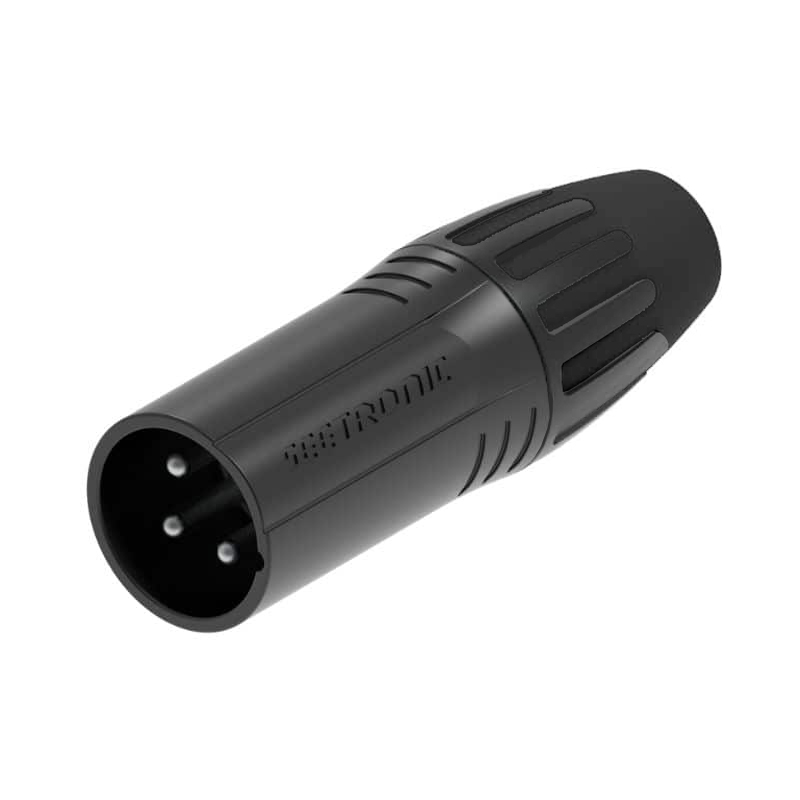

Seetronic SCMM3-B-BK is a professional 3-pin XLR male cable connector designed for reliable signal transmission in audio, lighting, and control systems. Built with a durable black-plated metal housing and silver-plated contacts, it ensures excellent conductivity and stable performance for professional audio and DMX applications.
The SCMM3-B-BK supports cable outer diameters from 3.5-8 mm and includes interchangeable cable clamps for flexible cable management. Featuring a secure latch-lock mechanism and a compact no-ring design, it is ideal for touring equipment, stage productions, and professional installations where dependable XLR connectivity is essential.

Gallery

Specification

  • • Connection type: XLR
  • • Gender: Male

  • • Capacitance between contacts: ≤ 4 pF
  • • Contact resistance: ≤ 3 mΩ
  • • Dielectric strength: 1.5 kV DC
  • • Insulation resistance: > 10 GΩ (initial)
  • • Rated current per contact: 16 A
  • • Rated voltage: < 50 V

  • • Cable O.D. (black strain relief): 3.5–6 mm
  • • Cable O.D. (white strain relief): 6–8 mm
  • • Insertion force: ≤ 20 N
  • • Withdrawal force: ≤ 20 N
  • • Service life: > 1000 mating cycles
  • • Cable size: Max. 2.5 mm² / 14 AWG
  • • Locking device: Latch lock

  • • Boot: PA
  • • Contacts: Cu alloy
  • • Contact plating: Ag
  • • Insert: PA
  • • Housing: Zinc alloy
  • • Housing plating: Black plating
  • • Strain relief: POM
  • • Flame-retardant grade: UL 94 HB
  • • Protection class: IP40
  • • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
