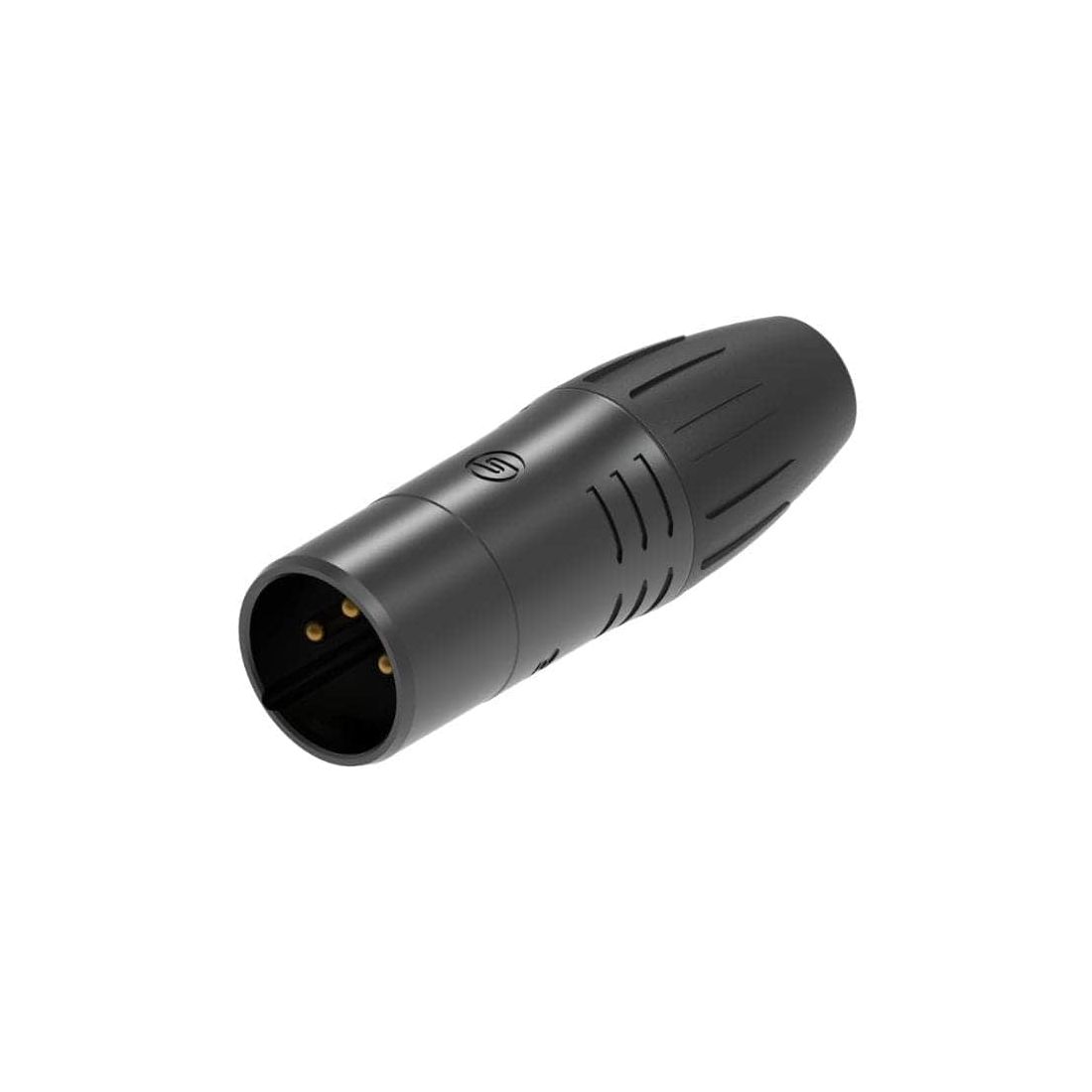

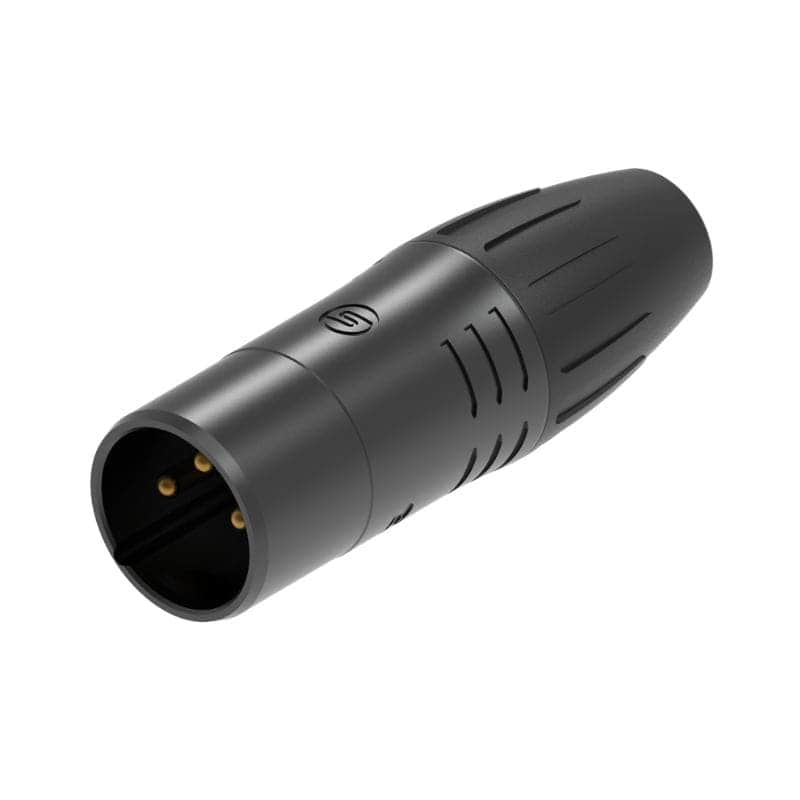

Seetronic SCWM3-B is a professional 3-pin XLR male cable connector designed for reliable signal transmission in demanding audio and lighting environments. Featuring a rugged zinc alloy housing with black plating and gold-plated contacts, it ensures stable connectivity and excellent conductivity for professional DMX and audio signal applications.
With an IP65 protection rating, the SCWM3-B is suitable for both indoor and outdoor use where dust and...
Product Information
SKU: 1621000245
GTIN: 810087375096
HS-Code: 85444290
Seetronic SCWM3-B is a professional 3-pin XLR male cable connector designed for reliable signal transmission in demanding audio and lighting environments. Featuring a rugged zinc alloy housing with black plating and gold-plated contacts, it ensures stable connectivity and excellent conductivity for professional DMX and audio signal applications.
With an IP65 protection rating, the SCWM3-B is suitable for both indoor and outdoor use where dust and moisture resistance are required. It supports cable outer diameters of 5-8 mm and cable sizes up to 2.5 mm², and features a secure latch-lock system with integrated strain relief. Ideal for touring, stage production, and permanent installations where dependable XLR connectivity is essential.
Gallery
Specification
- • Connection Type: XLR
- • Gender: Male
- • Capacitance between contacts: ≤ 4 pF
- • Contact resistance: ≤ 3 mΩ
- • Dielectric strength: 1.5 kV DC
- • Insulation resistance: > 10 GΩ (initial)
- • Rated current per contact: 16 A
- • Rated voltage: < 50 V
- • Cable O.D.: 5–8 mm
- • Insertion force: ≤ 20 N
- • Withdrawal force: ≤ 20 N
- • Service life: > 1000 mating cycles
- • Cable size: Max. 2.5 mm² / 14 AWG
- • Locking device: Latch lock
- • Boot: PA
- • Contacts: Cu alloy
- • Contact plating: Au
- • Insert: PA
- • Housing: Zinc alloy
- • Housing plating: Black plating
- • Strain relief: POM
- • Flame-retardant grade: UL 94 HB
- • Protection class: IP65
- • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
