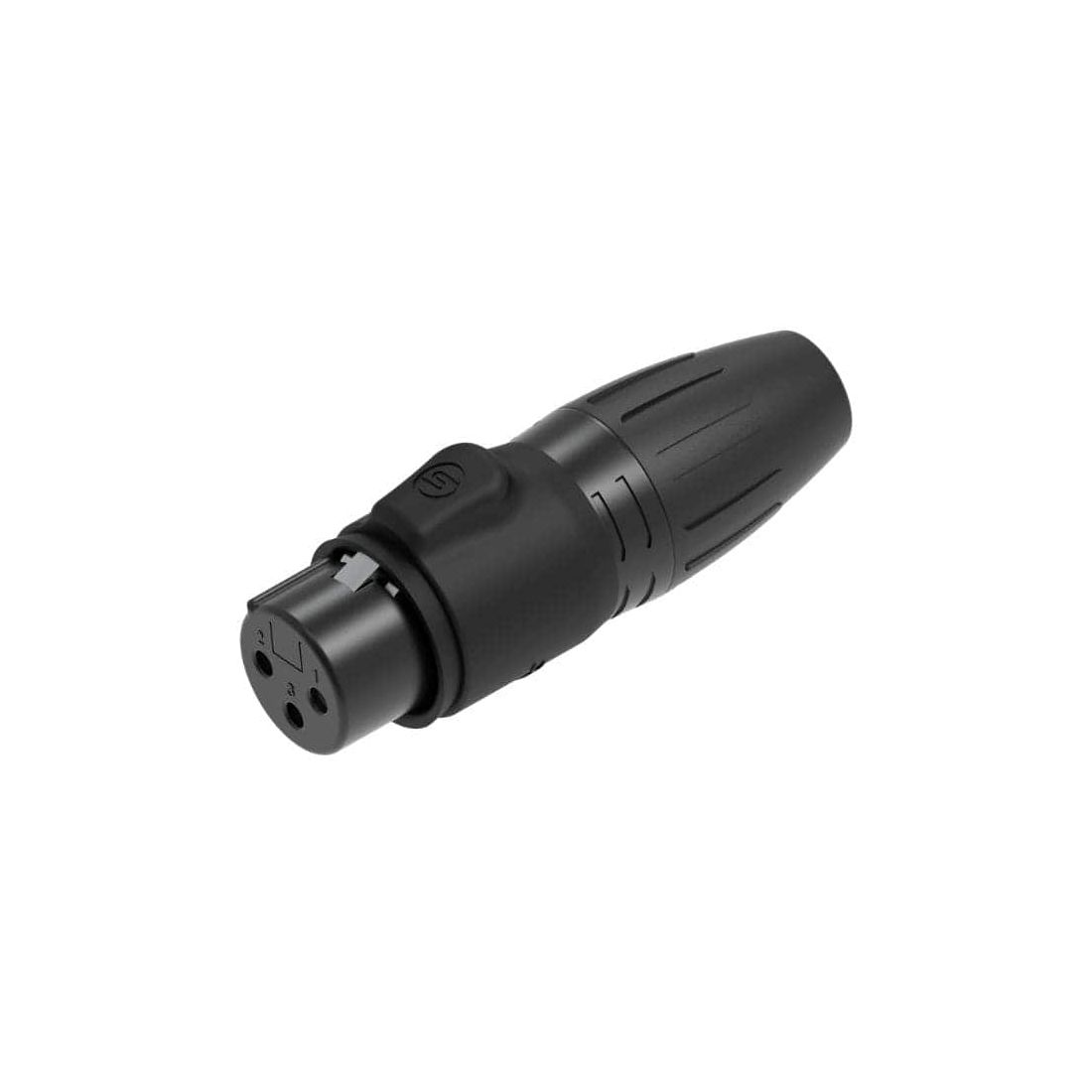

Seetronic SCWF3-B is a professional 3-pin XLR female cable connector designed for reliable signal transmission in demanding audio, lighting, and entertainment environments. Built with a rugged black-plated zinc alloy housing and gold-plated contacts, it delivers stable connectivity and excellent conductivity for professional DMX and audio applications. With an IP65 protection rating, the SCWF3-B is suitable for both indoor and outdoor use where...
Read More

Product Information

SKU: 1621000244
GTIN: 810087374815
HS-Code: 85444290
Seetronic SCWF3-B is a professional 3-pin XLR female cable connector designed for reliable signal transmission in demanding audio, lighting, and entertainment environments. Built with a rugged black-plated zinc alloy housing and gold-plated contacts, it delivers stable connectivity and excellent conductivity for professional DMX and audio applications.
With an IP65 protection rating, the SCWF3-B is suitable for both indoor and outdoor use where resistance to dust and moisture is essential. It supports cable outer diameters of 5-8 mm and features a secure latch-lock mechanism with integrated strain relief, making it ideal for touring productions, stage lighting systems, and permanent installations requiring dependable XLR connectivity.

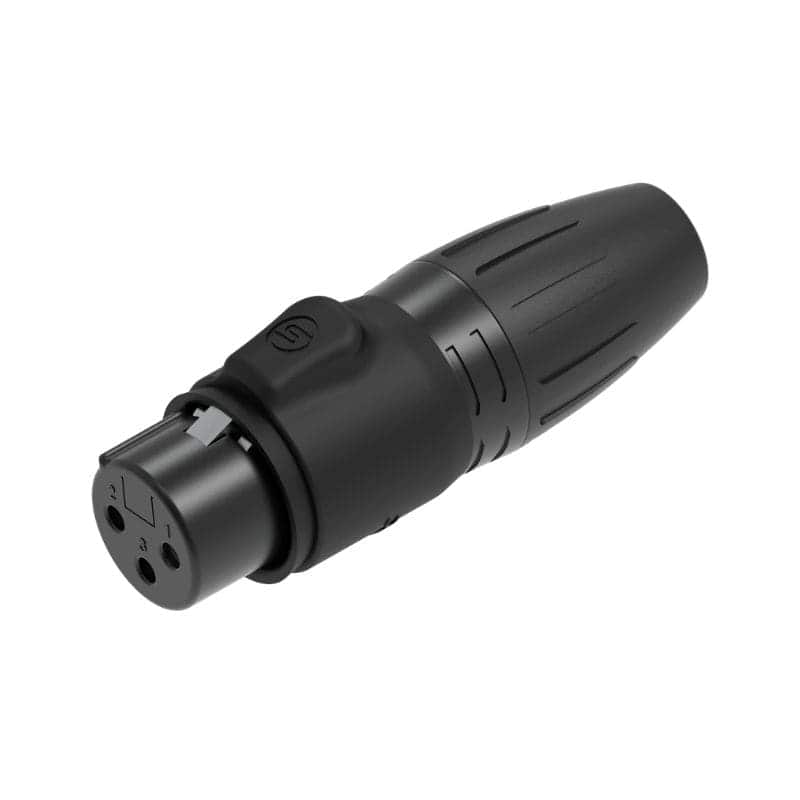

Gallery

Specification

  • • Connection Type: XLR
  • • Gender: Female

  • • Capacitance between contacts: ≤ 4 pF
  • • Contact resistance: ≤ 3 mΩ
  • • Dielectric strength: 1.5 kV DC
  • • Insulation resistance: > 10 GΩ (initial)
  • • Rated current per contact: 16 A
  • • Rated voltage: < 50 V

  • • Cable O.D.: 5–8 mm
  • • Insertion force: ≤ 20 N
  • • Withdrawal force: ≤ 20 N
  • • Service life: > 1000 mating cycles
  • • Cable size: Max. 1.0 mm² / 18 AWG
  • • Locking device: Latch lock

  • • Boot: PA
  • • Contacts: Cu alloy
  • • Contact plating: Au
  • • Insert: PA
  • • Housing: Zinc alloy
  • • Housing plating: Black plating
  • • Strain relief: POM
  • • Flame-retardant grade: UL 94 HB
  • • Protection class: IP65
  • • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
