Seetronic-SAC3FX Select New

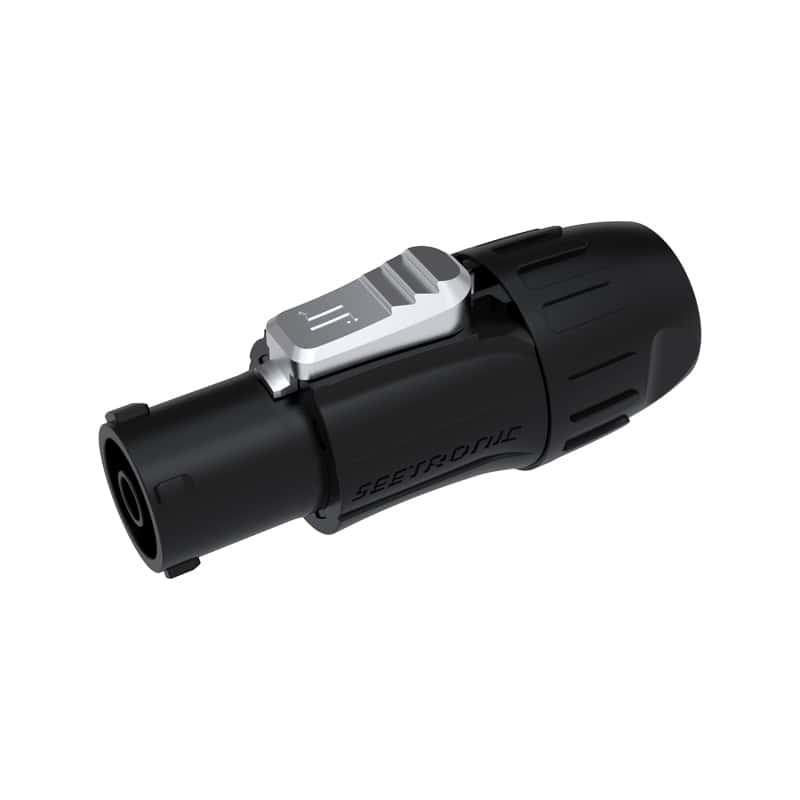

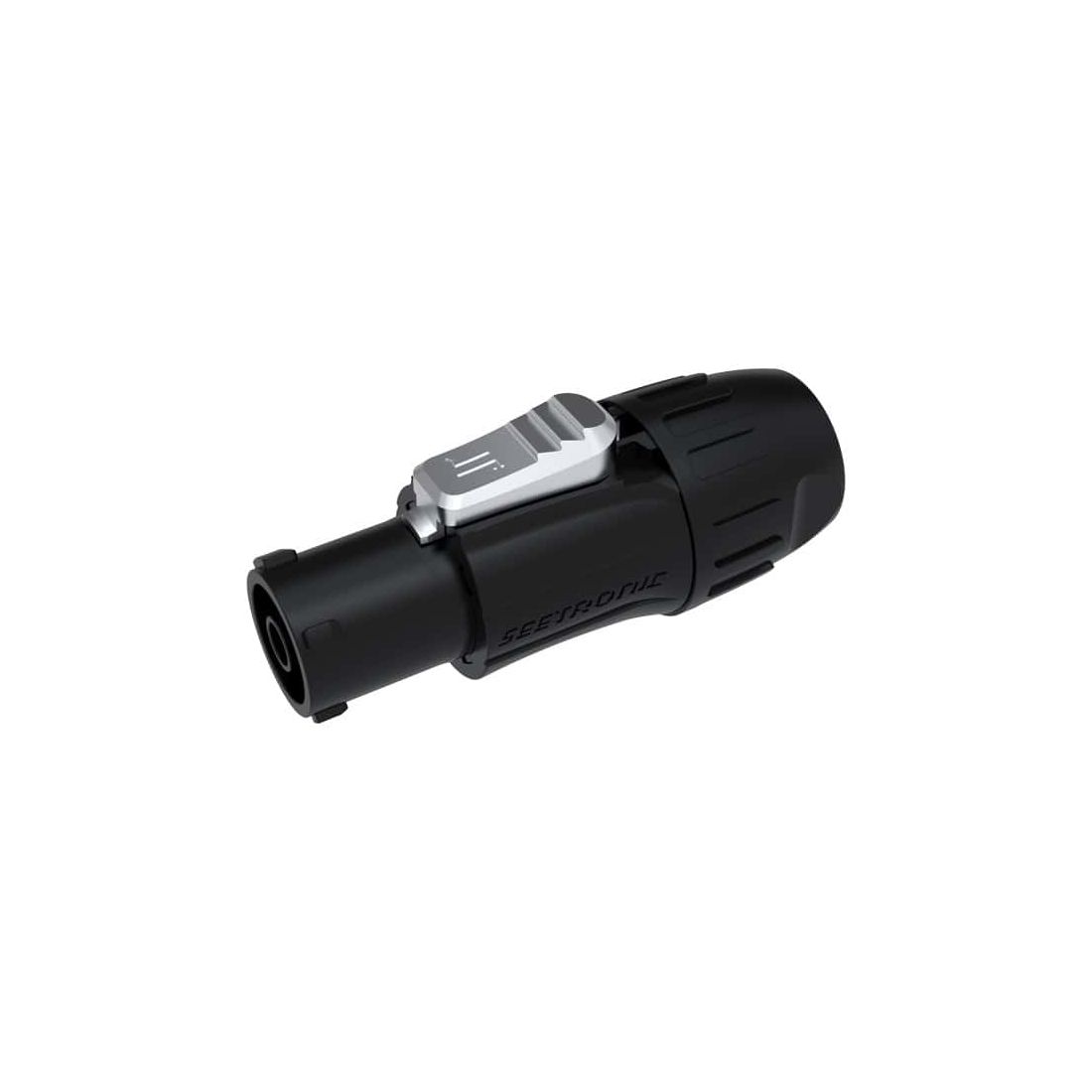

Seetronic SAC3FX is a professional IP65-rated power cable connector designed for secure and reliable power distribution in demanding entertainment and installation environments. This lockable 3-core female connector provides dependable connections for line, neutral, and protective earth, making it ideal for powering lighting fixtures, staging equipment, and other professional systems.
Built for durability, the SAC3FX supports cable diameters from...
Product Information
SKU: 1621000259
GTIN: 810087375201
HS-Code: 85444290
Seetronic SAC3FX is a professional IP65-rated power cable connector designed for secure and reliable power distribution in demanding entertainment and installation environments. This lockable 3-core female connector provides dependable connections for line, neutral, and protective earth, making it ideal for powering lighting fixtures, staging equipment, and other professional systems.
Built for durability, the SAC3FX supports cable diameters from 7-11 mm and features a robust latch-lock mechanism to prevent accidental disconnection. Rated up to 16A @ 250V AC (TÜV) and 20A @ 300V AC (UL), it is well suited for touring productions, stage lighting systems, and outdoor installations where dust and moisture resistance are essential.

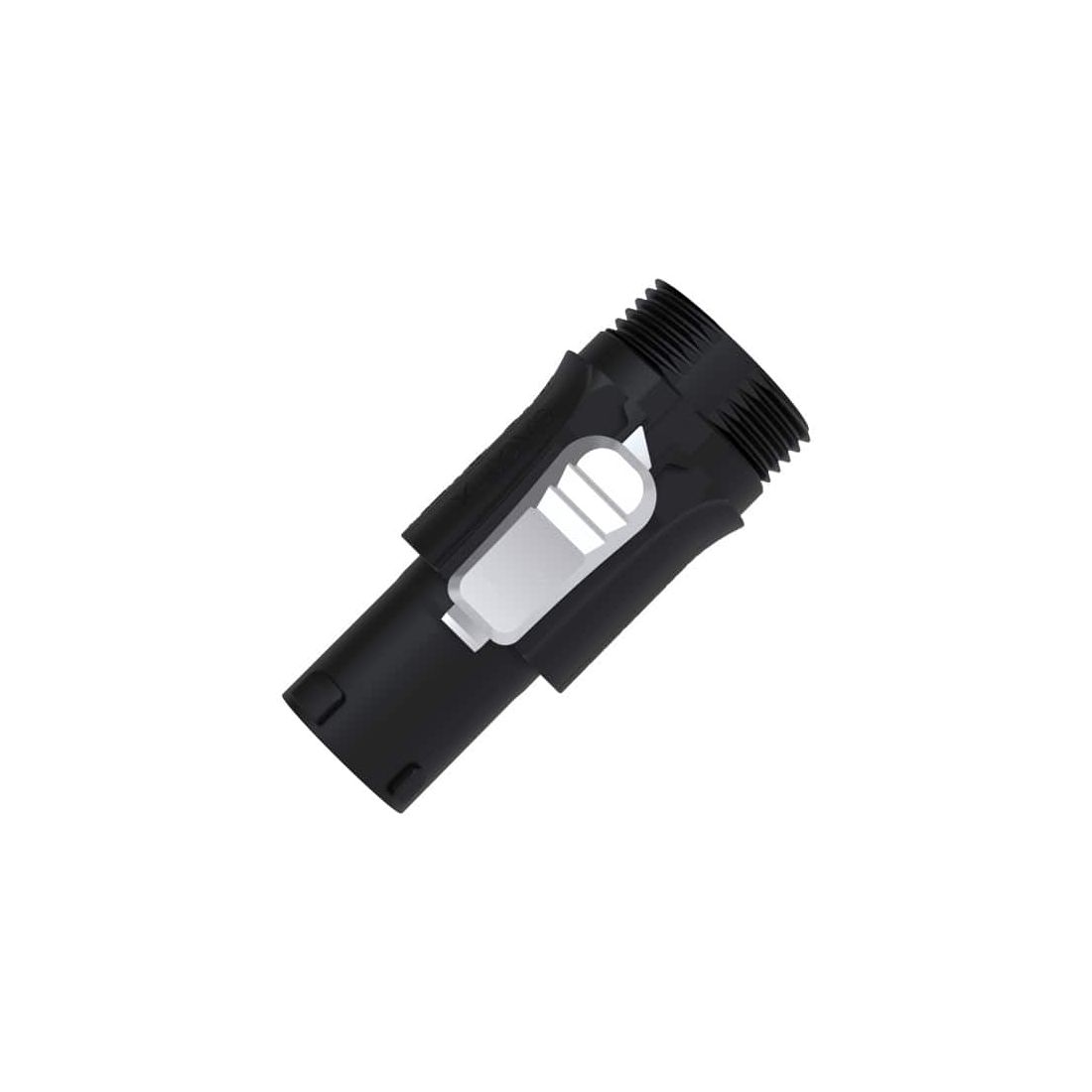

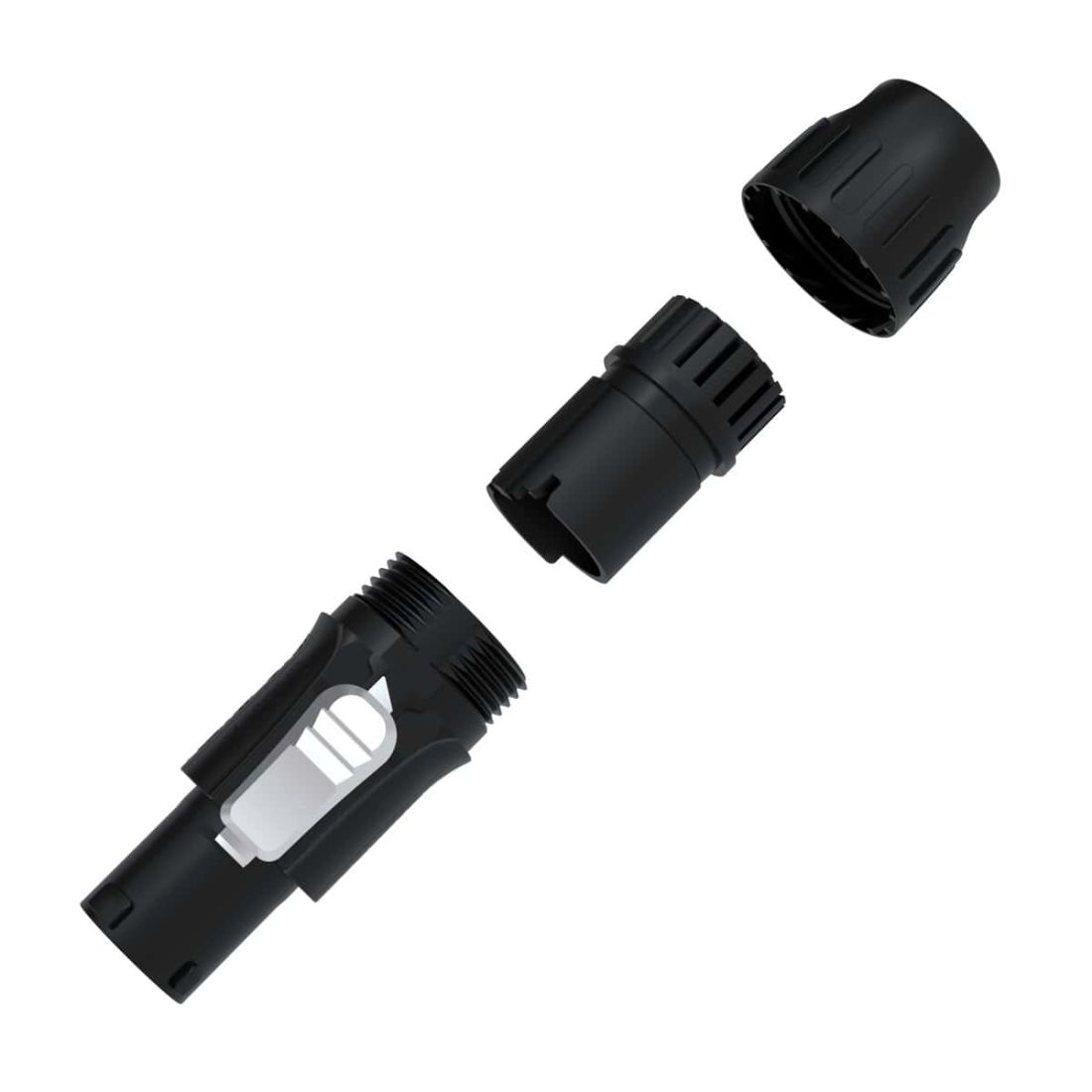

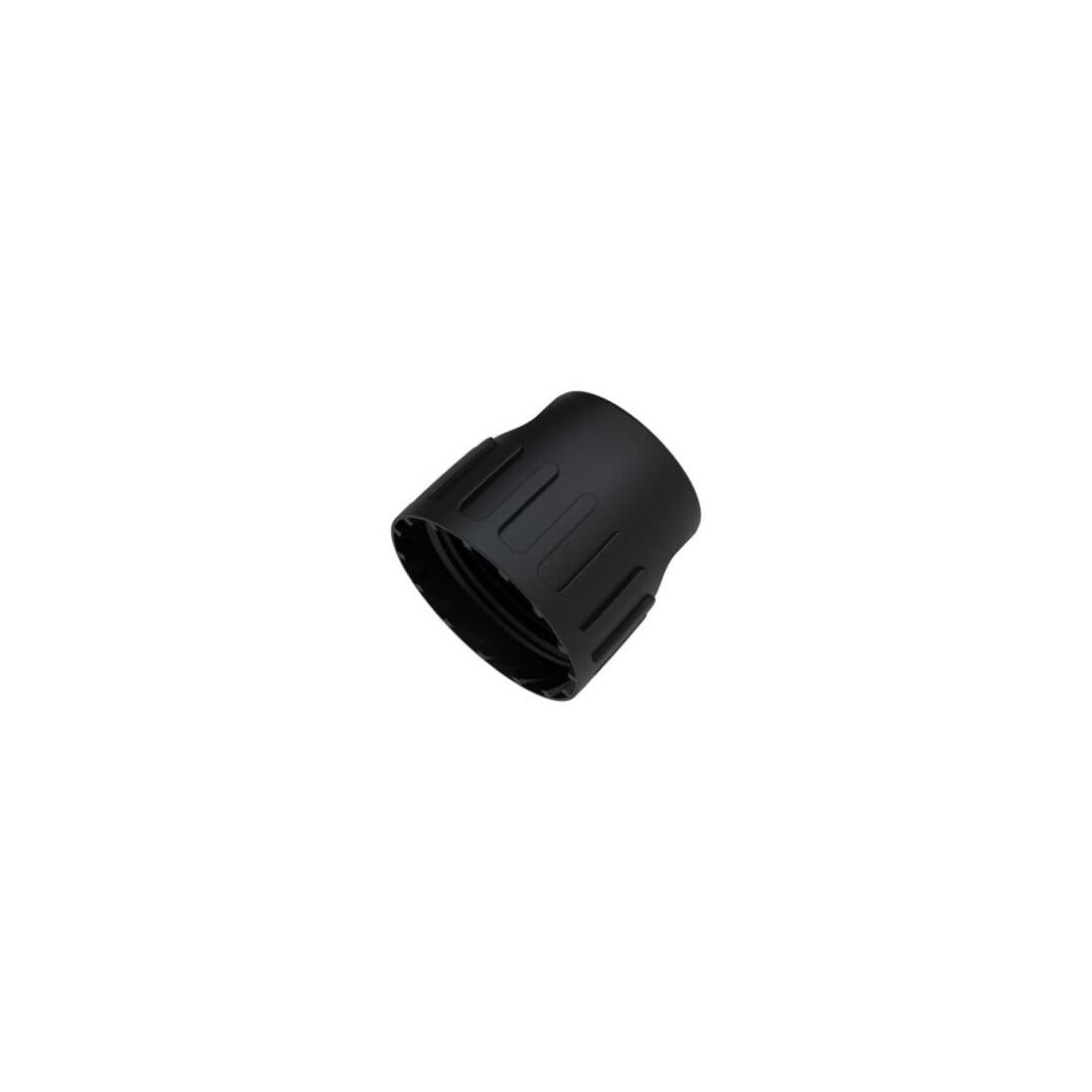

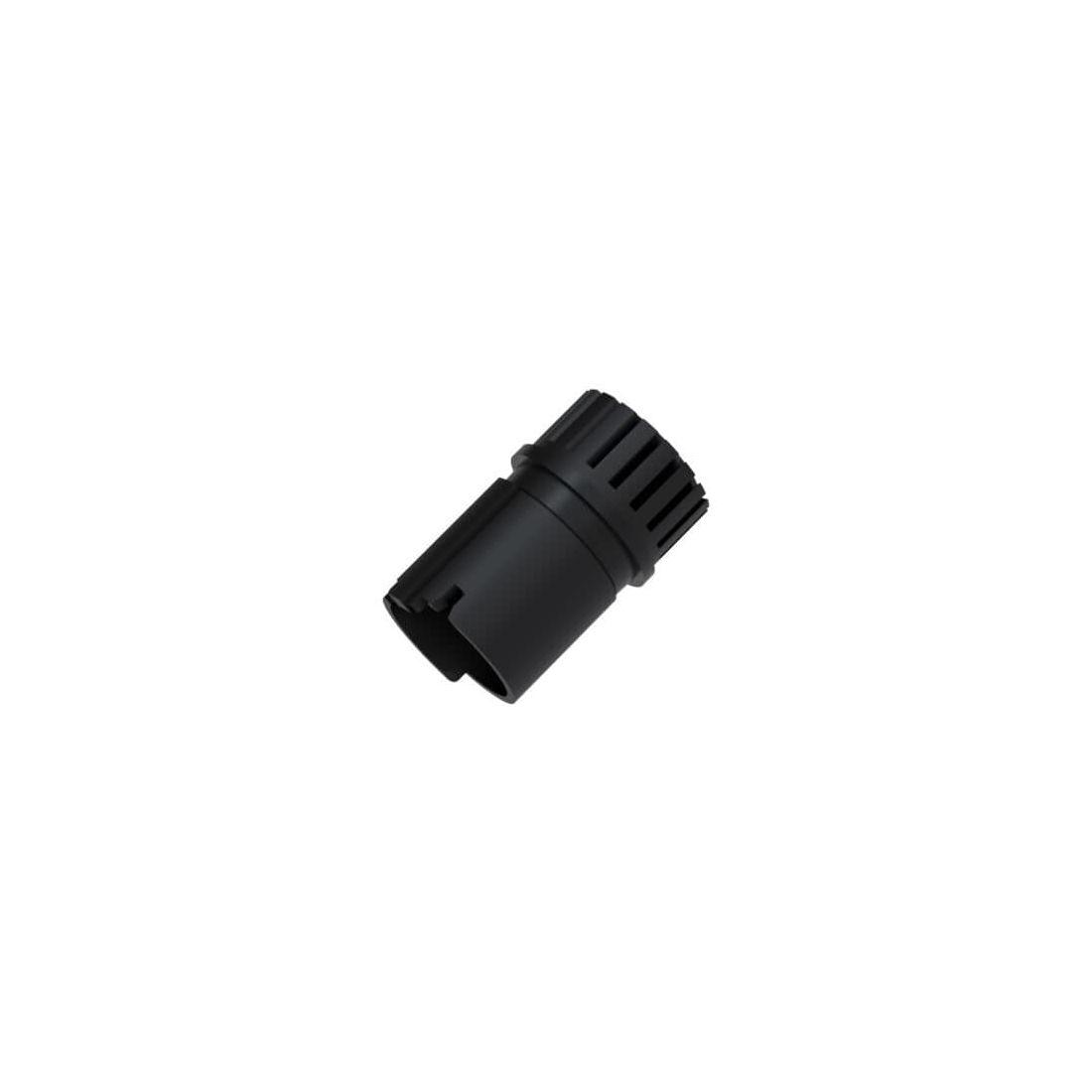

Gallery
Specification
- • Number of contacts: 2 + PE
- • Rated current: 16 A (TÜV RH) / 20 A (UL)
- • Rated voltage: 250 V AC (TÜV RH) / 300 V AC (UL)
- • Contact resistance: ≤ 5 mΩ
- • Dielectric strength: 4000 V DC (1600 V/min AC UL)
- • Insulation resistance: > 1000 MΩ
- • Service life: > 1000 mating cycles
- • Cable size: 2.5 mm² / 12 AWG
- • Cable O.D.: 7–11 mm
- • Type of terminals: Screw type terminals
- • Housing: PA
- • Contacts: Cu alloy
- • Contact surface: Ag
- • Protection degree: IP65
- • Flame-retardant grade: UL 94V-0
- • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
