Seetronic-SAC3FCA Select New

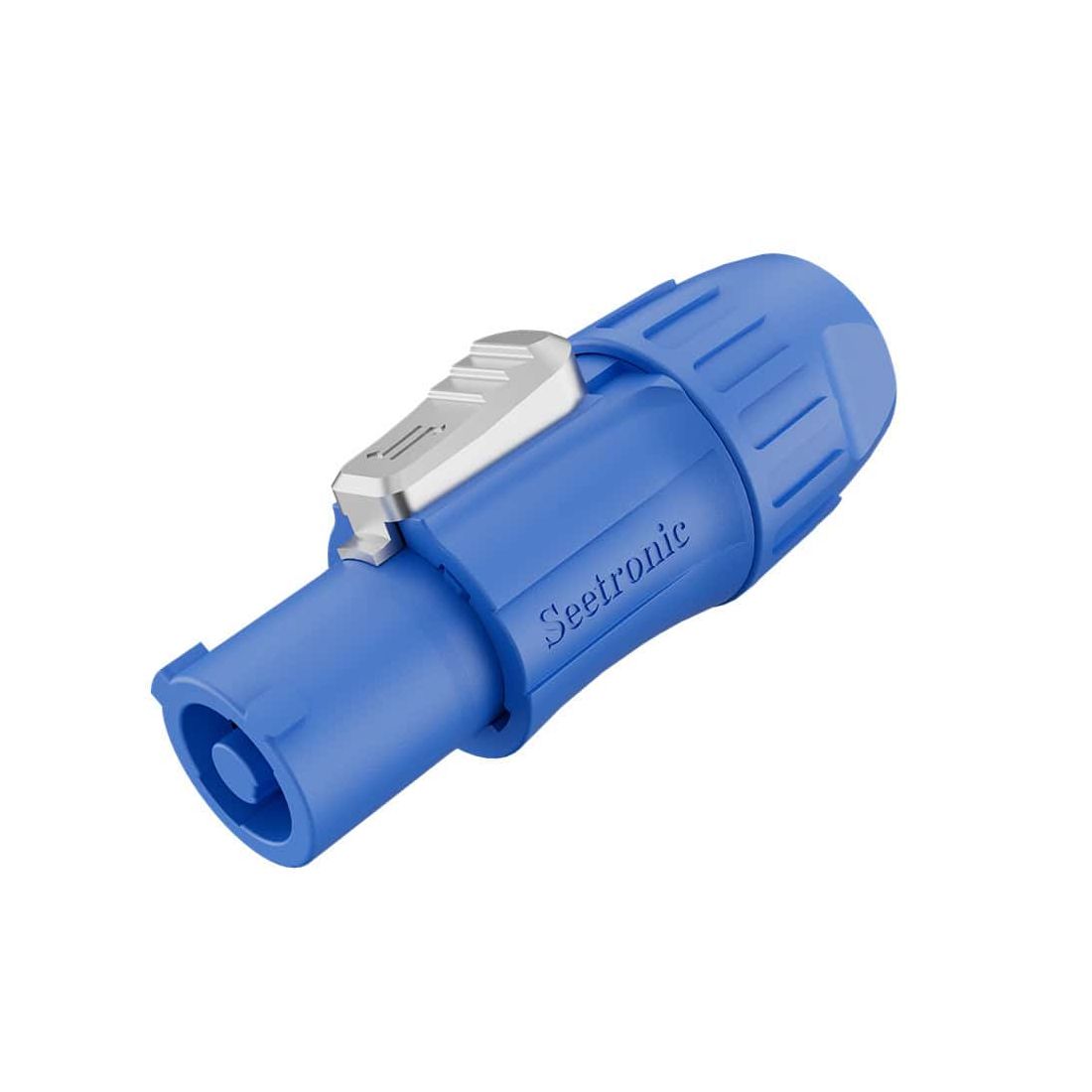

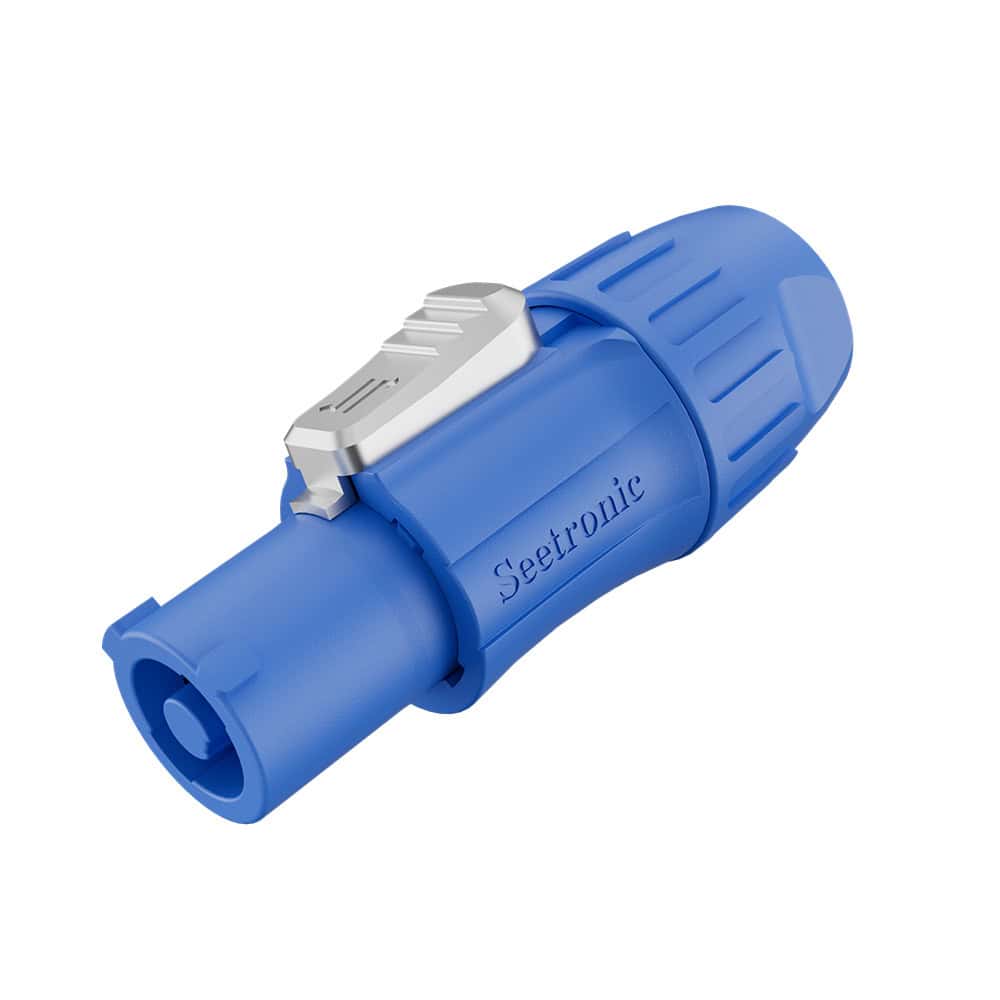

Seetronic SAC3FCA is a professional 3-core power-in cable connector designed for reliable indoor power distribution in lighting, audio, and entertainment systems. Featuring contacts for line, neutral, and protective earth, it ensures stable and secure AC power connections for demanding professional environments.
Rated up to 20A @ 250V AC, the SAC3FCA features a fast and secure latch-lock mechanism to prevent accidental disconnection. Designed for...
Product Information
SKU: 1621000252
GTIN: 810087375140
HS-Code: 85444290
Seetronic SAC3FCA is a professional 3-core power-in cable connector designed for reliable indoor power distribution in lighting, audio, and entertainment systems. Featuring contacts for line, neutral, and protective earth, it ensures stable and secure AC power connections for demanding professional environments.

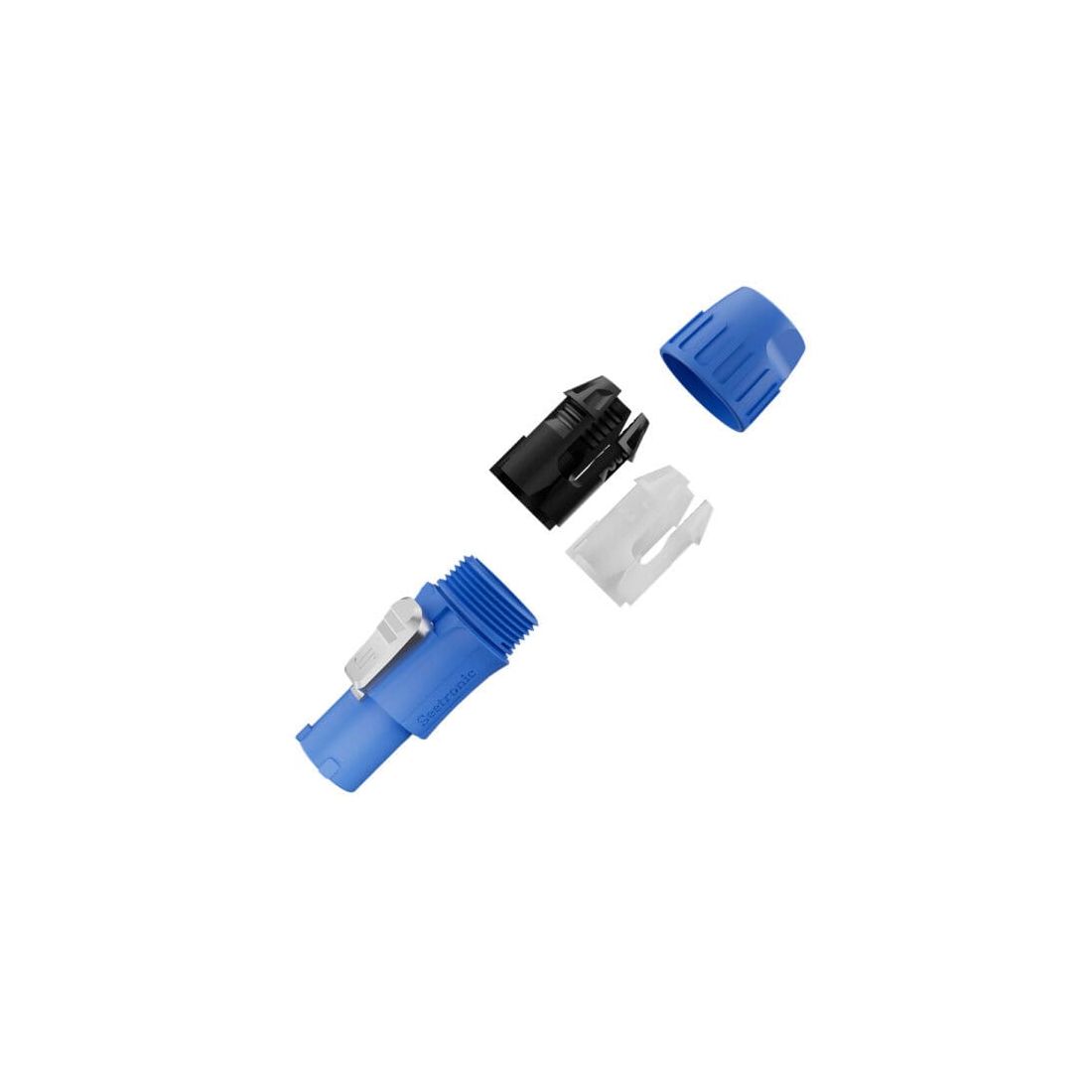

Rated up to 20A @ 250V AC, the SAC3FCA features a fast and secure latch-lock mechanism to prevent accidental disconnection. Designed for cables with an outer diameter of 8-12 mm, it includes screw-type terminals for secure installation and is compatible with SAC3MCA plugs and SAC3MPA sockets. Ideal for touring racks, stage equipment, and professional power distribution setups.
Gallery
Specification
- • Number of contacts: 2 + PE
- • Rated current: 20 A
- • Rated voltage: 250 V AC
- • Contact resistance: ≤ 5 mΩ
- • Dielectric strength: 4000 V DC
- • Insulation resistance: > 1000 MΩ
- • Service life: > 1000 mating cycles
- • Cable size: 2.5 mm²

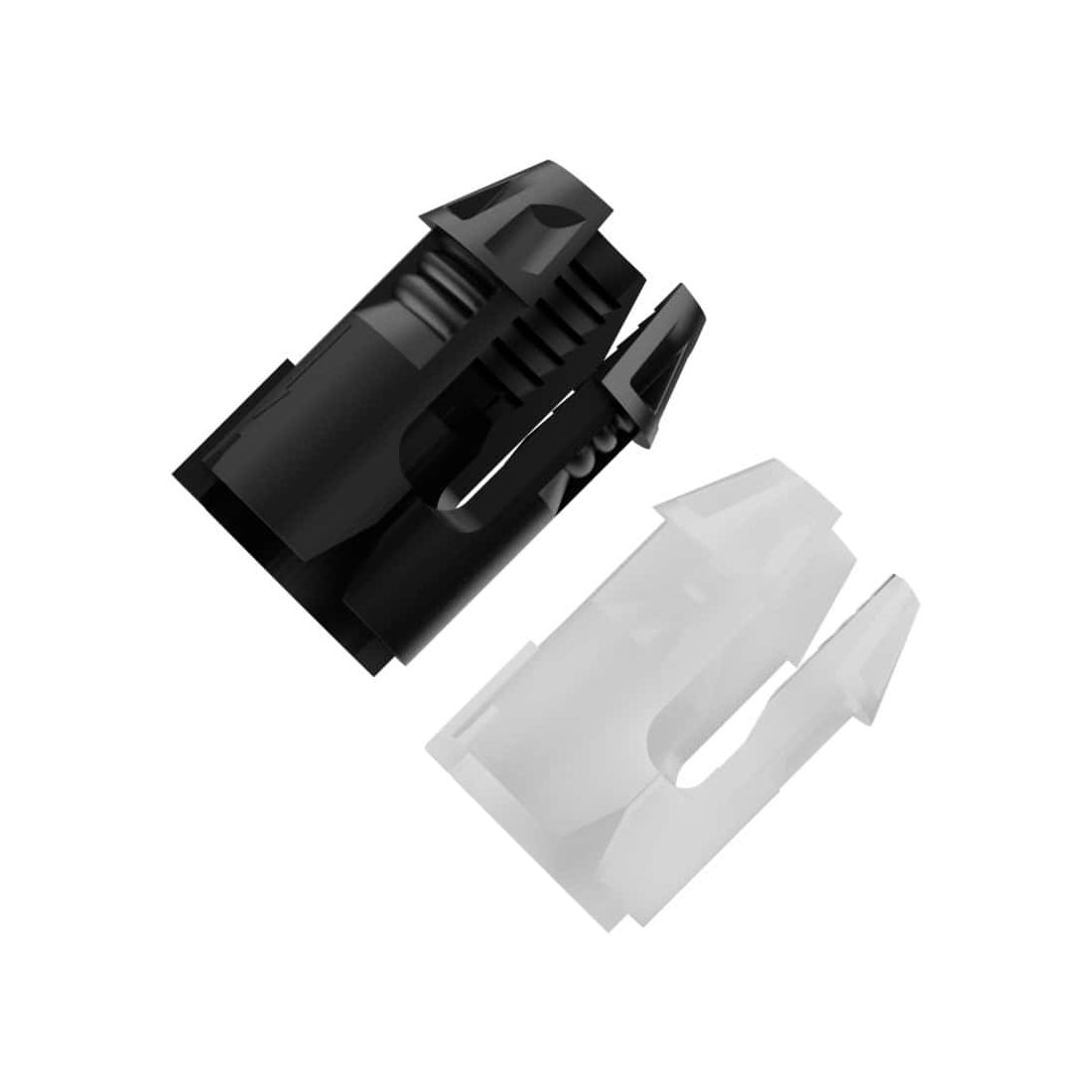

- • Cable O.D. (white strain relief): 8–11 mm
- • Cable O.D. (black strain relief): 11–12 mm
- • Type of terminals: Screw type terminals
- • Housing: PA
- • Contacts: Cu alloy
- • Contact surface: Ag
- • Flame-retardant rating: UL 94-V0
- • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
