Seetronic-SCMM5-B-BK Select New

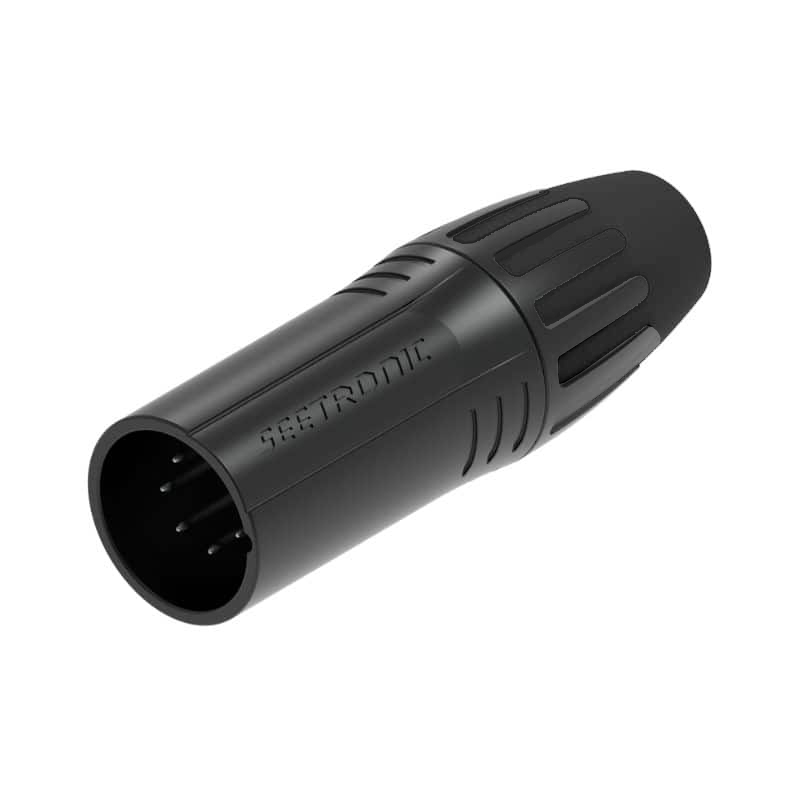

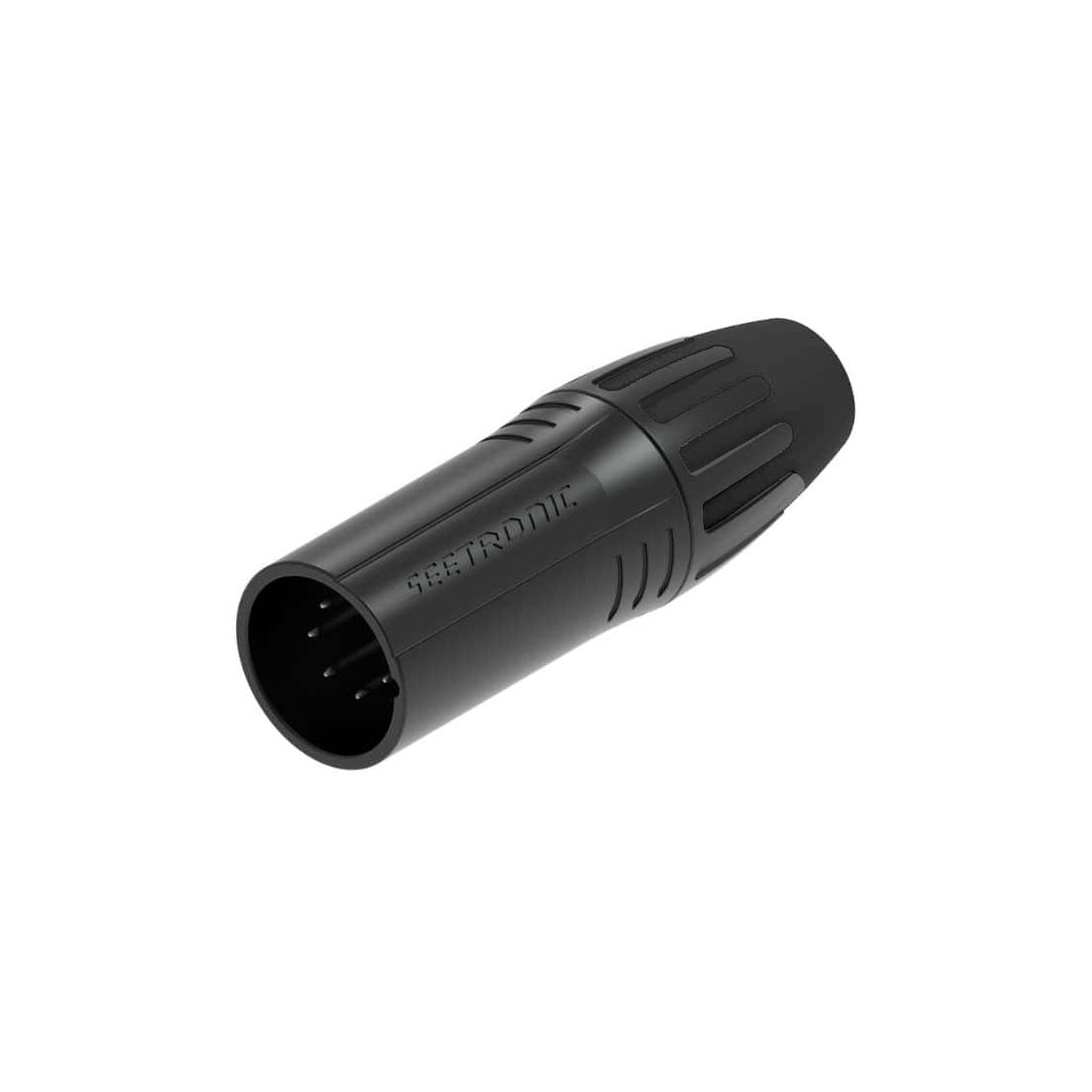

Seetronic SCMM5-B-BK is a professional 5-pin XLR male cable connector designed for reliable signal transmission in lighting, audio, and data control systems. Built with a durable black-plated zinc alloy housing and silver-plated copper alloy contacts, it ensures excellent conductivity and stable performance for professional DMX and audio applications.
The SCMM5-B-BK supports cable outer diameters up to 8 mm and includes interchangeable cable...
Product Information
SKU: 1621000247
GTIN: 810087374822
HS-Code: 85444290
Seetronic SCMM5-B-BK is a professional 5-pin XLR male cable connector designed for reliable signal transmission in lighting, audio, and data control systems. Built with a durable black-plated zinc alloy housing and silver-plated copper alloy contacts, it ensures excellent conductivity and stable performance for professional DMX and audio applications.
The SCMM5-B-BK supports cable outer diameters up to 8 mm and includes interchangeable cable clamps for flexible cable management. Featuring a secure latch-lock mechanism and a compact no-ring design, it is well suited for touring equipment, stage lighting systems, and professional installations where dependable XLR connectivity is essential.
Gallery
Specification
- • Connection type: XLR
- • Gender: Male
- • Capacitance between contacts: ≤ 7 pF
- • Contact resistance: ≤ 3 mΩ
- • Dielectric strength: 1.5 kV DC
- • Insulation resistance: > 10 GΩ (initial)
- • Rated current per contact: 7.5 A
- • Rated voltage: < 50 V
- • Cable O.D. (black strain relief): 3.5–6 mm
- • Cable O.D. (white strain relief): 6–8 mm
- • Insertion force: ≤ 20 N
- • Withdrawal force: ≤ 20 N
- • Service life: > 1000 mating cycles
- • Cable size: Max. 1.0 mm² / 18 AWG
- • Locking device: Latch lock
- • Boot: PA
- • Contacts: Cu alloy
- • Contact plating: Ag
- • Insert: PA
- • Housing: Zinc alloy
- • Housing plating: Black plating
- • Strain relief: POM
- • Flame-retardant grade: UL 94 HB
- • Protection class: IP40
- • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
