Seetronic SCMF5-B-BK is a professional 5-pin XLR female cable connector designed for reliable signal transmission in lighting, audio, and control systems. Built with a durable black-plated housing and silver-plated copper alloy contacts, it delivers excellent conductivity and stable performance for professional DMX and audio applications.   The SCMF5-B-BK supports cable outer diameters from 3.5-8 mm and includes interchangeable cable clamps for...
Read More

Product Information

SKU: 1621000246
GTIN: 810087375102
HS-Code: 85444290

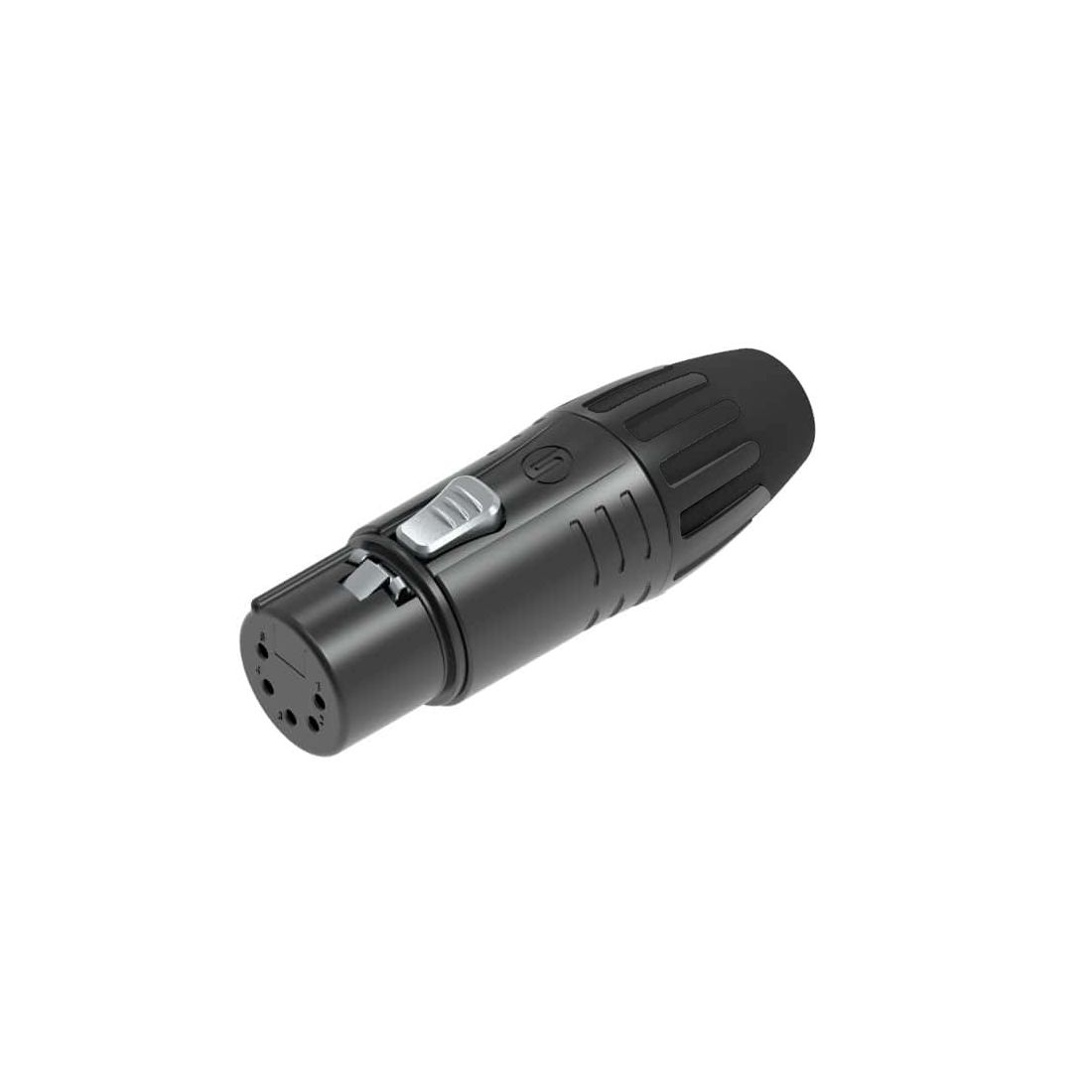

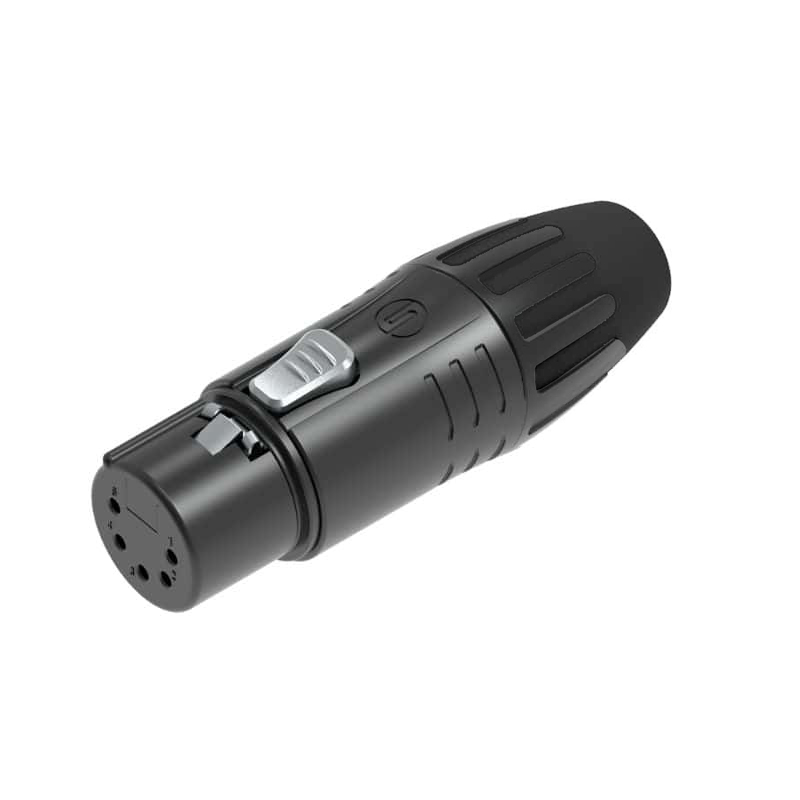

Seetronic SCMF5-B-BK is a professional 5-pin XLR female cable connector designed for reliable signal transmission in lighting, audio, and control systems. Built with a durable black-plated housing and silver-plated copper alloy contacts, it delivers excellent conductivity and stable performance for professional DMX and audio applications.

The SCMF5-B-BK supports cable outer diameters from 3.5-8 mm and includes interchangeable cable clamps for flexible cable management. Featuring a secure latch-lock mechanism and a compact no-ring design, it is ideal for touring equipment, stage productions, and professional installations where dependable XLR connectivity is essential.

Gallery

Specification

  • • Connection type: XLR
  • • Gender: Female

  • • Capacitance between contacts: ≤ 7 pF
  • • Contact resistance: ≤ 3 mΩ
  • • Dielectric strength: 1.5 kV DC
  • • Insulation resistance: > 10 GΩ (initial)
  • • Rated current per contact: 7.5 A
  • • Rated voltage: < 50 V

  • • Cable O.D. (black strain relief): 3.5–6 mm
  • • Cable O.D. (white strain relief): 6–8 mm
  • • Insertion force: ≤ 20 N
  • • Withdrawal force: ≤ 20 N
  • • Service life: > 1000 mating cycles
  • • Cable size: Max. 1.0 mm² / 18 AWG
  • • Locking device: Latch lock

  • • Boot: PA
  • • Contacts: Cu alloy
  • • Contact plating: Ag
  • • Insert: PA
  • • Housing: Zinc alloy
  • • Housing plating: Black plating
  • • Strain relief: POM
  • • Flame-retardant grade: UL 94 HB
  • • Protection class: IP40
  • • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
