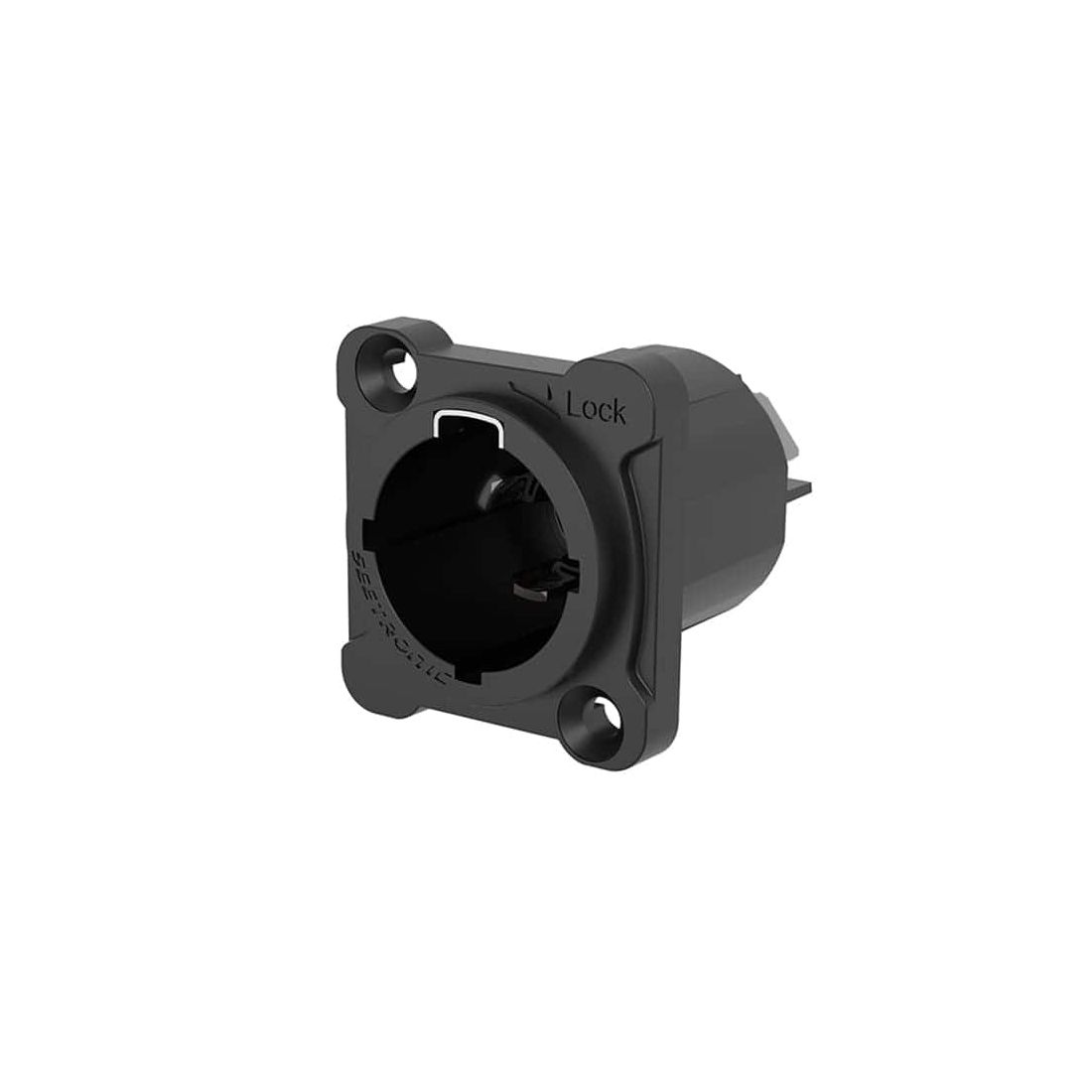

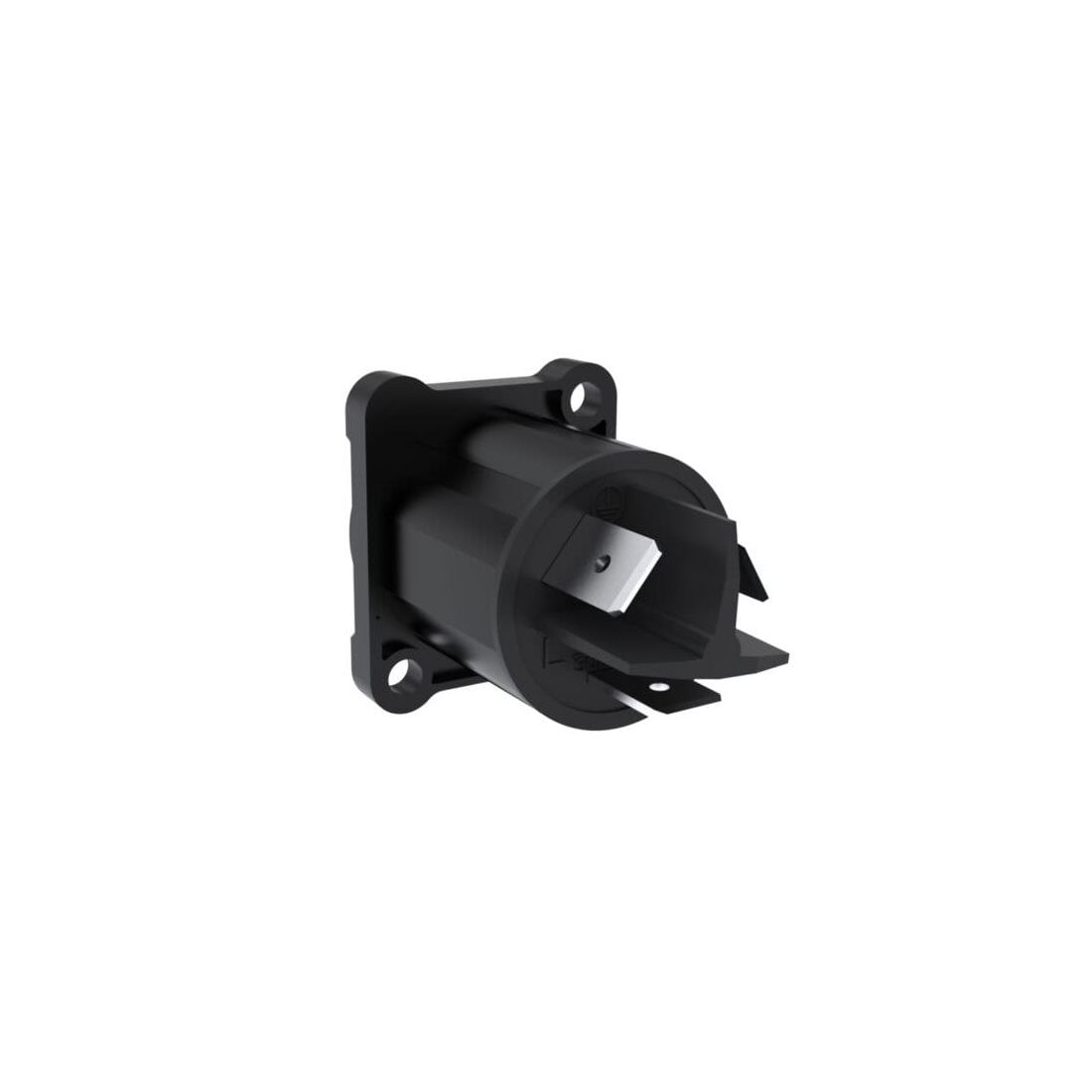

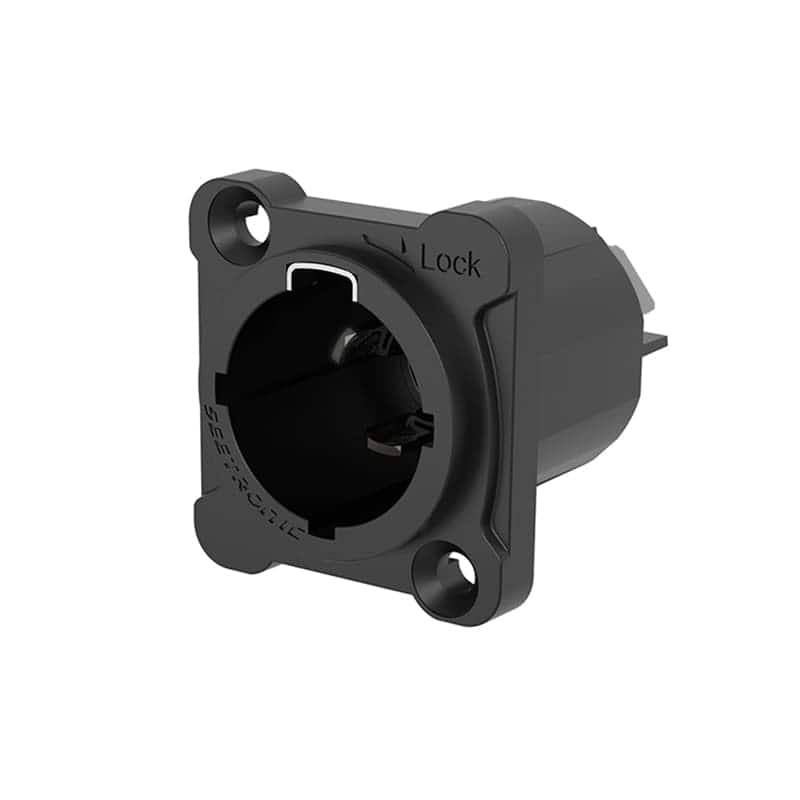

Seetronic-SAC3MPX Select New
Seetronic SAC3MPX is a professional IP65-rated power socket designed for reliable outdoor power connections in demanding entertainment and installation environments. Featuring a lockable 3-core design with line, neutral, and protective earth contacts, it ensures secure and stable power distribution for lighting, staging, and production equipment.
Built with a durable PA housing and silver-plated copper alloy contacts, the SAC3MPX delivers...
Product Information
SKU: 1621000261
GTIN: 810087375225
HS-Code: 85444290
Seetronic SAC3MPX is a professional IP65-rated power socket designed for reliable outdoor power connections in demanding entertainment and installation environments. Featuring a lockable 3-core design with line, neutral, and protective earth contacts, it ensures secure and stable power distribution for lighting, staging, and production equipment.
Built with a durable PA housing and silver-plated copper alloy contacts, the SAC3MPX delivers dependable performance in challenging conditions. Rated up to 16A @ 250V AC (TÜV) and 20A @ 300V AC (UL), it is ideal for touring, stage productions, and permanent installations where robust, weather-resistant power connectivity is essential.
Gallery
Specification
- • Number of contacts: 2 + PE
- • Rated current: 16 A (TÜV RH) / 20 A (UL)
- • Rated voltage: 250 V AC (TÜV RH) / 300 V AC (UL)
- • Contact resistance: ≤ 5 mΩ
- • Dielectric strength: 4000 V DC (1600 V/min AC UL)
- • Insulation resistance: > 1000 MΩ
- • Service life: > 1000 mating cycles
- • Cable size: 2.5 mm² / 12 AWG
- • Housing: PA
- • Contacts: Cu alloy
- • Contact plating: Ag
- • Flame-retardant grade: UL 94-V0
- • Temperature range: -30°C ~ +80°C
- • Protection degree: IP65
Specifications subject to change without notice
