Seetronic-SAC3MM Select New

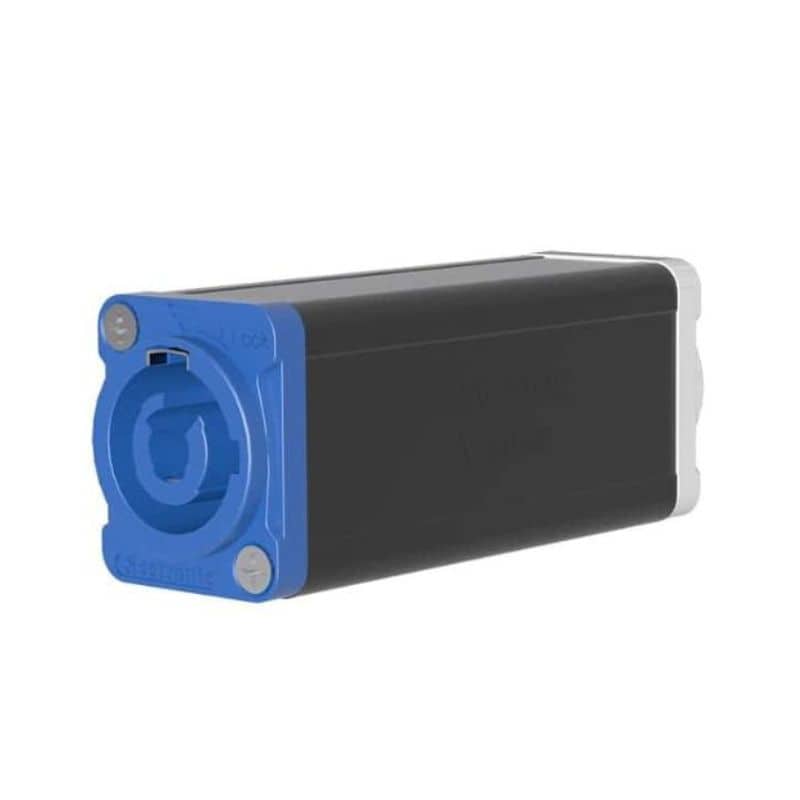

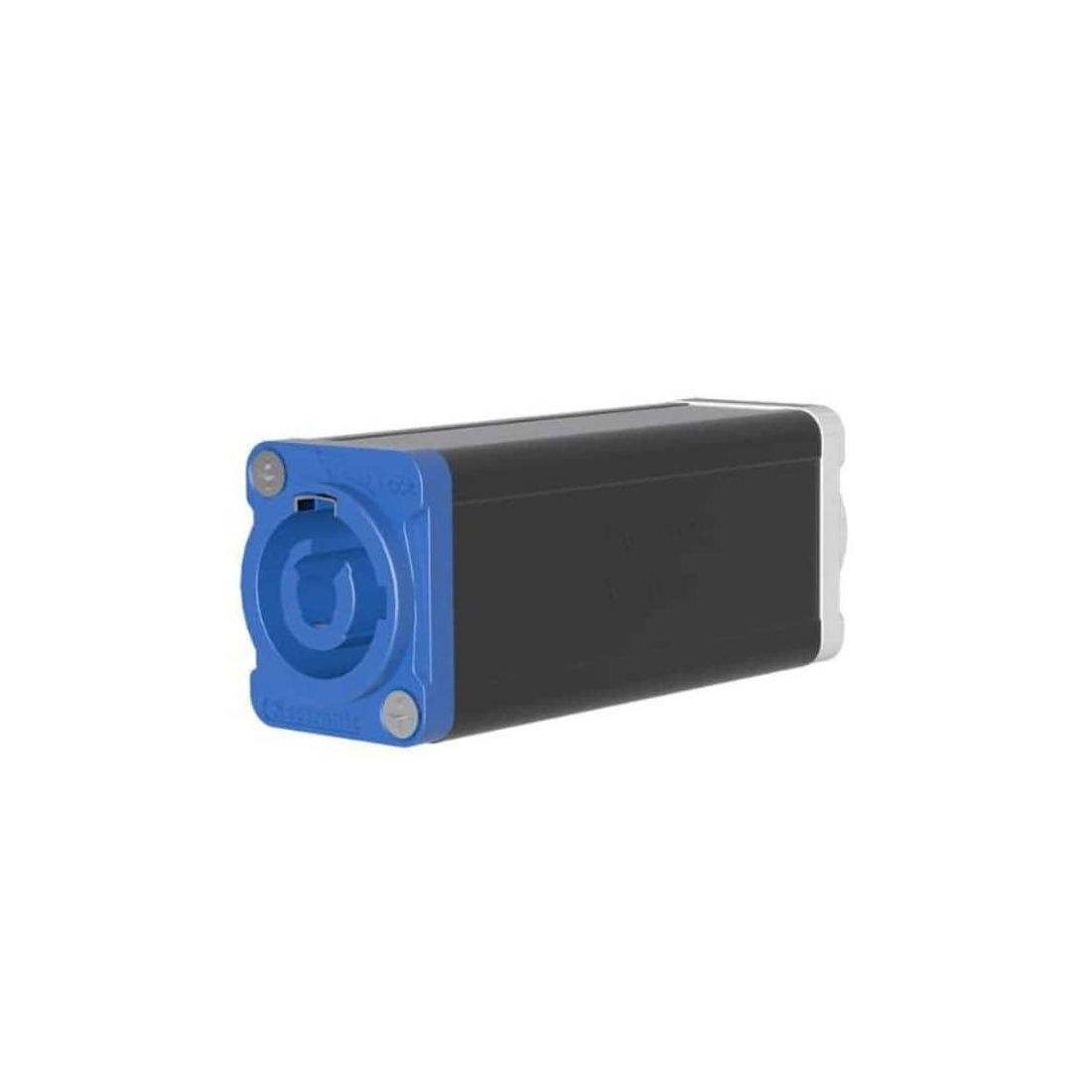

Seetronic SAC3MM is a professional power adapter designed for linking power cables in lighting, audio, and entertainment power distribution systems. This coupler provides a secure and reliable connection for extending or joining power lines in demanding professional environments.
Supporting both SAC3MPA power input and SAC3MPB power output connectors, the SAC3MM offers flexible integration into various power distribution setups. Rated up to 20A @...
Product Information
SKU: 1621000258
GTIN: 810087375195
HS-Code: 85444290
Seetronic SAC3MM is a professional power adapter designed for linking power cables in lighting, audio, and entertainment power distribution systems. This coupler provides a secure and reliable connection for extending or joining power lines in demanding professional environments.
Supporting both SAC3MPA power input and SAC3MPB power output connectors, the SAC3MM offers flexible integration into various power distribution setups. Rated up to 20A @ 250V AC and built with a durable aluminum housing and high-quality contacts, it ensures dependable performance for touring productions, stage installations, and professional power infrastructure.
Gallery
Specification
- • Connection type: Adapter
- • Number of contacts: 2 + PE
- • Rated current: 20 A
- • Rated voltage: 250 V AC
- • Contact resistance: ≤ 5 mΩ
- • Dielectric strength: 4 kV DC
- • Insulation resistance: > 1000 MΩ
- • Service life: > 1000 mating cycles
- • Contacts: Cu alloy
- • Contact plating: Ag
- • Housing: Aluminum
- • Flame-retardant grade: UL 94V-0
- • Temperature range: -30°C ~ +80°C
Specifications subject to change without notice
