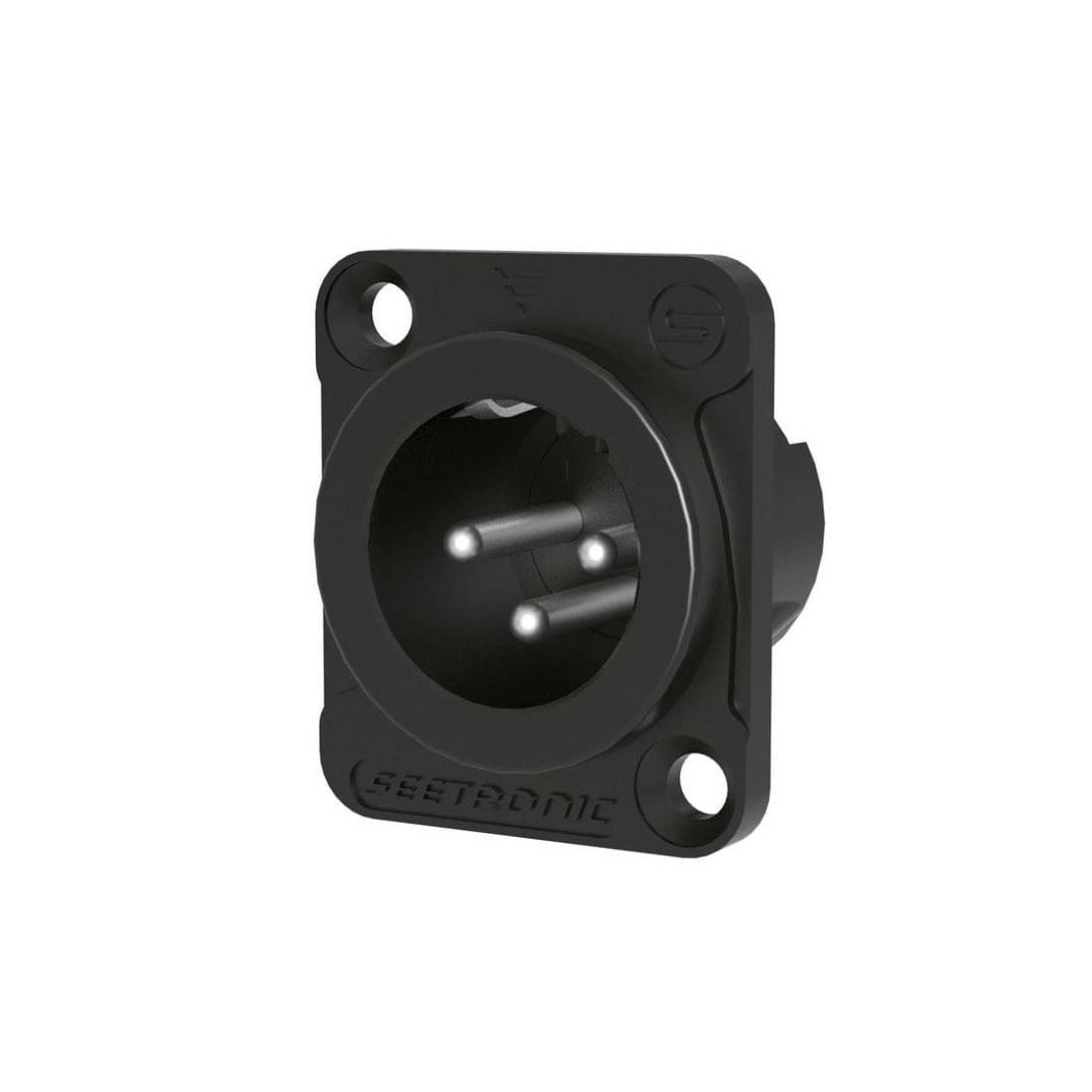

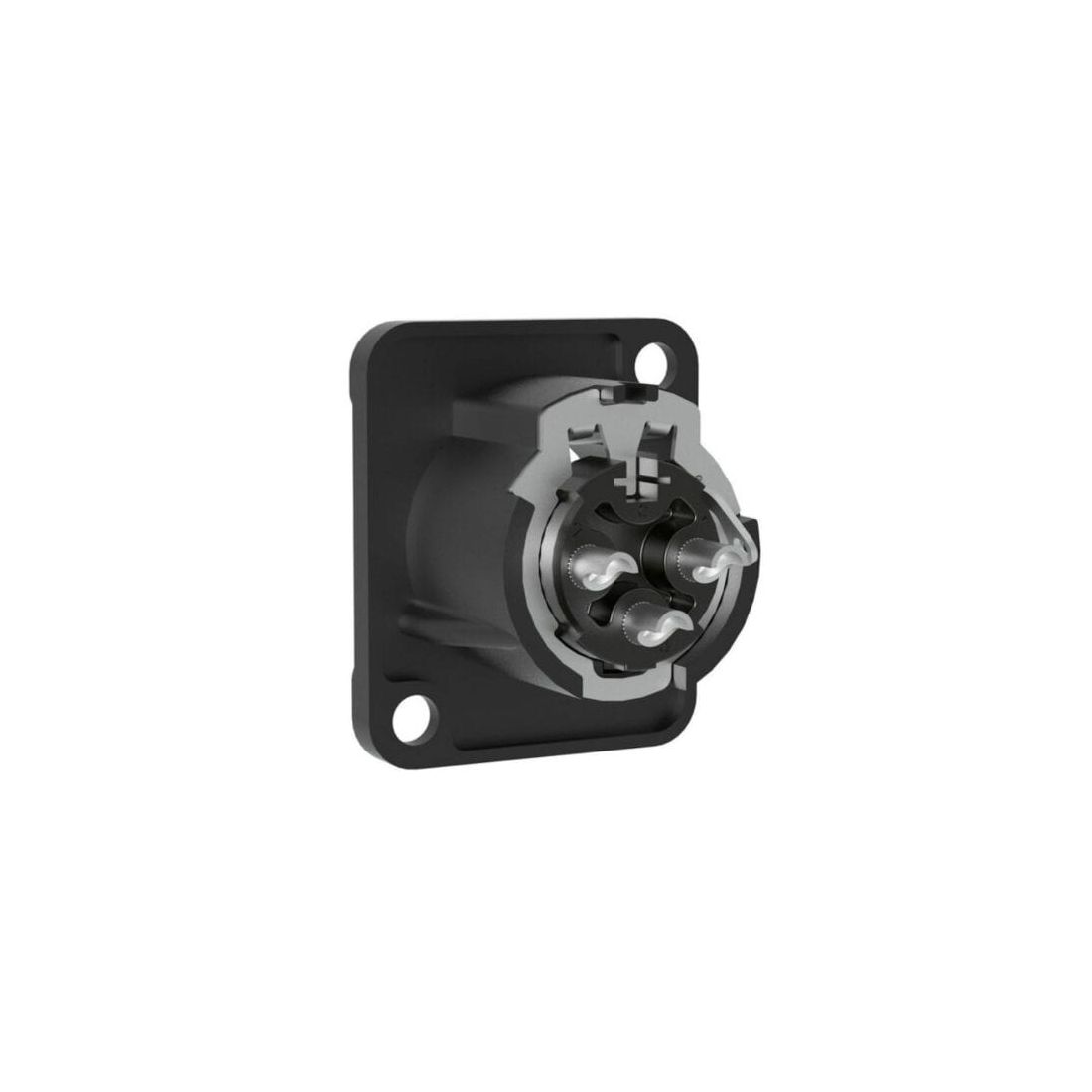

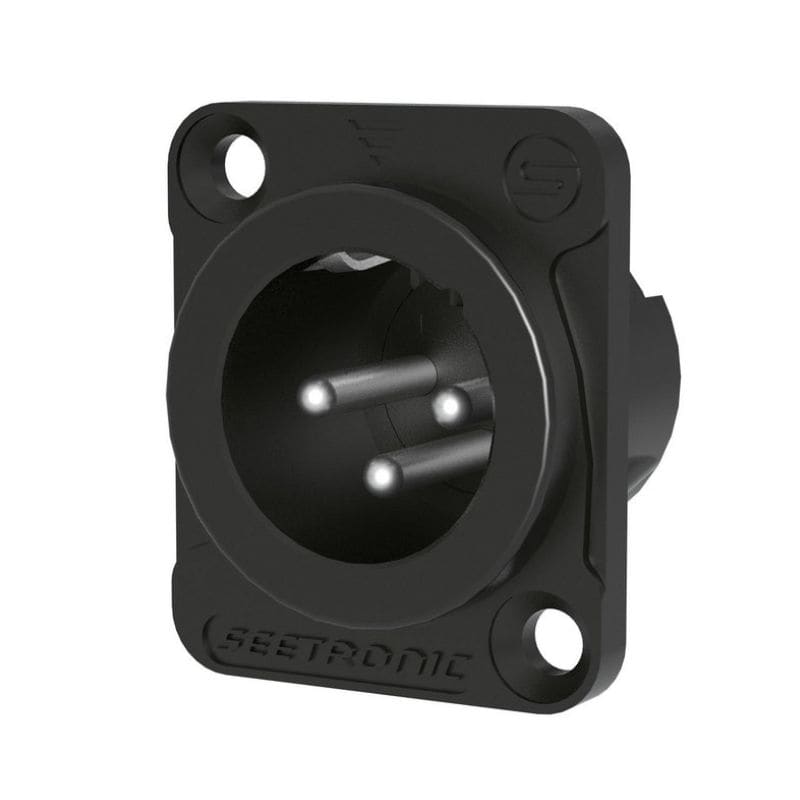

Seetronic MJ3F2C-B is a professional 3-pin XLR male panel socket designed for reliable signal connections in audio, lighting, and control systems. Built with a durable zinc alloy housing with black plating and silver-plated contacts, it delivers excellent conductivity and consistent performance for professional audio and DMX applications.
Featuring standard D-size panel mounting dimensions, the MJ3F2C-B allows installation from either the front or...
Product Information
SKU: 1621000242
GTIN: 810087375072
HS-Code: 85444290
Seetronic MJ3F2C-B is a professional 3-pin XLR male panel socket designed for reliable signal connections in audio, lighting, and control systems. Built with a durable zinc alloy housing with black plating and silver-plated contacts, it delivers excellent conductivity and consistent performance for professional audio and DMX applications.
Featuring standard D-size panel mounting dimensions, the MJ3F2C-B allows installation from either the front or rear of a panel for flexible integration into racks, enclosures, and stage equipment. With a compact design and a service life exceeding 1000 mating cycles, it is ideal for touring equipment, stage installations, and professional production environments.
Gallery
Specification
- • Connection type: XLR
- • Gender: Male
- • Capacitance between contacts: ≤ 4 pF
- • Contact resistance: ≤ 5 mΩ
- • Dielectric strength: 1500 V DC
- • Insulation resistance: > 10 GΩ (initial)
- • Rated current per contact: 16 A
- • Rated voltage: < 50 V
- • Service life: > 1000 mating cycles
- • Insertion force: ≤ 20 N
- • Withdrawal force: ≤ 20 N
- • Locking device: Latch lock
- • Chassis shape: D
- • Housing: Zinc alloy
- • Housing plating: Black plating
- • Insert: PA
- • Contacts: Cu alloy
- • Contact plating: Ag
- • Flame-retardant grade: UL 94-V0
- • Temperature range: -30°C ~ +80°C
- • Protection class: IP40
- • Solderability: Complies with IEC 68-2-20
Specifications subject to change without notice
