Seetronic-MJ5F2C-B Select New
Seetronic MJ5F2C-B is a professional XLR male panel socket designed for reliable signal connections in lighting, audio, and control systems. Built with a durable zinc alloy housing with black plating and silver-plated contacts, it ensures excellent conductivity and stable performance for professional DMX and audio applications.
Featuring standard D-size panel mounting dimensions, the MJ5F2C-B allows installation from either the front or rear of a...
Product Information
SKU: 1621000248
GTIN: 810087374839
HS-Code: 85444290

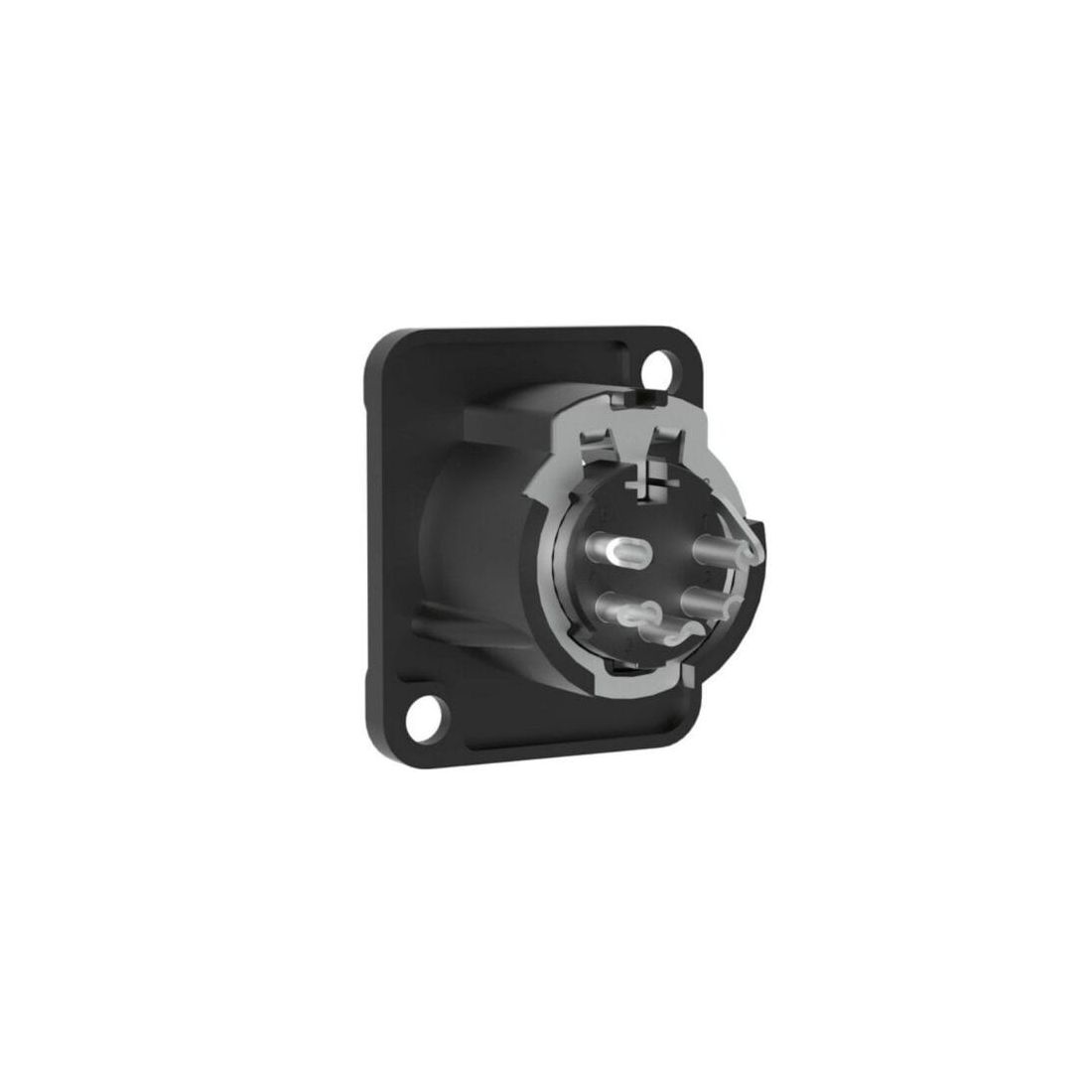

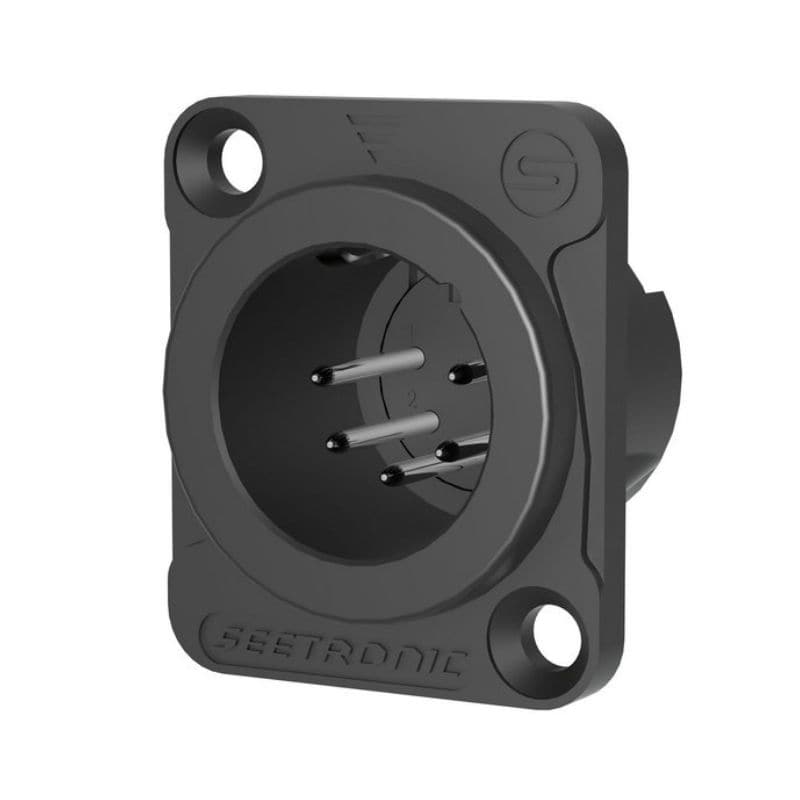

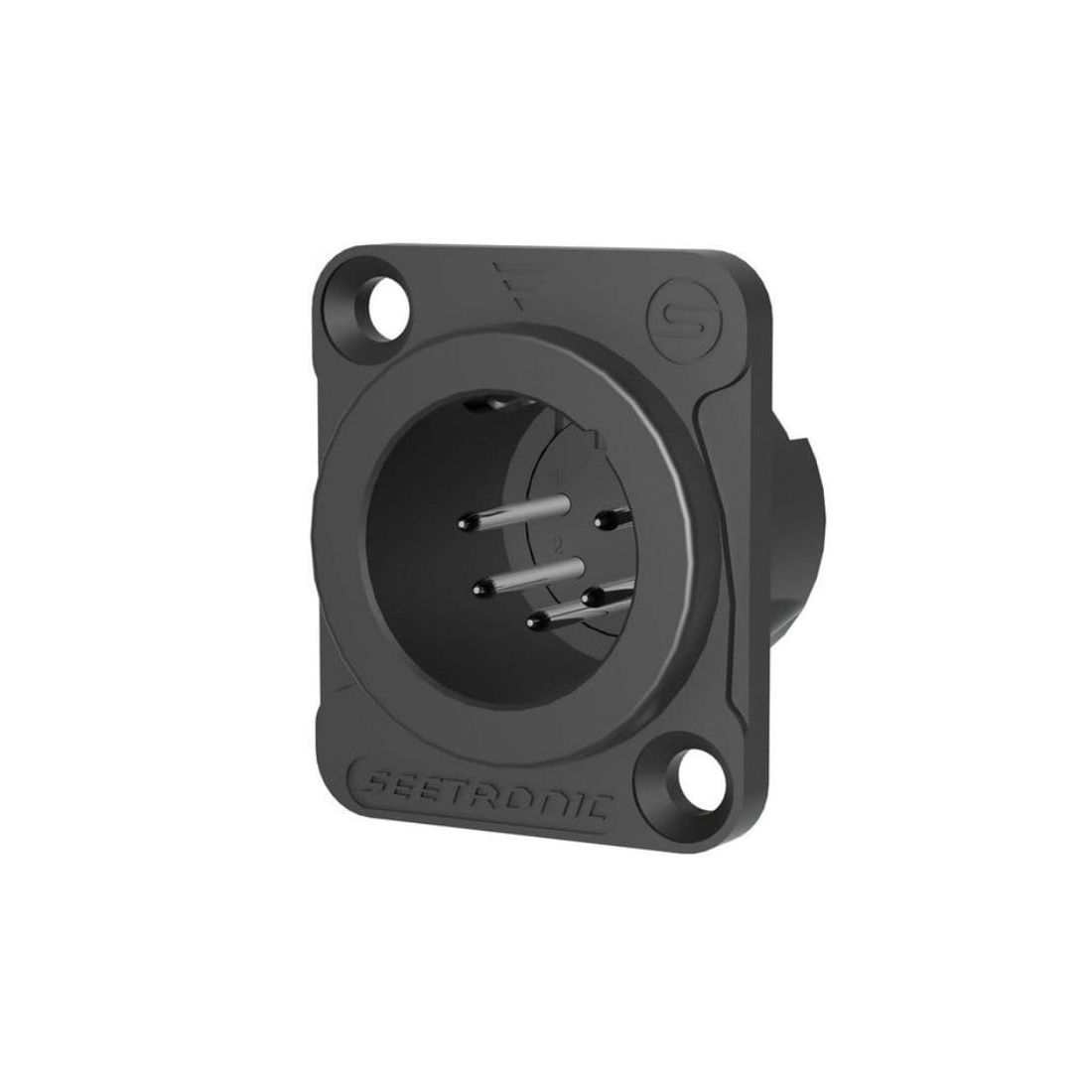

Seetronic MJ5F2C-B is a professional XLR male panel socket designed for reliable signal connections in lighting, audio, and control systems. Built with a durable zinc alloy housing with black plating and silver-plated contacts, it ensures excellent conductivity and stable performance for professional DMX and audio applications.
Featuring standard D-size panel mounting dimensions, the MJ5F2C-B allows installation from either the front or rear of a panel for flexible integration into racks, enclosures, and lighting fixtures. Its compact design and service life exceeding 1000 mating cycles make it ideal for touring equipment, stage installations, and professional production environments.
Gallery
Specification
- • Connection type: XLR
- • Gender: Male
- • Capacitance between contacts: ≤ 7 pF
- • Contact resistance: ≤ 5 mΩ
- • Dielectric strength: 1500 V DC
- • Insulation resistance: > 10 GΩ (initial)
- • Rated current per contact: 10 A
- • Rated voltage: < 50 V
- • Service life: > 1000 mating cycles
- • Insertion force: ≤ 20 N
- • Withdrawal force: ≤ 20 N
- • Locking device: Latch lock
- • Chassis shape: D
- • Housing: Zinc alloy
- • Housing plating: Black plating
- • Insert: PA
- • Contacts: Cu alloy
- • Contact plating: Ag
- • Flame-retardant grade: UL 94-V0
- • Temperature range: -30°C ~ +80°C
- • Protection class: IP40
- • Solderability: Complies with IEC 68-2-20
Specifications subject to change without notice
