Seetronic SAC3FPX20 is a compact D-size power-out panel socket designed for reliable power distribution in demanding outdoor and installation environments. Built for durability and modern equipment designs, this connector supports professional lighting, staging, and entertainment systems requiring secure and weather-resistant power connections. With an IP65 protection rating and IP67 protection for terminal equipment, the SAC3FPX20 is engineered...
Read More

Product Information

SKU: 1621000263
GTIN: 810087375249
HS-Code: 85444290
Seetronic SAC3FPX20 is a compact D-size power-out panel socket designed for reliable power distribution in demanding outdoor and installation environments. Built for durability and modern equipment designs, this connector supports professional lighting, staging, and entertainment systems requiring secure and weather-resistant power connections.
With an IP65 protection rating and IP67 protection for terminal equipment, the SAC3FPX20 is engineered for rugged outdoor use. Compatible with Seetronic SAC3MX power plugs, it supports high current loads up to 16A @ 250V AC (TÜV) and 20A @ 300V AC (UL). Its compact D-size format allows seamless integration into modern equipment where space-saving and reliability are essential.

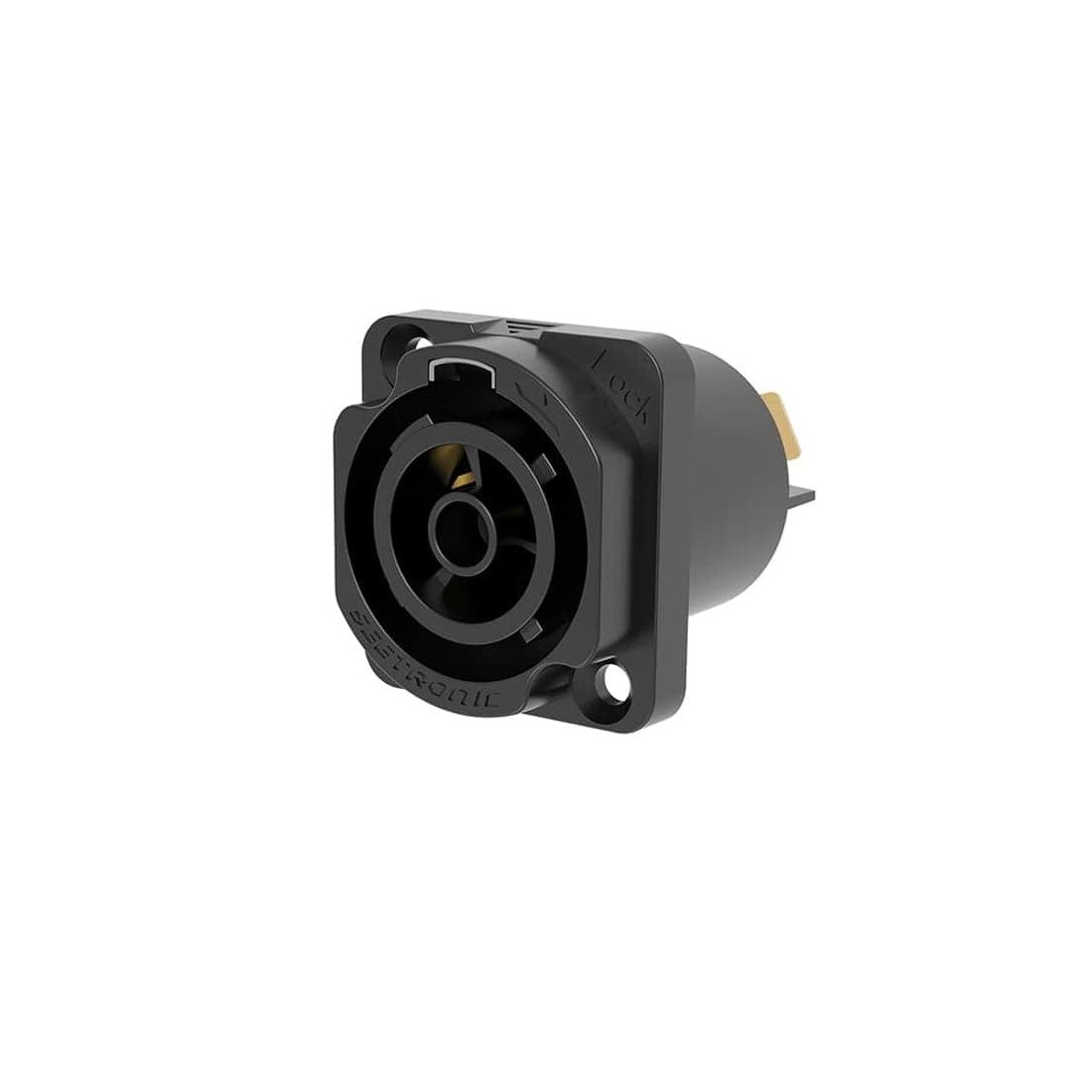

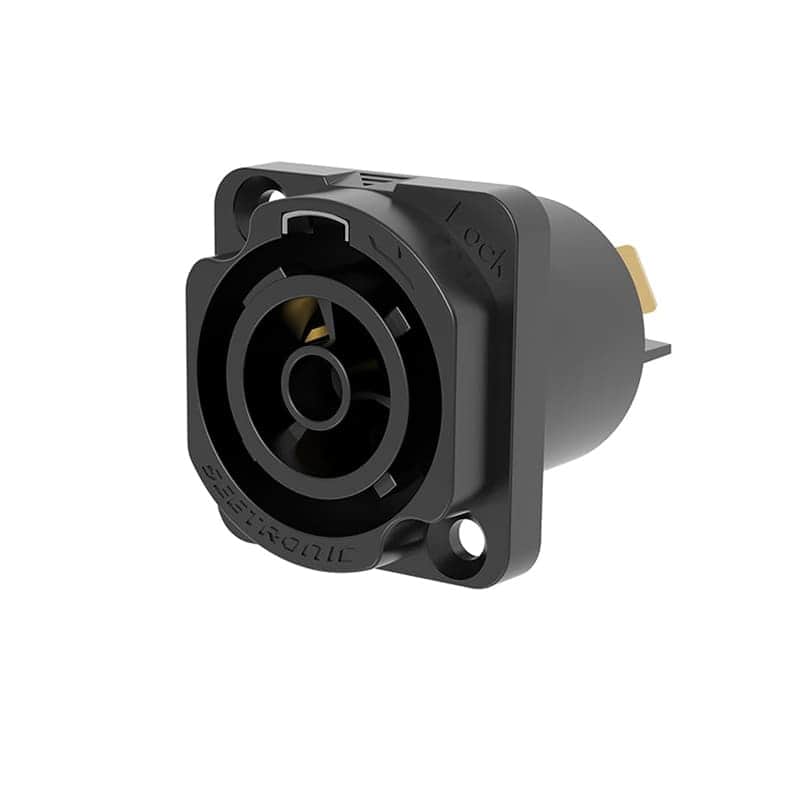

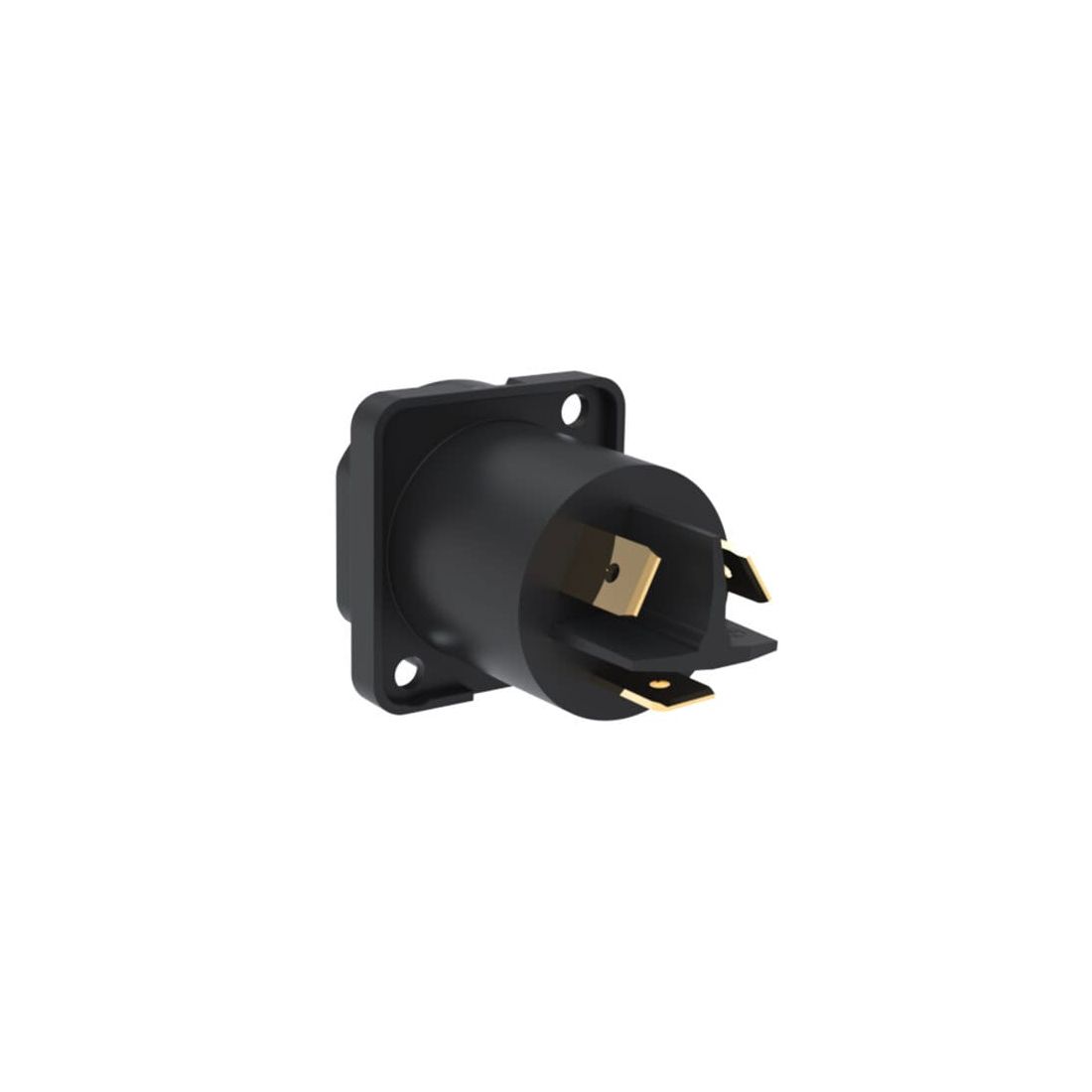

Gallery

Specification

  • • Number of contacts: 2 + PE
  • • Rated current: 16 A (TÜV RH) / 20 A (UL)
  • • Rated voltage: 250 V AC (TÜV RH) / 300 V AC (UL)
  • • Contact resistance: ≤ 5 mΩ
  • • Dielectric strength: 4000 V DC (1600 V/min AC UL)
  • • Insulation resistance: > 1000 MΩ

  • • Upgraded compact D-size female power-out socket
  • • Service life: > 1000 mating cycles
  • • Cable size: 2.5 mm² / 12 AWG

  • • Housing: PA
  • • Contacts: Cu alloy
  • • Contact plating: Ag
  • • Flame-retardant grade: UL 94-V0
  • • Temperature range: -30°C ~ +80°C
  • • Protection class: IP65 (connector) / IP67 (terminal equipment)
Specifications subject to change without notice
