Akro ATS218 Sub Select New
The Avante Tour series ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante ATL328 line array.
Product Information
SKU: 1163900044
GTIN: 810087374280
HS-Code: 8518220000
The Avante Tour series ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante ATL328 line array.
Gallery
Specification
- • Speaker type: 1-way active dual 18-inch subwoofer, Milan certified

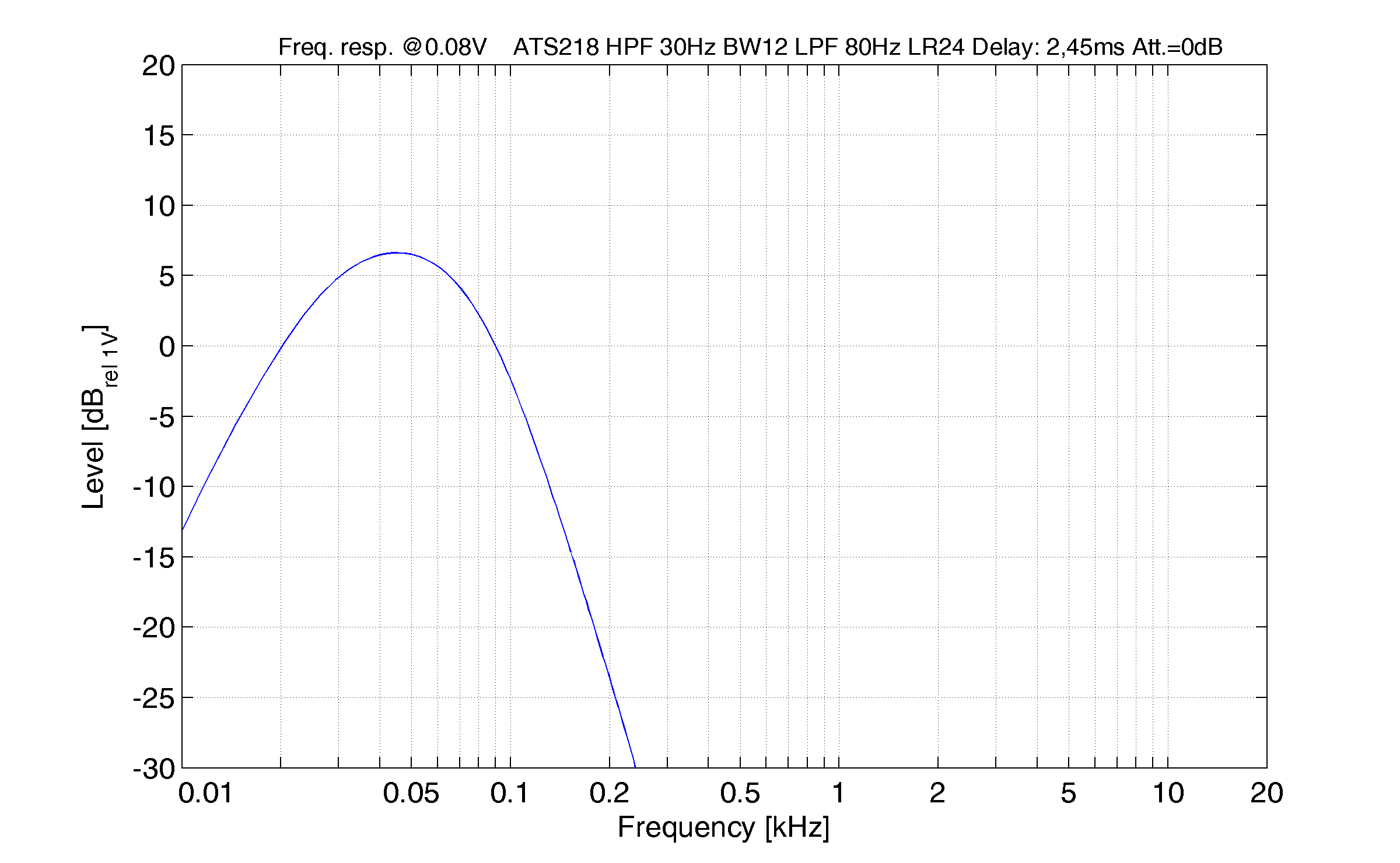

- • Frequency response: 35 - 200 Hz
- • Max. SPL: 132 dB
- • LF: 2 x 18-inch ferrite woofers with 4-inch voice coils
- • Amplifier power: 1200 W RMS / 2400 W program / 4800 W peak
- • Cooling: Convection with internal fan
- • Power supply: Auto-switching AC 100-240 V, 50/60 Hz
- • Protection: Thermal, DC offset, output short circuit
- • Controller: 64-bit multimode processor with Milan
- • AD/DA converter: 96 kHz
- • Limiter: Multiband compressor and peak limiter
- • Processing filters: 10-band IIR

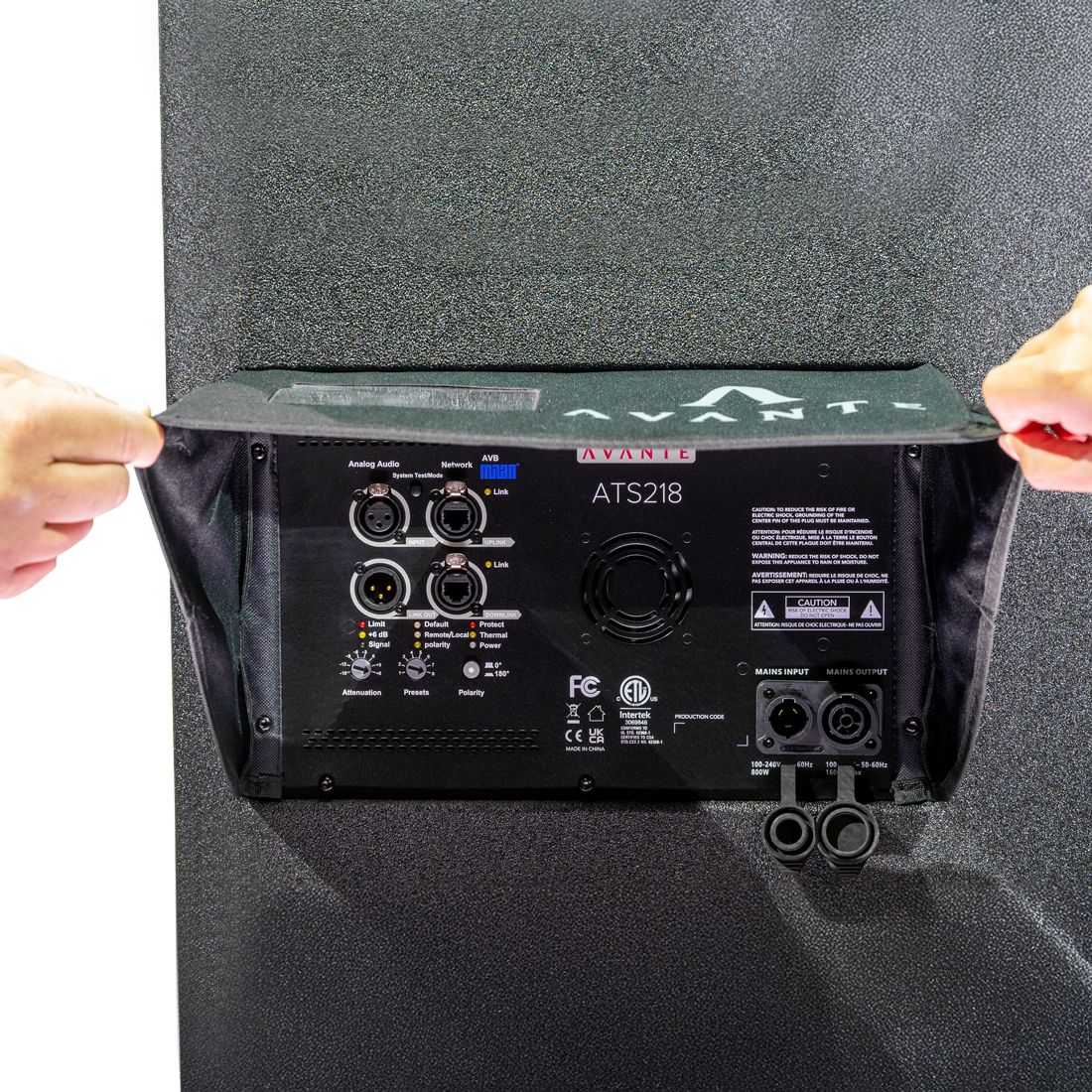

- • Analog signal input/output: 3-pin XLR
- • Power connection: IP65 locking power input/output
- • Network: Locking RJ45 input/output for control and Milan
- • Controls: Input attenuation (-15 dB to +6 dB), system test and reset button
- • Special features: Frontal LED identification system
- • Current draw: 3.7 A
- • Power consumption: 428 W
- • Full system control and monitoring via AKRO Command software
- • Compatible with macOS and Windows (32-bit / 64-bit)
- • Housing: Multiplex plywood with Polyurea coating
- • Handles: 4 integrated handles (2 per side)
- • Rain cover: Included and permanently attached
- • Rigging points: Fixation holes for AFB328 flybar attachment
- • Dimensions (L x W x H): 1219 x 575 x 575 mm
- • Weight: 79 kg
- • CVR218 protective cover for one ATS218
- • ADB218 transport dolly board for up to two ATS218 subwoofers
- • ASB218 stabilizer bars for ATS218 (2-piece set)
- • MPC IP65 locking power cable (various lengths)
- • CAT6IP10 UTP network cable (various lengths)
- • AC-PRO XLR audio cable (various lengths)
Specifications subject to change without notice
