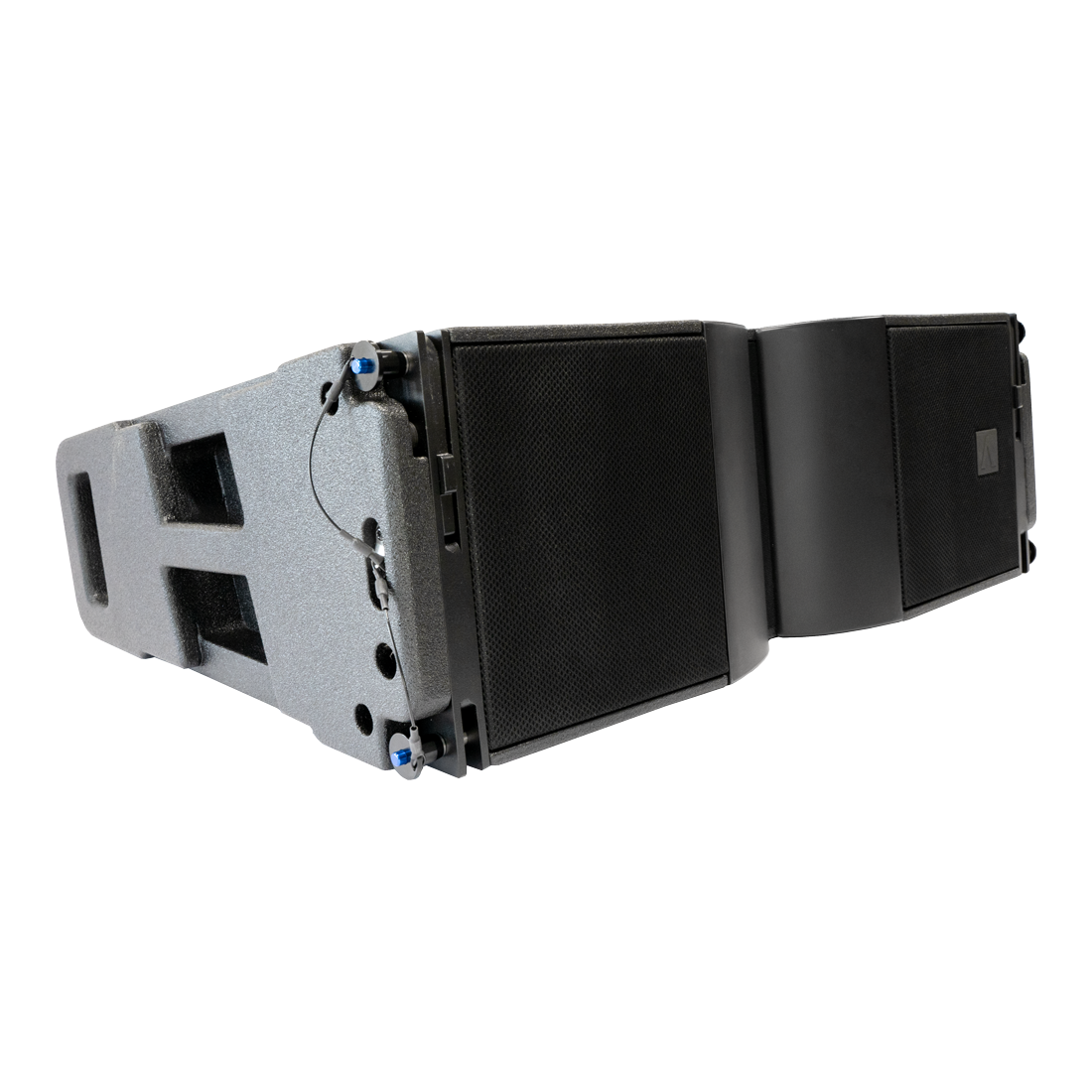

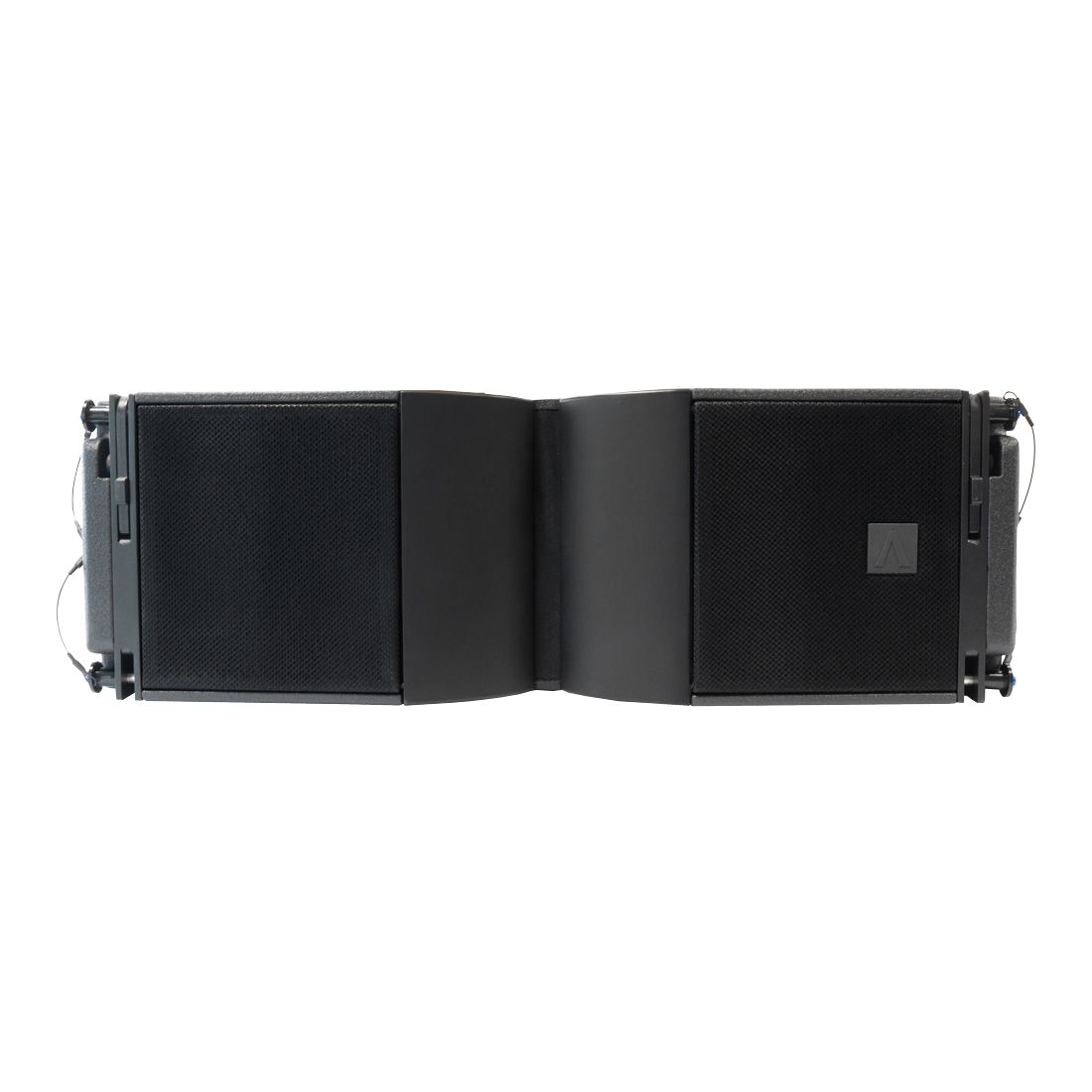

Akro ATL328 Top Select New

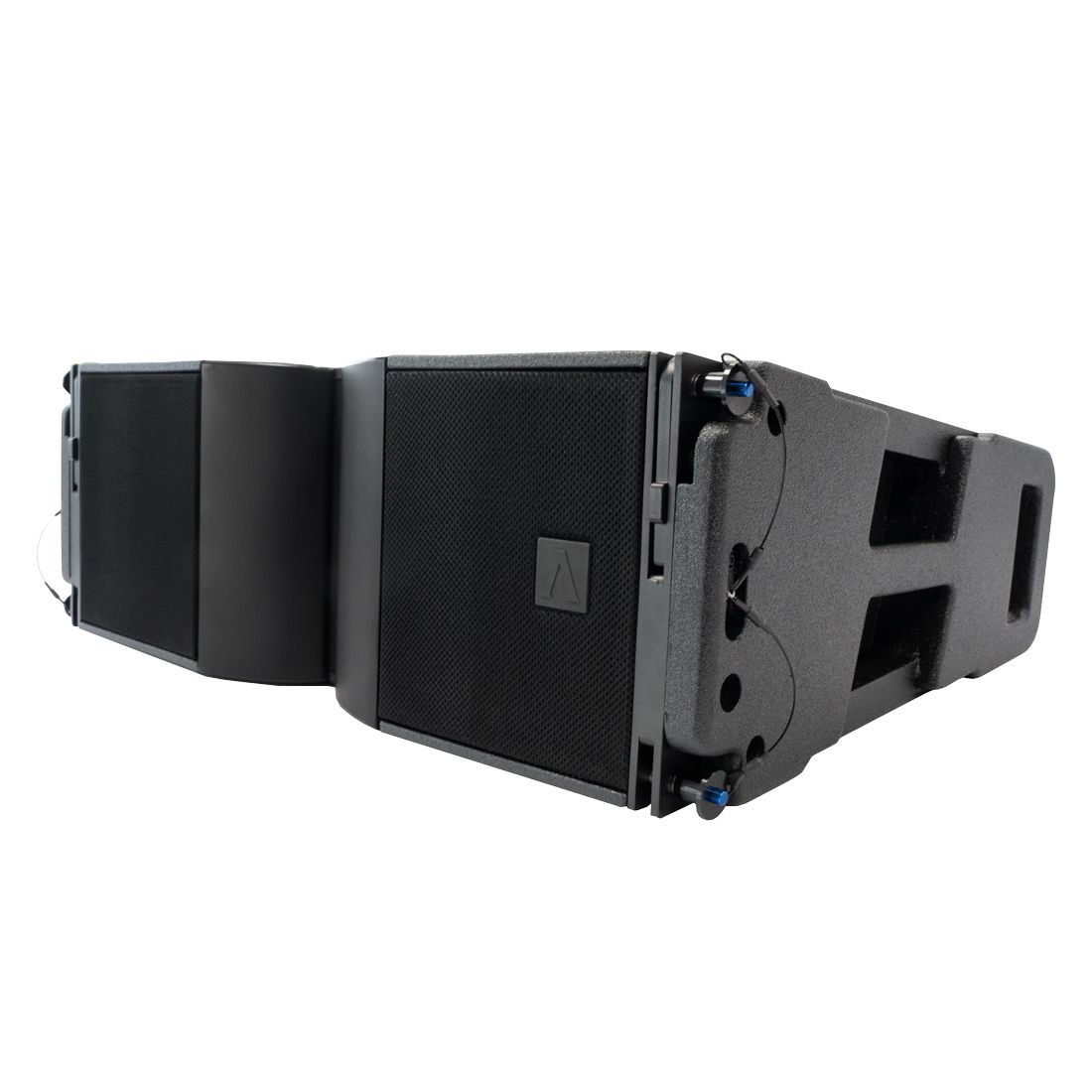

The Avante Tour series ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante ATS218 subwoofer.
Product Information
SKU: 1163900043
GTIN: 810087374273
HS-Code: 8518220000
The Avante Tour series ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante ATS218 subwoofer.
Gallery
Specification
- • Speaker type: 3-way active dual 8-inch line array module, Milan certified

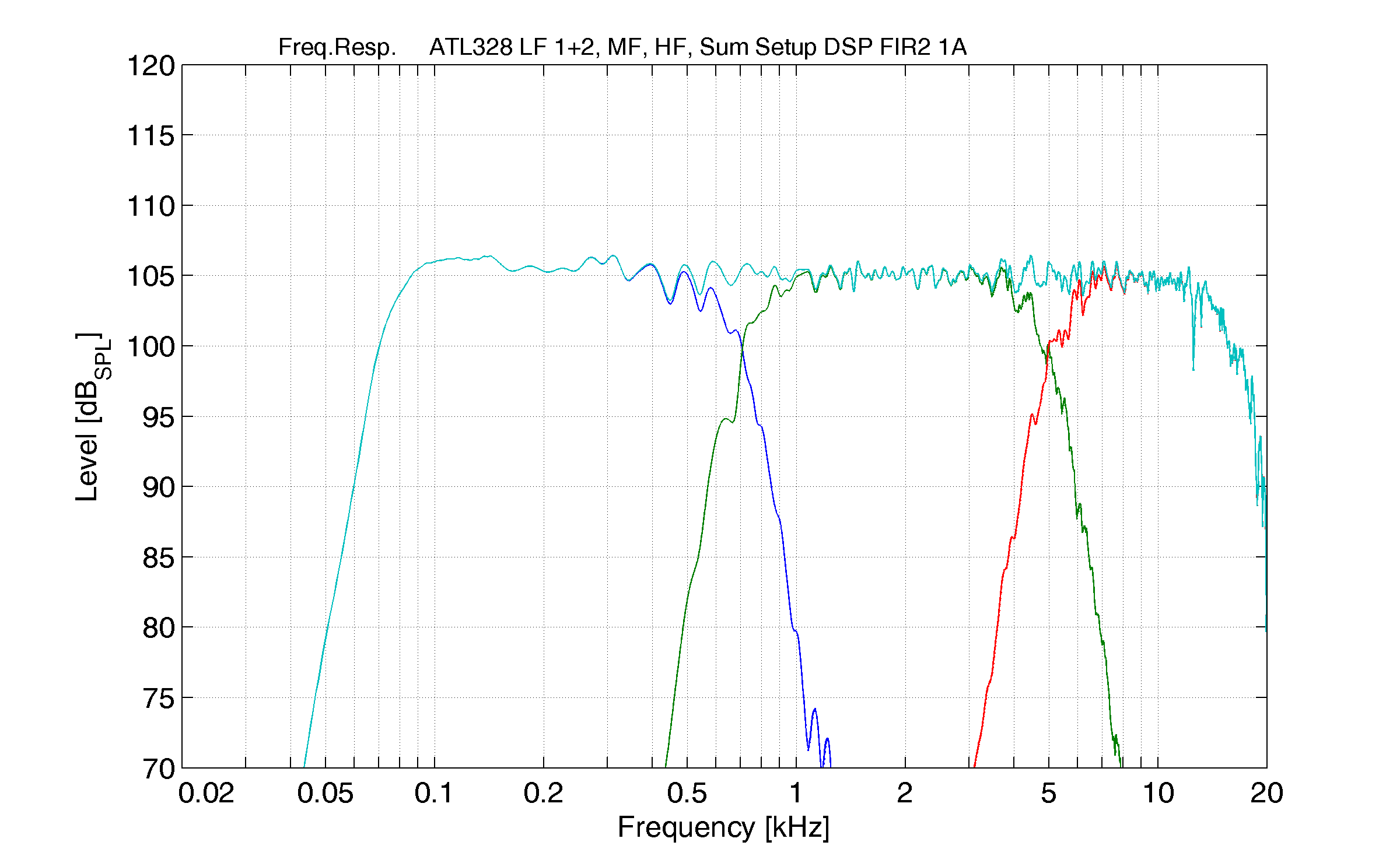

- • Frequency response: 70 - 20,000 Hz
- • Max. SPL: 127 dB (single unit)
- • MF/HF: 4-inch MF + 2.55-inch HF neodymium drivers on custom waveguide
- • LF: 2 x 8-inch neodymium woofers with 2.5-inch voice coils
- • Crossover frequencies: 600 Hz / 3.5 kHz
- • Horizontal directivity: 110°
- • Vertical directivity: Depends on array size and configuration
- • Channels: 3 channels (1 LF, 1 MF, 1 HF)
- • Power: 600 W RMS / 1200 W program / 1800 W peak
- • Cooling: Convection with internal fan
- • Power supply: Auto-switching AC 100-240 V, 50/60 Hz
- • Protection: Thermal, DC offset, output short circuit
- • DSP: 64-bit multimode processor with Milan
- • Sample rate: 96 kHz
- • Limiter: Multiband compressor and peak limiter
- • Processing filters: FIR linear phase and 10-band IIR

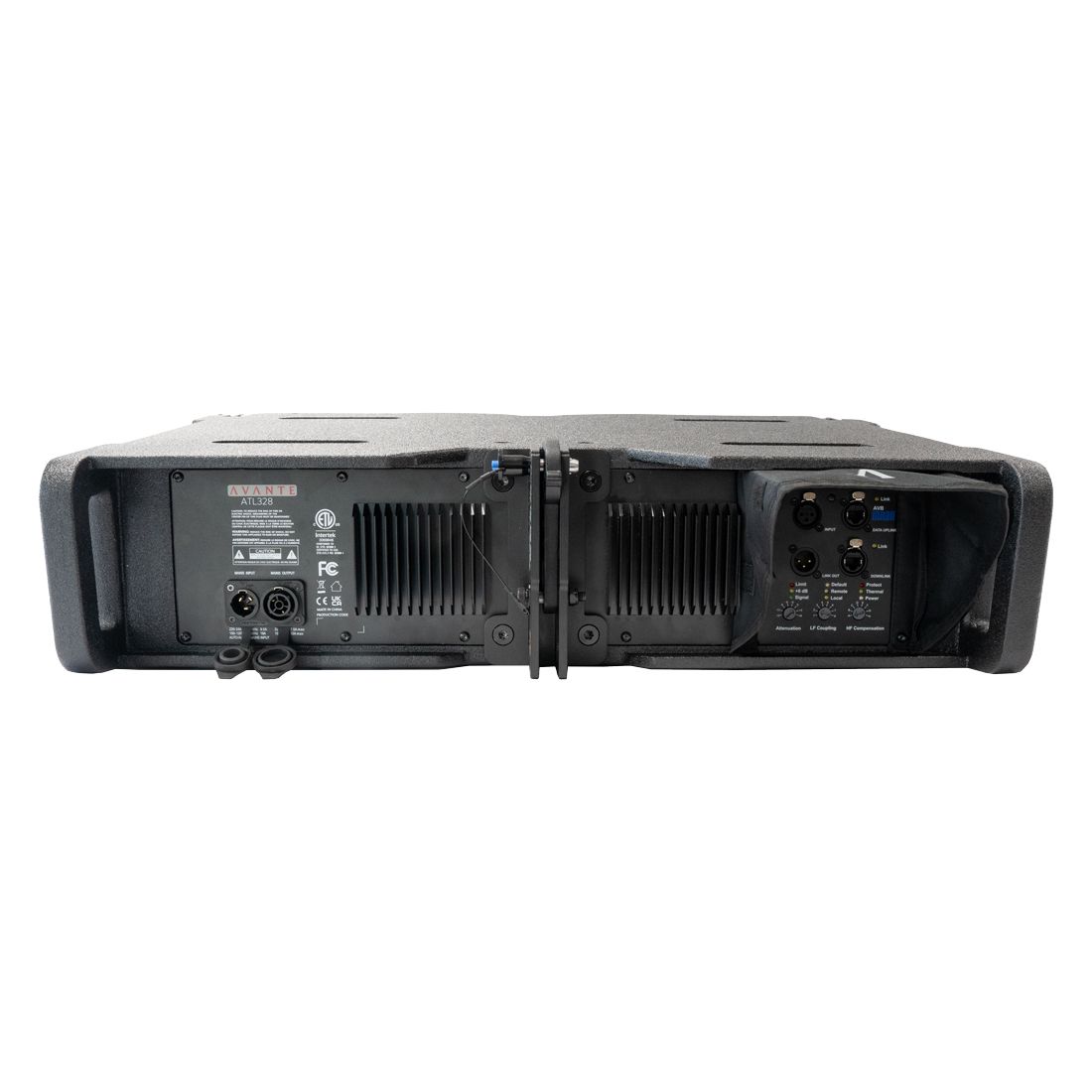

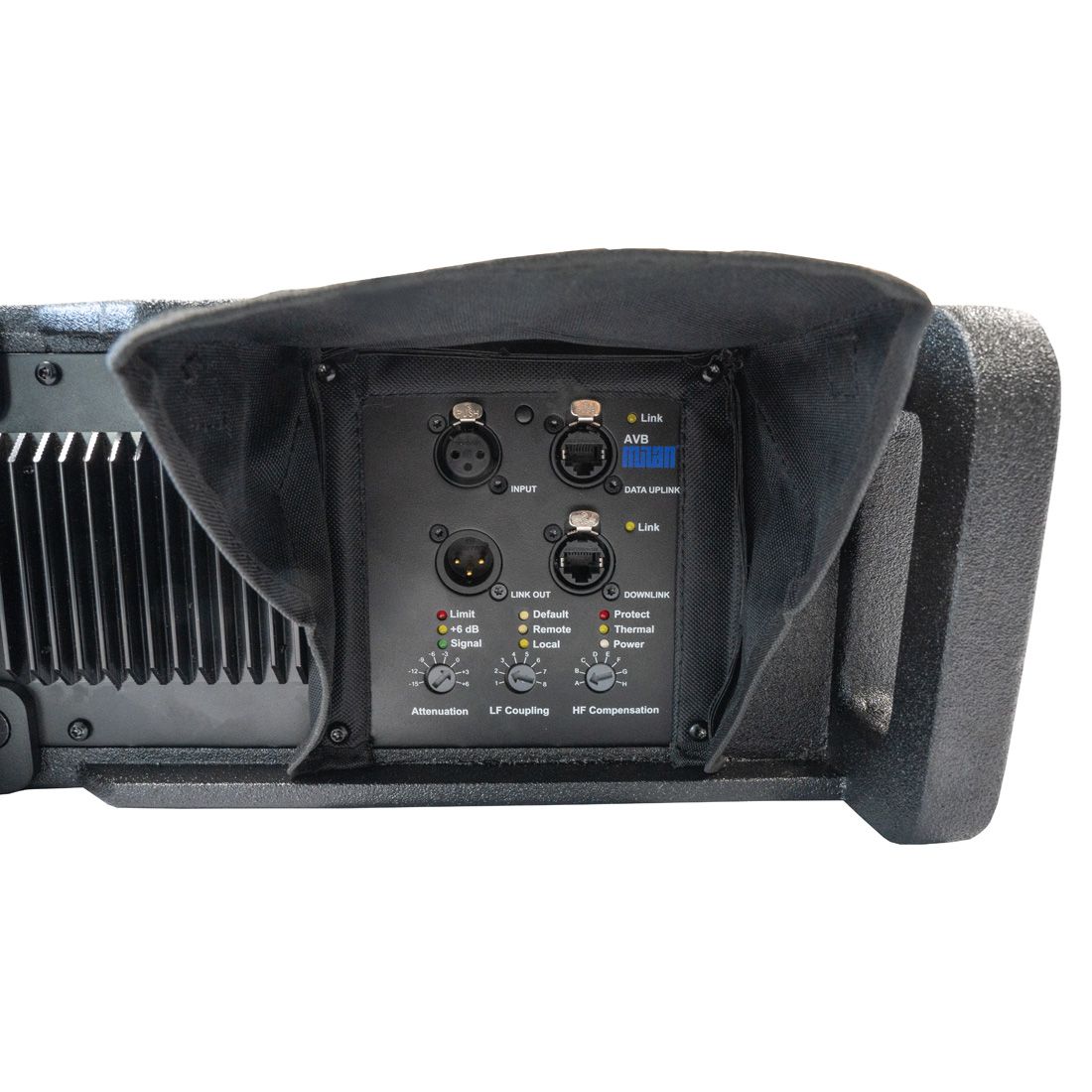

- • Analog signal input/output: 3-pin XLR
- • Power connection: IP65 locking power input/output
- • Network: Locking RJ45 input/output for control and Milan
- • Controls: Input attenuation (-15 dB to +6 dB), LF coupling (8 presets), HF compensation (8 presets), system test and reset button
- • Special features: Frontal LED identification system, inclinometer
- • Power linking: Up to 6 speaker cabinets @ 208 V / 20 A
- • Power draw (1/8 power): 2.6 A / 198 W
- • Full system control and monitoring via AKRO Command software
- • Compatible with macOS and Windows (32-bit / 64-bit)
- • Housing: Multiplex plywood with Polyurea coating
- • Housing design: Trapezoidal
- • Handles: 4 integrated handles (1 per side, 2 on rear)
- • Rain cover: Included and permanently attached

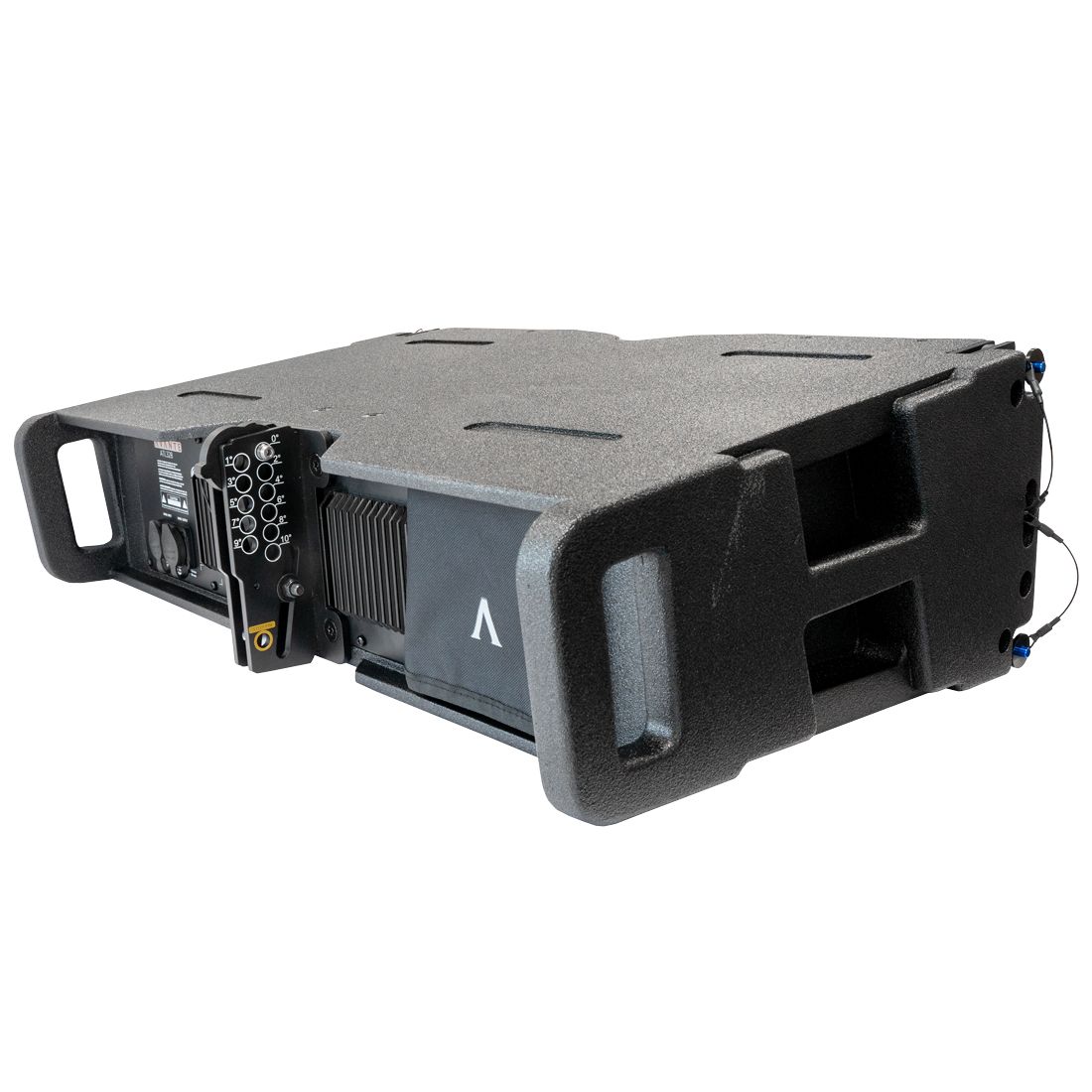

- • Rigging: Integrated 3-point rigging hardware
- • Dimensions (W x H x D): 760 x 230 x 465 mm
- • Weight: 28.6 kg
- • ATC328 transport cart for up to 5 x ATL328
- • CVR328 protective cover for 4 x ATL328
- • AFB328 array flybar / ground stack base
- • ASB328 stabilizer bars for ATC328 (2-piece set)
- • MPC IP65 locking power cable (various lengths)
- • CAT6IP10 UTP network cable (various lengths)
- • AC-PRO XLR audio cable (various lengths)
Specifications subject to change without notice
