Vizi Beam CMY
Select
New

Brand

Key Features

Color
Color
• CMY Color Mixing
• 14 Dichroic Colors + White (includes CTO (3200K), CTB (9000K) & UV)
• Indexable Color Wheel (for split colors)
Optics
Optics
• 2° Beam Angle
• Motorized Focus + 16-bit Fine Focus
• 2 Rotating Prisms
Source
Source
• OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
• Color Temperature: 7850K (+/- 500K)
• CRI: 86 (+/- 5)

Product Information

SKU: 1237000338
GTIN: 810087372477
HS-Code: 94054910

PRELIMINARY DATA - SPECIFICATIONS SUBJECT TO CHANGE

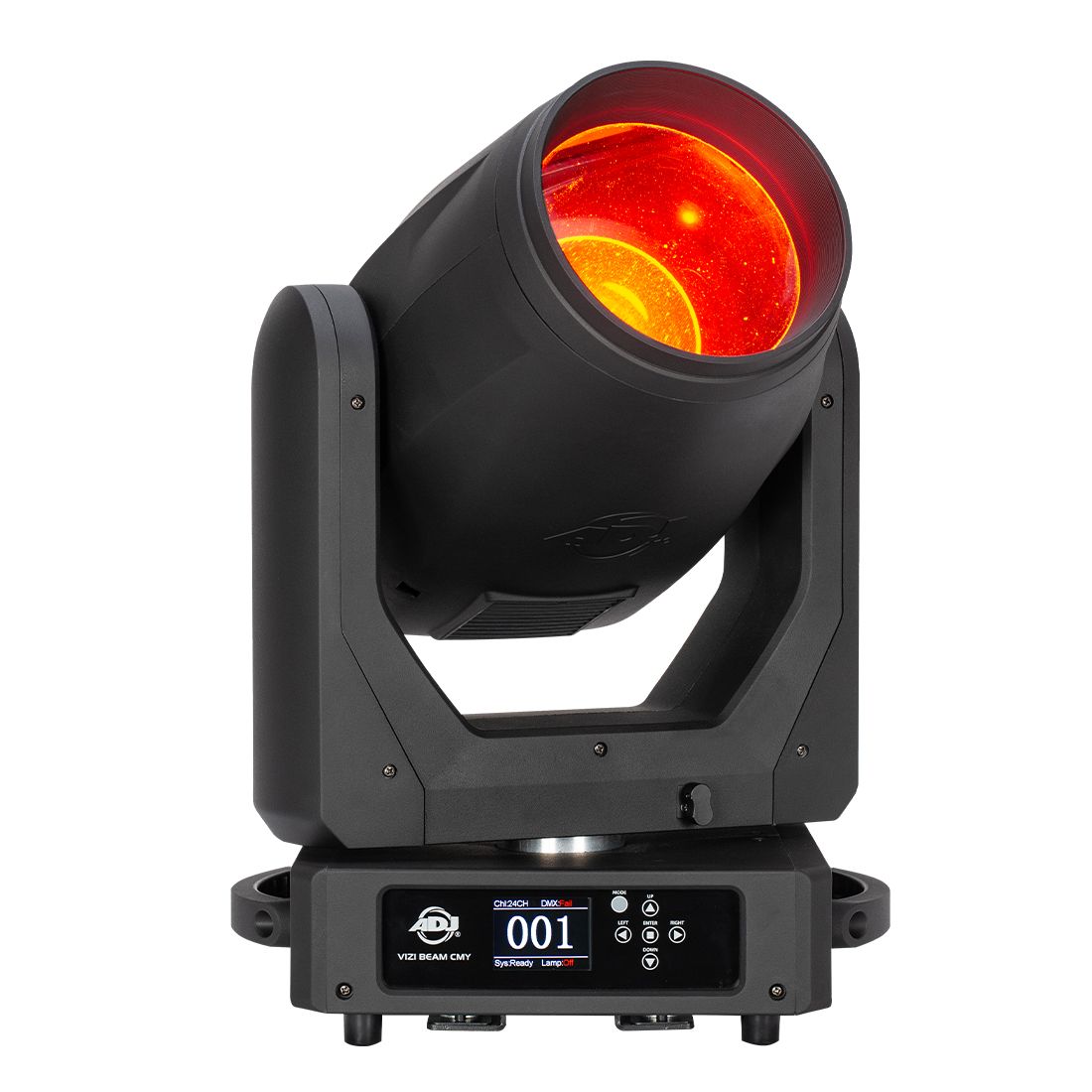

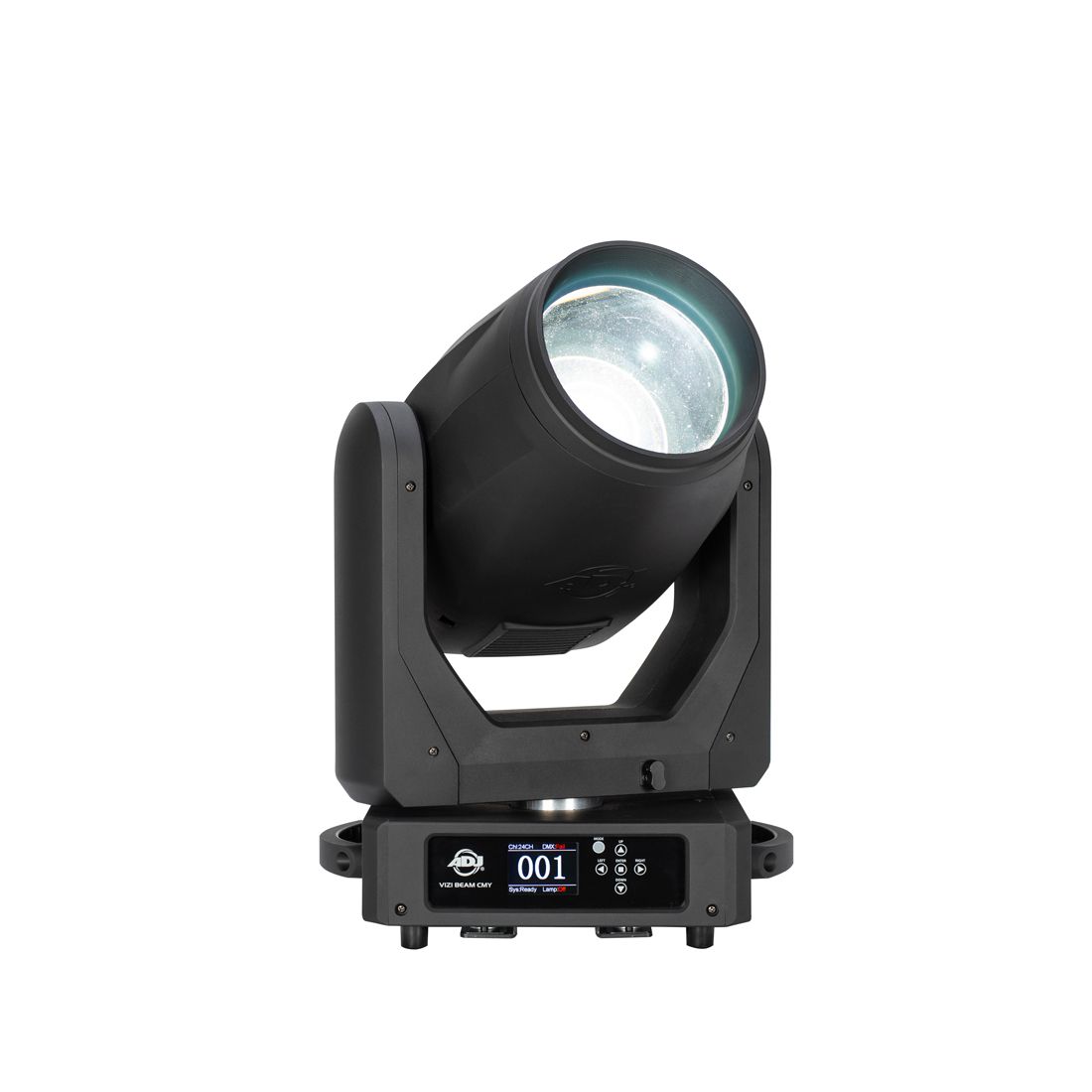

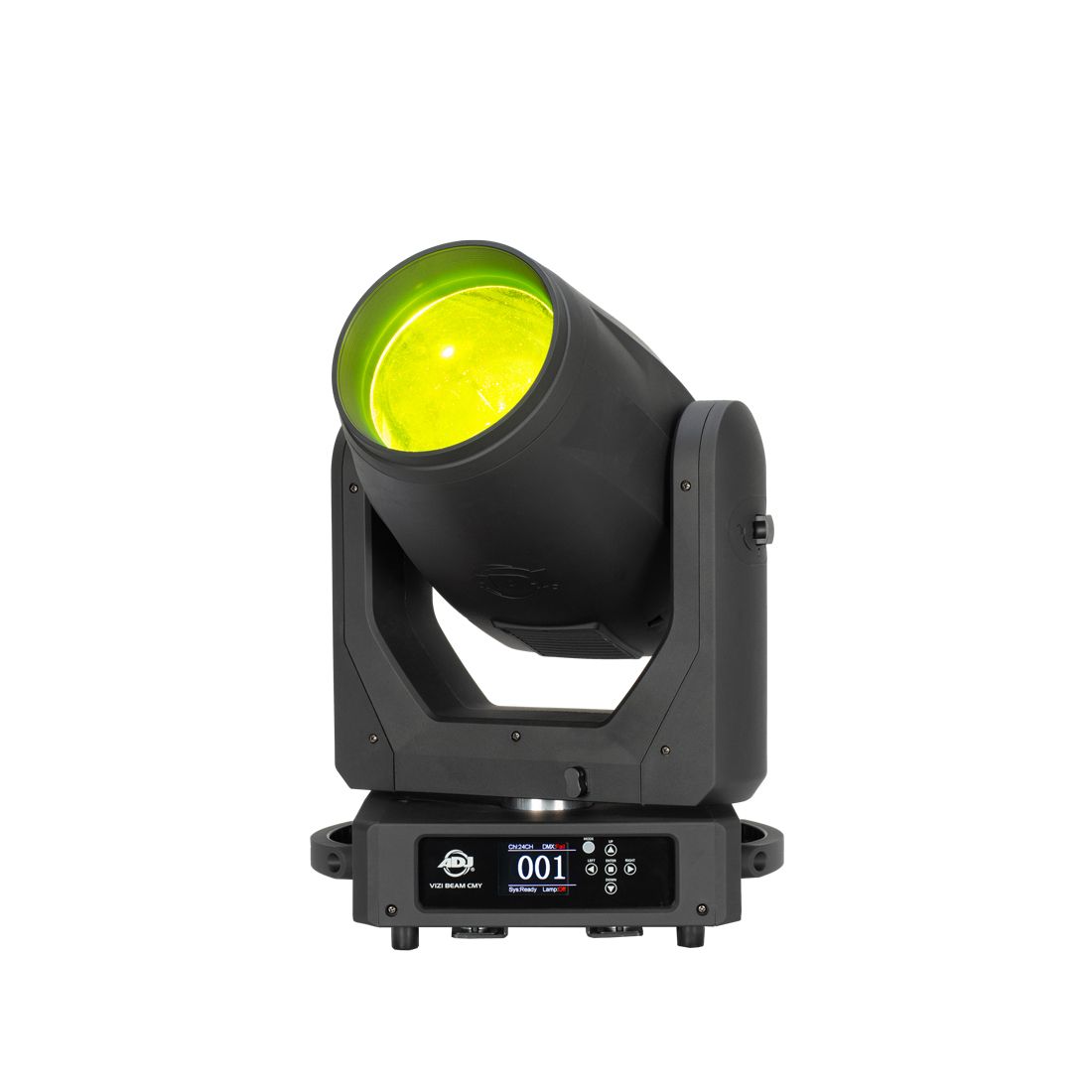

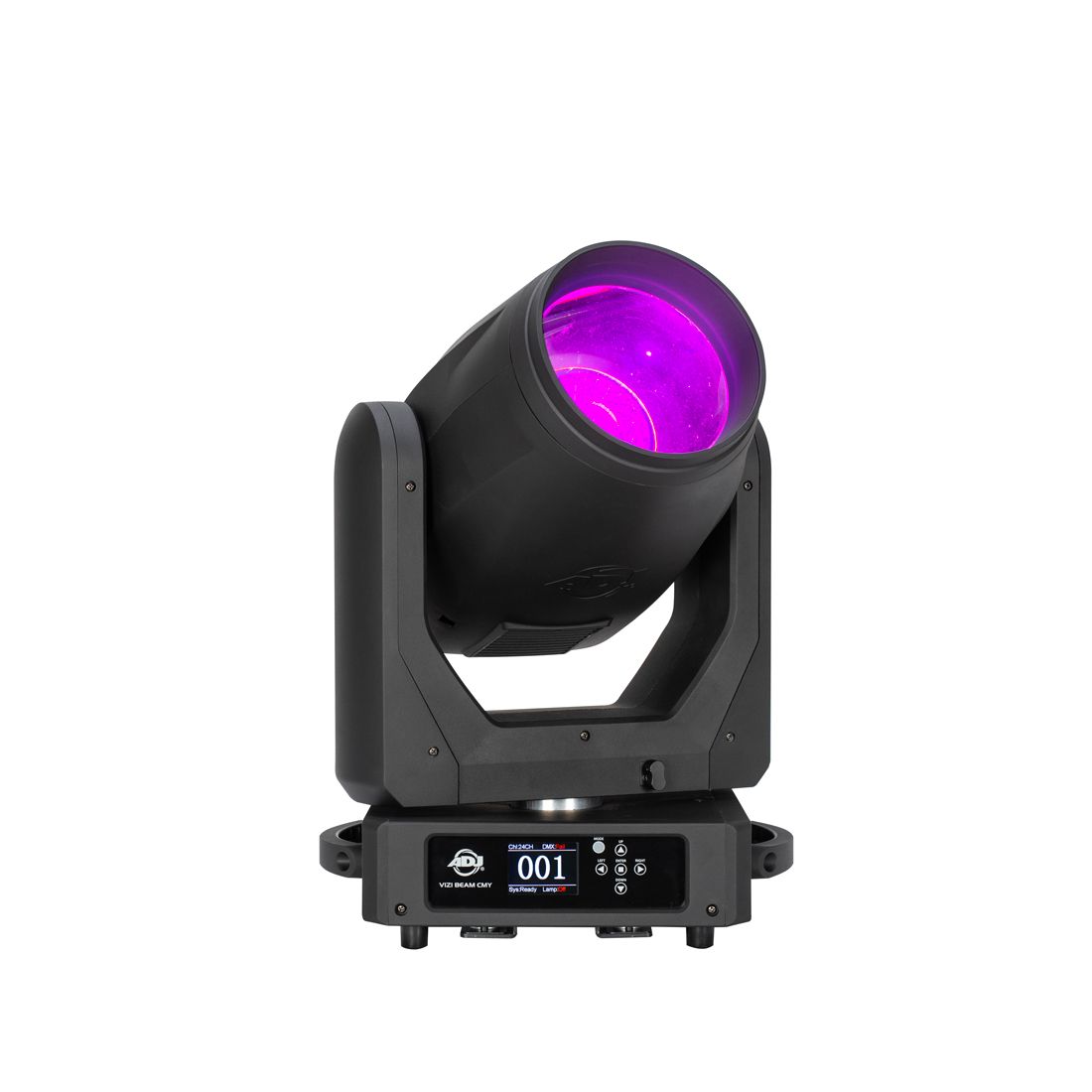

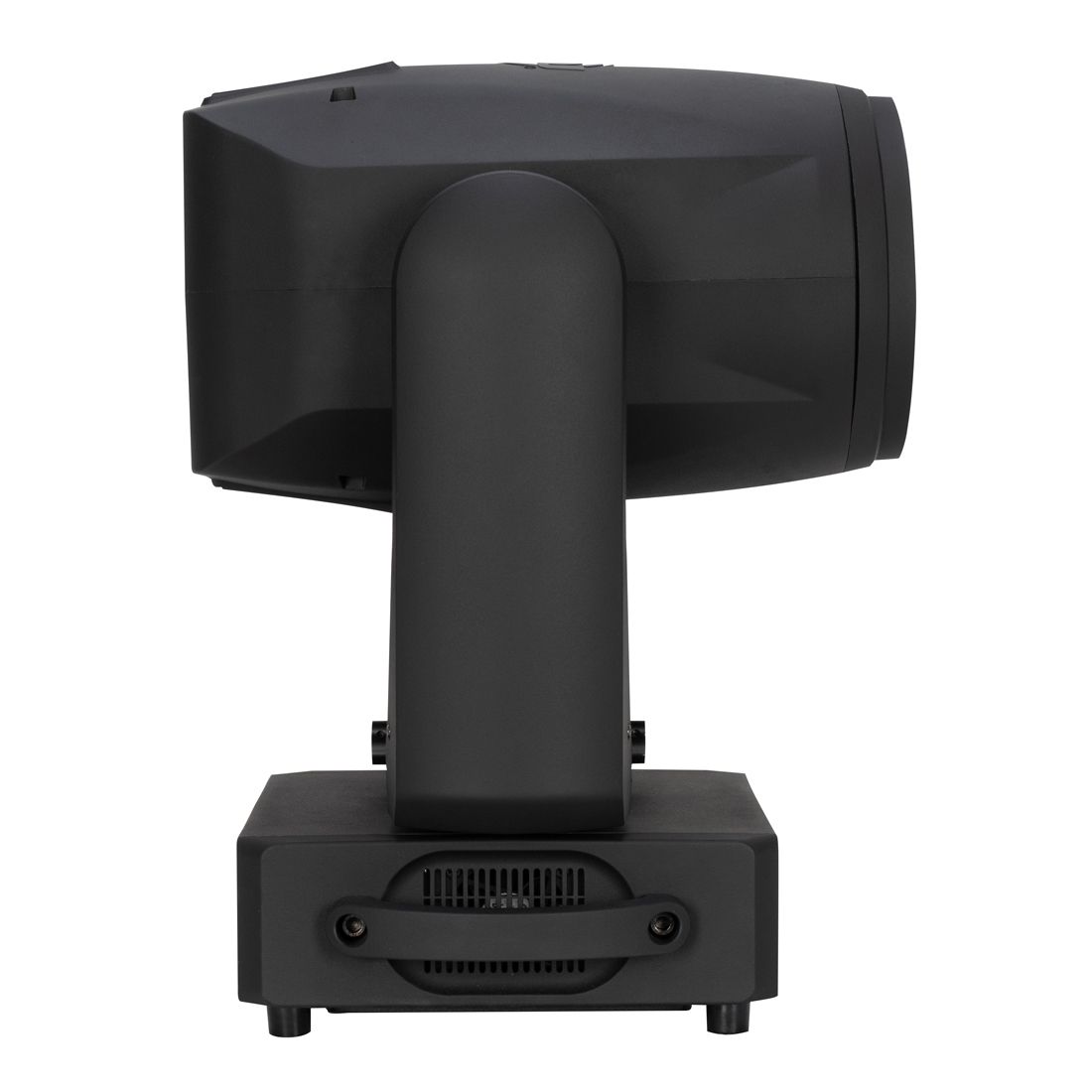

Elevate your lighting design with the ADJ Lighting Vizi Beam CMY, a cutting-edge moving head beam fixture designed for the modern lighting professional. Featuring a powerful 310W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, the Vizi Beam CMY delivers stunning visuals with a precise 2-degree beam angle, as well as, 3-Phase motors for high speed pan/tilt for maximum performance.

Unlock a spectrum of possibilities with CMY color mixing, a 14-color dichroic wheel includes CTO (3200K), CTB (9000k) & UV), and a versatile gobo wheel with 17 static gobos (4 GOBOs are beam reducers) and the dynamic GOBO Shake Effect. Enjoy the flexibility of on-board wireless DMX, motorized focus, and 16-bit fine focus for meticulous control.

The fixture boasts advanced features, including 2 rotating prisms (16-Facet circular & 6-Facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

Designed for convenience, it features outdoor locking connections for power daisy-chaining and 5-pin DMX connections. With multi-voltage operation and CE approval, the Vizi Beam CMY is a versatile and reliable lighting solution for any event or venue. Enhance your lighting experience with the Vizi Beam CMY – where innovation meets performance.

Specification

  • • OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
  • • Color Temperature: 7850K (+/- 500K)
  • • CRI: 86 (+/- 5)

  • • CMY Color Mixing
  • • On-Board Wireless DMX
  • • Motorized Focus + 16-bit Fine Focus
  • • 2-degree Beam Angle
  • • Frost Filter (to create wash effect)
  • • High Quality Glass Lens
  • • 2 Rotating Prisms
  • • 0-100% Smooth Dimming
  • • Pan/Tilt Locks
  • • Various Strobe Speeds
  • • OTA, Wireless, Firmware Updates
  • • Fan Cooled

  • • 14 Dichroic Colors + White (includes CTO (3200K), CTB (9000K) & UV)
  • • Indexable Color Wheel (for split colors)
  • • Separate Multi-Color Effect

  • • 17 Static GOBOs + Open (4 GOBOs are beam reducers)
  • • GOBO Shake Effect

  • • 2 Rotating prisms
  • • 16-Facet circular and 6 facet linear prisms
  • • Prisms Overlay

  • • Protocols: DMX512 & RDM
  • • Control Mode: DMX512 & Manual (On-board Controls)
  • • 2 DMX Channel Modes: 14/16 Channels
  • • Color LCD Display (with 4-button function menu)
  • • 0-100% Smooth Dimming
  • • Various Strobe Speeds
  • • With Wired Digital Communication Network

  • • Pan: 540 Degrees (plus 16-bit fine pan)
  • • Tilt: 270 degrees (plus 16-bit fine tilt)
  • • 3-Phase, High Speed, Pan/Tilt Motors

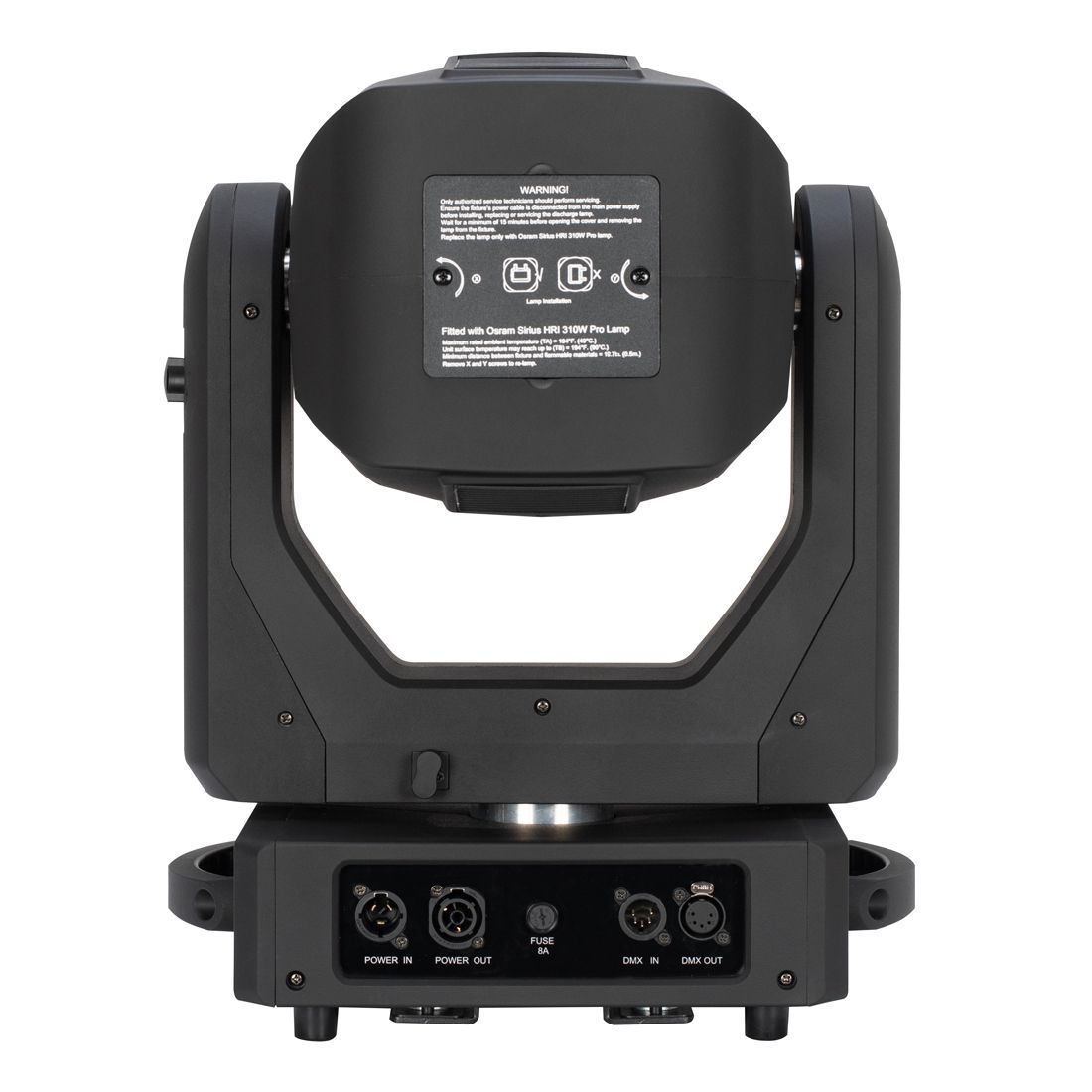

  • • DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
  • • Power Connections: Outdoor Locking In/Out Connections (to daisy chain power)

  • • Multi-voltage Operation: 100-240V, 50/60Hz
  • • Max Power Consumption: 390W (@230V

  • • Dimension: 248 x 364 x 454.8mm
  • • Weight: 17.5 kg.

  • • CE
  • • cETLus (Pending)

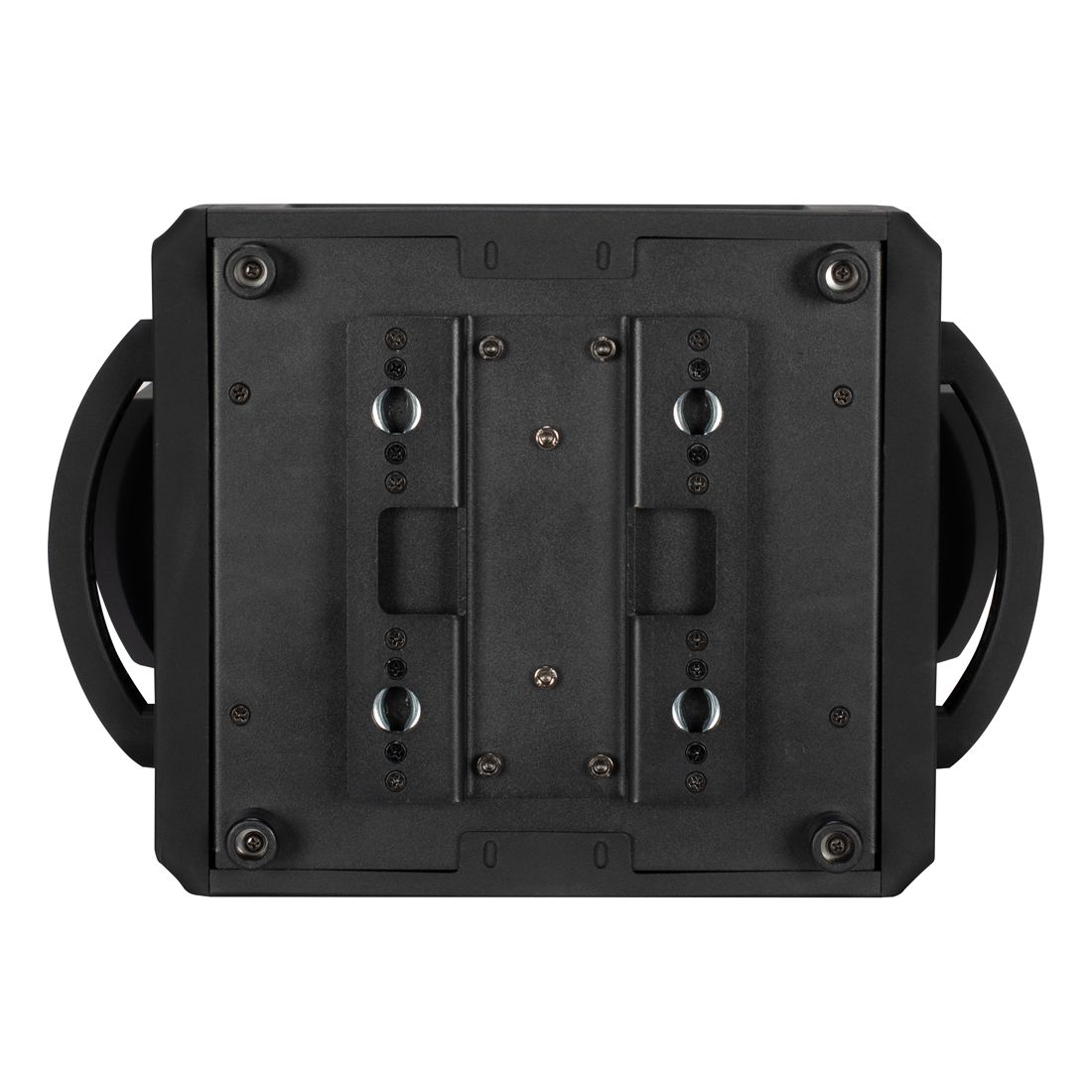

  • • 2x Omega Brackets (107 Type)
  • • 1x 2M, Outdoor Locking 14AWG Power Cord
Specifications subject to change without notice
