Vizi CMY 16RX Select Archive
Product Information

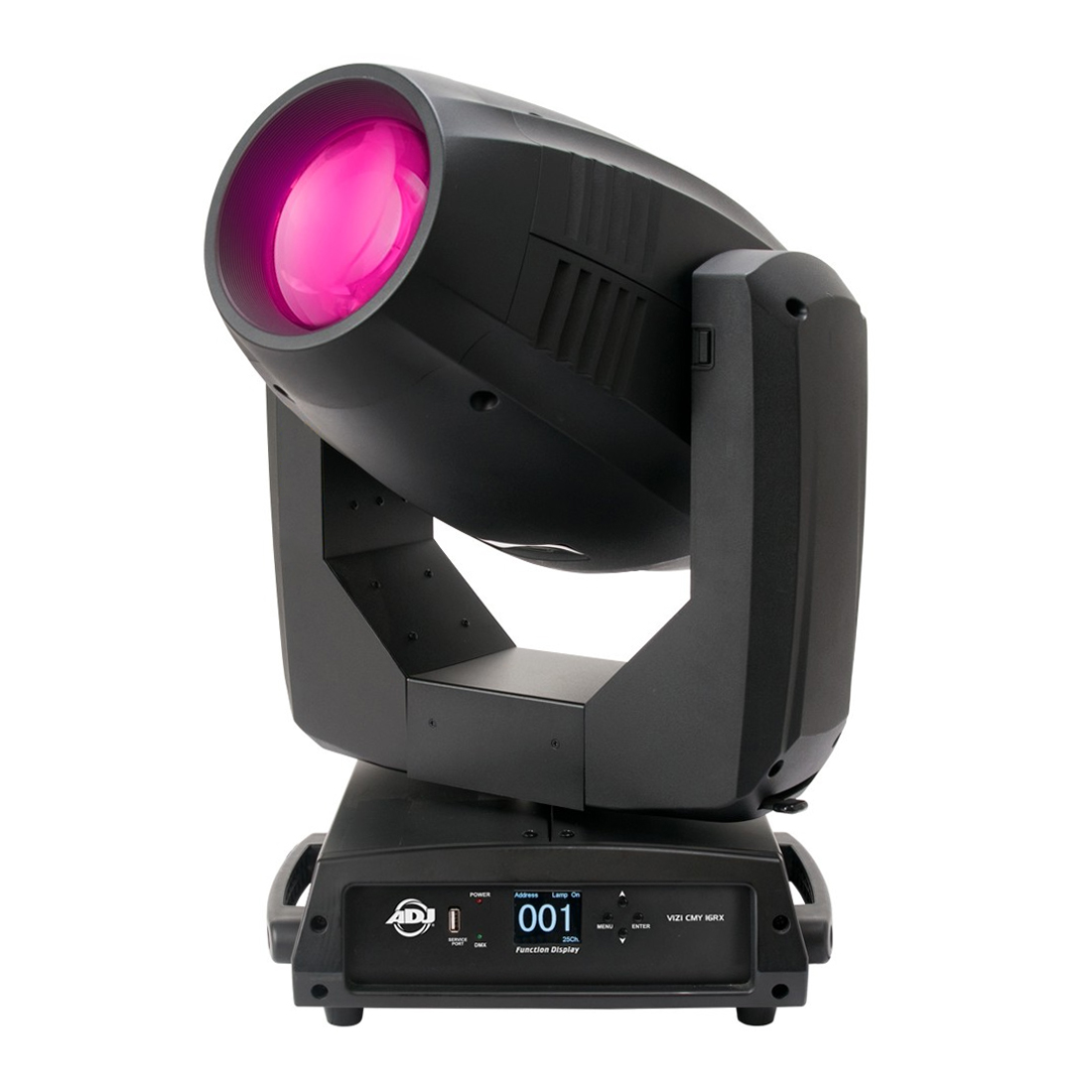

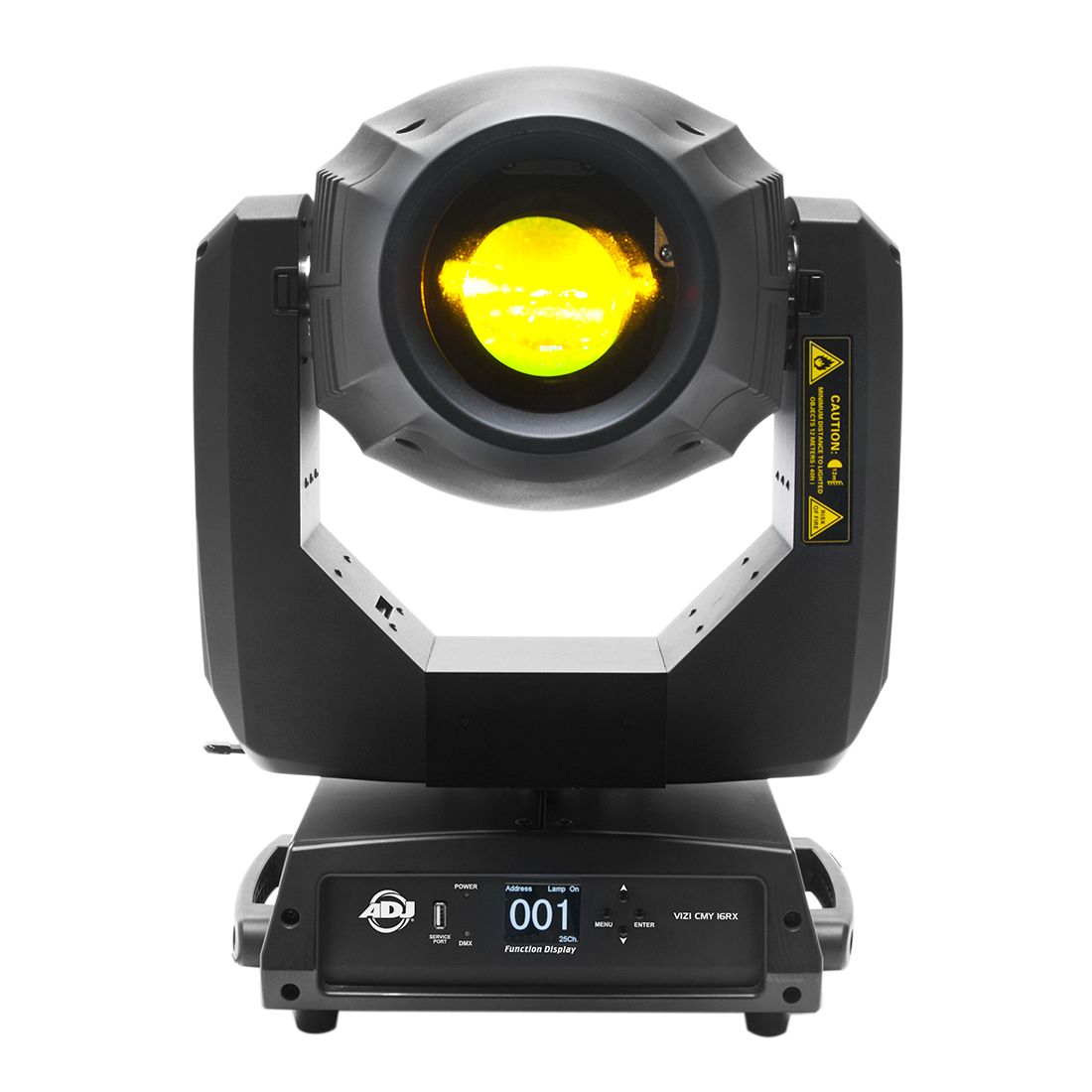

A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi CMY 16RX features dual Prism Layering, GOBO Morphing of dual gobo wheels, motorized zoom and motorized focus. Other professional features include: Frost filter to turn the hard edge beam to a wash, 5 & 16-facet rotating prisms, stepper motors for quick, precise movement. the Vizi CMY 16RX offers a CMY color mixing so designers can custom make colors to create a one-of-a-kind lightshow. There is also a color wheel with 9 colors plus white.
The Vizi CMY 16RX moving head fixture is powered by the revolutionary Philips® Platinum 16R MSD discharge lamp technology (8000?K, 1,500 hr). This lamp allows the unit to be very punchy, versatile fixture capable of wide washes of color, mid-air beam effects and break-up textures. It has two GOBO wheels. Wheel 1 has 15 static GOBOs plus spot. GOBO wheel 2 has 9 replaceable rotating GOBOs. The fixture has a zoom range of 6 ~ 22-degrees. There is an on-board 4-button LCD display, plus 3 and 5-pin DMX in/out connections.
The Vizi CMY 16RX will be the workhorse of any event, truly making it an all-encompassing lighting fixture for live events, stages, nightclub and churches.
Gallery
Specification
- • Philips Platinum 16R MSD Discharge
- • Lamp Wattage: 330W
- • Average Lifetime: 1,500 hrs
- • Color Temperature : 8000K
- • CRI: 74.5
- Beam Mode: 10°
- Spot Mode: 5°-22°
- Wash Mode: 22°-63°
- • 16bit Motorized Zoom
- • 16bit Motorized Focus
- • 2 rotating, layering Prisms : 16-facet circular & 5-facet linear prism
- • Prism Indexing
- • Linear Frost filter
- • Operational Mode: DMX Control
- • 2 DMX Channel Modes: 22 or 24 Channels
- • RDM compatible (Remote Device management)
- • Mechanical Shutter 0-100%
- • Various strobe effects
- • Display: Color display with 4-button function menu
- • 16bit Pan 540°
- • 16bit Tilt 270°
- • CMY Color mixing
- • 1 additional Color Wheel with 9 colors + White
- • Color Indexing

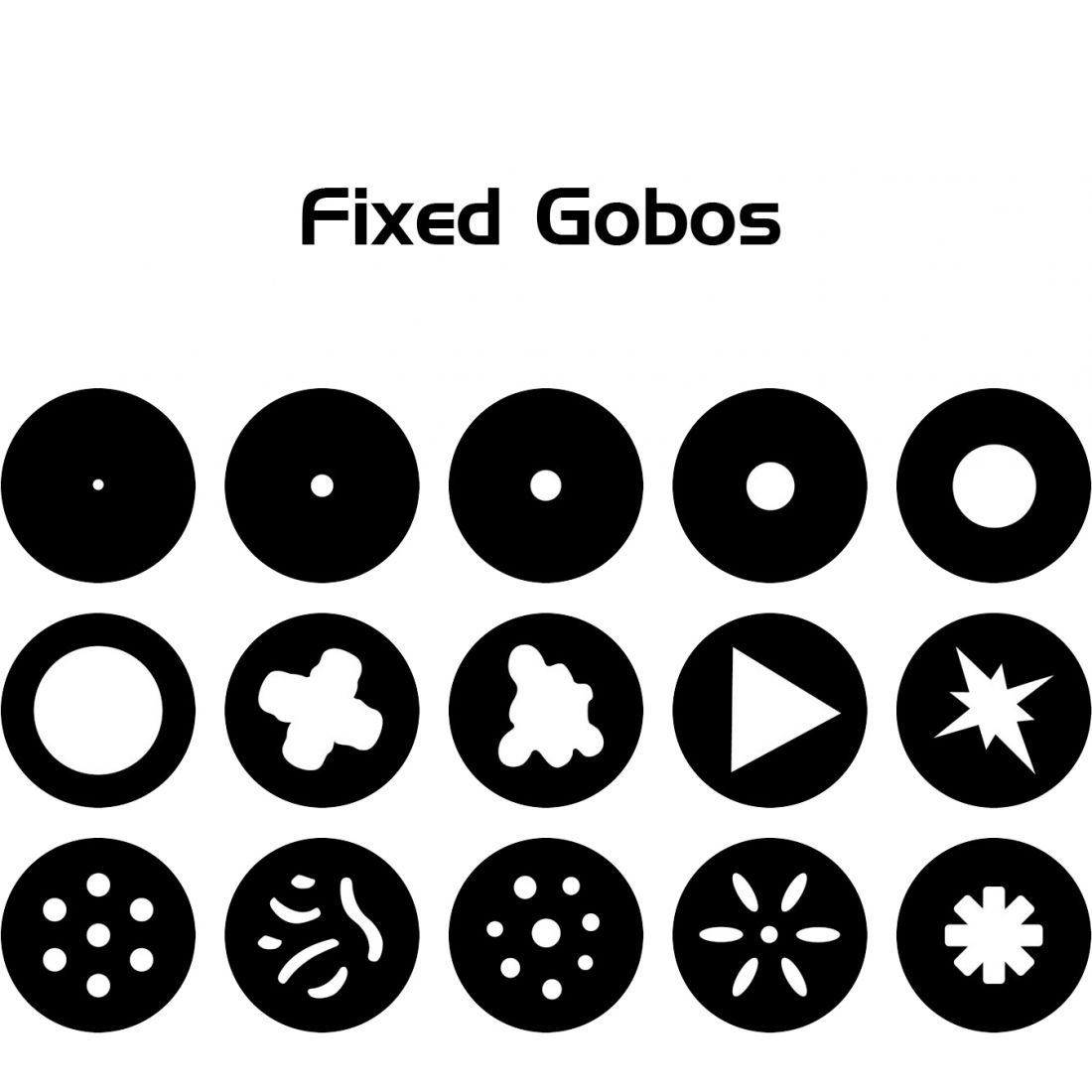

- • Gobo Wheel 1 with 9 static Gobos + 6 beam reducers + Open

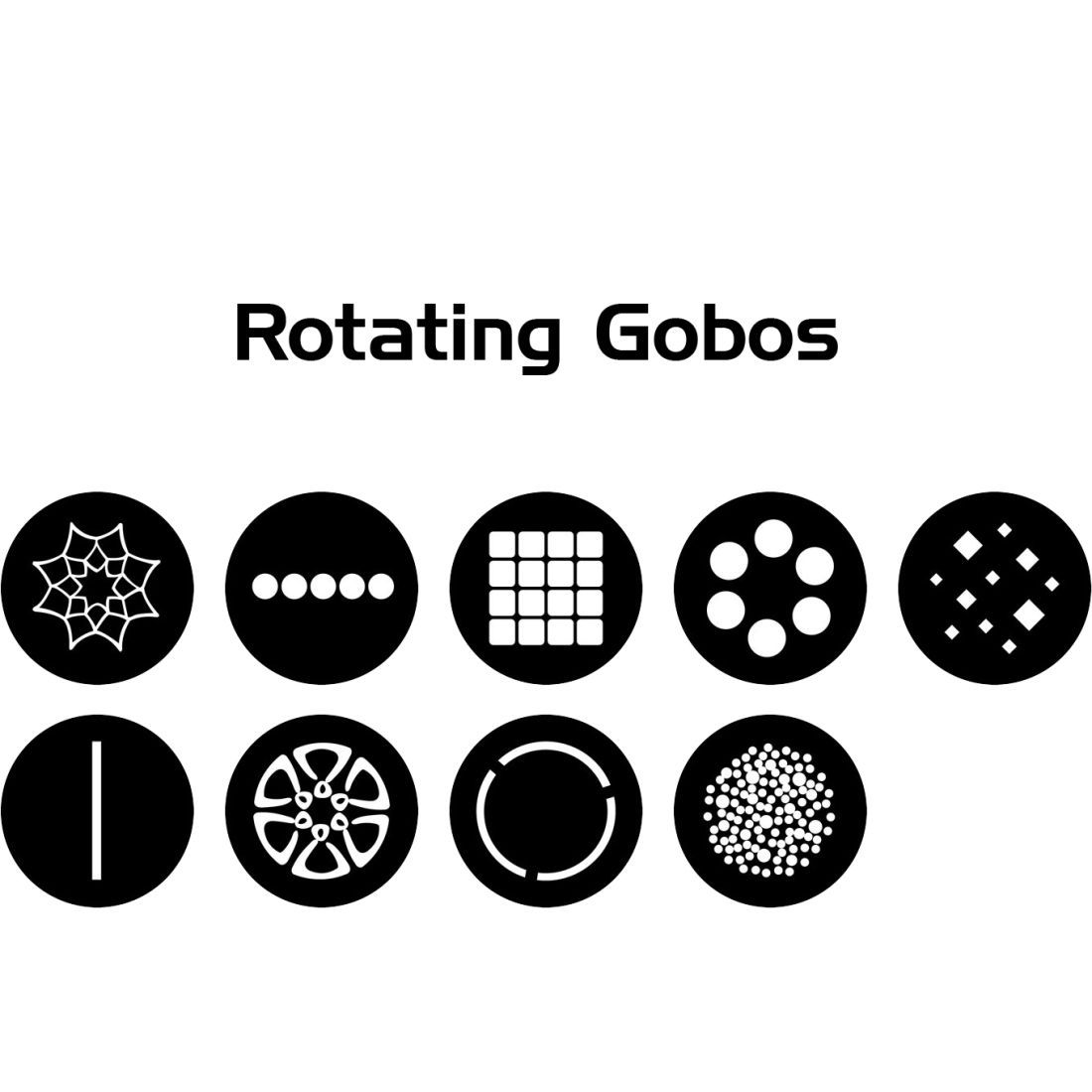

- • Gobo Wheel 2 with 9 rotating/replaceable Gobos + Open
- • PVC molding
- • Includes Quicklock Omega Brackets
- • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- • Power consumption: 520W

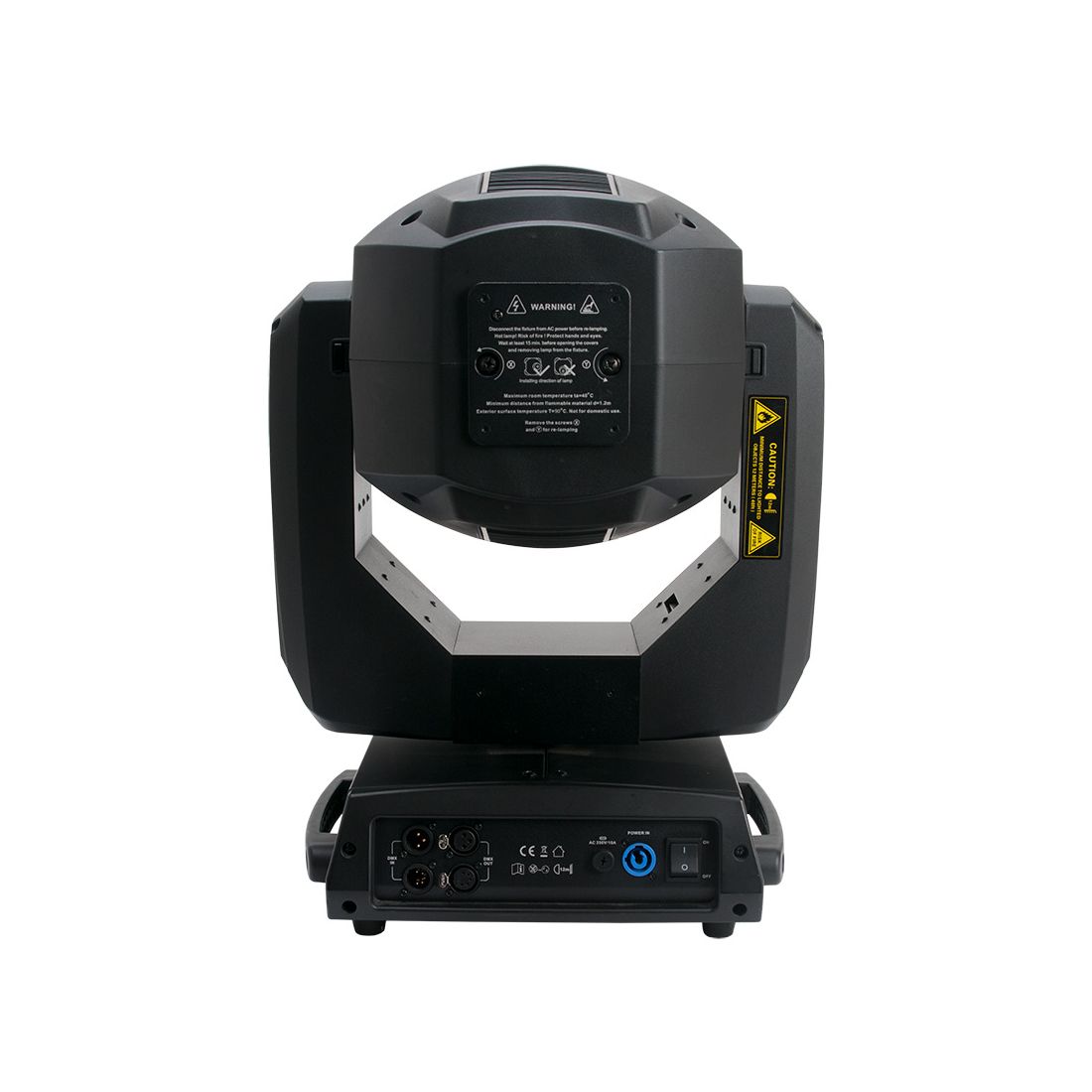

- • 3-& 5pin Locking DMX In/Out connections
- • Locking Power In/Out connections
- • Dimension: 413 × 326 × 639mm
- • Weight: 23,2 kg.
