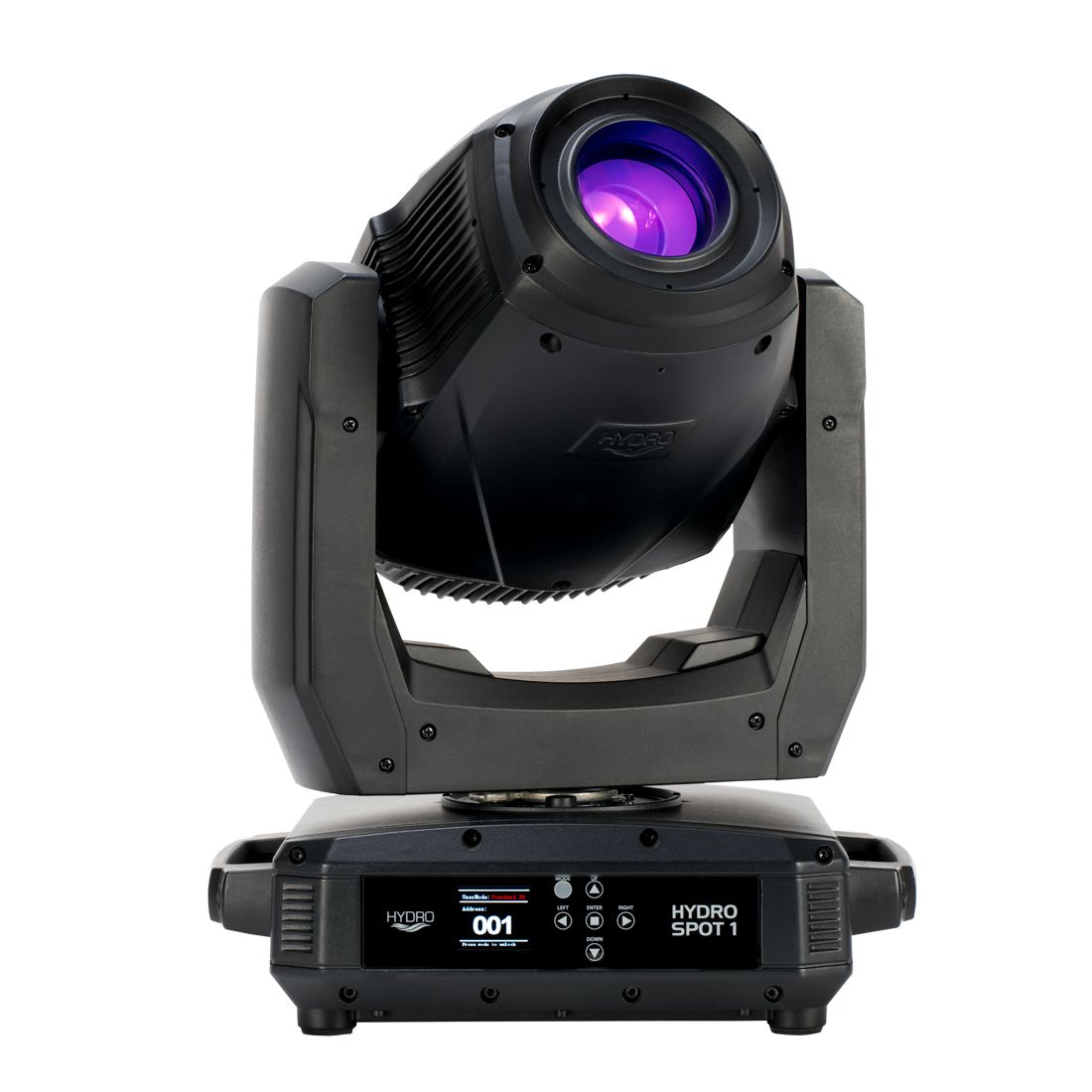

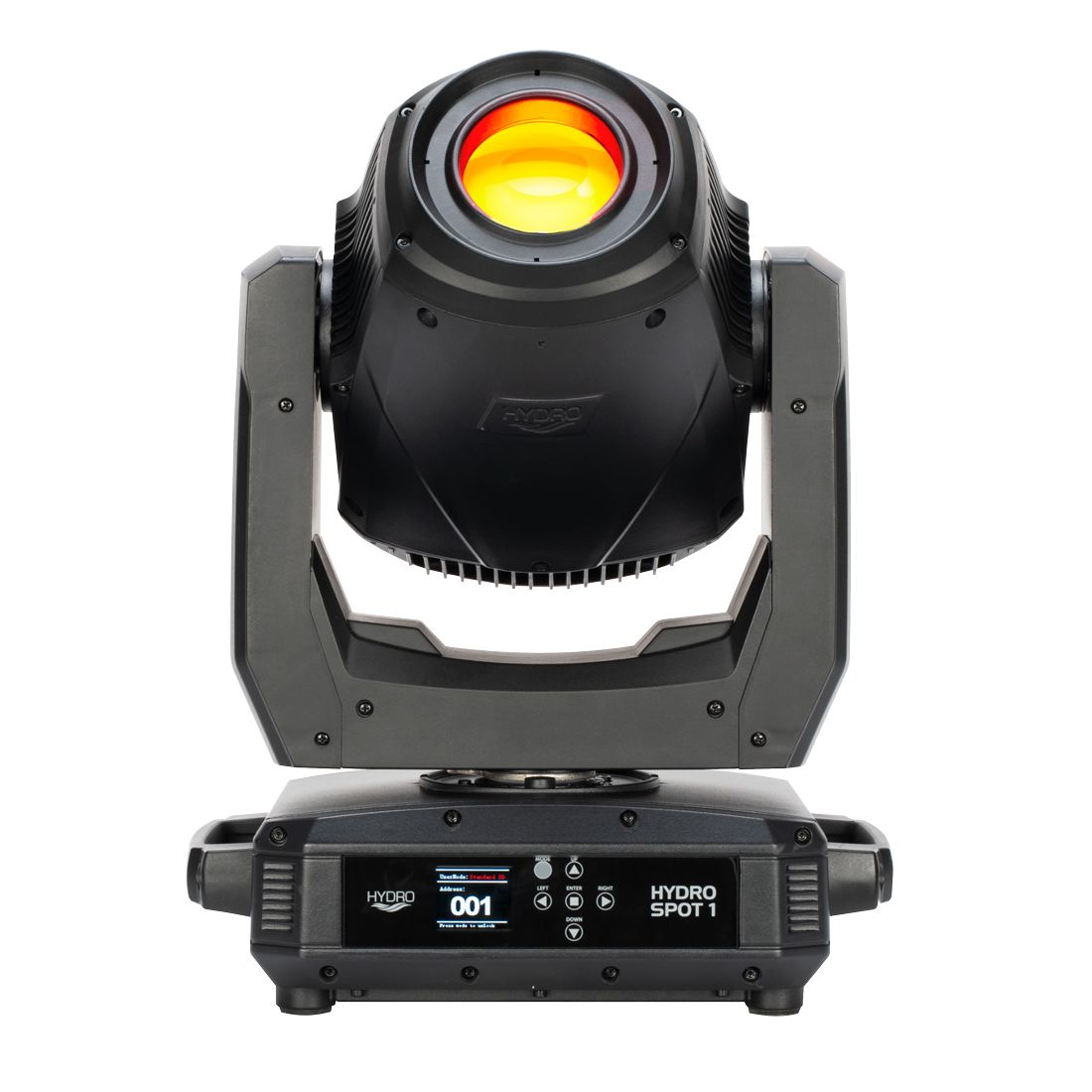

Hydro Spot 1
Select

Brand

Key Features

Construction
Construction
• IP65 with Marine Coated Exterior and conformal coated PCBs
Optics
Optics
• Motorized Focus
• Motorized Zoom: 11° ~ 22°
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
Source
Source
• 200W Cool White LED Engine (50,000 hr.)

Product Information

SKU: 1237000320
GTIN: 810087370480
HS-Code: 94054210

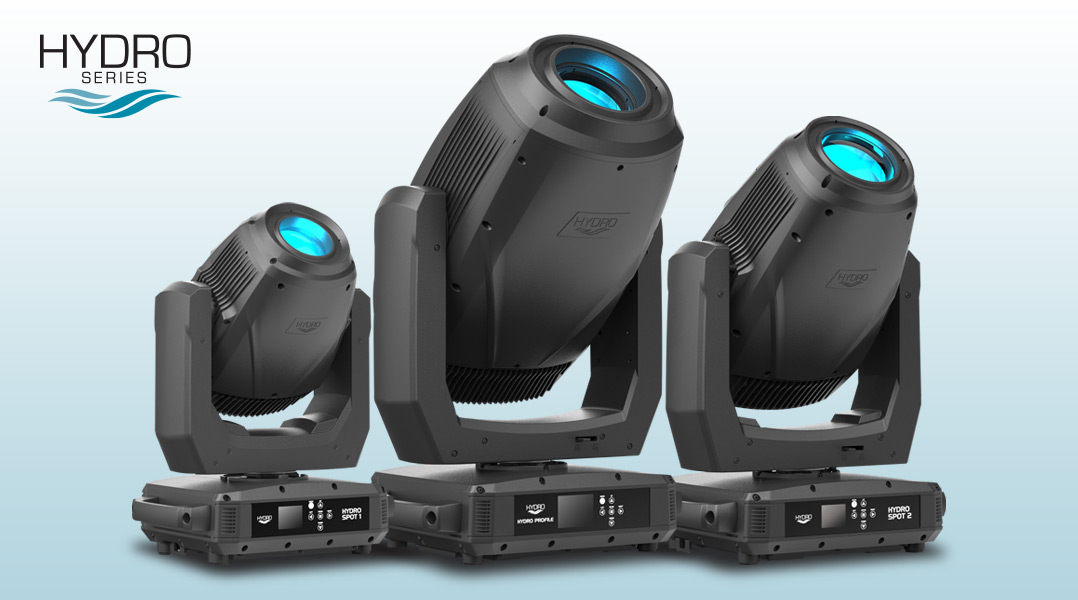

Part of ADJ’s popular Hydro Series of robust IP65-rated automated luminaires, the Hydro Spot 1 is a versatile, LED-powered spot fixture. It is ideal for temporary event production both indoors and outside in any weather, from dusty desert festivals to cold and wet winter attractions. It is also suitable for permanent installation within all kinds of venues, from nightclubs to churches, where its sealed casing design protects its internal components from dust and grime to allow for a reduced maintenance schedule and prolonged operational life expectancy.

Harnessing the power of a potent 200-Watt cool white LED light engine, focused through precision-engineered optics, the Hydro Spot 1 delivers punchy output with even coverage. The efficient LED light source is much brighter than a traditional incandescent bulb that uses the same amount of power, while it’s 50,000 hours of expected operational life essentially makes lamp replacement a thing of the past.

An extensive feature set provides lighting designers using the Hydro Spot 1 with a wealth of creative potential. This starts with motorized zoom, allowing for a variable beam angle of 11° ~ 22°, which is paired with motorized focus to ensure pattern projections remain sharp regardless of distance. The fixture features two independent color wheels, each loaded with 8 dichroic colors, including CTO, CTB and UV filters. It also features a separate GOBO wheel, which has 6 slots for replaceable, rotating glass or aluminum GOBO patterns. Two rotating prisms (5-facet linear & 6-facet circular) allow for the creation of stunning aerial effects, while two frost filters (medium and heavy) allow for blurring the edges of GOBO patterns and creating a wash output, respectively.


Specification

  • • 200W Cool White LED Engine (50,000 hr.)

  • • Motorized Focus
  • • Motorized Zoom: 11° ~ 22°
  • • 2 Frost Filters (Heavy and Medium)
  • • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
  • • 0-100% smooth dimming
  • • Various strobe speeds
  • • USB firmware update port
  • • 2 cooling fans

  • • (2) Color wheels
  • • 8 dichroic colors + white on each wheel (includes CTO, CTB and UV filters)

  • • (1) Wheel with 6 Rotatable Gobo's
  • • All Gobo's are replaceable
  • • Gobo Shake Effect
  • • Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
  • • Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

  • • Prism Wheel 1: Rotatable 6-facet Circular
  • • Prism Wheel 2: Rotatable 5-facet Linear
  • • Both Prisms are indexable

  • • Frost 1: Heavy frost for wash effect
  • • Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX

  • • 3 DMX Channel Modes: 17/20/22
  • • Color LCD display with 6-button function menu
  • • Control Mode: DMX512 or internal programs
  • • 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
  • • 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
  • • Selectable LED Refresh Rates (900 Hz~25K Hz)
  • • 0-100% smooth dimming
  • • Various strobe speeds
  • • RDM (Remote Device Management)
  • • WiFLY EXR Wireless DMX built-in (Up to 30M line of sight)

  • • Pan: 630 degrees
  • • Tilt: 270 degrees

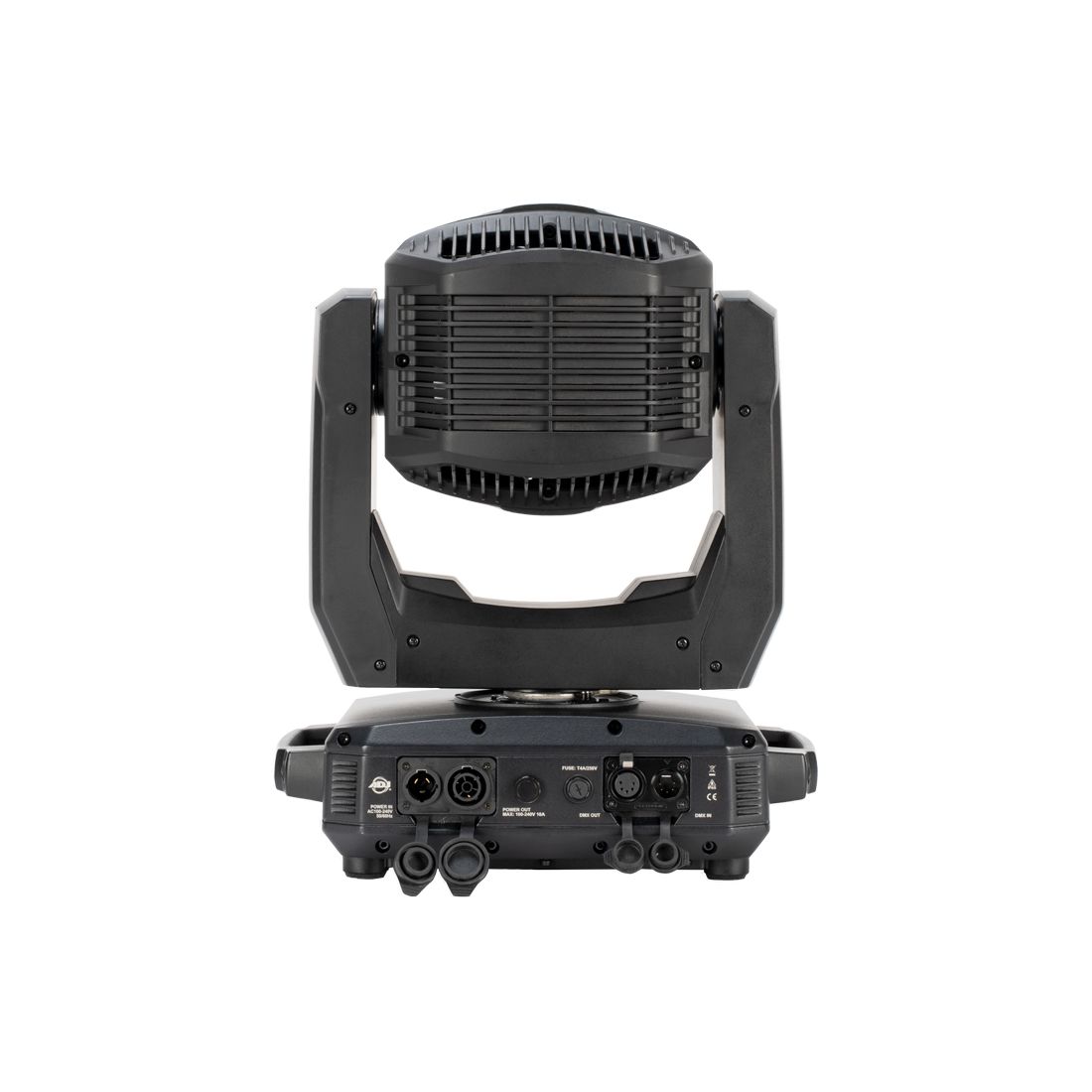

  • • DMX Connections: 5-pin XLR In/Out
  • • Power Connections: IP65 PowerLock In/Out to daisy chain power

  • • Multi-voltage operation: 90-240V, 50/60Hz
  • • Max power consumption: 280W

  • • Dimensions (LxWxH): 9.49" x 14.57" x 19.21" (241x370x488mm)
  • • Weight: 35.2lbs (16kg)

  • • (2) Omega Brackets
  • • 1.83M locking power cable

  • ETL Approved / CE Certified
  • IP65 with Marine Coated Exterior and conformal coated PCBs
Specifications subject to change without notice

COLORS AND GOBOS

Color Wheel 1

Amber
Amber
 CTB 5600K
CTB 5600K
 Green
Green
 High CRI
High CRI
 Medium Blue
Medium Blue
 Orange
Orange
 Red
Red
 UV
UV

Color Wheel 2

Blue
Blue
 CTO
CTO
 Green
Green
 Light Purple
Light Purple
 Magenta
Magenta
 Pink
Pink
 UV
UV
 Yellow
Yellow

Gobo Wheel 1 Rotating

Gobo 17
 Gobo 20
 Gobo 23
 Gobo 31
 Gobo 64
 Gobo 68
 Gobo 89
