Hydro Beam X1
Select

Key Features

Construction
• All metal case design
• Protection Rating: IP65

Optics
• Beam Angle: 3-degrees, 219.000 lux@5m
• 16-facet rotating circular prism
• Frost filter

Source
• Osram Sirius HRI 100W Long Life Discharge
• Average Lifetime: 6,000 hrs
• CRI: 60

Product Information

SKU: 1237000200

GTIN: 818651025828

HS-Code: 94054910

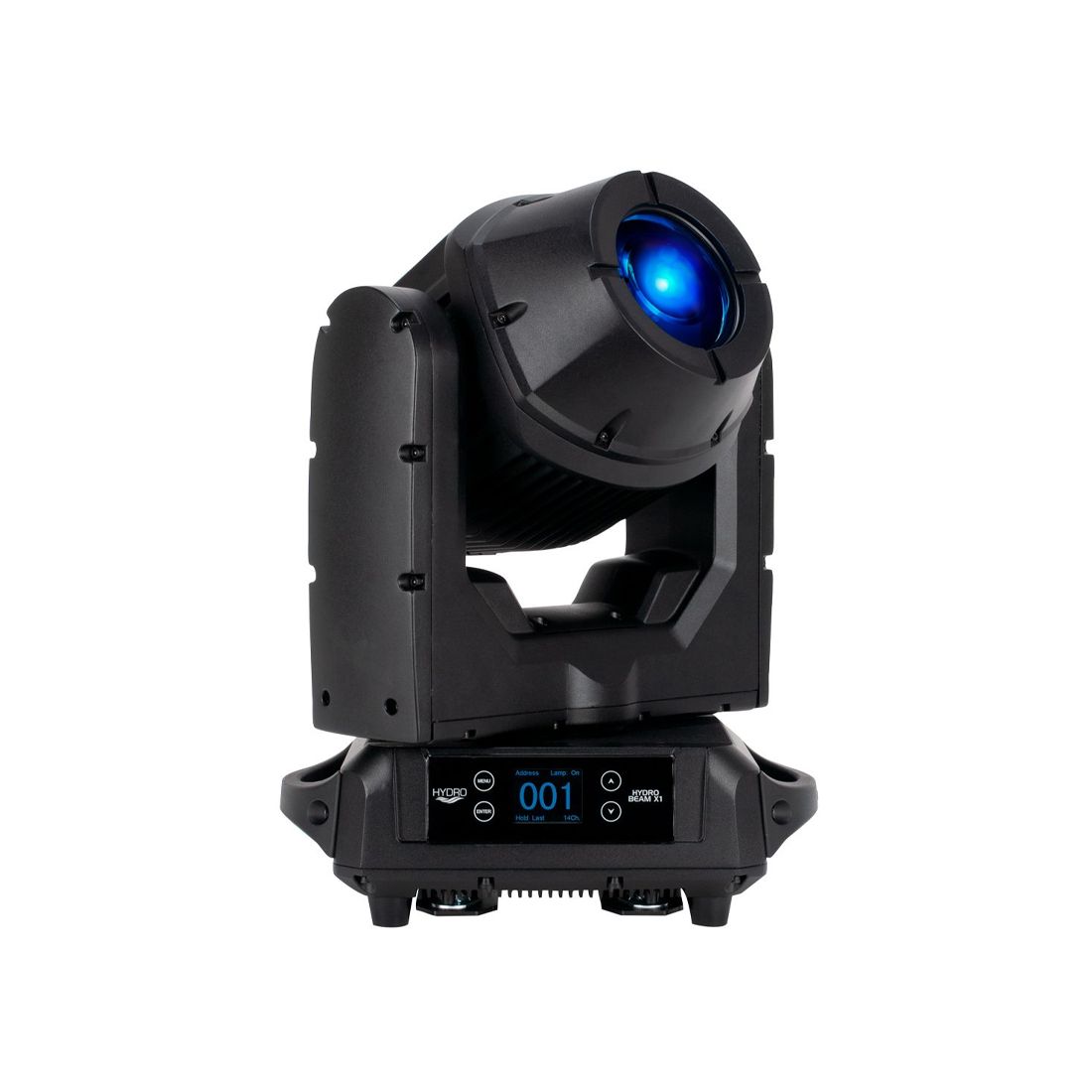

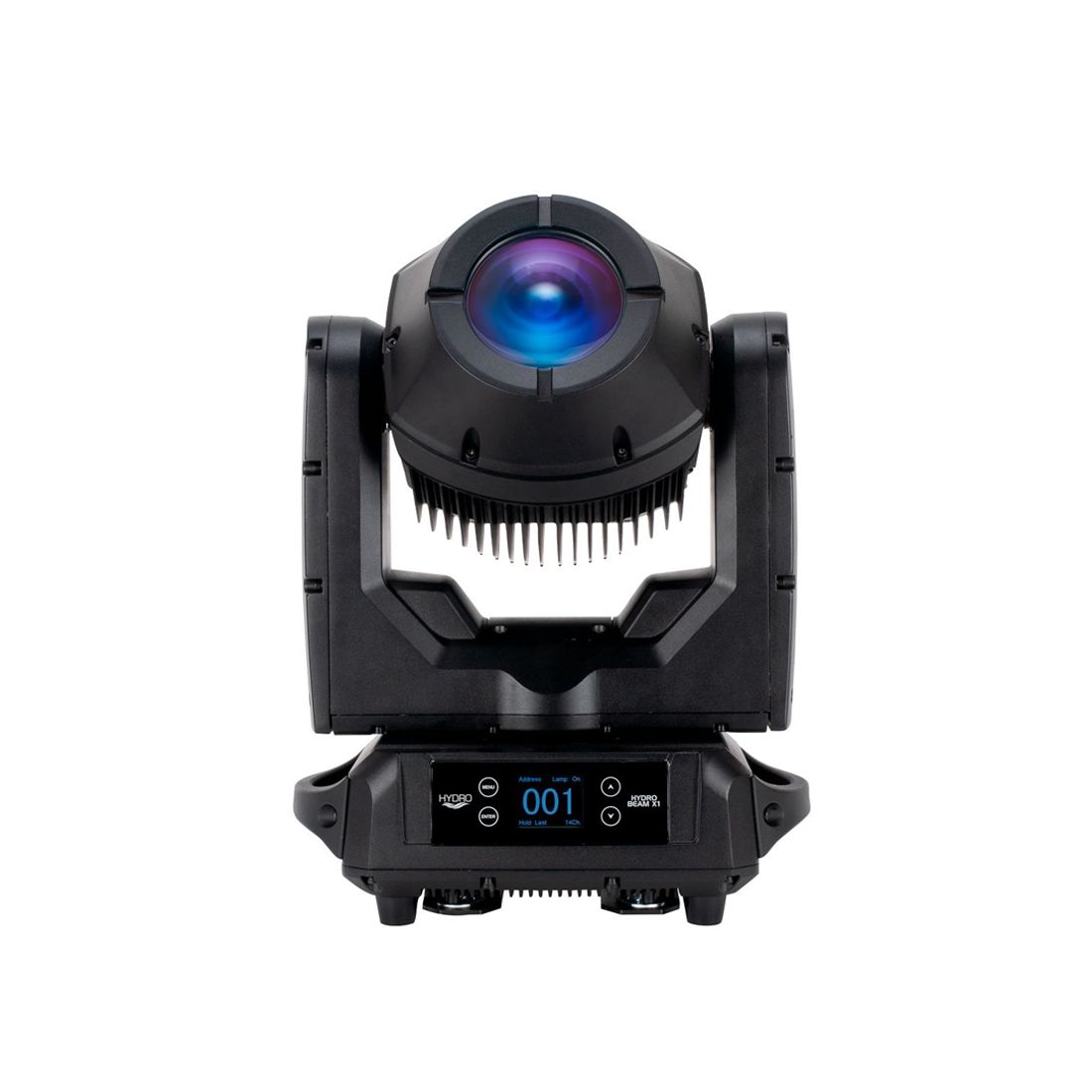

The ADJ Hydro Beam X1 is an IP65 rated professional moving head fixture with a 100W Osram Sirius HRI, 6,000 hour, discharge lamp that produces a razor sharp 3-degree beam. Its compact sizes offers quick movement.

With robust construction and IP65-ratings, the Hydro Beam X1 is designed for both indoor or outdoor use. Its durable casing protects it from dust, sand, moisture and liquids, making it ideal for use in all situations from dusty deserts in California to rainy fields in England. Perfect for festivals and outdoor events, as well as installation in open-air clubs and other outside entertainment spaces, this ground-breaking fixture offer an extended operational life and reduced maintenance requirement due to their sealed casing design.

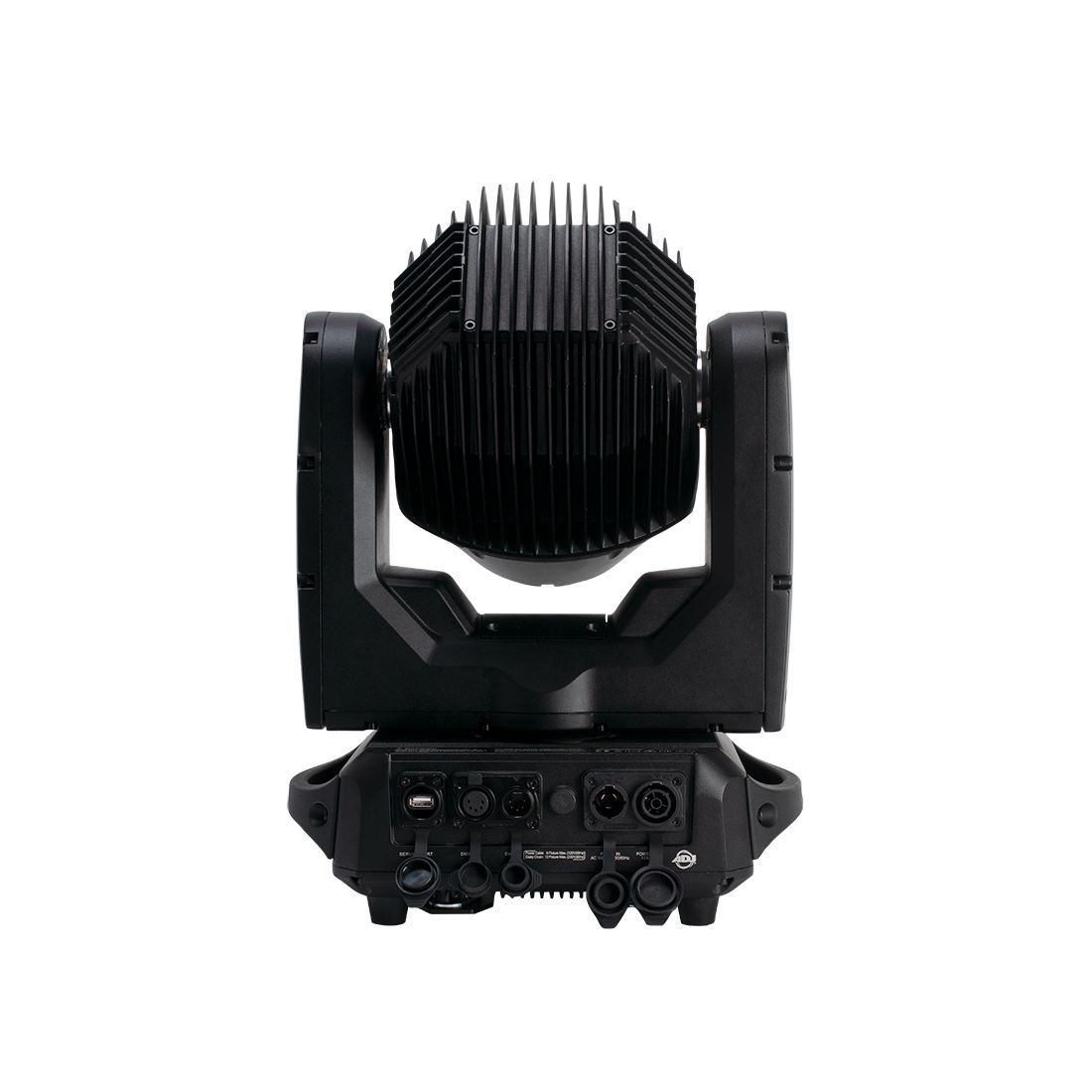

The Hydro Beam X1 has several high performance features such 16-facet circular prism with overlay and an independent frost filter for wash effects. Its fitted with IP65 5-pin XLR In/Out and IP65 Locking Power In/Out connections. It offers a USB port for software updates. All connections are IP65 rated with rubber protective covers.

The ADJ Hydro Series were awarded the 2019 PLSN Gold Star Award for “Best Range of Waterproof Fixtures”.

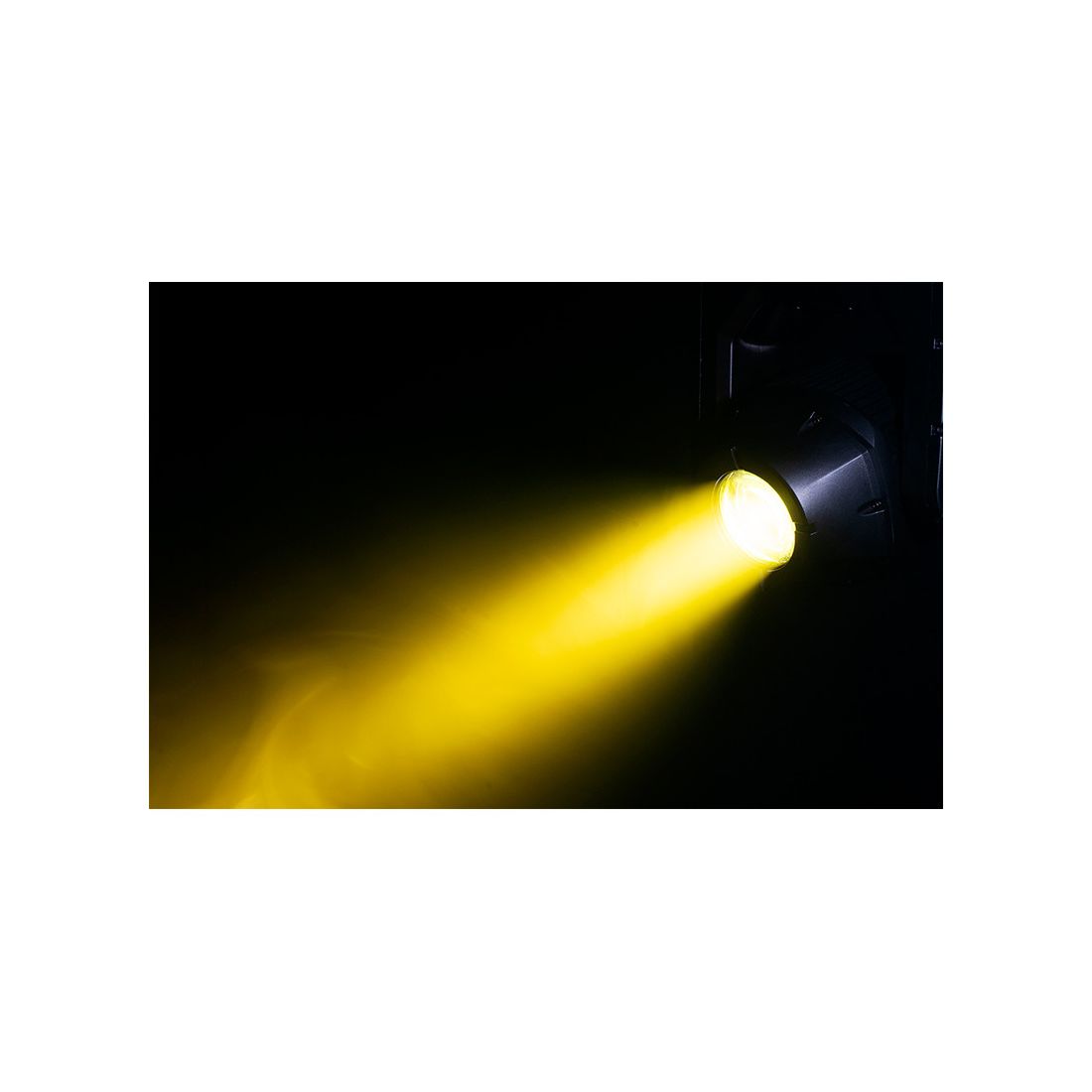

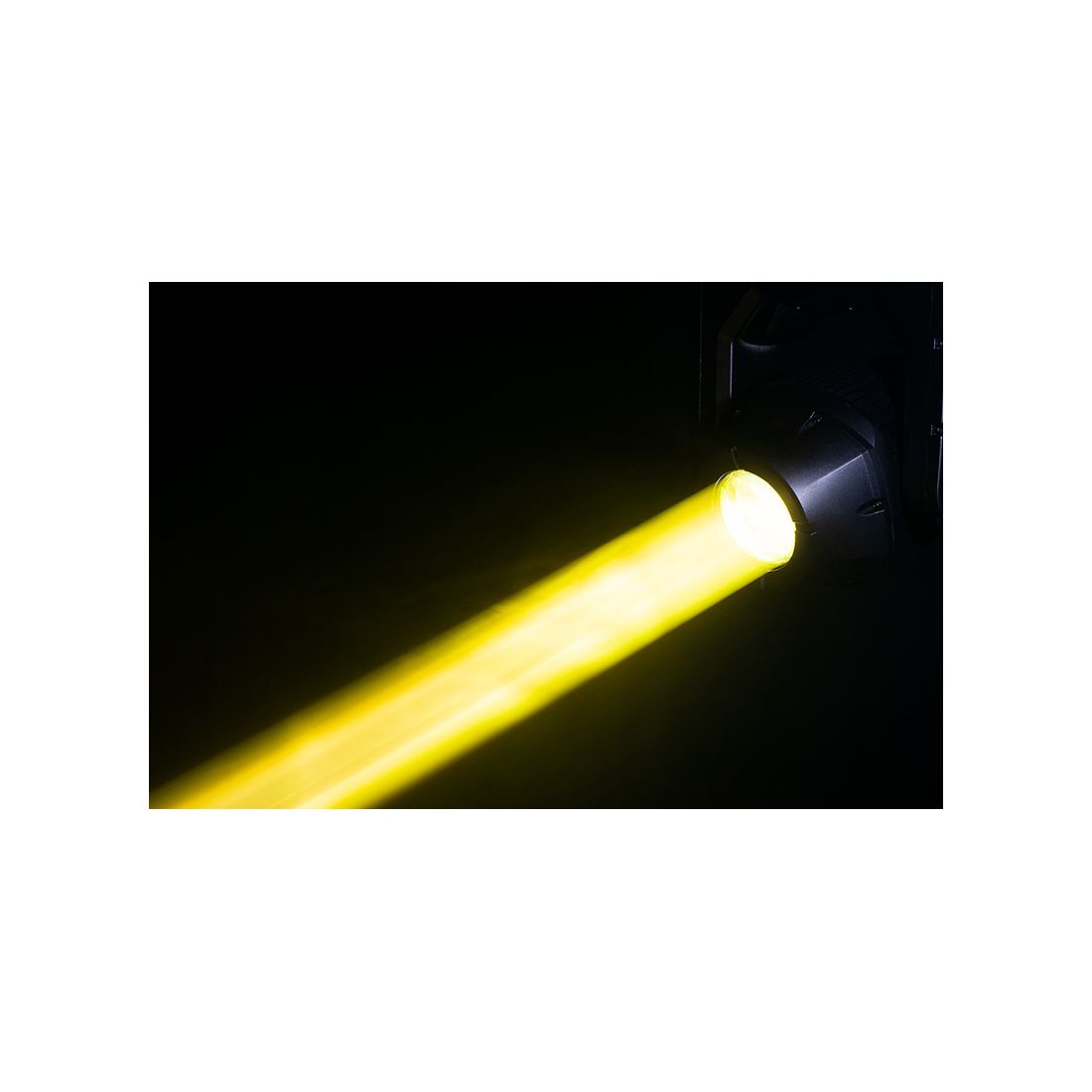

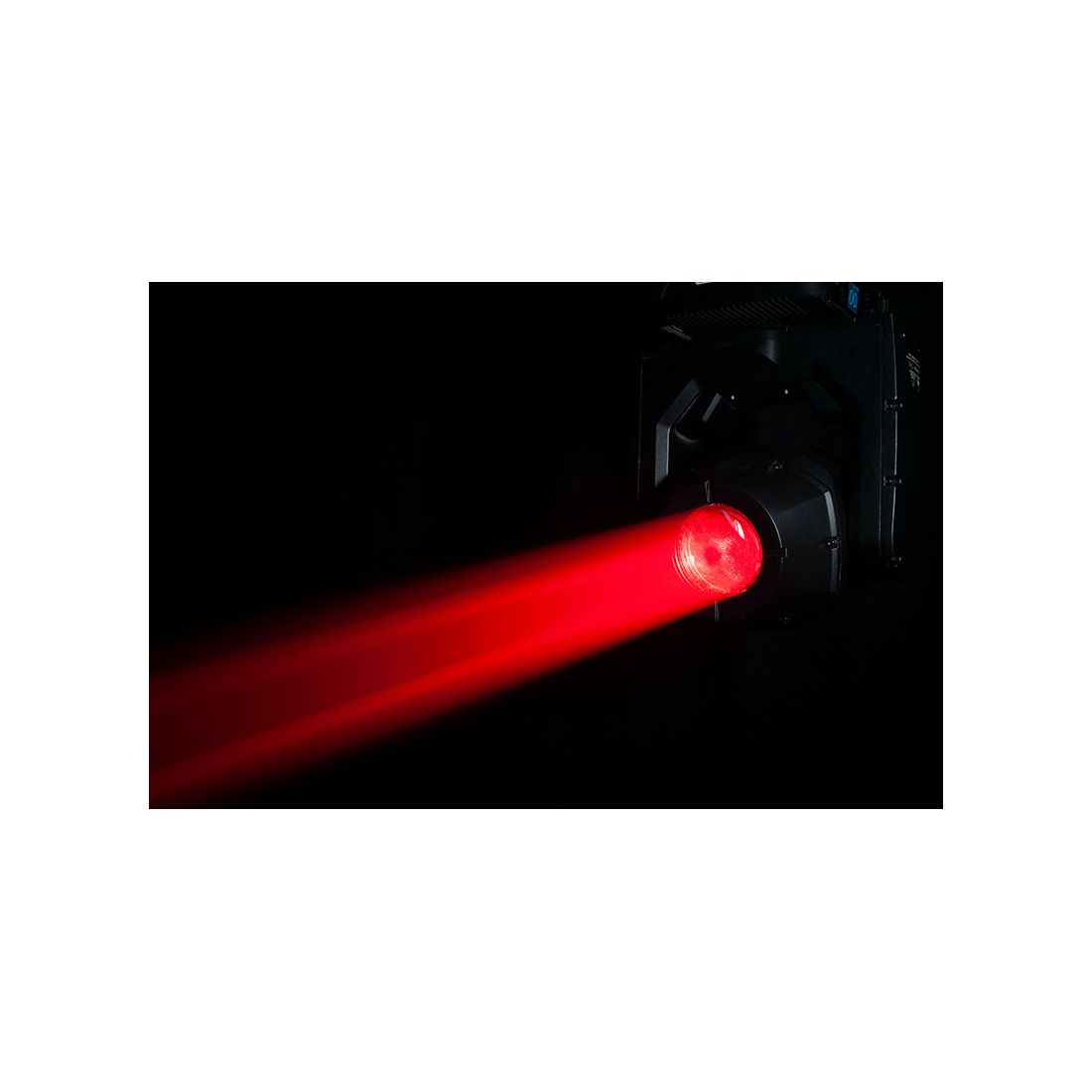

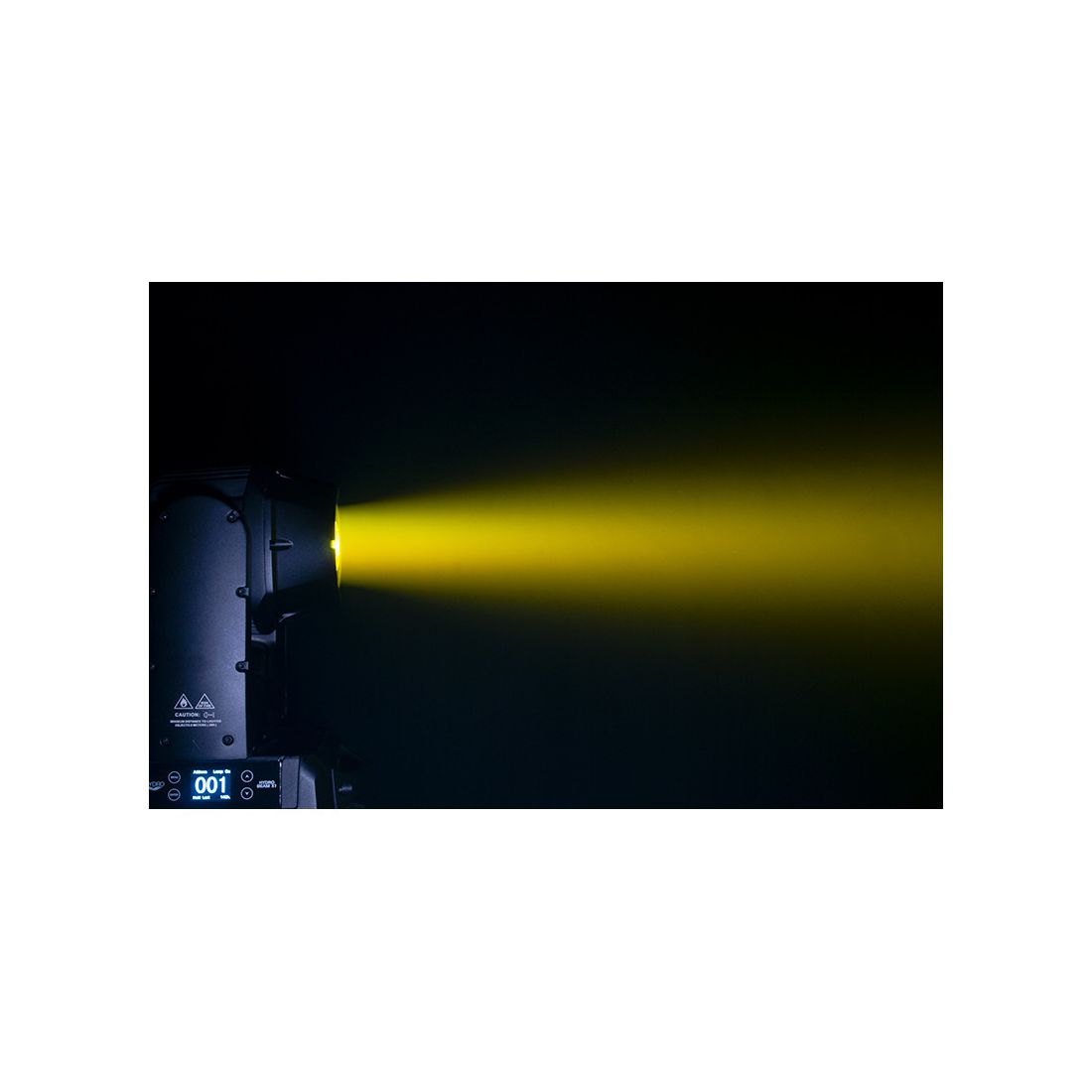

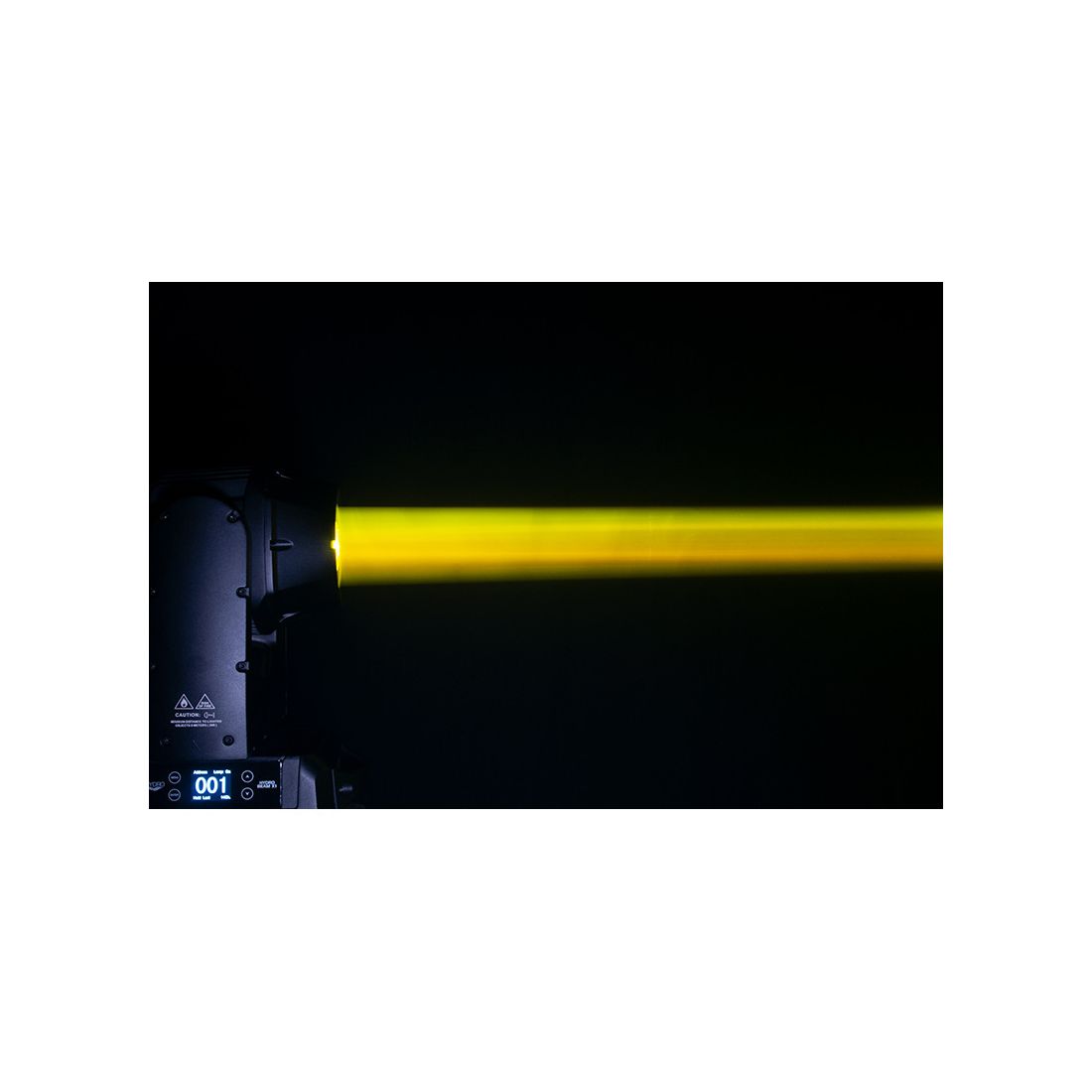

Gallery

Specification

• Osram Sirius HRI 100W Long Life Discharge
• Average Lifetime: 6,000 hrs
• Color Temperature : 9000K
• CRI: 60

• Beam Angle: 3-degrees, 219.000 lux@5m
• 16-facet rotating circular prism
• Frost filter

• 2 DMX Channel Modes: 11/14 Channels
• RDM compatible (Remote Device management)
• WiFly EXR Wireless DMX built-In
• 16bit Pan 540°
• 16bit Tilt 270°
• Various strobe effects

• 1 Color Wheel with 12 colors + CTB & UV + open
• Split Colors

• 1 metal Gobo Wheel with 11 Gobos, 4 beam reducers + open

• All metal case design
• Protection Rating: IP65
• Display: OLED display
• Includes omega brackets

• Power voltage: AC110-240V, 50/60Hz
• Power consumption: 192W @ 220V

• Data In/Out: IP65 5-pin XLR (with rubber protective covers over connections)
• Power In/Out: IP65 Locking Power (with rubber protective covers over connections)
• USB Service Port for software updates (with rubber protective covers over connections)

• Dimension: 336 × 210 × 458mm
• Weight: 16.3 kg

Specifications subject to change without notice
