Aria X2 Transceiver


Key Features

• Single DMX Universe
• 2.4 GHz WiFi and Bluetooth
• Configuration via App or Front Panel

Product Information

SKU: 1321000089
GTIN: 840063548060
HS-Code: 8537109899
Introducing the Aria Wireless Management System for Advanced Lighting Control at the Shop or in the Show.
Frequency Agility:
Aria modules boast the capability to transmit and receive signals on
standard 802.15.4 channels, both in the 2.4GHz and 915MHz (U.S) or 2.4GHz, 868MHz or 863MHz (Europe) spectrums. This agility guarantees top-notch network performance even in crowded environments. Units can seamlessly switch between spectrums, ensuring network reliability.

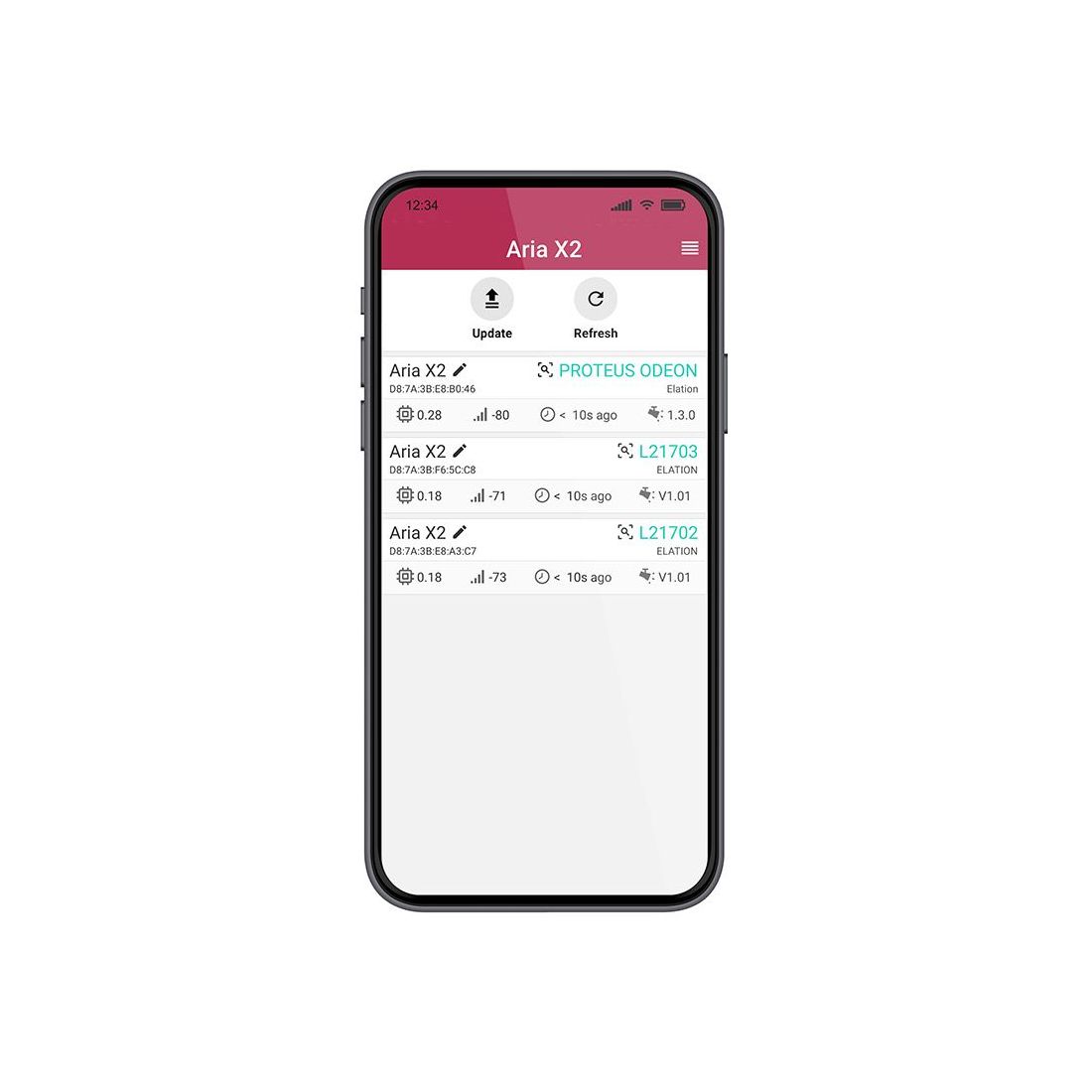

Bluetooth Low Energy (BLE) Configuration:
Aria simplifies device setup with BLE, enabling you to configure settings directly from the fixture menu. BLE also offers auxiliary functions such as individual DMX channel adjustments, opening doors to creative control possibilities.
OTA Updates:
Keep your Aria system up-to-date with Over-The-Air (OTA) updates for Aria firmware, fixture firmware, and fixture menus. A cloud repository stores these updates, and the service app efficiently retrieves them, with future multi-hop DMX support enabling mesh network updates.
Wireless Mesh Excellence:
Aria’s robust foundation lies in its Wireless Mesh technology, featuring a versatile multi-hop DMX protocol. It adapts to various settings and use
cases, with early configurations requiring minimal user intervention for optimal performance. Future releases will simplify network configuration through internal metrics, ensuring low latency and reduced collisions
(available: TBA).
Frequency Hopping:
Aria modules will implement a frequency hopping scheme, enhancing network reliability and reducing user configuration requirements. This innovation optimizes spectrum utilization, providing a seamless and efficient lighting experience (available: TBA).


  • • Single DMX Universe
  • • 900Mhz., 2.4 GHz WiFi and Bluetooth
  • • Configuration via App or Front Panel
  • • Wireless to DMX or DMX to Wireless

  • • DMX
  • • RDM (Planned for future software release)
  • • Proprietary 802.15.4
  • • Aria X2 Mesh Protocol
  • • Bluetooth 5.2 (BLE)
  • • Aria X2 Serial Protocol

    • • 2404-2480 MHz
    • • 863-870 MHz (EU)
    • • 902-928 MHz
    • • Radio module: Aria X2

    • • CSMA
    • • Adaptive frequency hopping (on the roadmap)
    • • OTA updates

    • • Antenna: 5G JT SMA

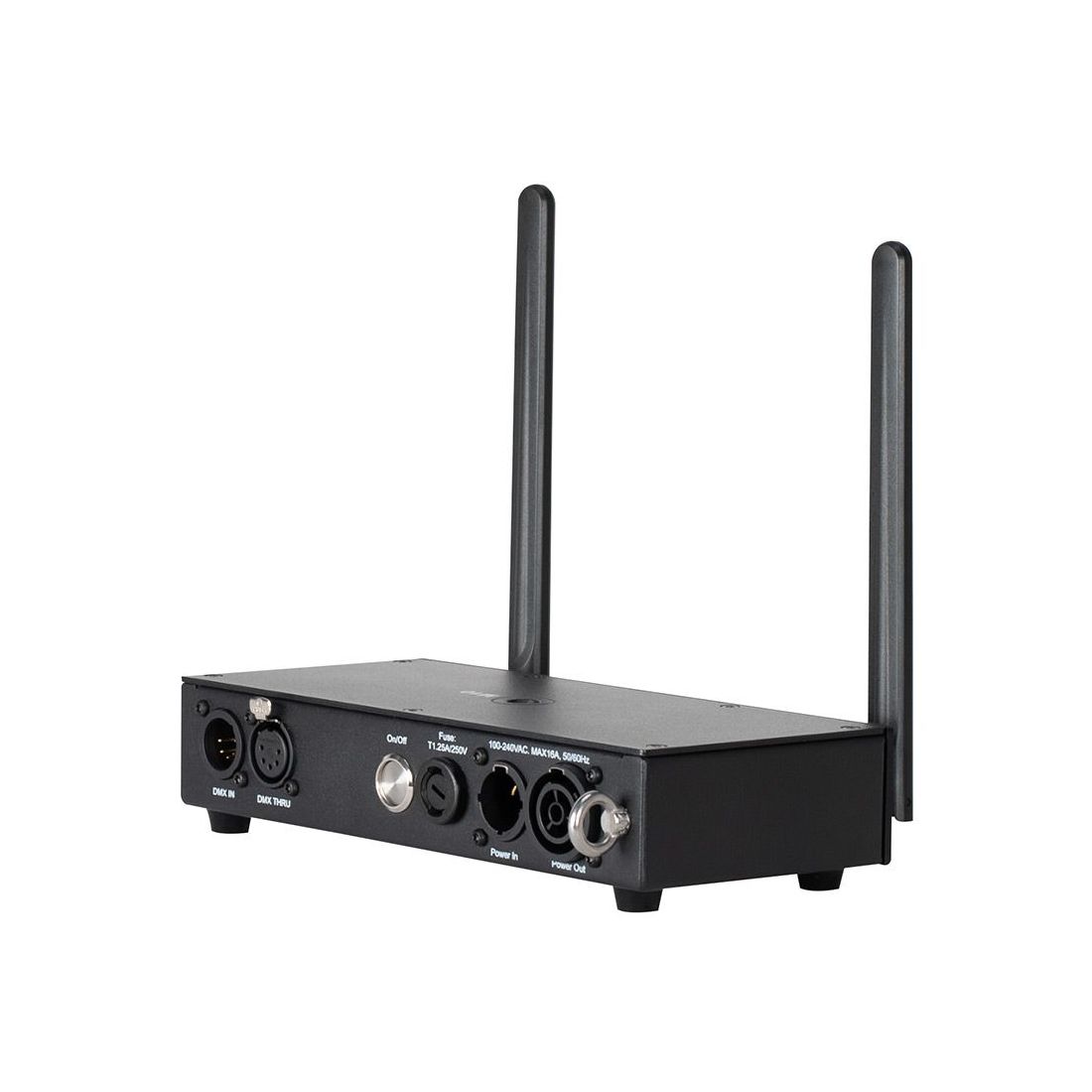

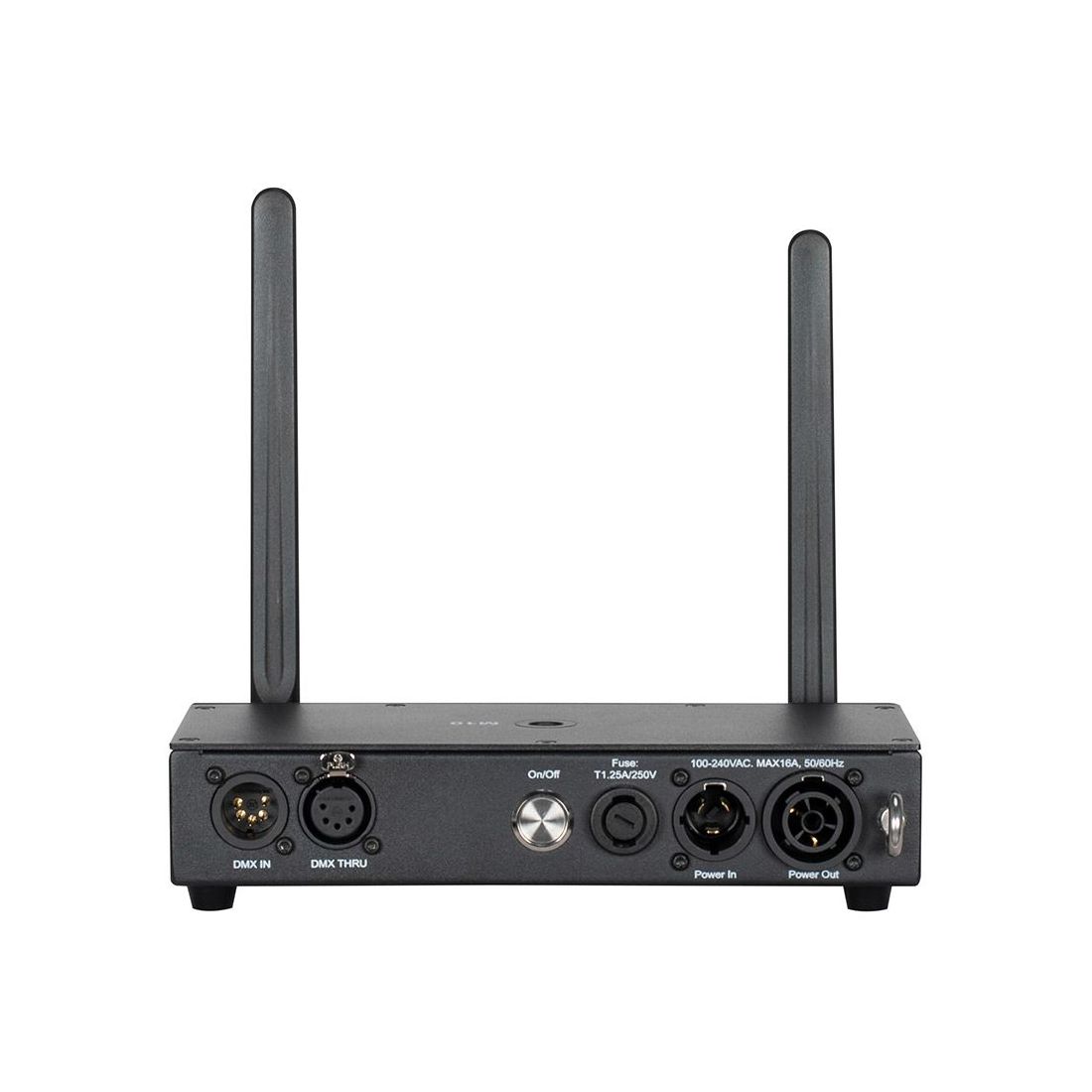

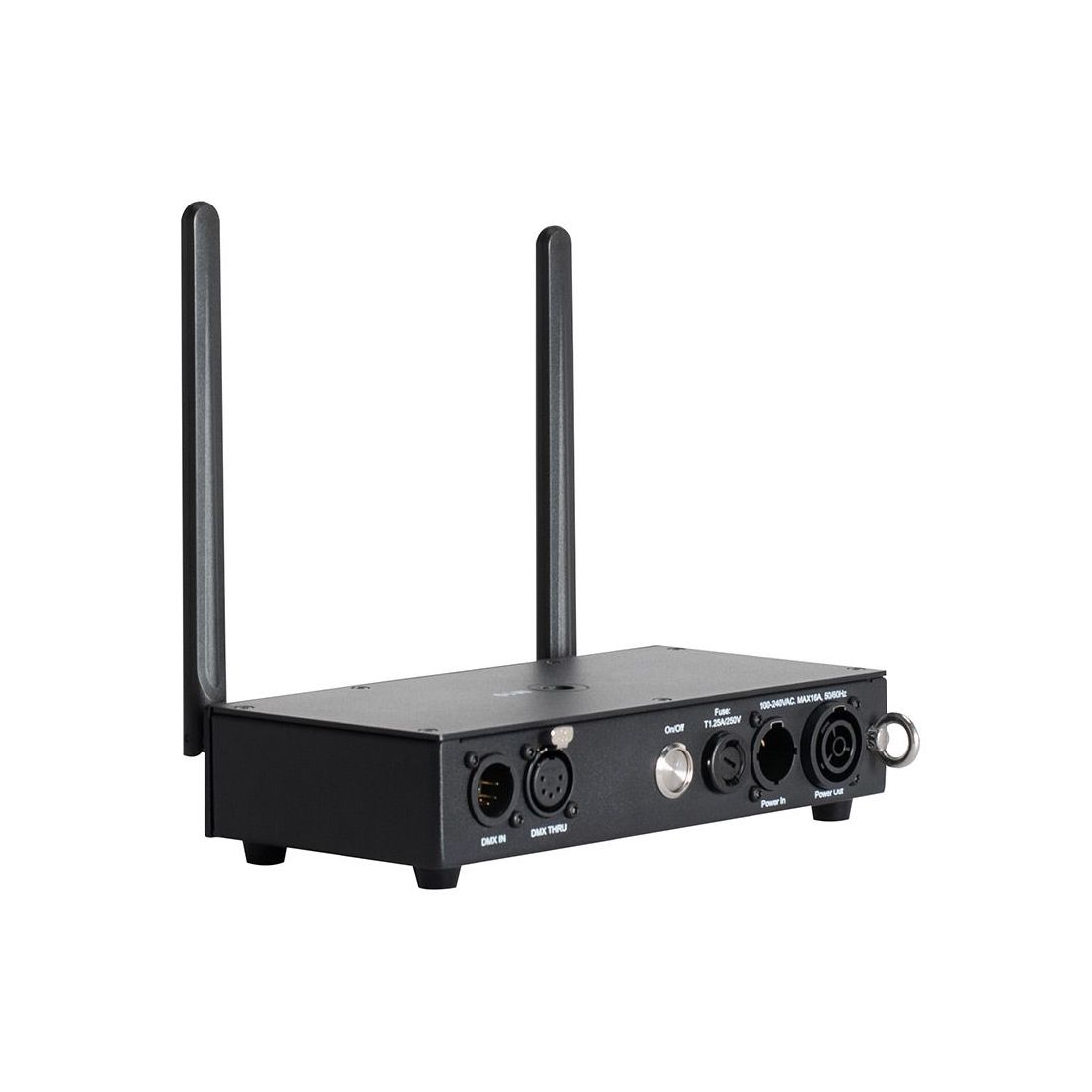

    • • DMX: 5-pin XLR Input and Output
    • • DC: 2.5mm/5.5mm Barrel connector
    • • Outdoor Locking Power Input and Output

    • • AC100-240V 50/60Hz
    • • Power Consumption: 2W
    • • Power Fuse: T1.25A/250V. (5 x 20mm)

    • • IP20 Aluminum / Metal enclosure

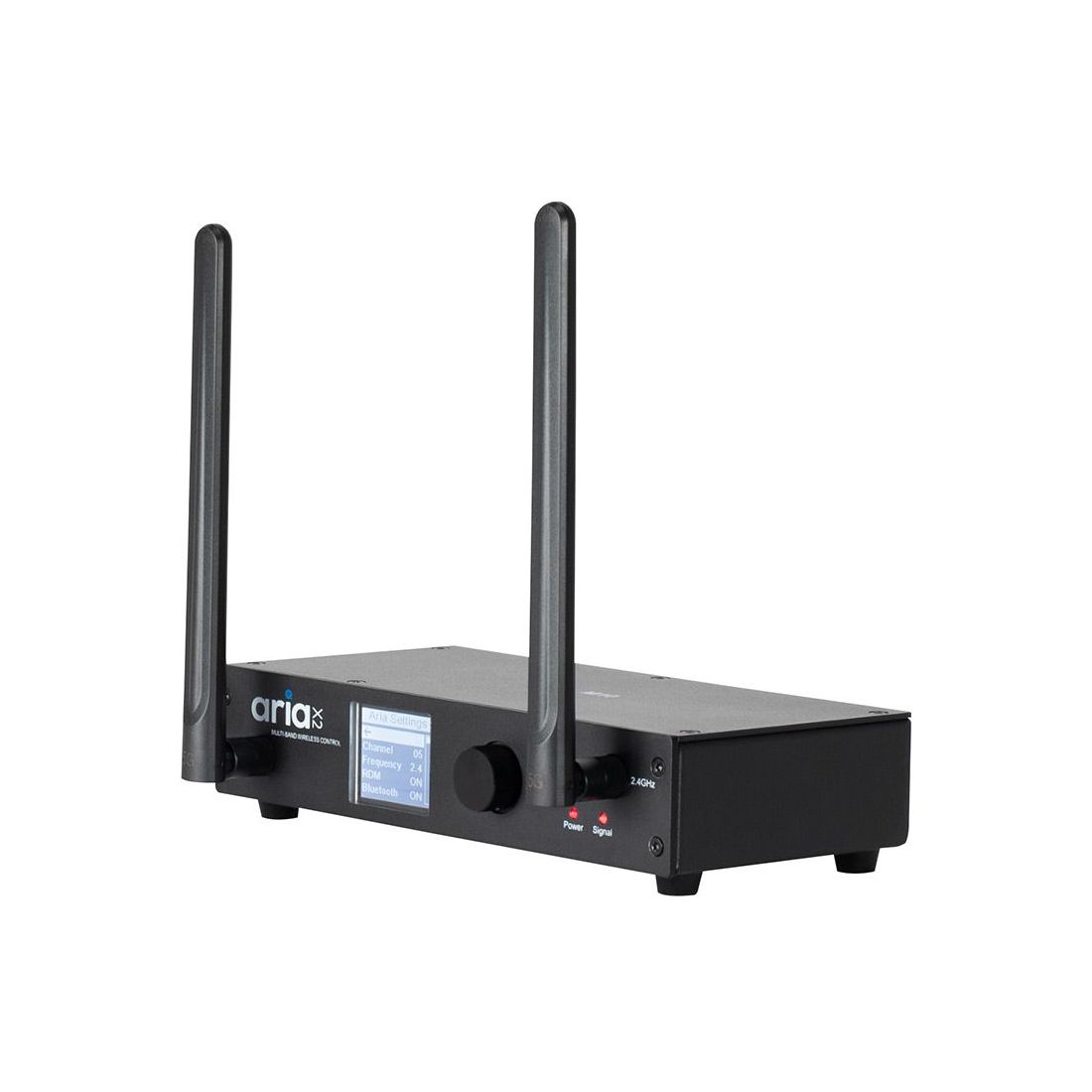

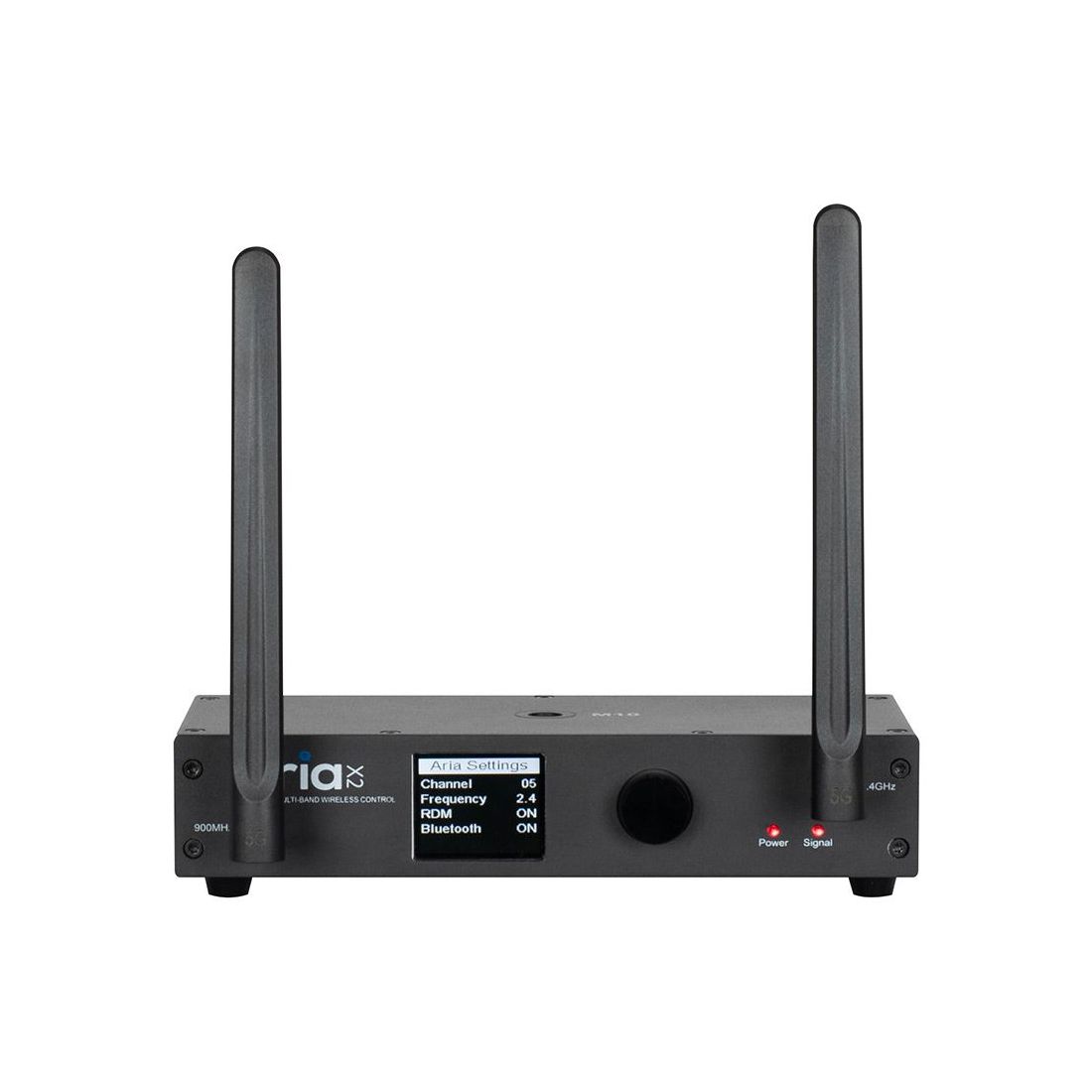

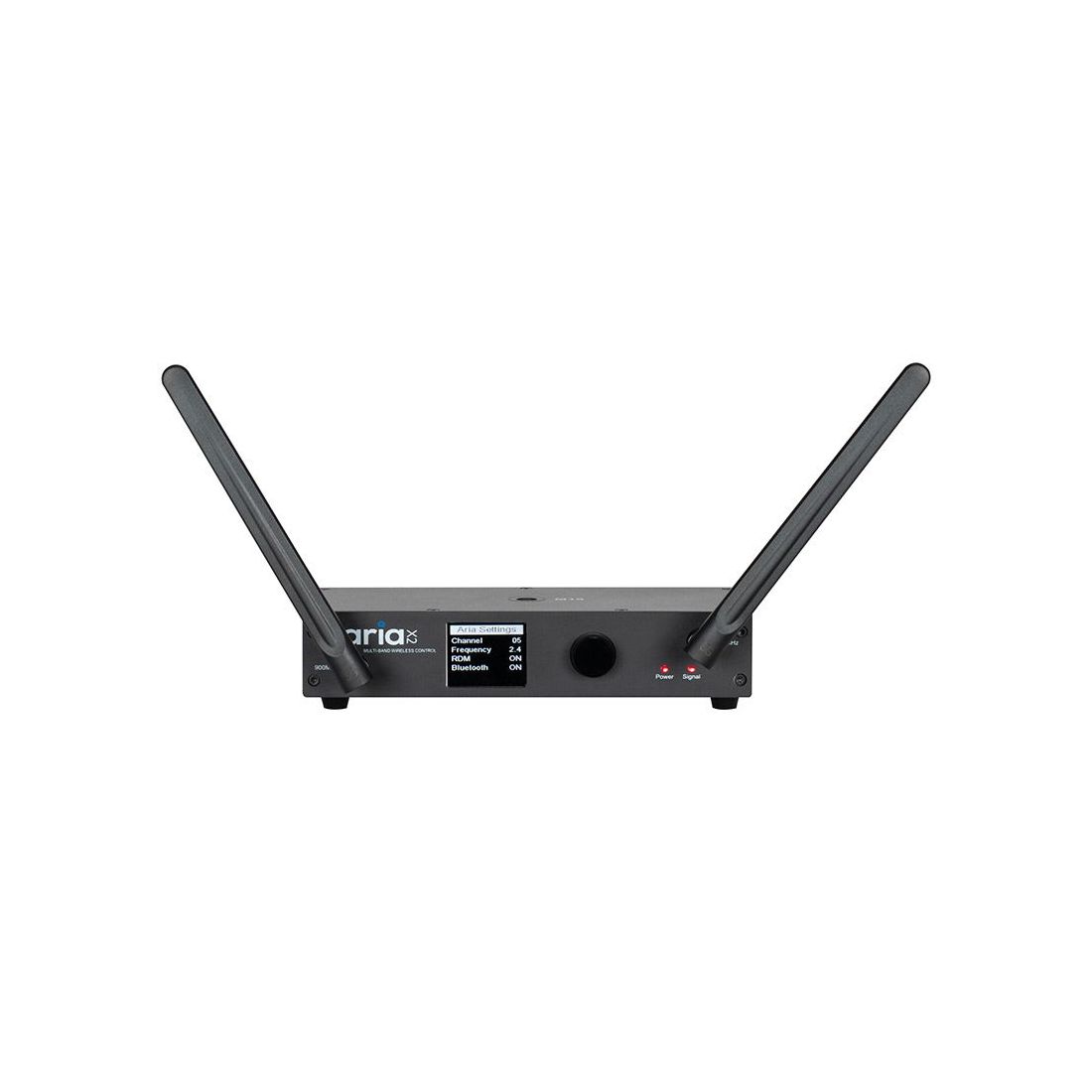

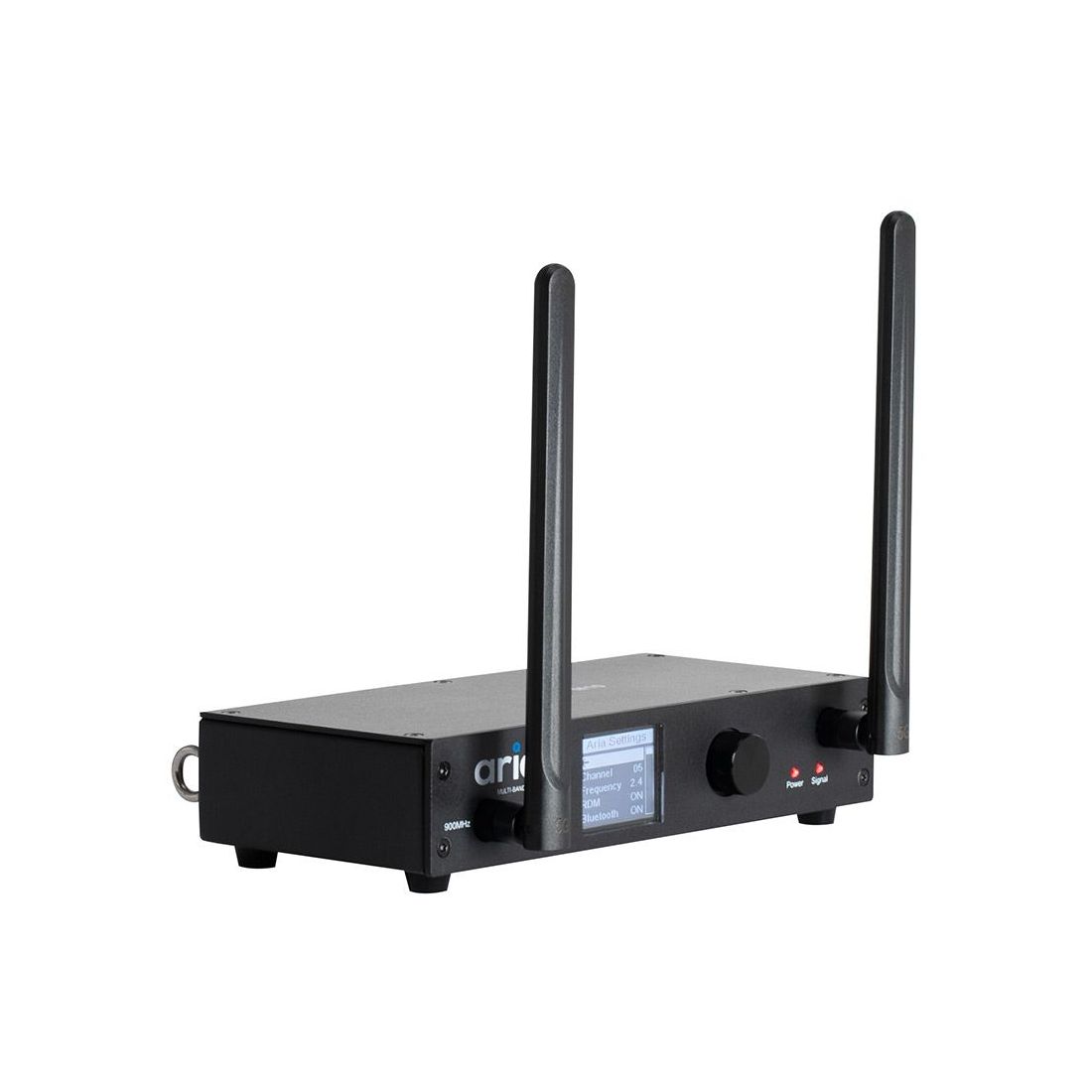

    • • Front panel screen and rotary knob

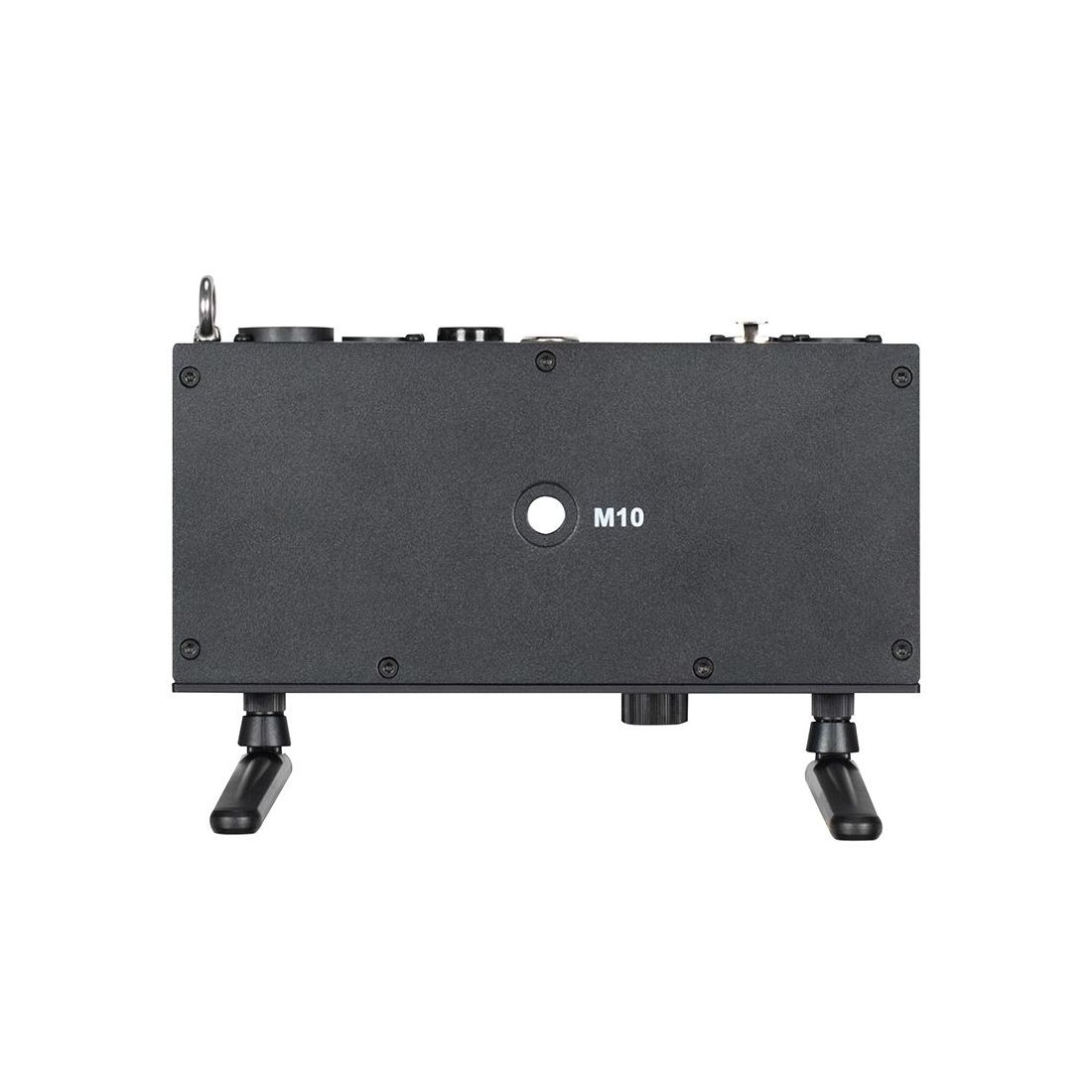

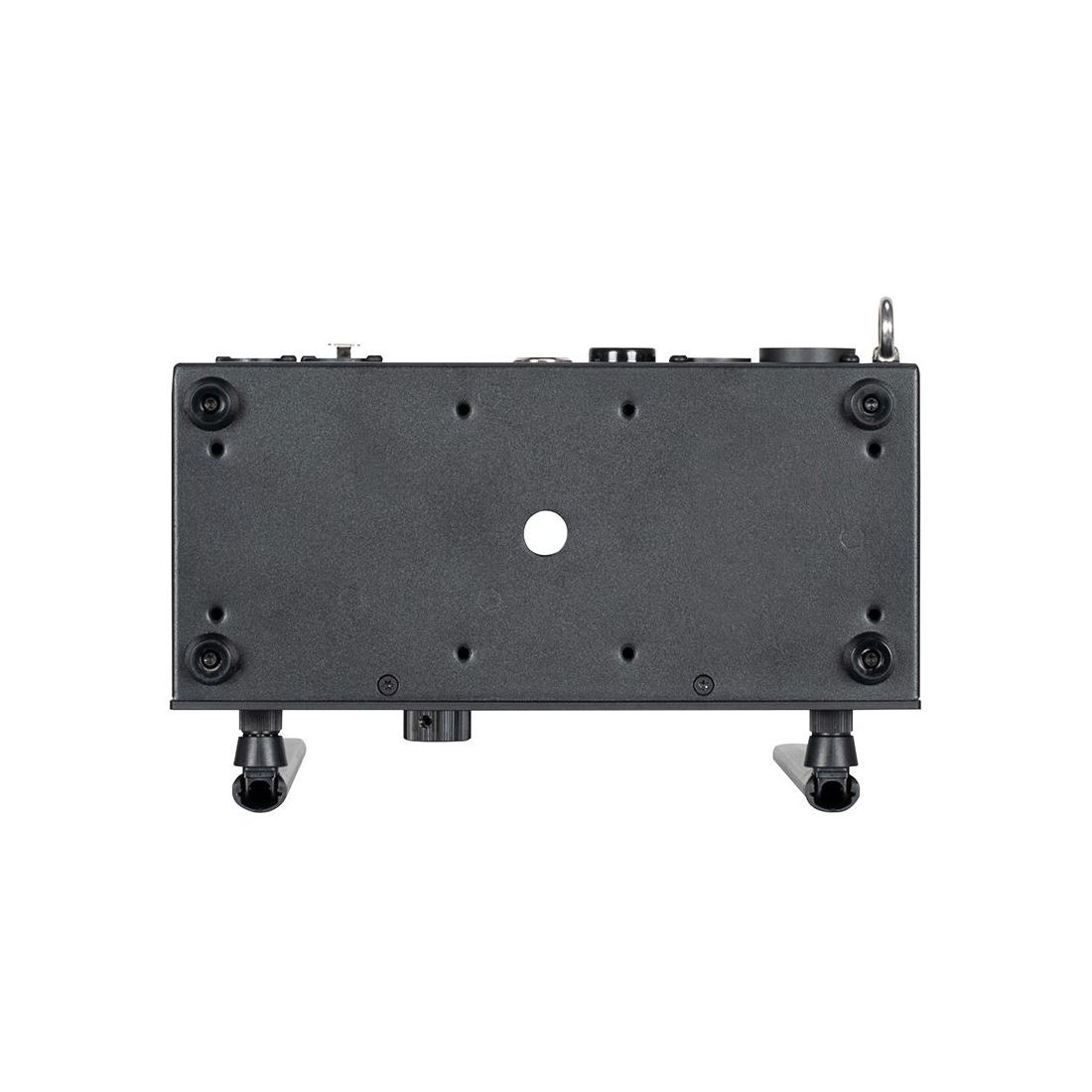

    • • M10 and M12 Threads
    • • Safety Eyelet
    • • Max ambient operating temp: 45°C
    • • Max operating humidity: <75%
    • • Storage temperature: 25°C
    • • Rack and wall mount accessories

    • • Length: 163.95mm
    • • Width: 215.30mm
    • • Height: 42mm
    • • 1.23 kg
    Specifications subject to change without notice
