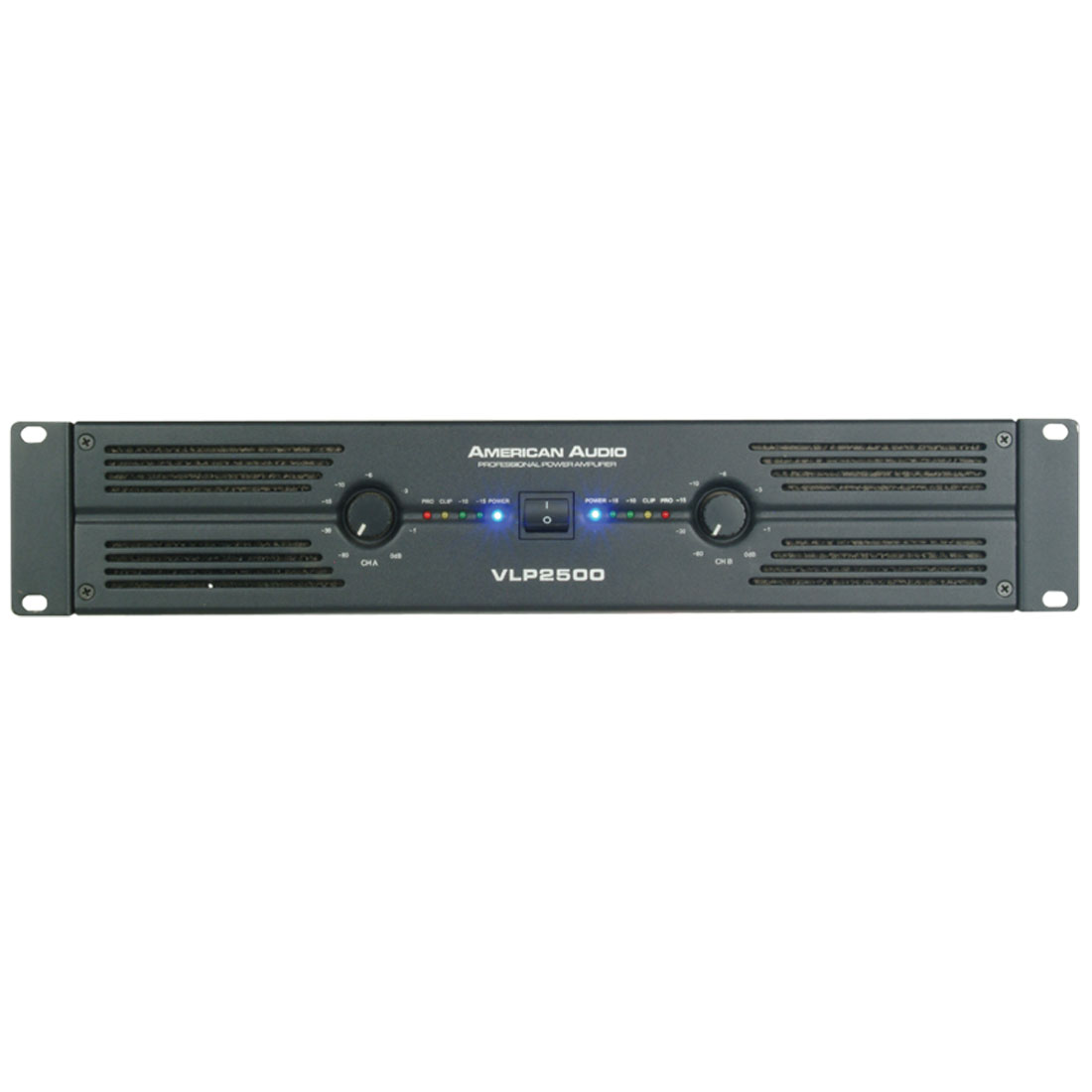

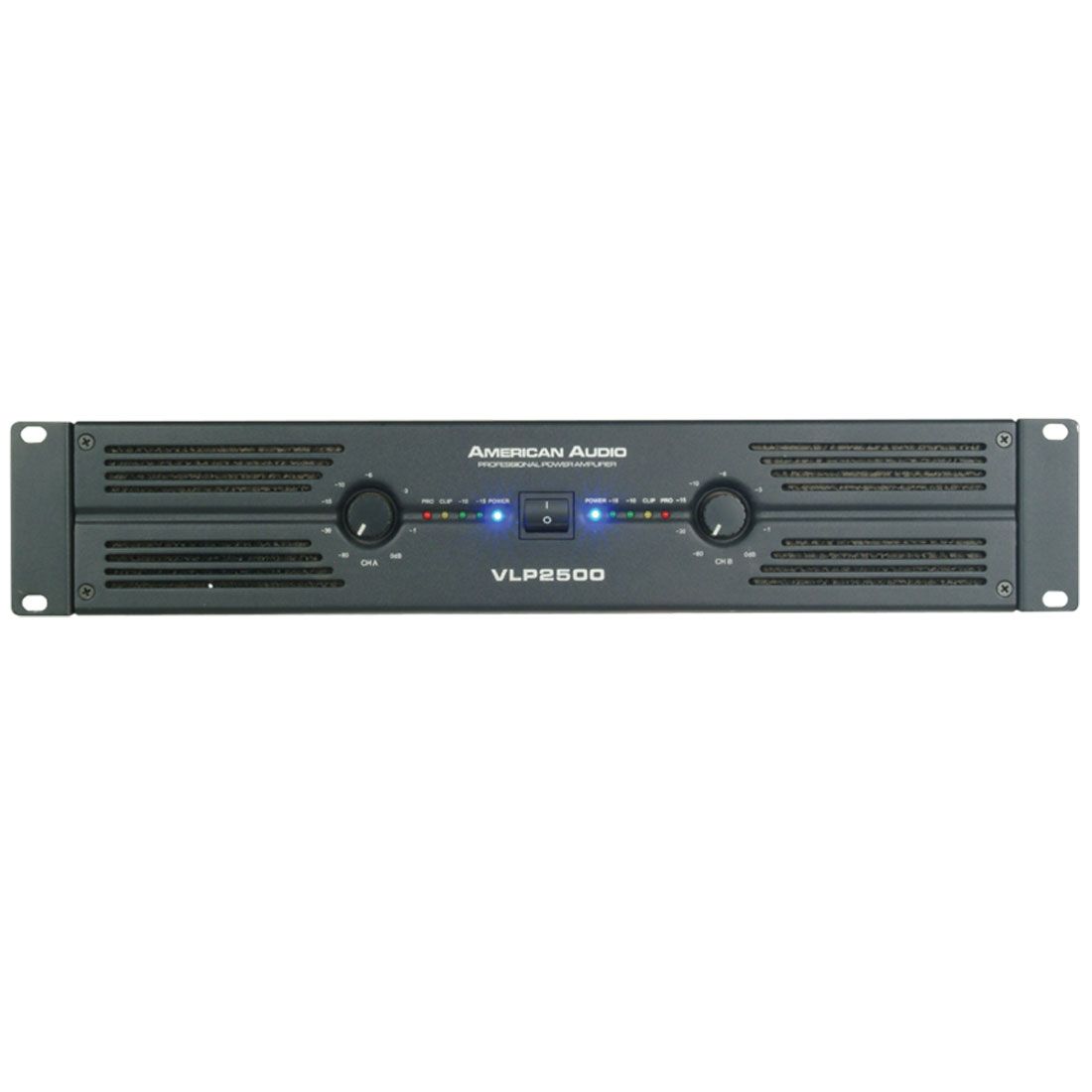

VLP2500 power amplifier

Archive

- Output Power:
  1100W RMS Per Channel @ 4 Ohms, 1kHz, 0.1% THD
  700W RMS Per Channel @ 8 Ohms, 1kHz, 0.1% THD
- Bridge Mode, Mono
  2200W RMS @ 8 Ohms, 1K Hz, 1% THD
- Total Harmonic Distortion: Less Than 0.5% (20Hz - 20kHz @ 8 Ohms)
- Frequency Response: (+/-01db, @rated output Power, 8 Ohms): 20Hz - 20K Hz
- Slew Rate: 20V Per usec
- Damping Factor: @ 8 Ohm: >450
- Impedance: 20 K Ohms balanced / 10 K Ohms unbalanced
- Cooling System: 2 indivdual fans (various speed)
- Special Features: High/Low Pass Filter/Input, Soft Start Sensitivity Selector/Ground Lift
- Output: Speaker + Binding post
- Dimensions (LxWxH): 453 x 482 x 88mm 2-rack mount space
- Weight: 22,6kg
