Vizi Xtreme Select New
Key Features
Dimensions
• L x B x H: 276mm x 200mm x 364.2mm
• Weight: 7kg
• L x B x H: 276mm x 200mm x 364.2mm
• Weight: 7kg
Effects
• 360° Continuous Pan & Tilt
• 360° Continuous Pan & Tilt
Source
• Primary: 4x 60W RGBL LEDs
• Ring: 48x 2.5W RGBW LEDs
• Primary: 4x 60W RGBL LEDs
• Ring: 48x 2.5W RGBW LEDs
Product Information
SKU: 1237000424
HS-Code: 94054210

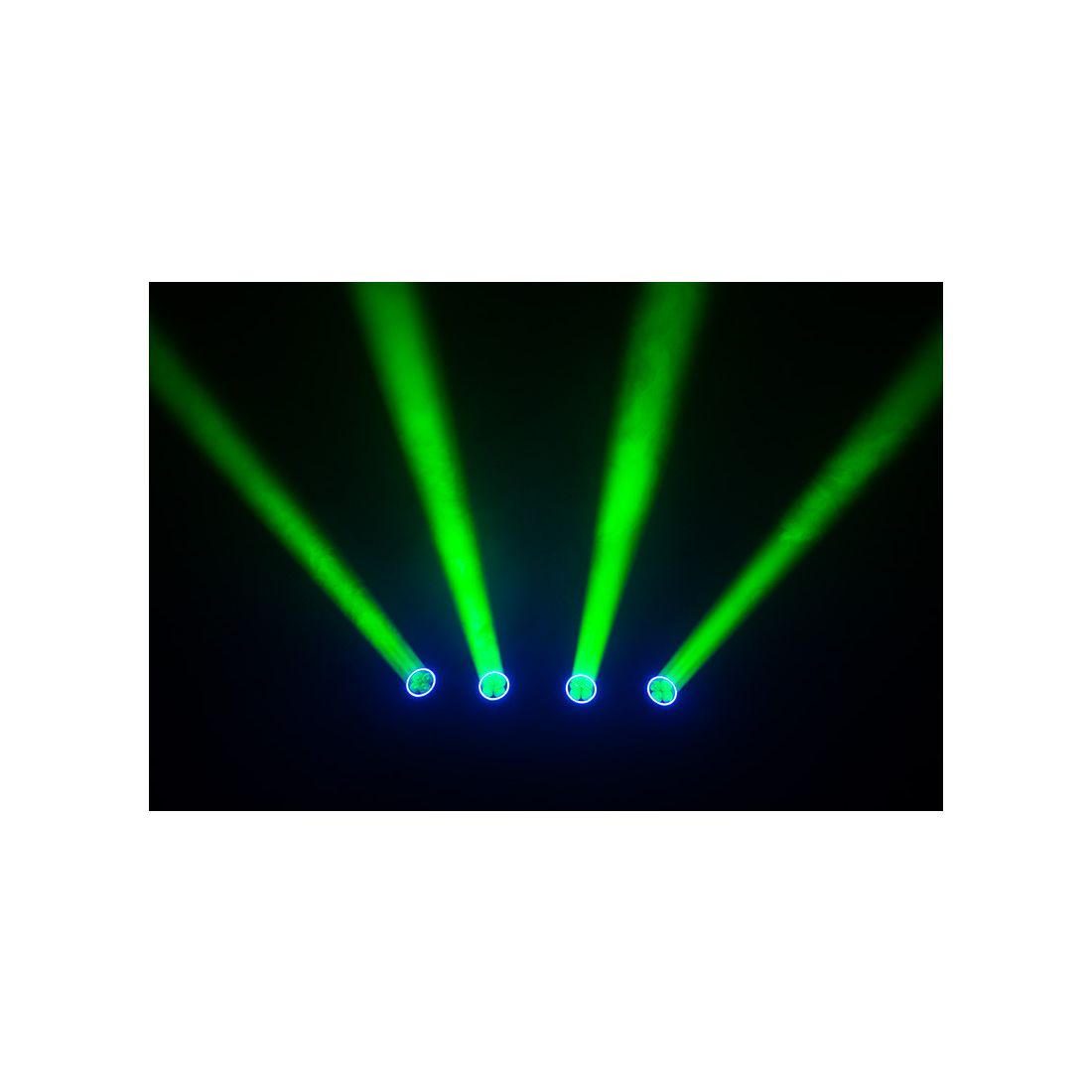

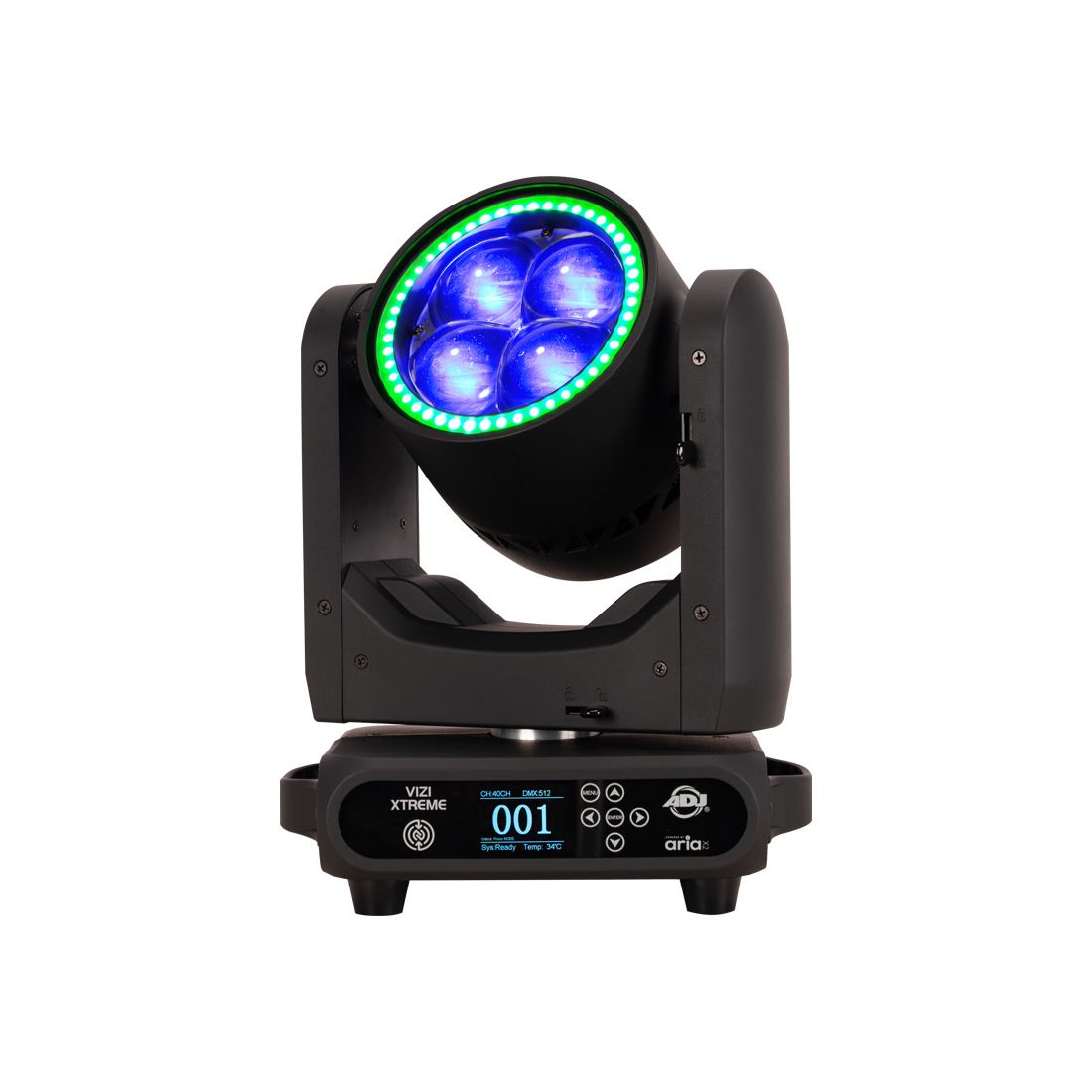

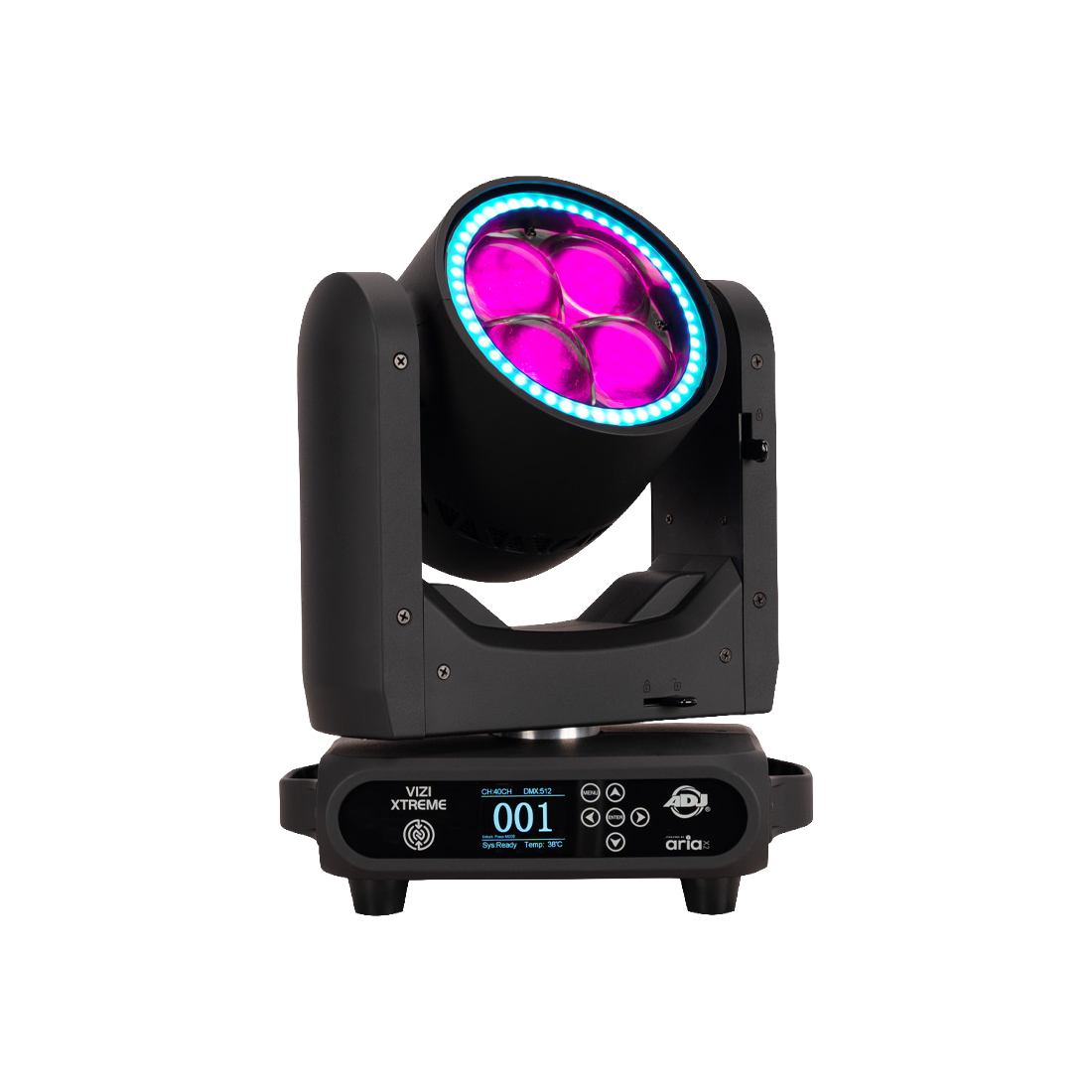

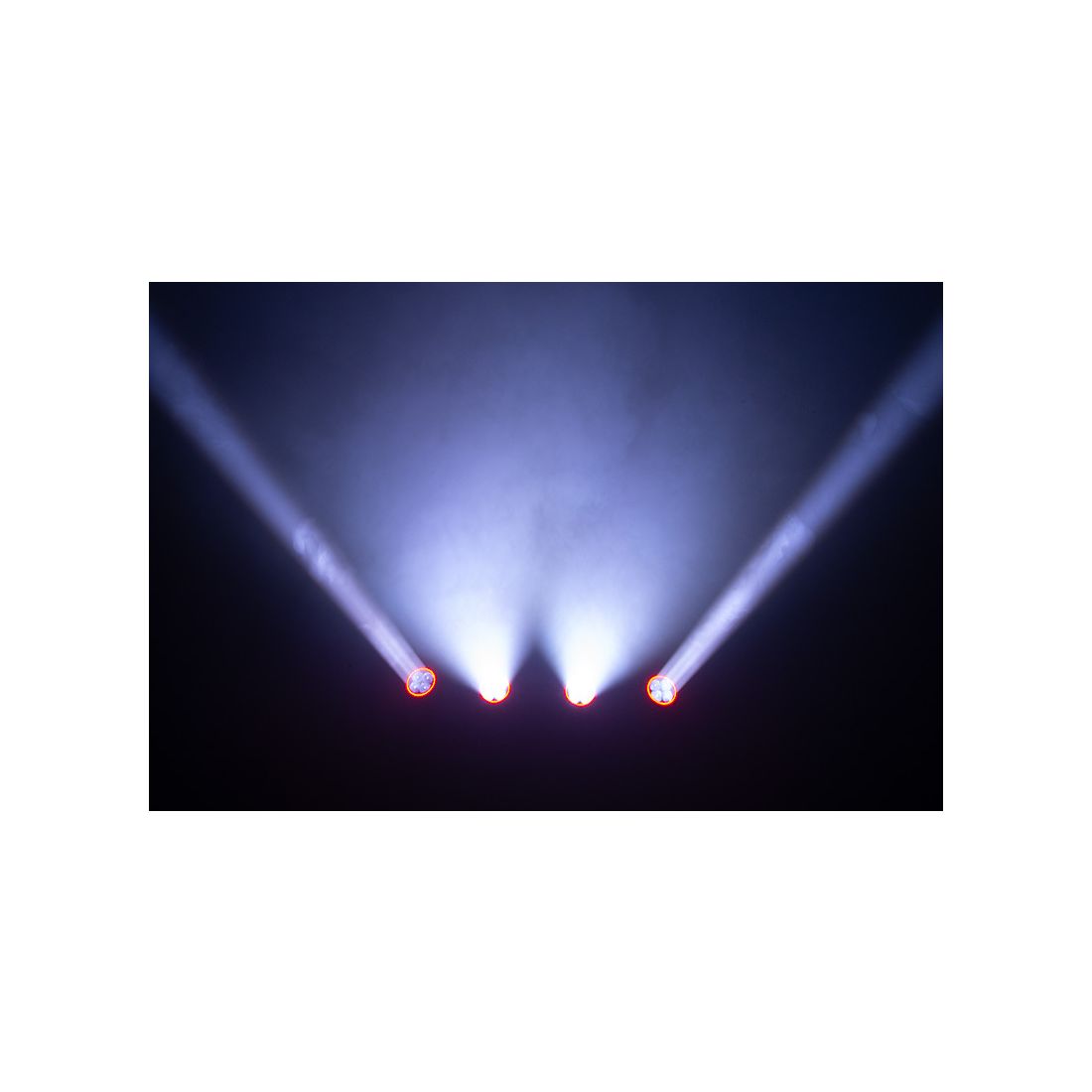

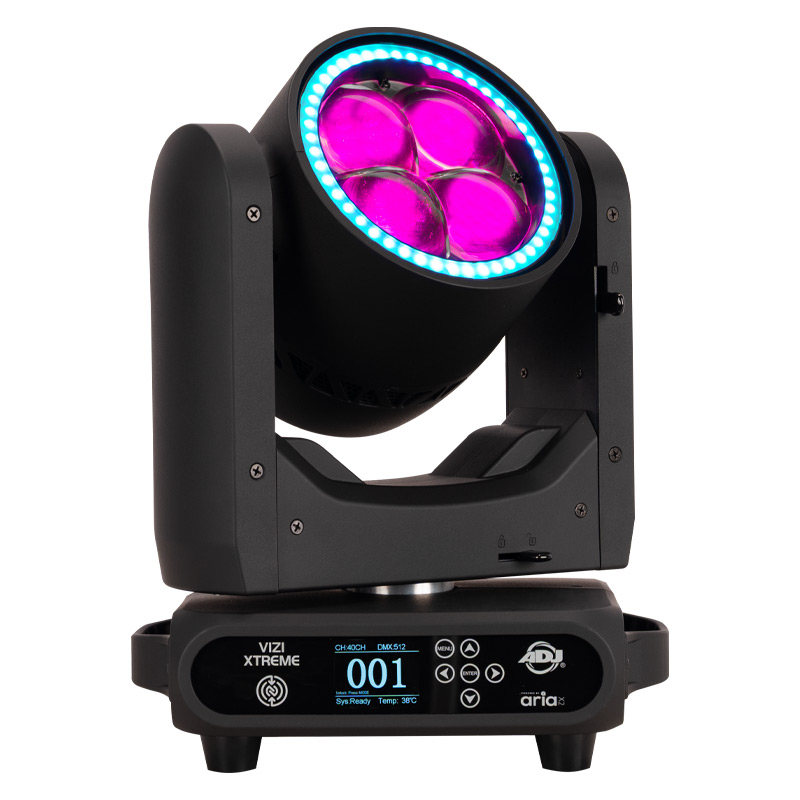

The VIZI XTREME redefines compact performance with its high-speed movement, vivid color output, and exceptional versatility. Powered by four 60W RGBL primary LED's and a ring of forty-eight 2.5W RGBW LED's, it produces a stunningly bright beam with smooth color blending and a color temperature range of 2700K–10,000K. Each primary LED offers individual pixel control, while the ring features six independently controlled zones for creative eye candy effects.
A motorized zoom range of 3°–45° transitions effortlessly from a tight beam to a wide wash, supported by a fast electronic strobe (1Hz–10Hz) for dynamic visual impact. Control options include five DMX channel modes, RDM, sACN, ArtNet, NFC, and wireless management via the Aria X2 System. The intuitive interface features a full-color, 180° reversible LCD menu and a 6-button touch control panel for streamlined operation.
With 540°/360° continuous pan and 270°/360° continuous tilt, the VIZI XTREME offers precise positioning and rapid movement driven by 3-phase motors. Compact yet robust, it weighs just 7kg and is built for professional environments.
Whether used for stage, event, or installation, the VIZI XTREME delivers exceptional performance, speed, and creative control in a sleek, portable design.
Gallery
Specification
- • 240W RGBL Beam Wash Moving Head
- • Primary: 4 x 60W RGBL LED's
- • Color Temperature: 2700K – 10,000K
- • 20,000 Hour Average LED Life*
- • Ring: 48 x 2.5W RGBW LED's
- • 20,000 Hour Average LED Life*
- • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- • 2,700 Lumens
- • CRI: 60

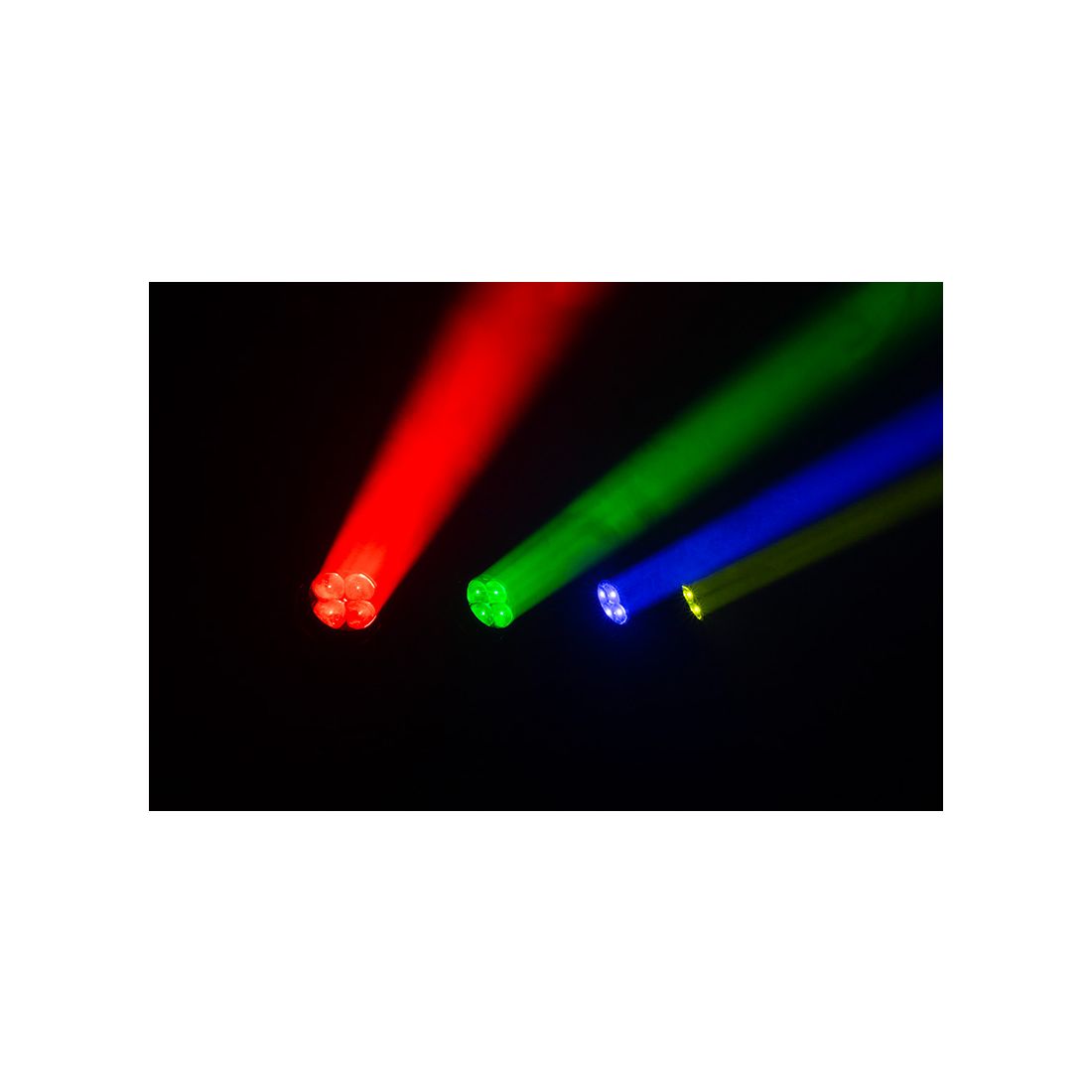

- • Primary: 4 x Red, Green, Blue and Lime
- • Ring: 48 x RGBW
- • Individual pixel control for primary RGBL LED's

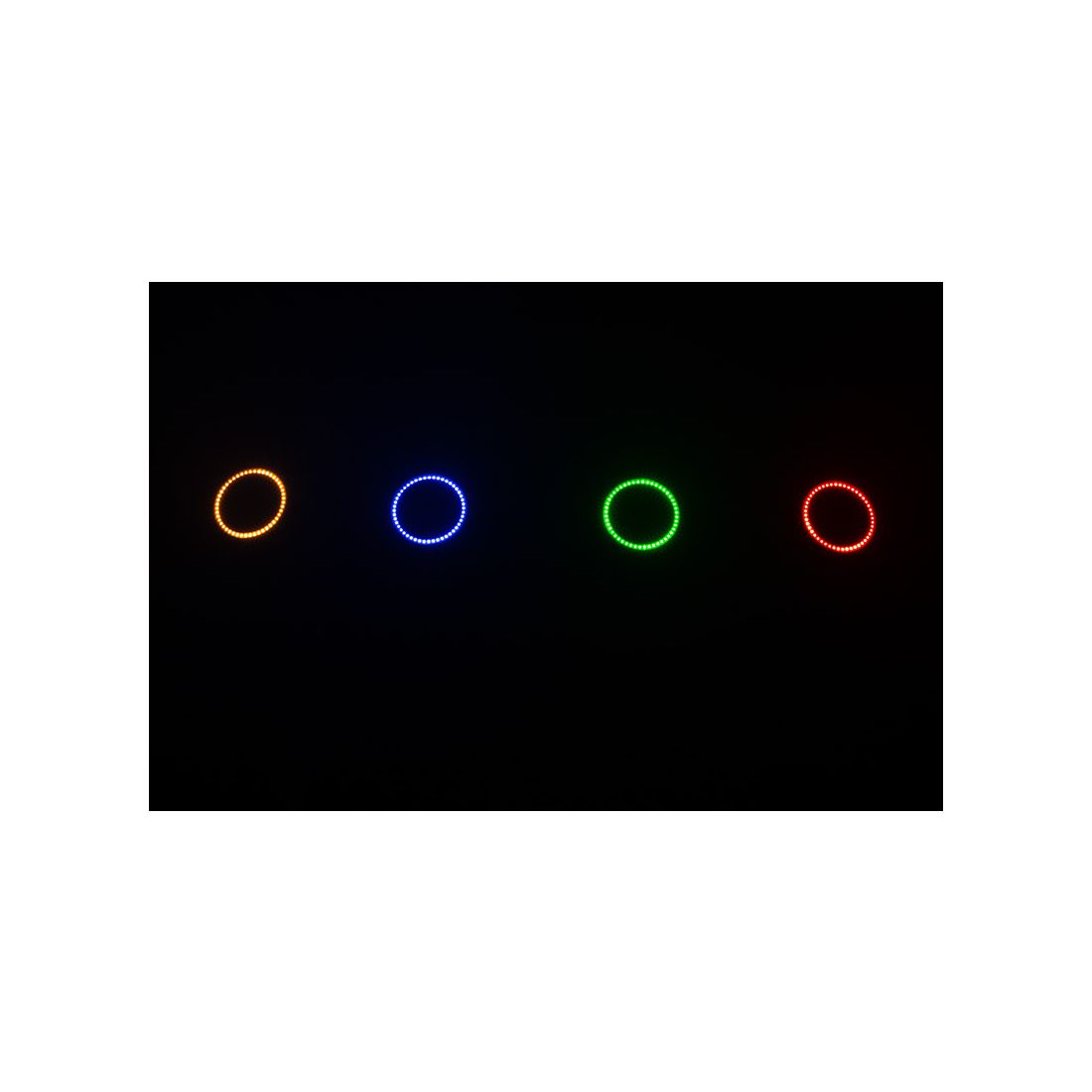

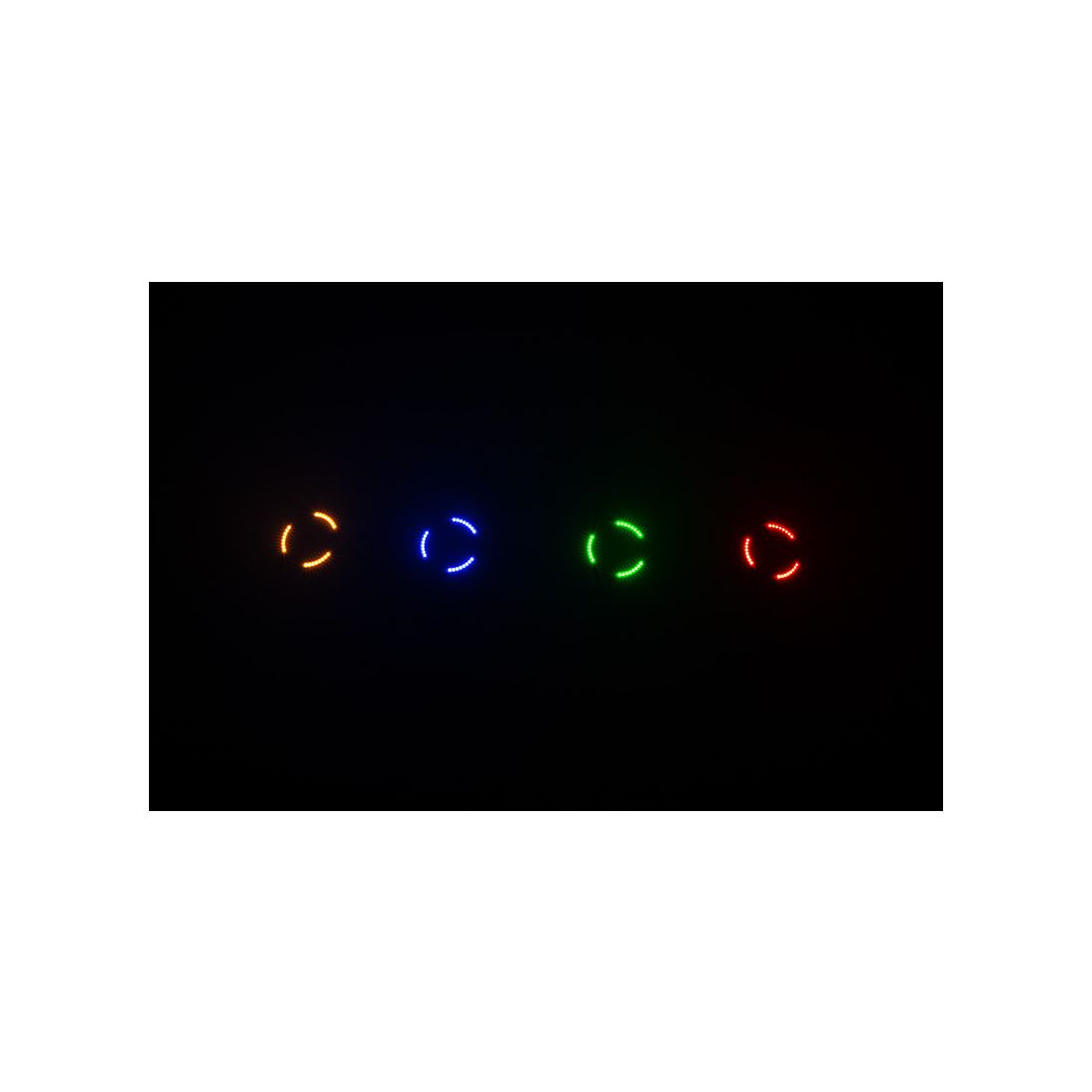

- • Six-zone control for ring RGBW LED's (8 LED's per zone)
- • Motorized zoom range: 3°–45°
- • Electronic strobe rate: 1Hz–10Hz
- • (5) DMX Channel Modes (Basic 28 / Standard 40 / Extended 73 / Standard CMY 54 / Extended CMY 63)
- • DMX, RDM, sACN and ArtNet
- • Aria X2 Wireless Management System
- • NFC System
- • 6 Button Touch Control Panel
- • Full Color 180° Reversible LCD Menu Display
- • 8 / 16 Bit Resolution Adjustable Movement

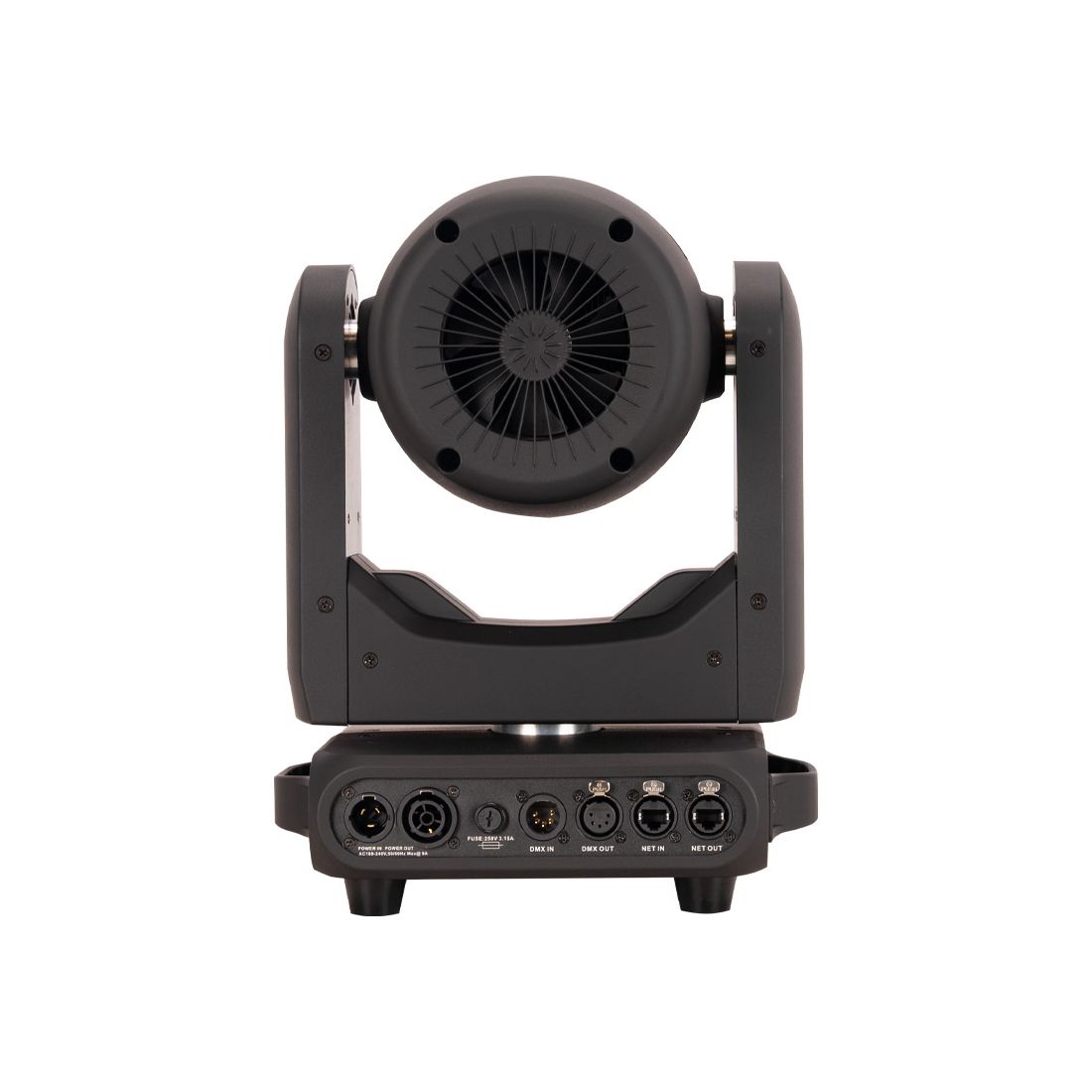

- • IP20 5-pin XLR DMX In/Out
- • IP20 RJ45 In/Out
- • IP65 Locking Power In/Out
- • Pan: 540°/360° (360° Continuous Pan Rotation Option)
- • Tilt: 270°/360° (360° Continuous Tilt Rotation Option)
- • Pan/Tilt Locks
- • 3 Phase Motors
- • Length: 276mm
- • Width: 200mm
- • Vertical Height: 364.2mm
- • Weight: 7kg
- • AC 100–240V – 50/60Hz
- • Max Power Consumption: 675W
- • Power Link: 10 units @230V
- • Max ambient temperature: -25°C to 45°C
- • Max housing temperature: ?°C
- • DB Rating @ 1m.: ?dB
- • BTU: 0.64
- • BTU/H: 2301.75
- • 1 x Outdoor Locking Power Cable (2m)
- • 2 x Omega Brackets (107mm)
- • 1 x Safety Cable, 3mm (0.6m)
Specifications subject to change without notice
