Vizi Beam RX2
Select
New

Brand

Key Features

Effects
Effects
• 3-Phase, High Speed, Pan/Tilt Motors
Optics
Optics
• Beam Angle: 2°
• 16-facet circular & 4-facet linear prisms
Source
Source
• 100W Osram Sirius HRI Long Life Discharge
• Color Temperature : 9000K

Product Information

SKU: 1237000337
GTIN: 810087372484
HS-Code: 94054910

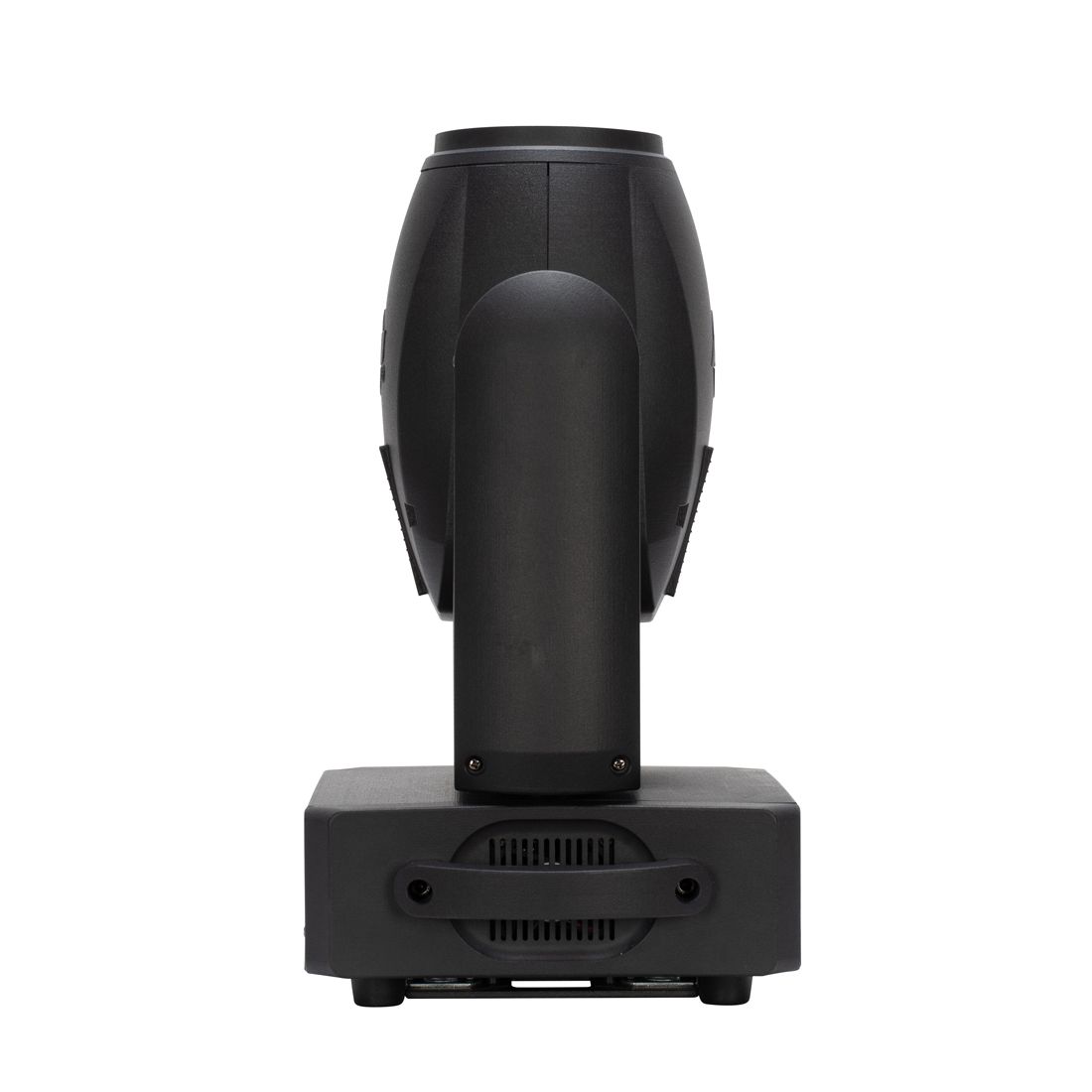

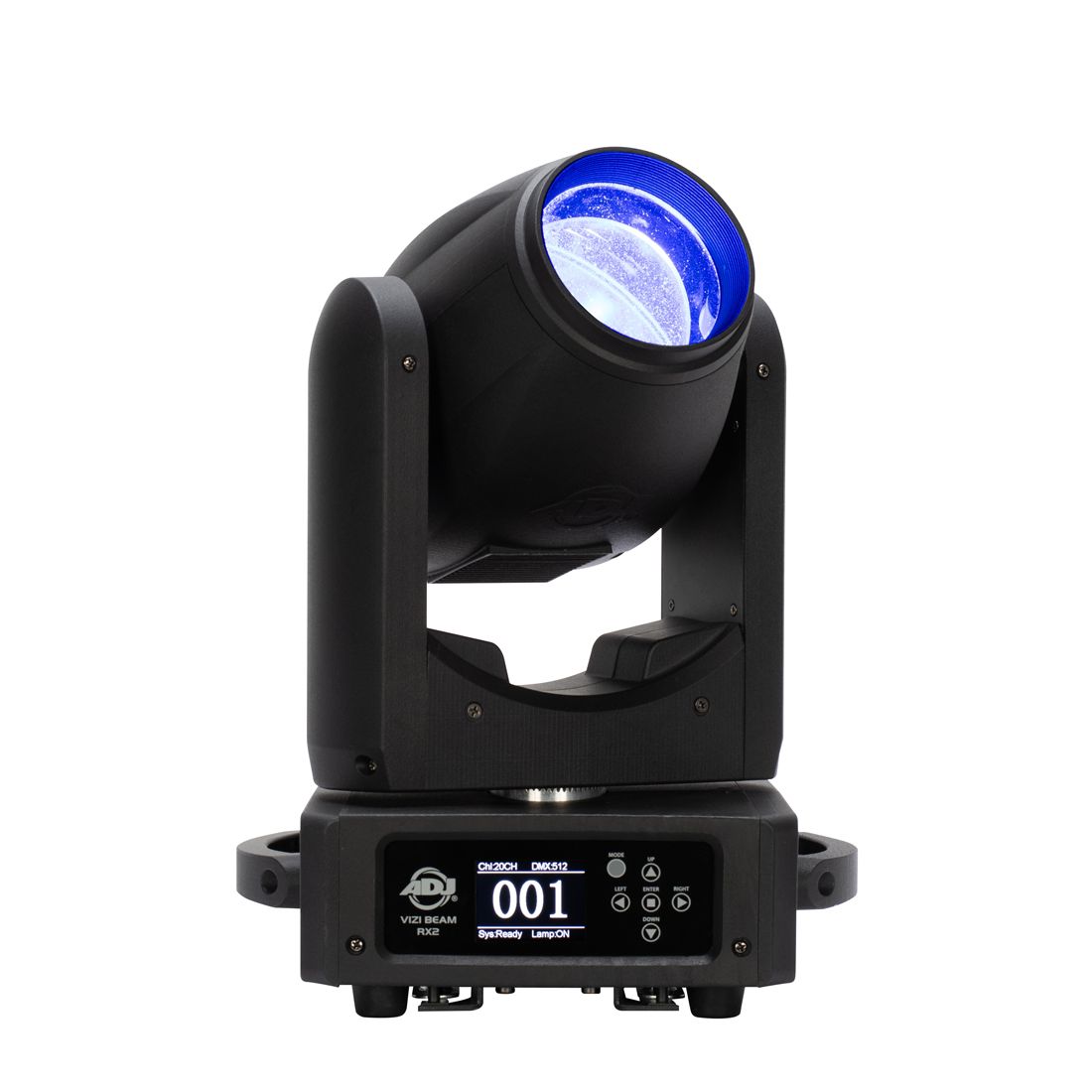

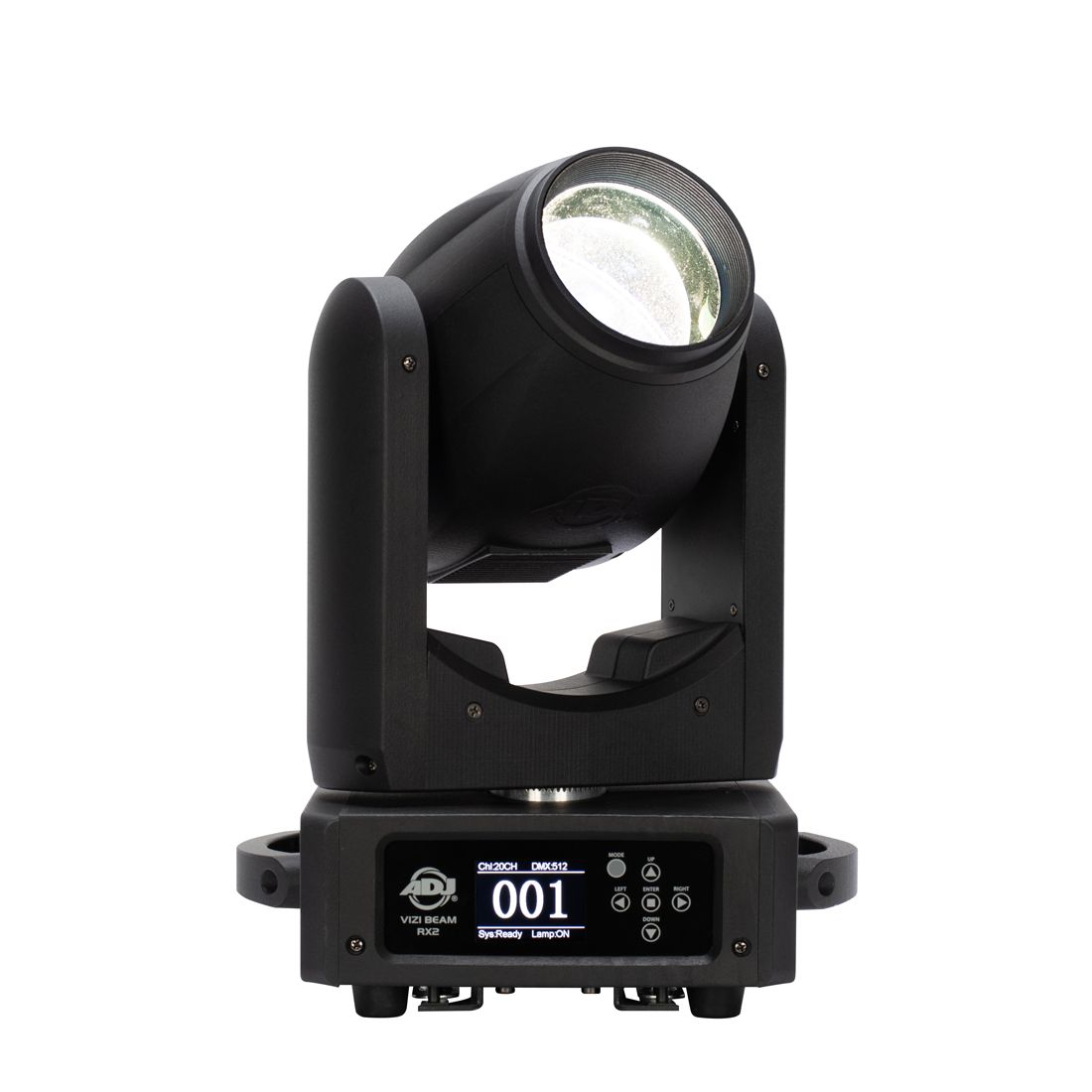

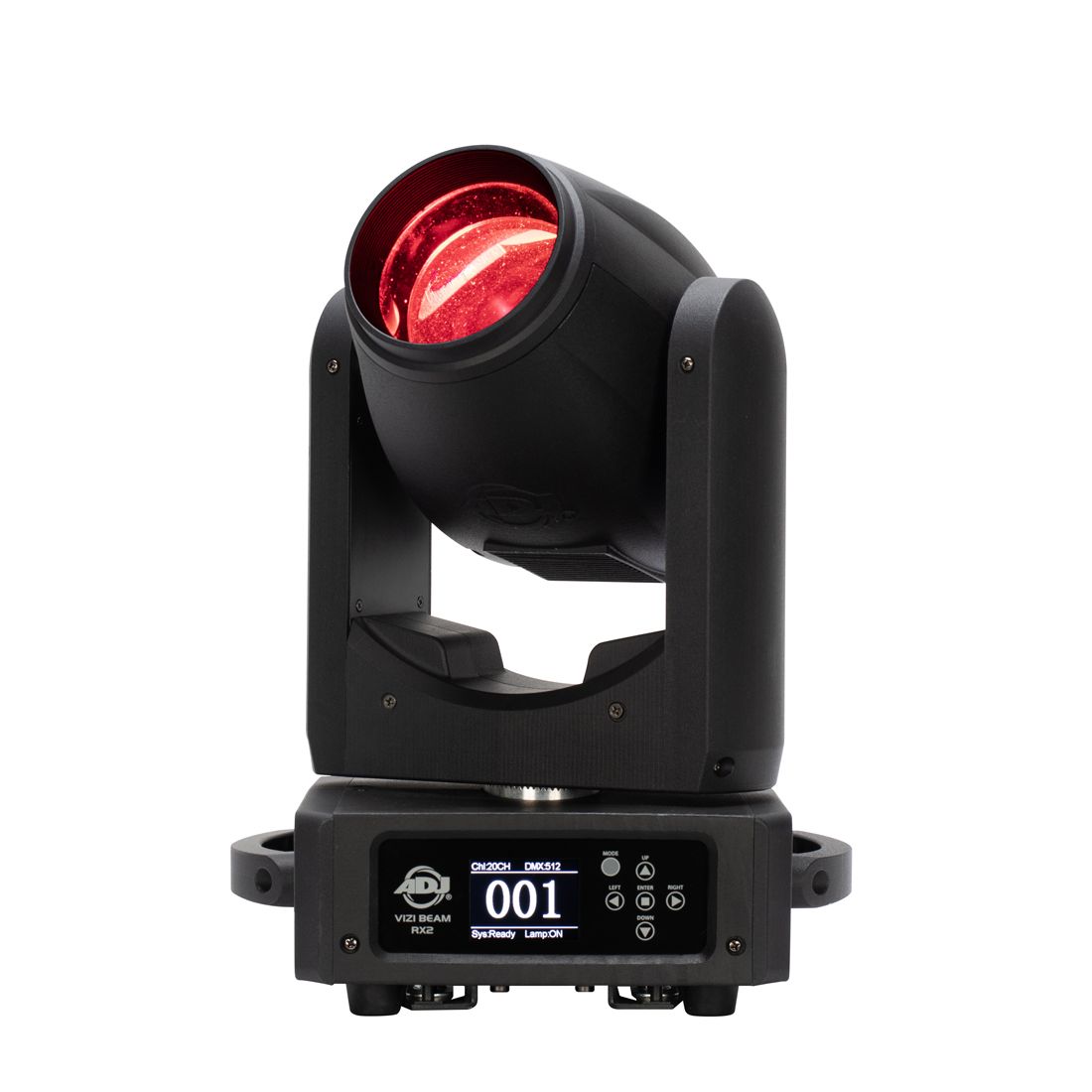

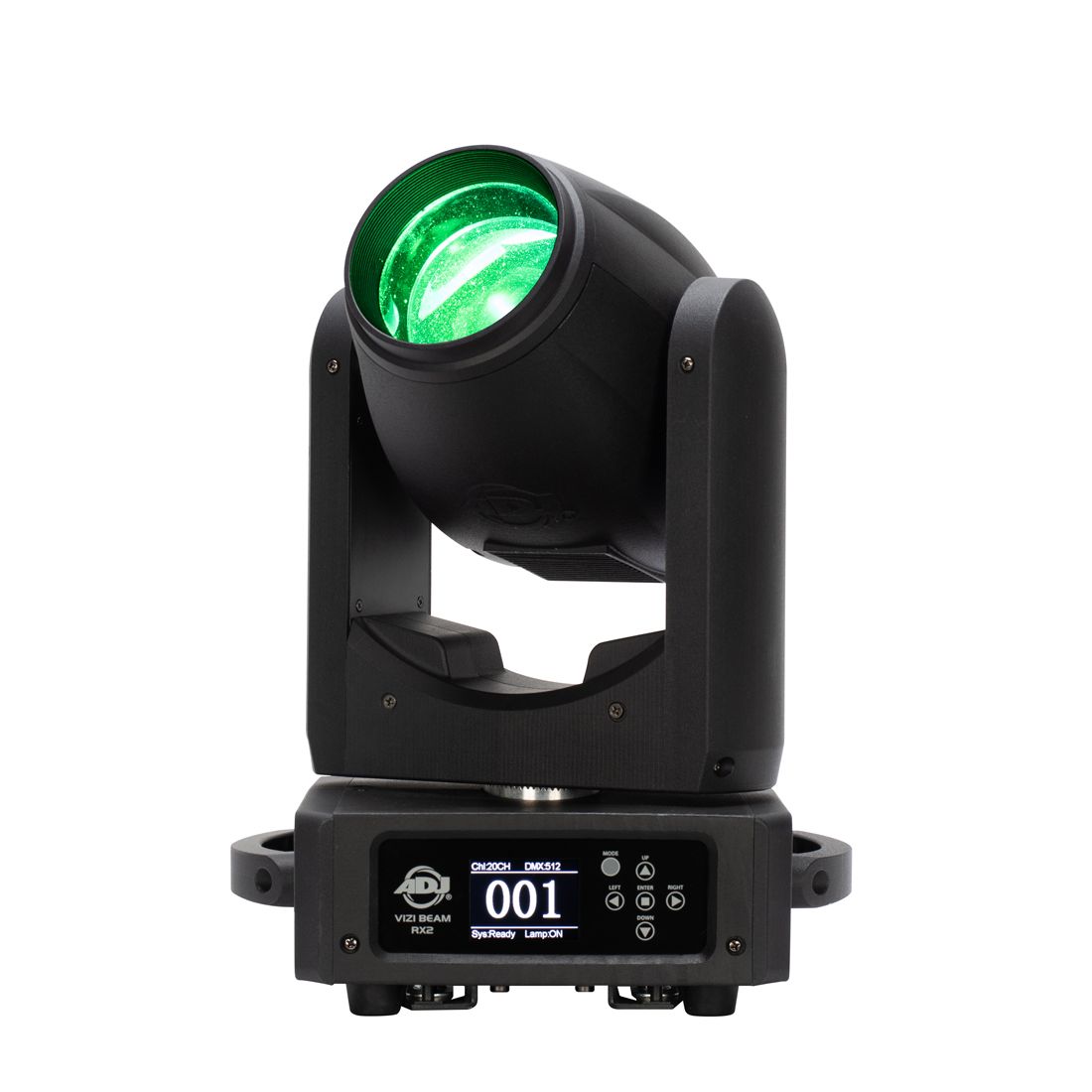

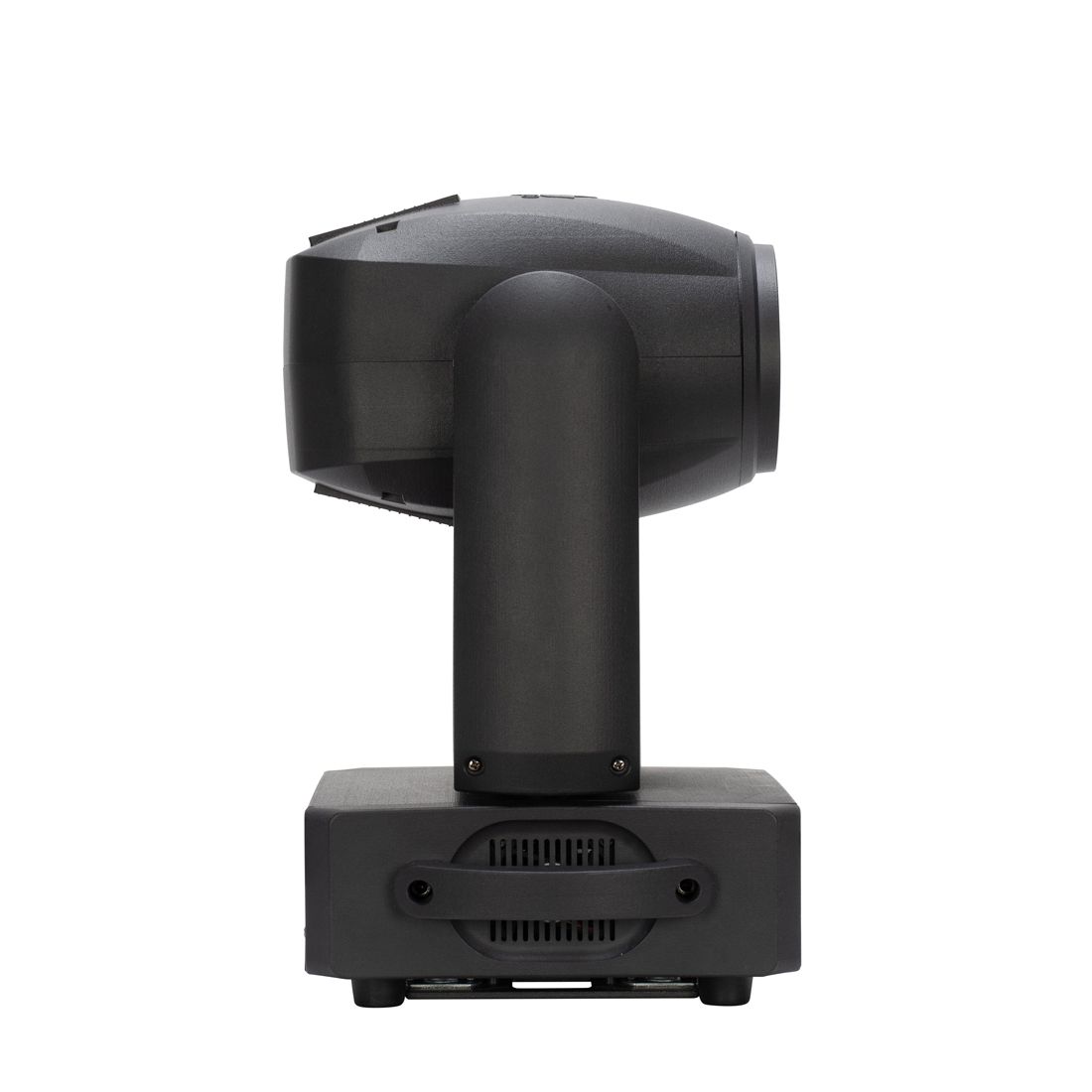

Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance.

Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000k) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers).

Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets and a color LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.

Specification

  • • OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
  • • Color temperature: 9000K (+/- 300K)

  • • On-Board Wireless DMX
  • • Motorized Focus + 16-Bit Fine Focus
  • • 2-Degree beam angle
  • • Frost Filter (to create wash effect)
  • • High Quality Glass Lens
  • • 2 Rotating Prisms
  • • 0-100% Smooth Dimming
  • • Various Strobe Speeds
  • • OTA, wireless, firmware updates
  • • Fan cooled

  • • 14 Dichroic Colors + white (Includes CTO (3200K), CTB (9000K) & UV)
  • • Indexable Color Wheel (for Split Colors)

  • • 15 static GOBOs + open (3 GOBOs are beam reducers)
  • • GOBO Shake Effect

  • • 2 Rotating prisms
  • • 16-Facet circular and 4 facet linear prisms

  • • Protocols: DMX512 & RDM
  • • Control Mode: DMX512 & Manual (On-board Controls)
  • • Aria X2 Wireless Management / DMX System
  • • 2 DMX Channel Modes: 12/16 Channels

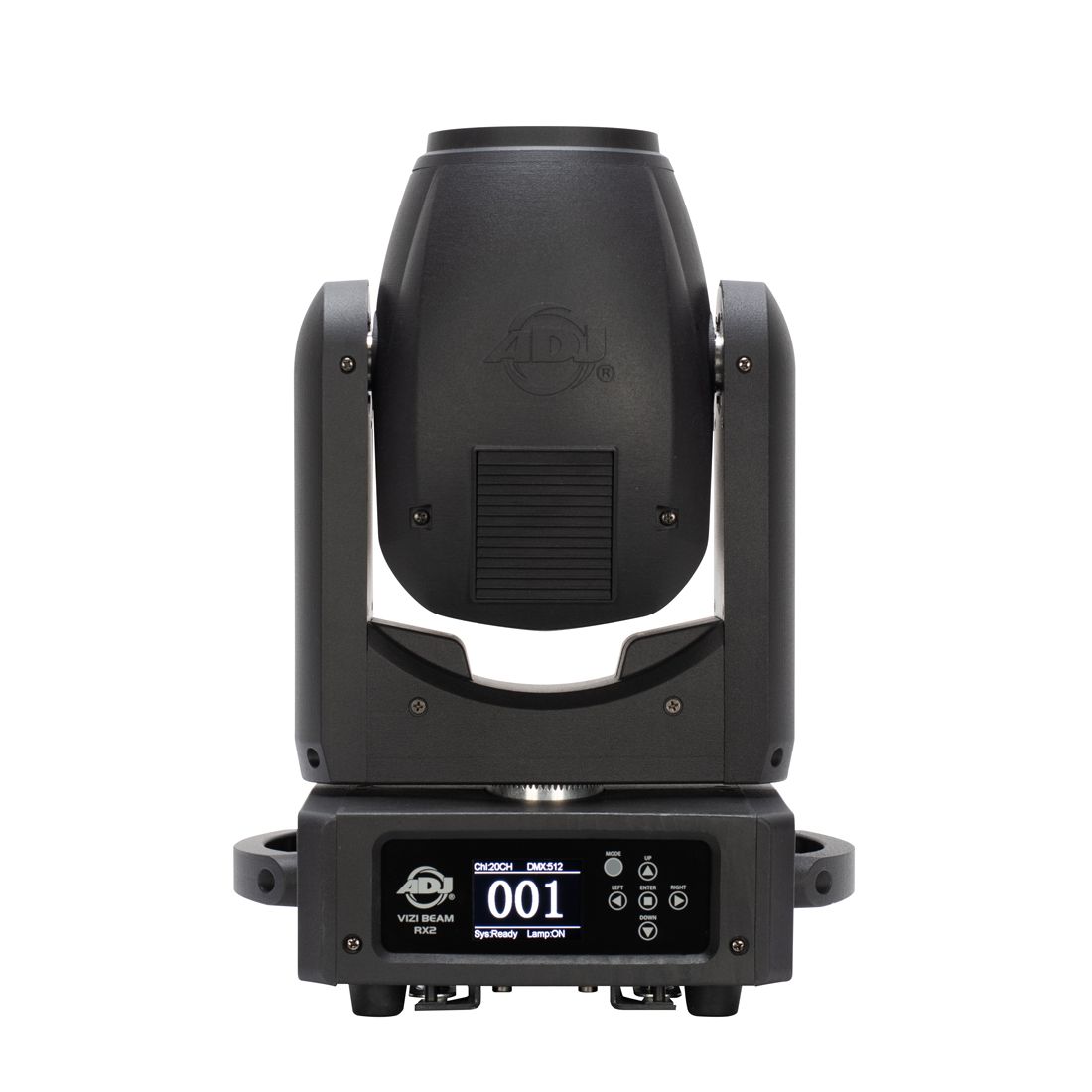

  • • Color LCD display with 4-button function menu
  • • 0-100% smooth dimming
  • • Various strobe speeds

  • • Pan: 540 Degrees (plus 16-bit fine pan)
  • • Tilt: 270 degrees (plus 16-bit fine tilt)
  • • 3-Phase, High Speed, Pan/Tilt Motors

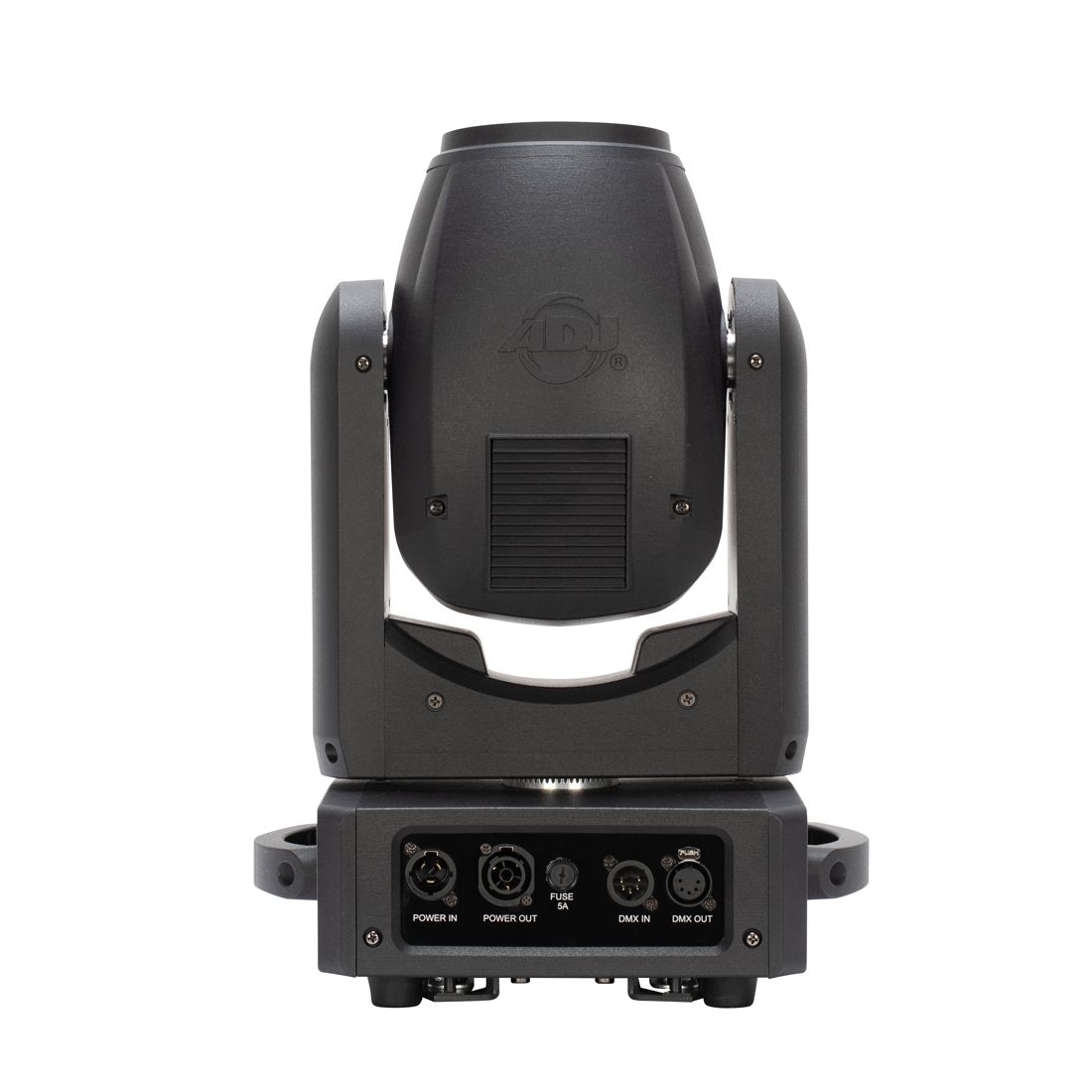

  • • DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
  • • Power Connections: Outdoor locking In/Out connections to daisy chain power

  • • Multi-voltage Operation: 100-240V, 50/60Hz
  • • Max power consumption: 157W

  • • Dimension: 230 x 304 x 416mm
  • • Weight: 7.5 kg.

  • • CE
  • • cETLus (Pending)

  • • 2x Omega Brackets (107 Type)
  • • 1x 2M, Outdoor Locking 14AWG Power Cord
Specifications subject to change without notice

COLORS AND GOBOS

Color Wheel 1

Amber
Amber
 Aquamarine
Aquamarine
 Blue
Blue
 Green
Green
 Lavender
Lavender
 Lime
Lime
 Medium Red
Medium Red
 Orange
Orange
 Pink
Pink
 Red
Red
 UV
UV
 3200K
3200K
 4500K
4500K
 9000K
9000K

Gobo Wheel 1 Static

Gobo 1
 Gobo 2
 Gobo 3
 Gobo 5
 Gobo 6
 Gobo 9
 Gobo 13
 Gobo 15
 Gobo 48
 Gobo 54
 Gobo 55
 Gobo 56
 Gobo 57
 Gobo 58
 Gobo 61
 Gobo 107
