The ADJ UB 6H is a 22.5-inch (.5 meter)professional grade indoor linear fixture powered by six 6W-Watt HEX (RGBAW+UV 6-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant HEX color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color. The UB 6H features built-in Color Macros (built-in preset colors), 6 DMX Channel Modes, 0-100%...
Read More

Product Information

SKU: 1226200054
GTIN: 818651020465
HS-Code: 9405423990

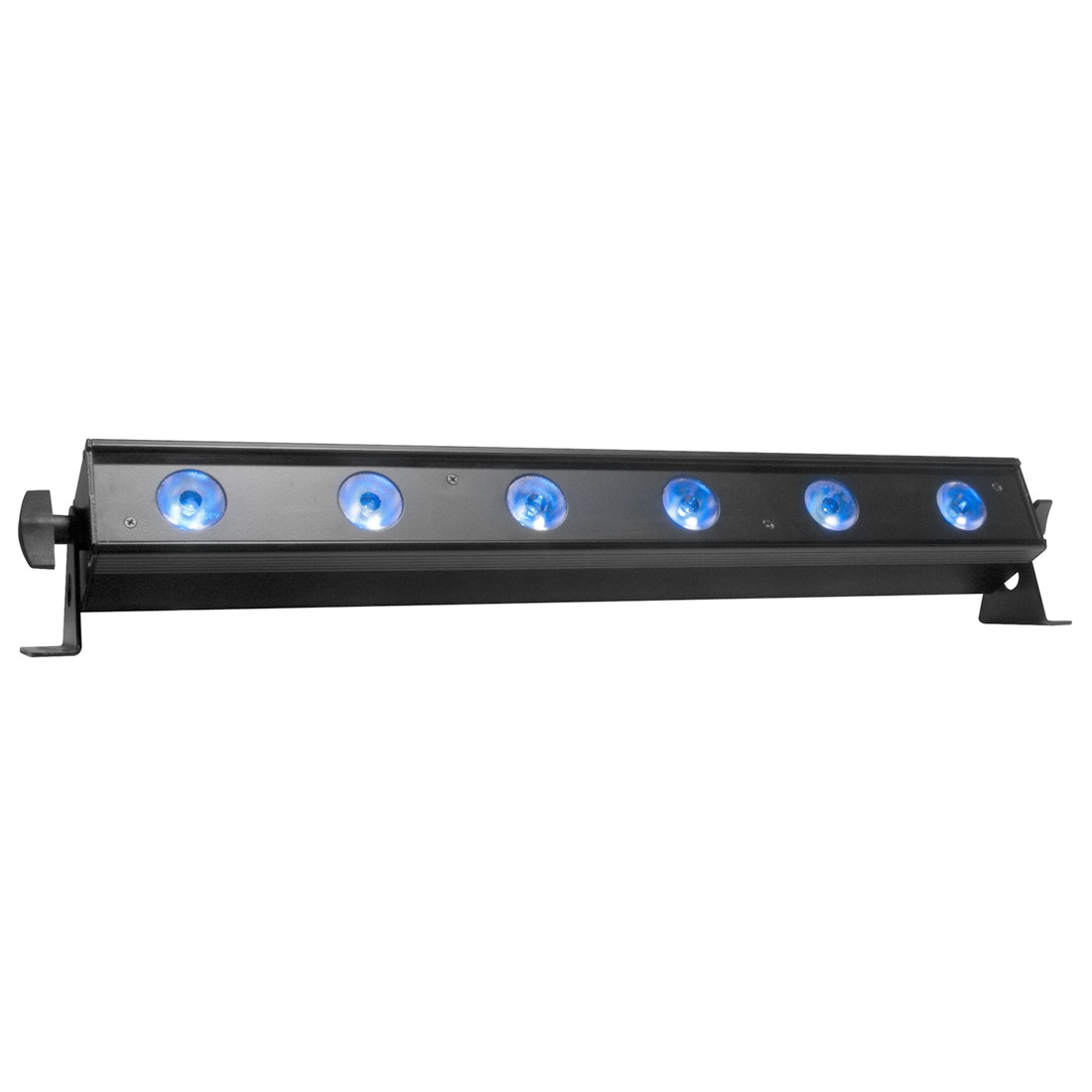

The ADJ UB 6H is a 22.5-inch (.5 meter)professional grade indoor linear fixture powered by six 6W-Watt HEX (RGBAW+UV 6-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant HEX color mixing designed for washing

stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

The UB 6H features built-in Color Macros (built-in preset colors), 6 DMX Channel Modes, 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC-IR wireless remote (sold separately).



Gallery

Specification

  • • 22.5-inch (.5 meter) indoor Linear Bar with 6x6W Ultra bright RGBAW+UV HEX (6-IN-1) LEDs
  • • Variable RGBAW+UV color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
  • • 6 DMX Channel Modes: 3, 5, 6, 7, 8 or 11 channels
  • • 5 operational modes: Auto (Program Run), Sound Active, RGBAW+UV Dimmer, Static Color and DMX-512 Mode
  • • 3-Section Pixel control
  • • Patent Pending Quick Align (Magnetic)
  • • Beam Angle: 40 degrees
  • • Flicker Free operation @2200Hz
  • • 4-Button DMX LED Display
  • • 35 built-in Color Macros
  • • LED pulse & strobe effect
  • • Electronic Dimming: 0-100%
  • • Includes mounting brackets to mount on a wall or set on the ground
  • • Compatible with the ADJ UC-IR remote
  • • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • • Power Draw: 38W

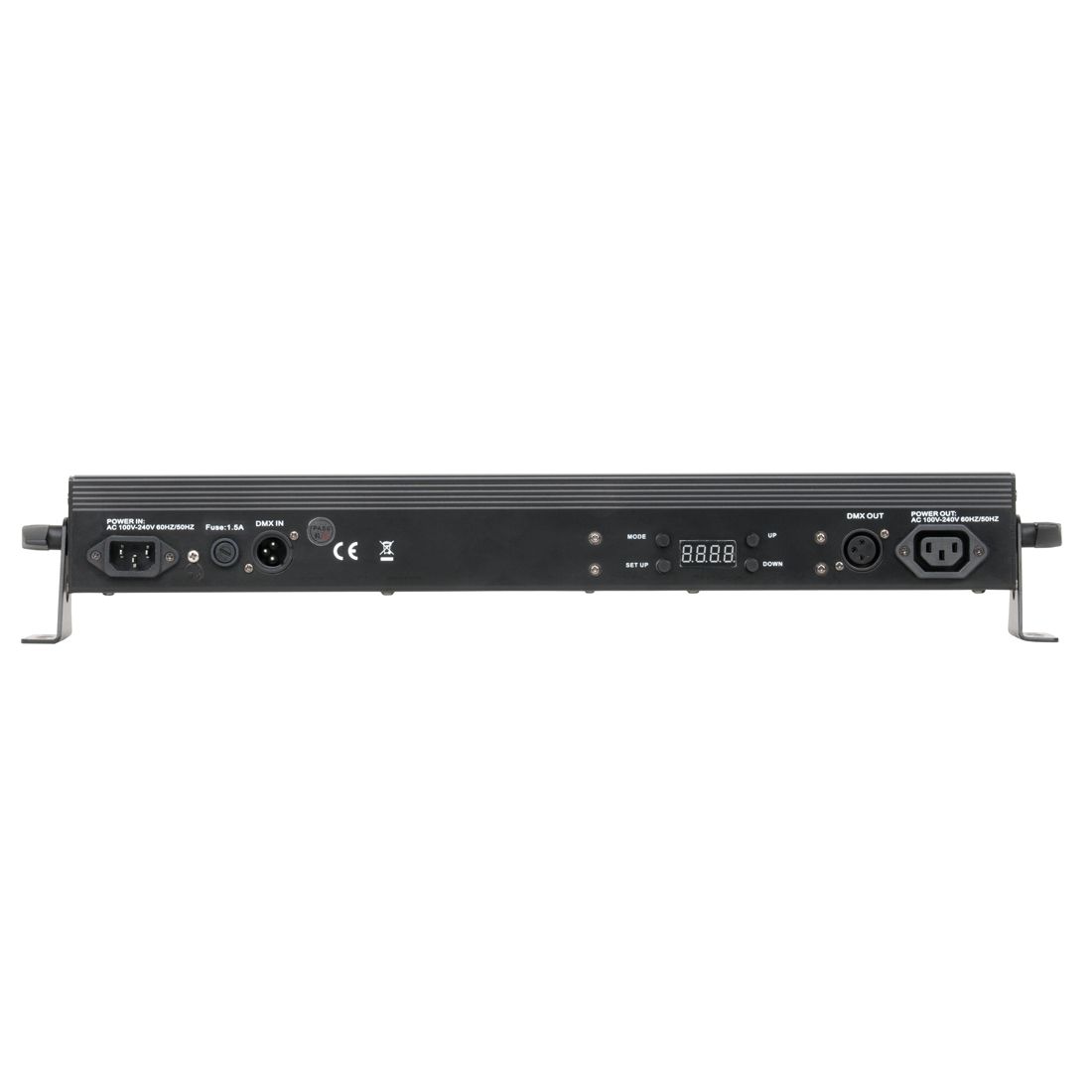

  • • Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 25 UB 6H fixtures)
  • • Multi-voltage operation: AC 100V-240V 50/60Hz
  • • Dimensions (LxWxH): 22.5” x 2.5” x 3.75”/560 x 63 x 90mm
  • • Weight: 4 lbs./ 1.6 kg.

Downloads

Photometric IES File

UB 6H UB 6H Photometric IES FIles
(Size: 15.7 KB)

Photometric Data

UB 6H UB 6H Photometrics
(Size: 5.3 MB)

User Manual

UB 6H User Manual
(Size: 5.1 MB)
