Saber Spot RGBL
Select
New

Brand

Key Features

Color
Color
• 20 Watt 4-in-1 RGBL LED
Construction
Construction
• Black Die Cast Housing
Optics
Optics
• Beam Angle: 5.7°

Product Information

SKU: 1226100501
GTIN: 10810087372825
HS-Code: 9405423990

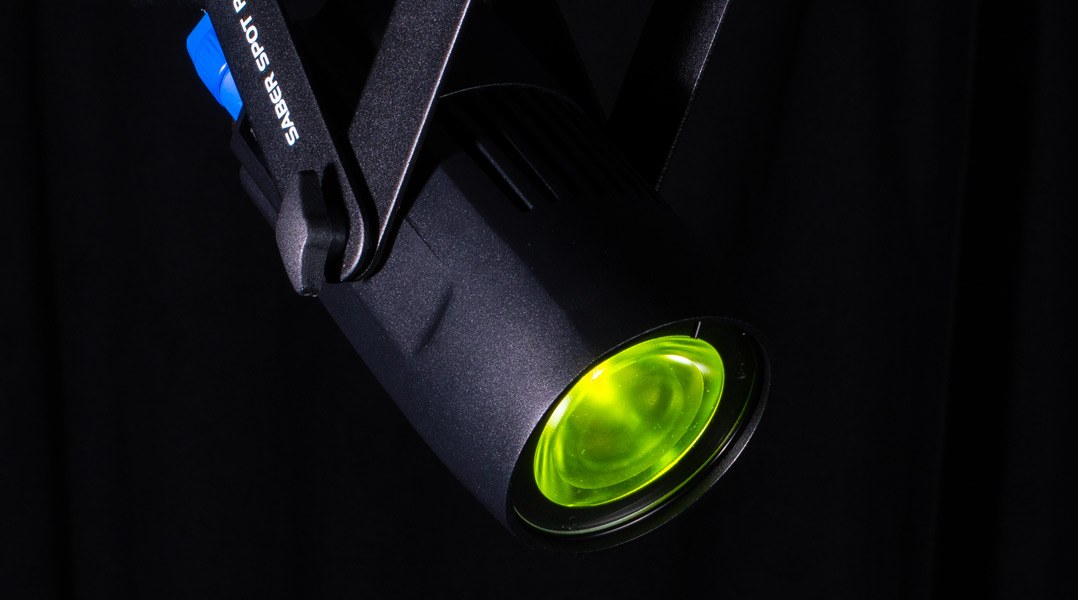

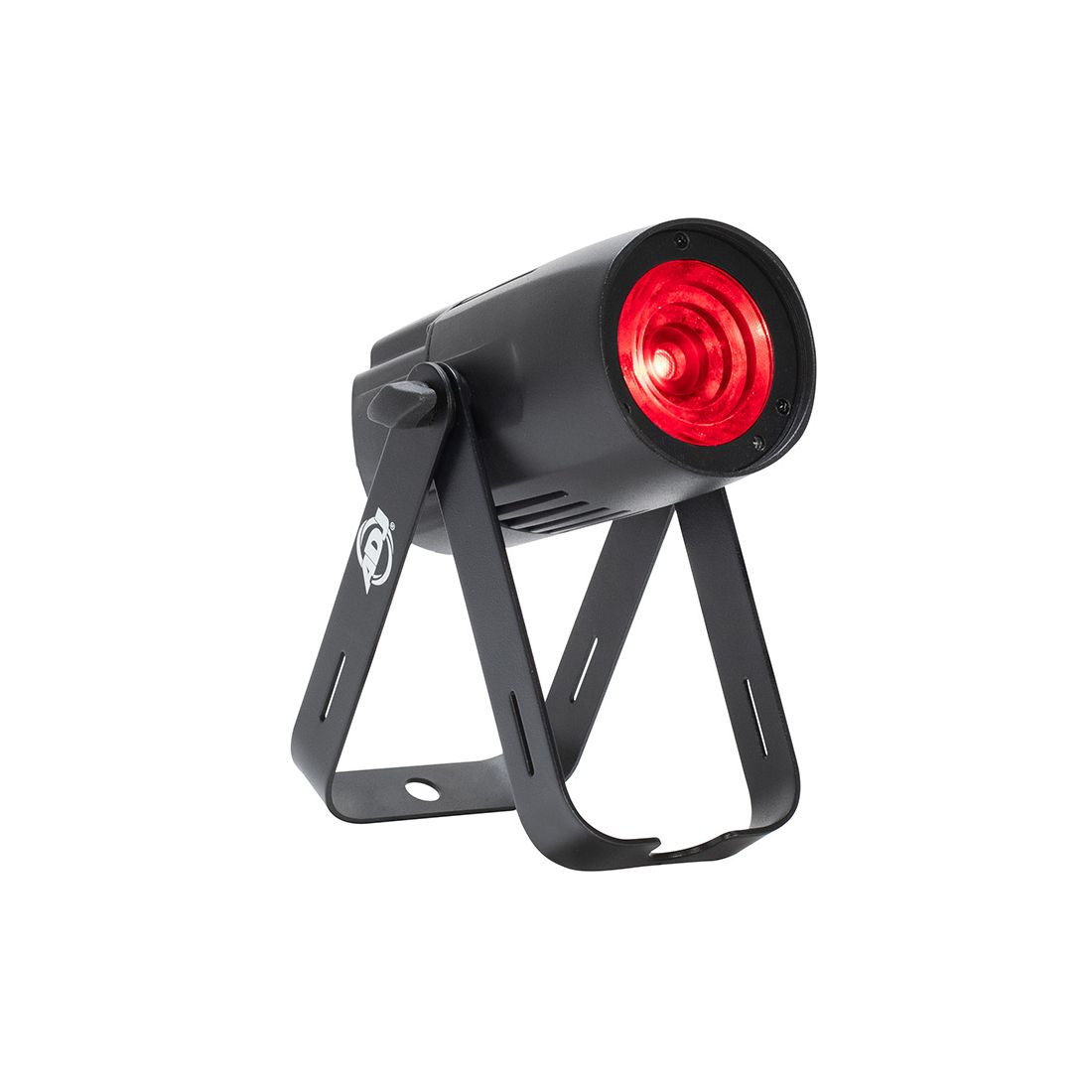

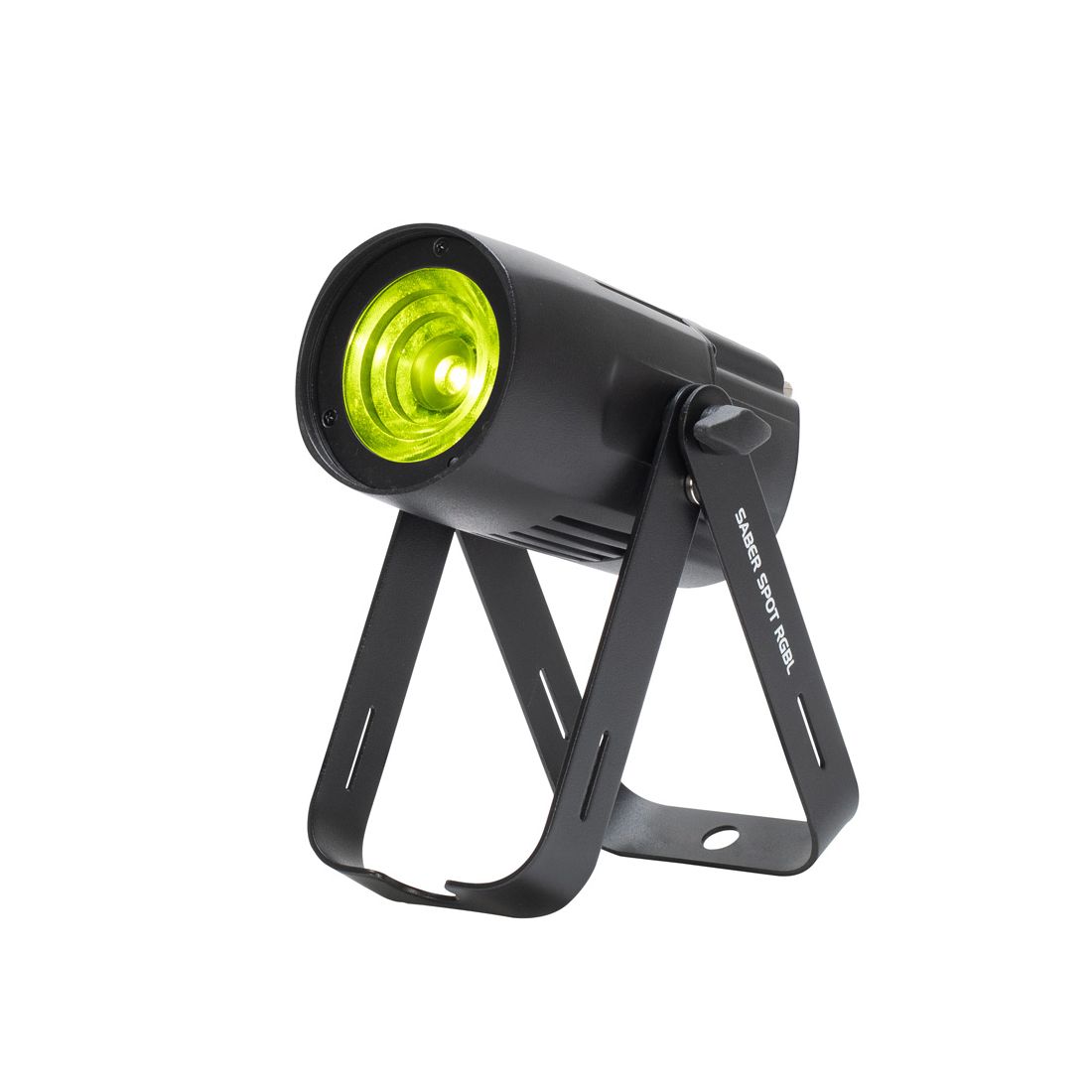

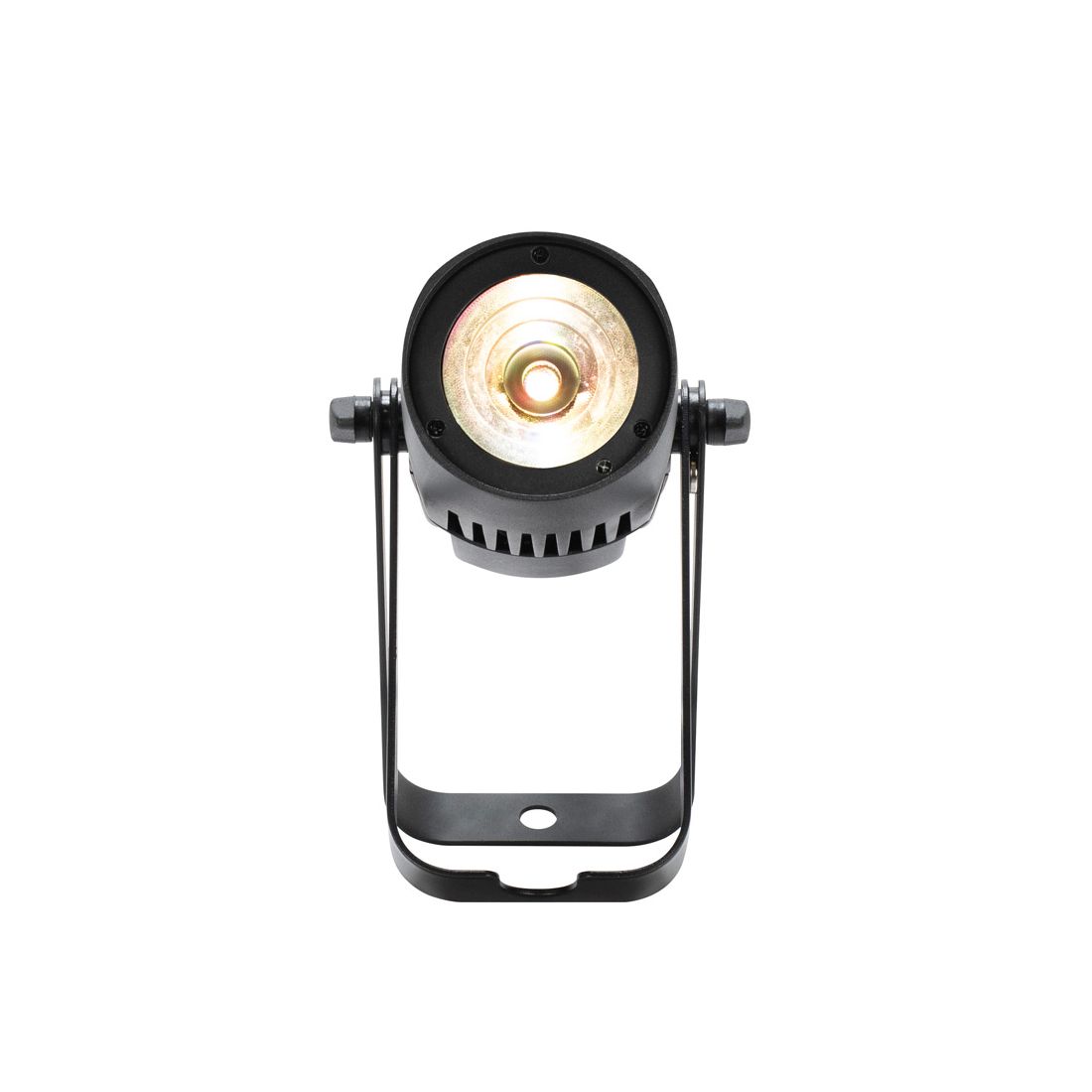

Building on the success of its predecessor, the ADJ Lighting Saber Spot RGBL expands on the versatility of the modern LED pinspot. Featuring a 20-Watt RGBL (red, blue, green and lime) LEDs source, advanced ACL lens and a tight 5.7-degree beam angle, the Saber Spot RGBL is designed for spotting tables, objects or mirror balls, and creating mid-air beam effects for lightshows.

This fixture is DMX and RDM compliant with 12 DMX channel modes, 63 built-in color macros, 13 built-in color changing programs and has white color temperature presets ranging from 2000K to 9900K.

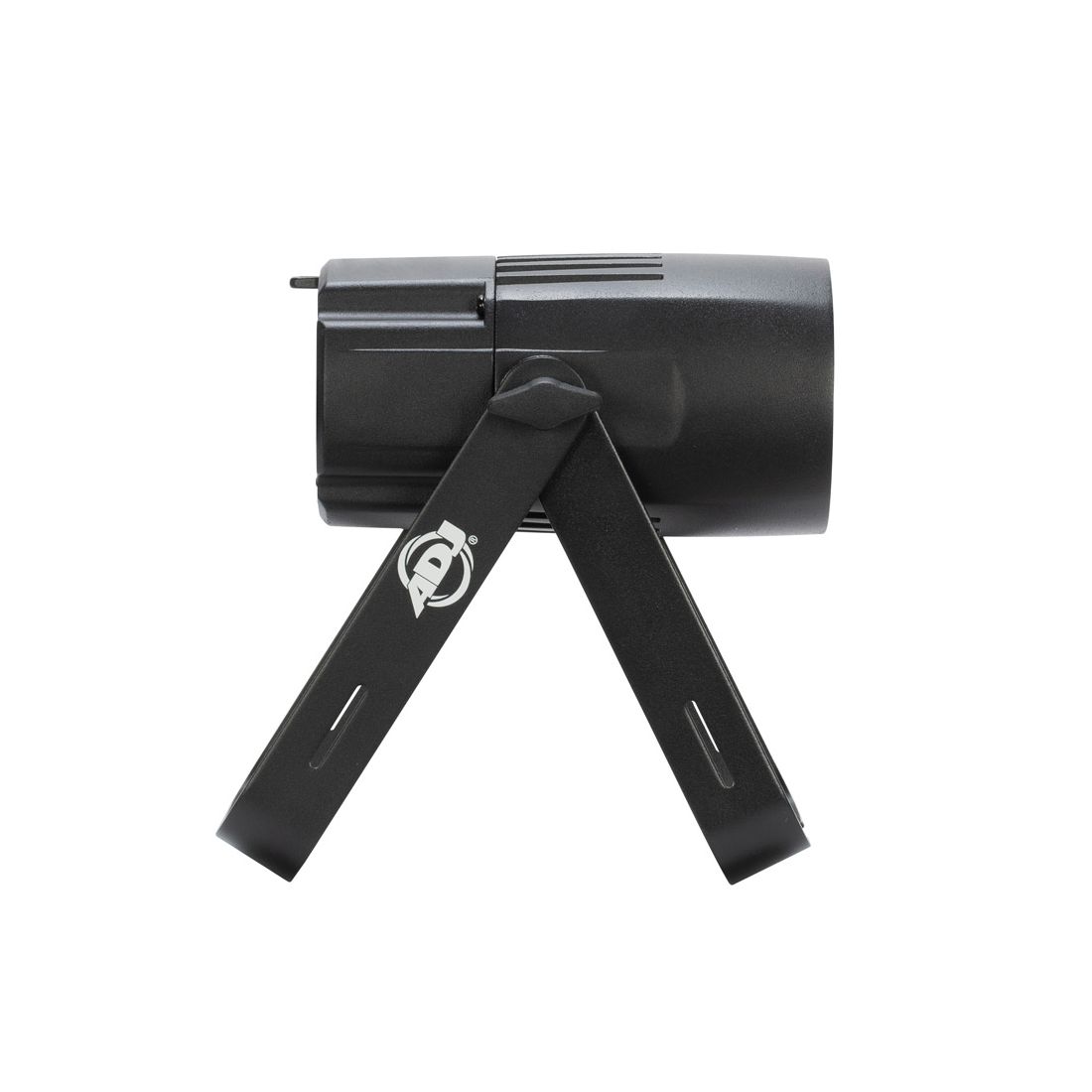

A lens kit is supplied with the fixture giving lighting designers the option to change the beam angle to 10 or 45-degrees. Its scissor yoke allows for a variety of hanging options.

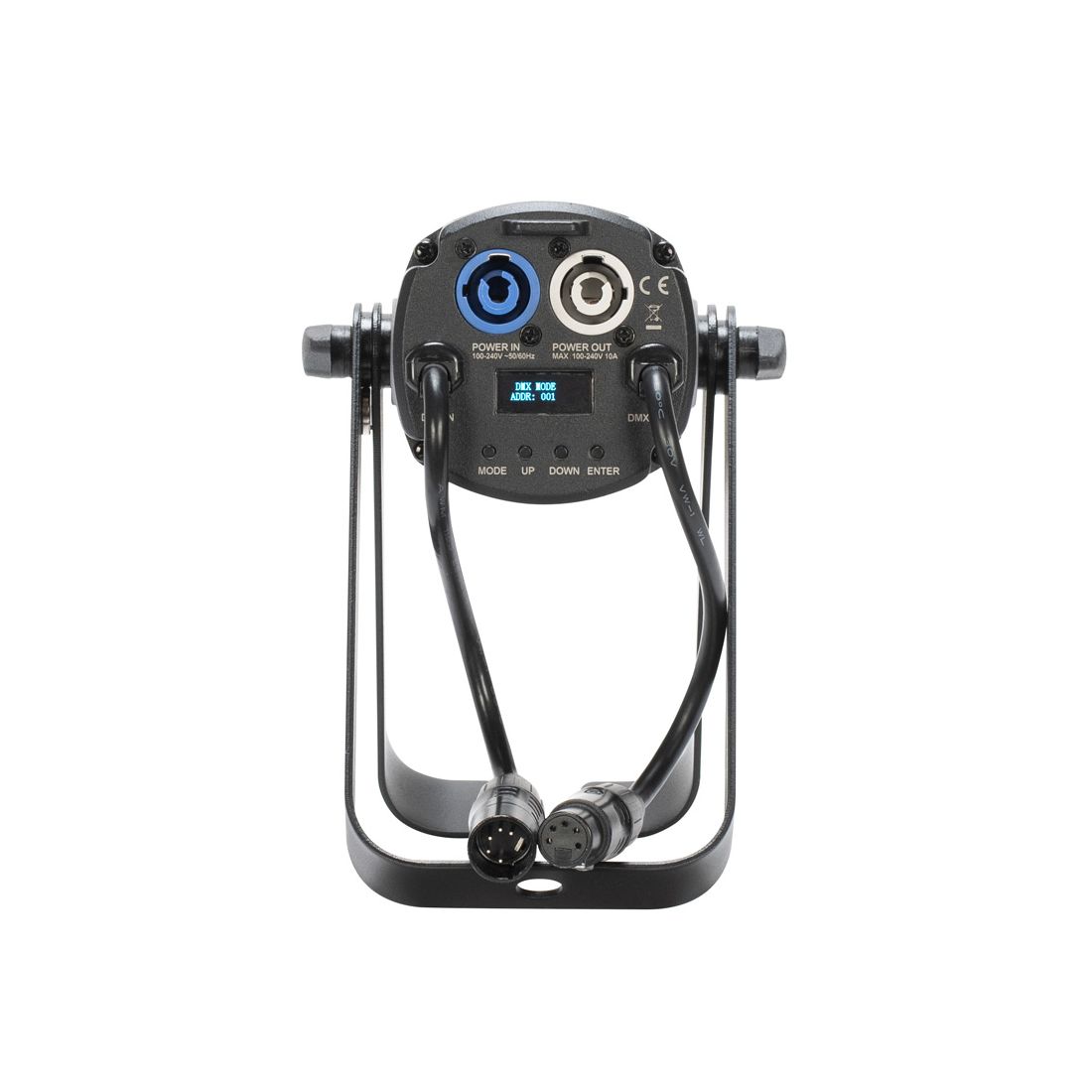

The Saber Spot RGBL has a 4-button digital display to navigate through the features and controls, plus indoor power locking In/Thru and 5-pin DMX In/Out pigtails are neatly situated at back of the fixture.

Specification

  • • Light Source: 20-Watt, RGBL LED
  • • LED Life Expectancy: 30,000 Hrs
  • • Beam Angle: 5.7°
  • • Includes 2 interchangeable Frost Filter Lens (10-degree & 45-degree)
  • • LED Refresh Rate: 3.6KHz

  • • DMX and RDM Compliant
  • • Color Temperature Presets (2000K – 9900K)
  • • 63 Built-in Color Macros
  • • 13 Built-in Color Changing Programs
  • • 4-button Digital Display for easy navigation
  • • Electronic Dimming 0 – 100%
  • • Includes a Scissor Yoke to be hung, or set on the ground

  • • Power Input: Indoor Power Locking
  • • Power Pass through: Indoor Power Locking
  • • Control: 5-pin DMX In/Out Pigtails
  • • With Wired Digital Communication Network

  • • 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
  • • RDM Compliant

  • • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • • Power draw:16.7W
  • • Power Linking: 95pcs @230V

  • • Dimensions (LxWxH): 170 x 135 x 215mm
  • • Weight: 1.45 kg.
  • • Black Die Cast Housing

  • • CE
  • • ETL (Pending)
  • • IP20

  • • 1.83m Indoor locking power cord
  • • 2 Frost Filter Lens (10-degree & 45-degree)
  • • Metal clip ring for frost filter lens
Specifications subject to change without notice
