PPA-210

Archive

SPECIFICATIONS:

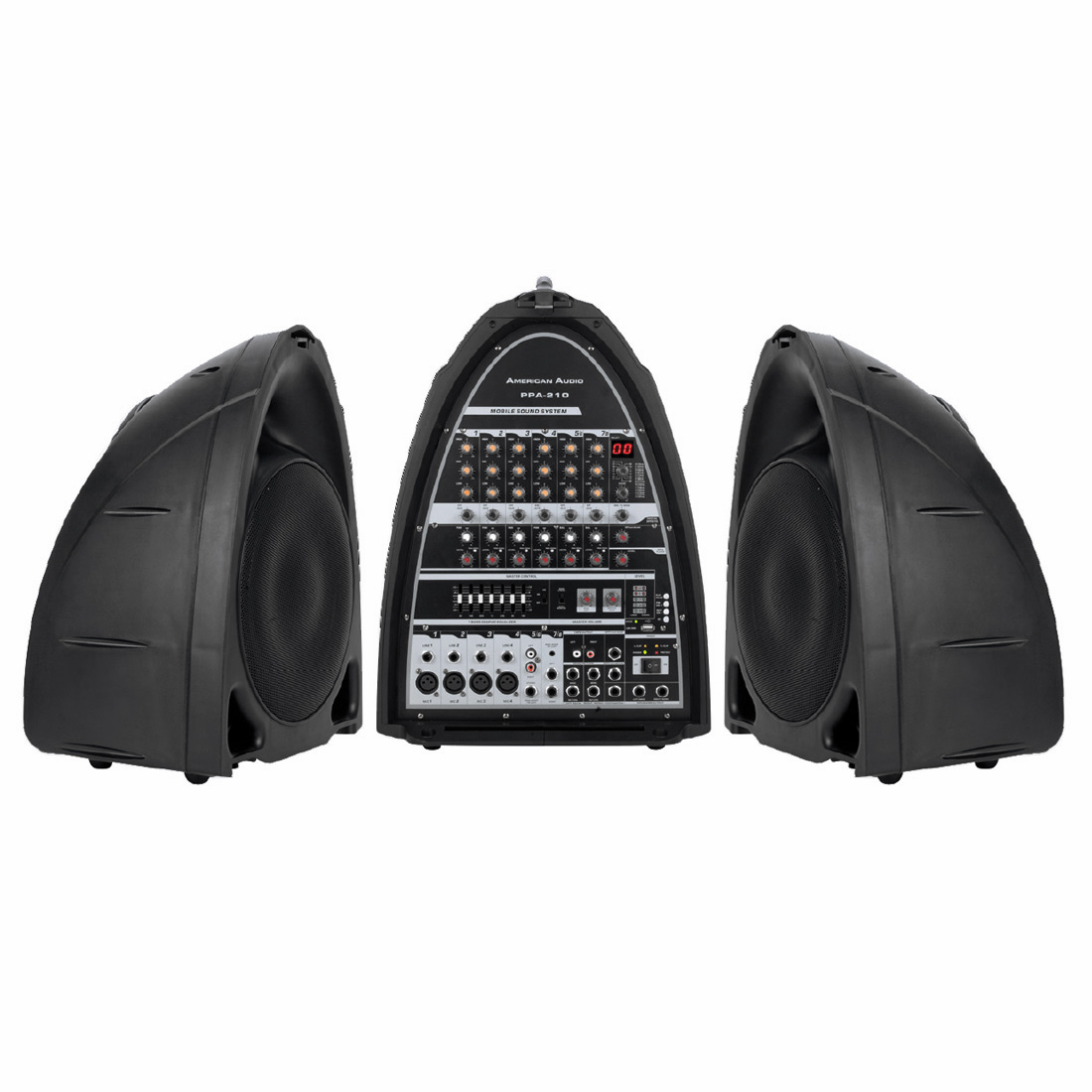

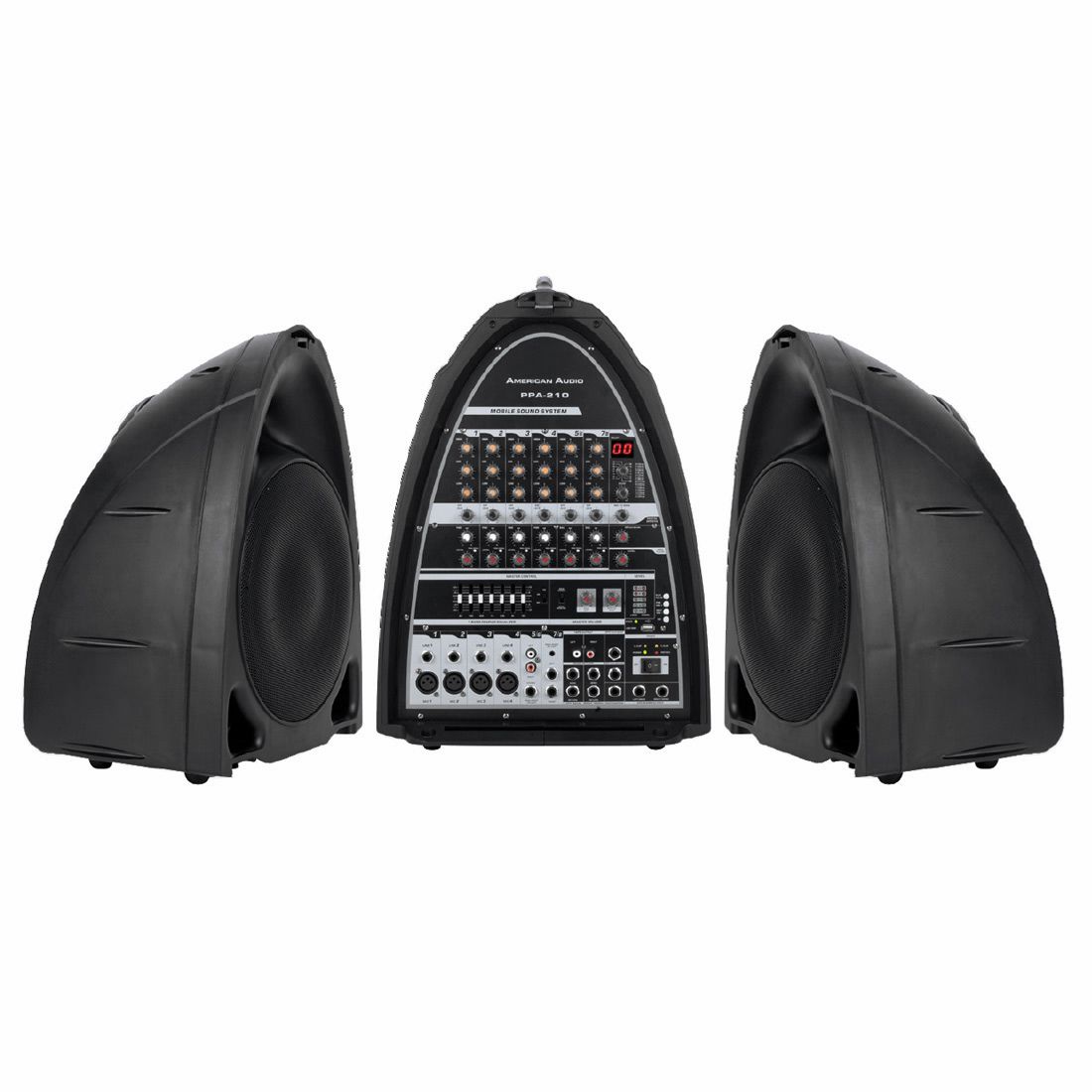

- Portable Sound System including: 2x 10-inch portable speakers, 1x Powered Mixer, 1x Dynamic Microphone & all component cables needed

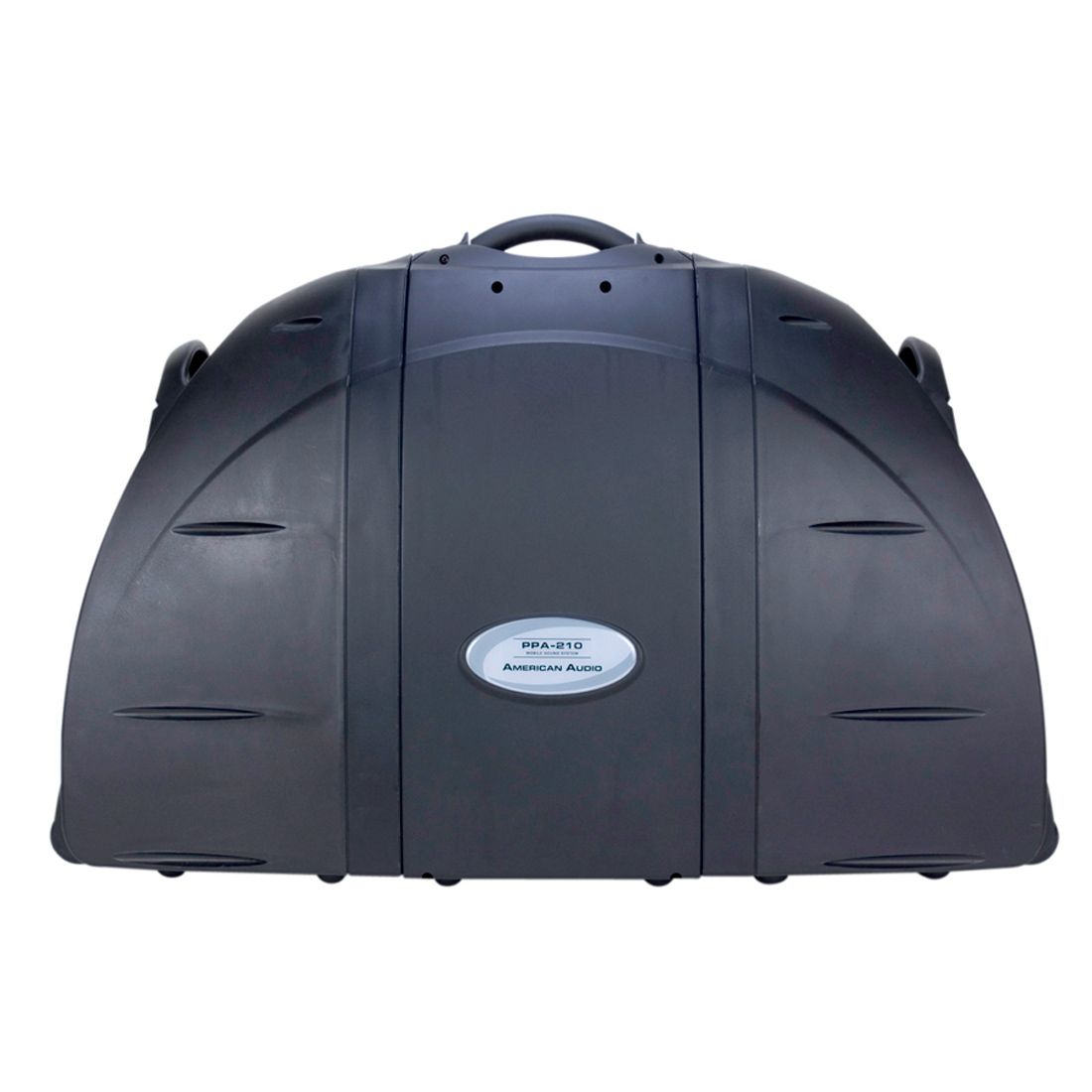

- Entire system latches together for maximum protection for easy transport; even the microphone fits in a built-in compartment
- 8-Channel powered mixer
- 3-band EQ, EFX Sound, Pan and Level on each channel
- Built-in 300W (150W 8 ohms per channel) stereo power amplifier with dynamic Distortion Processor
- 4x XLR MIC inputs.
- 2x TRS stereo Channels with RCA 3.5mm Stereo inputs.
- USB port to connect a flash disc containing music or a MP3 Player
- Effects send on every channel with stereo return
- Internal digital delay effects processor with 16 selections with foot switch jack: including echo, delay and vocal enhancement
- Effects parameter adjustment allows you to customize each effect selection
- 7-band system equalizer with switch
- 2x five-segment LED meters
- Performance Indicators: Signal, Clip, Power & Protect
- Built-in 300W (150W 8 ohms per channel) stereo power amplifier with dynamic Distortion Processor
- Thermal cut off
- Speaker system with I-inch compression drivers and 10-inch woofers

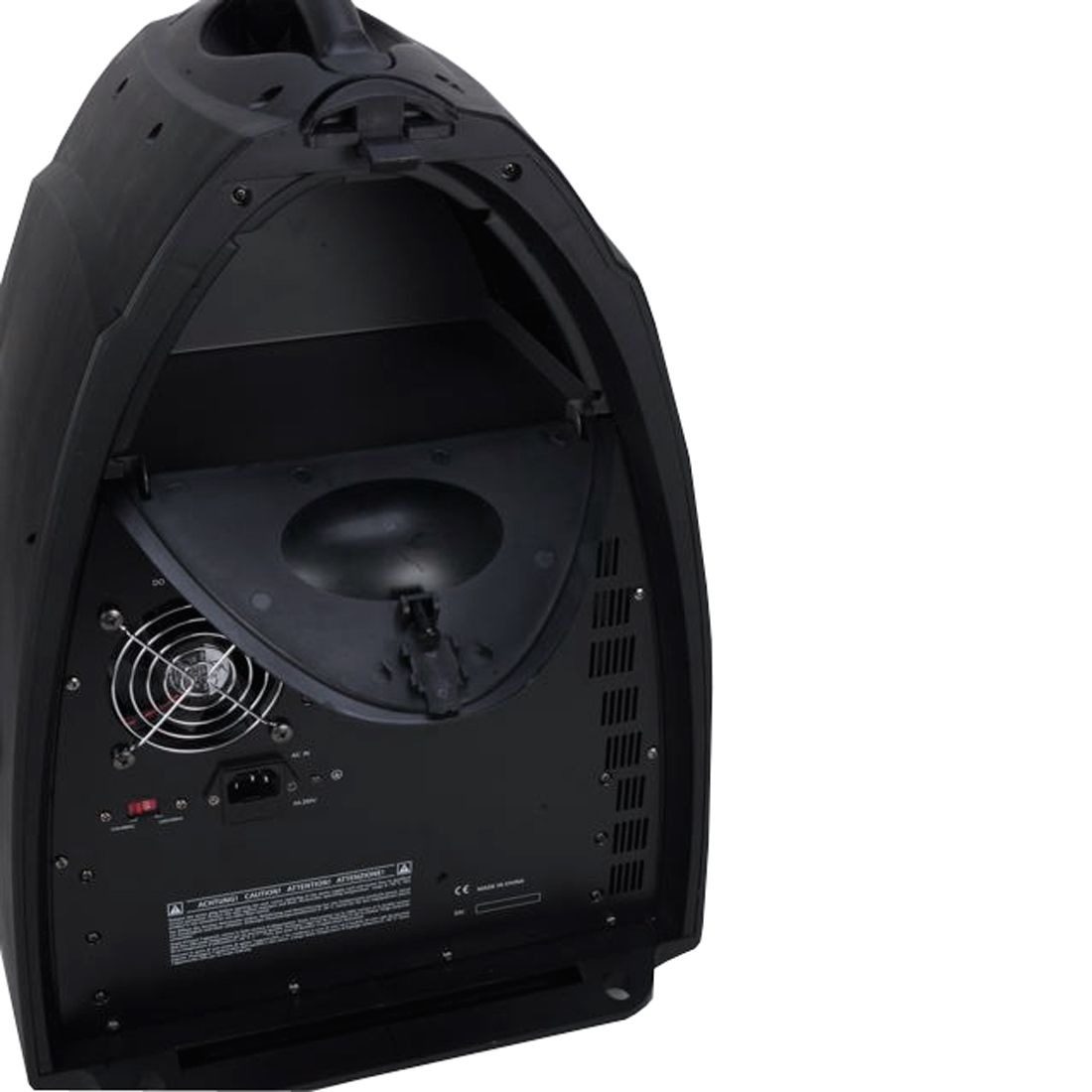

- Storege compartment for microphone, cables and accessories.
- Two 20-foot speaker cables
- Switchable voltage: 115V/60Hz or 230V/50Hz - IEC plug
- Frequency Response: 20 Hz to 20 kHz 1dB (at send output); 30 Hz to 20 kHz 1dB (at speaker output, with processor threshold exceeded)
- Distortion: <0.05%, 20 Hz to 20 kHz, 1 dB below rated output
- System Signal-to-Noise Ratio: >80dB @ 1w. "A" WTD
- Power Output 150W per ch. continuous average power: 8 ohm, both channels driven with THD <1%
- Input Impedance (Channels 1-2-3 and 4) "Mic" 2k ohm
