MOD TW100
Select
Archive

Brand

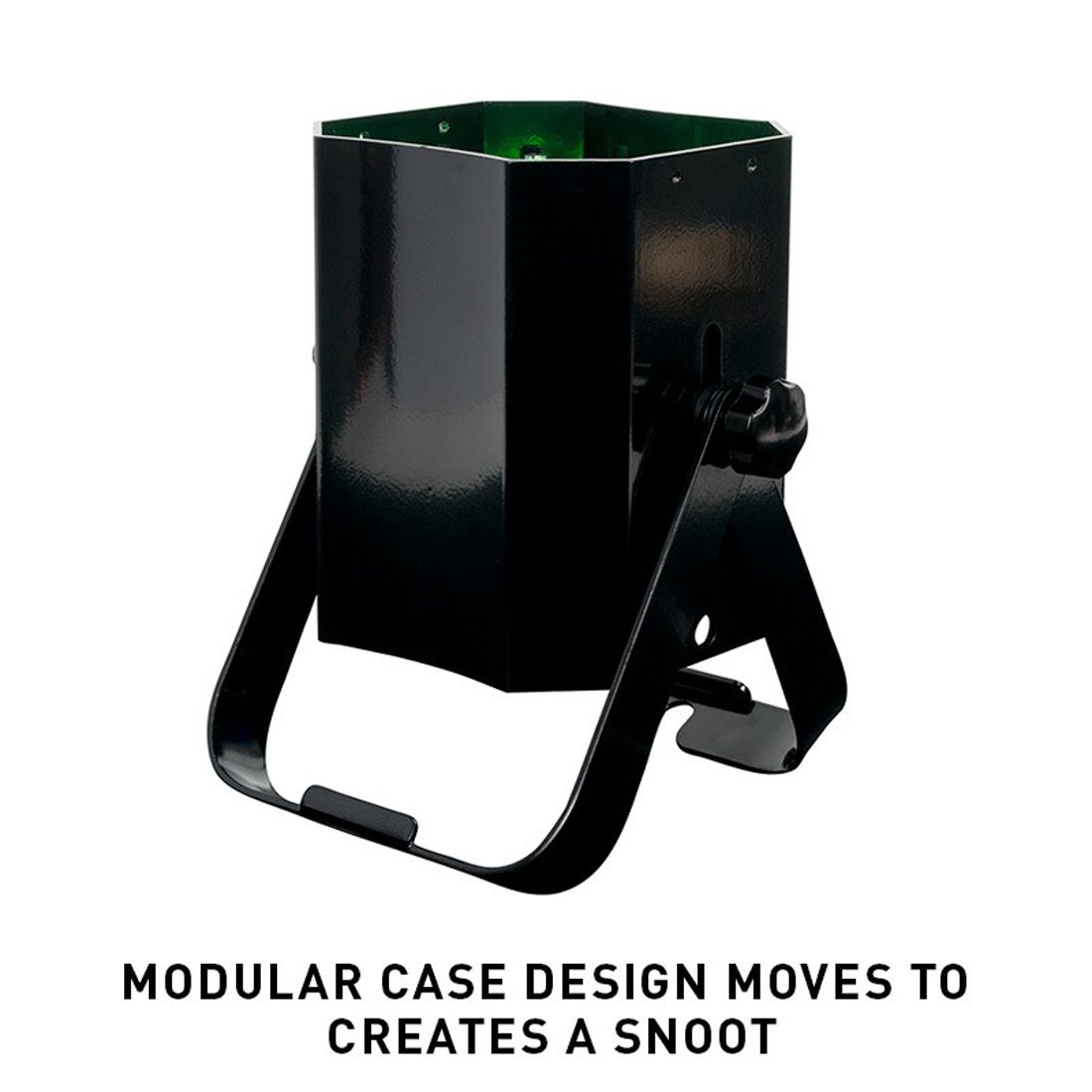

The ADJ Lighting Modular Series LED Pars allow lighting designers more flexibility when it comes to features, plus more power to create brilliant washes for stages, installations or mobile events. The Mod Pars are “modular” in two ways. First, the body moves so that you can create a snoot to eliminate side glare if desired.  Second, designers can remove the black metal housing and replace it with a pearl white housing kit. In this way, LED Par owners can switch between black...

Product Information

SKU: 1226100351
GTIN: 10818651024651
HS-Code: 9405423990

The ADJ Lighting Modular Series LED Pars allow lighting designers more flexibility when it comes to features, plus more power to create brilliant washes for stages, installations or mobile events. The Mod Pars are “modular” in two ways. First, the body moves so that you can create a snoot to eliminate side glare if desired.  Second, designers can remove the black metal housing and replace it with a pearl white housing kit. In this way, LED Par owners can switch between black or white fixtures depending on the application without having to inventory two different fixtures.

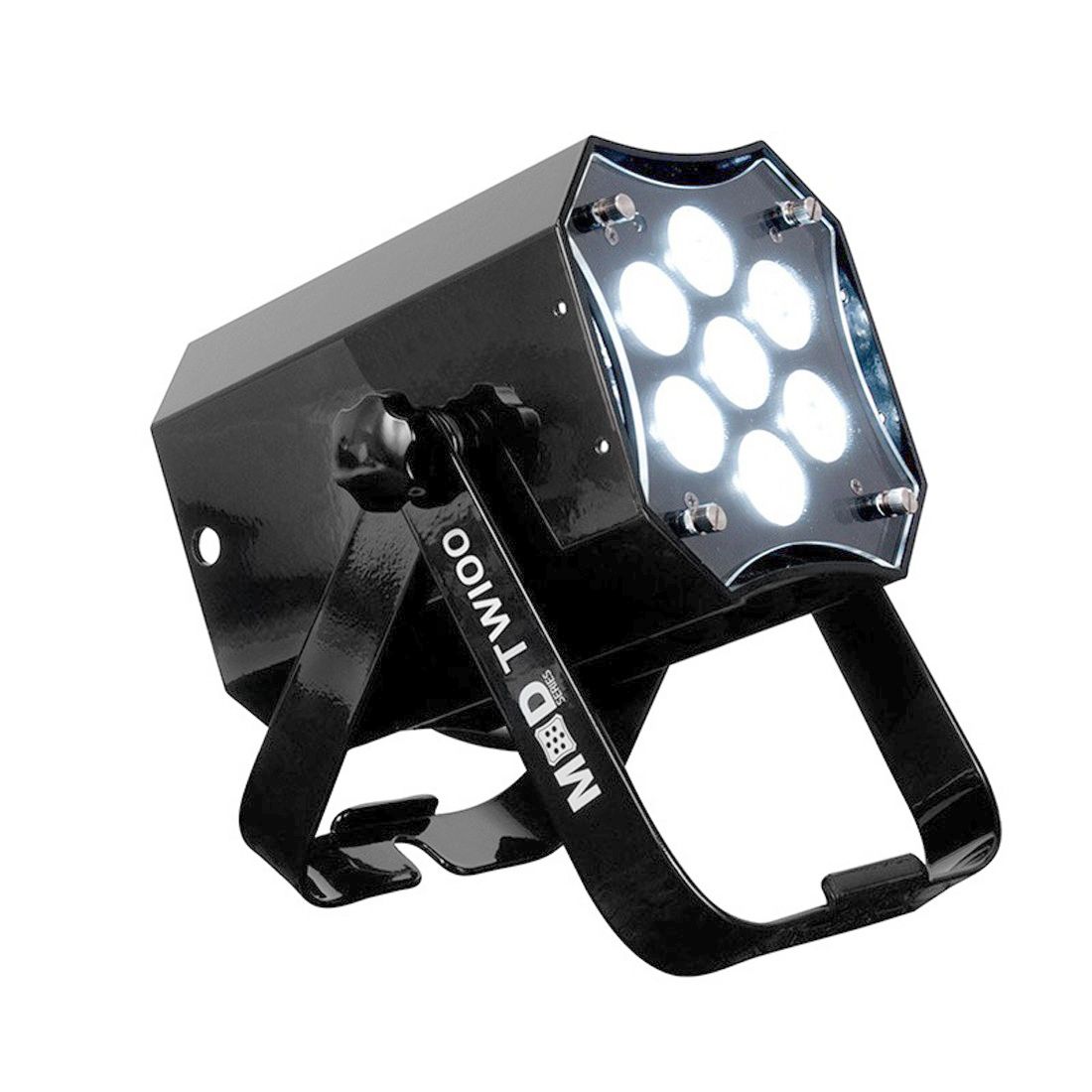

The MOD TW100 comes equipped with seven 15-Watt CW/WW/AMBER (3-IN-1) LED diodes (for a total output of 105W), a scissor yoke and three interchange frost filters that are easily replaceable by thumb screws. The 17-degree standard beam may be changed on the fly to 20, 40 or 60-degrees.

Specification

  • • Source: 7 TRI-LEDs 3-in1 CW/WW/A
  • • Individual LED wattage : 15W
  • • Average LED lifetime: approx. 50,000hrs
  • • LUX @3m: 5522 (17?); 999 (20?); 720 (40?); 404 (60?)

  • • Beam angle 17 degree

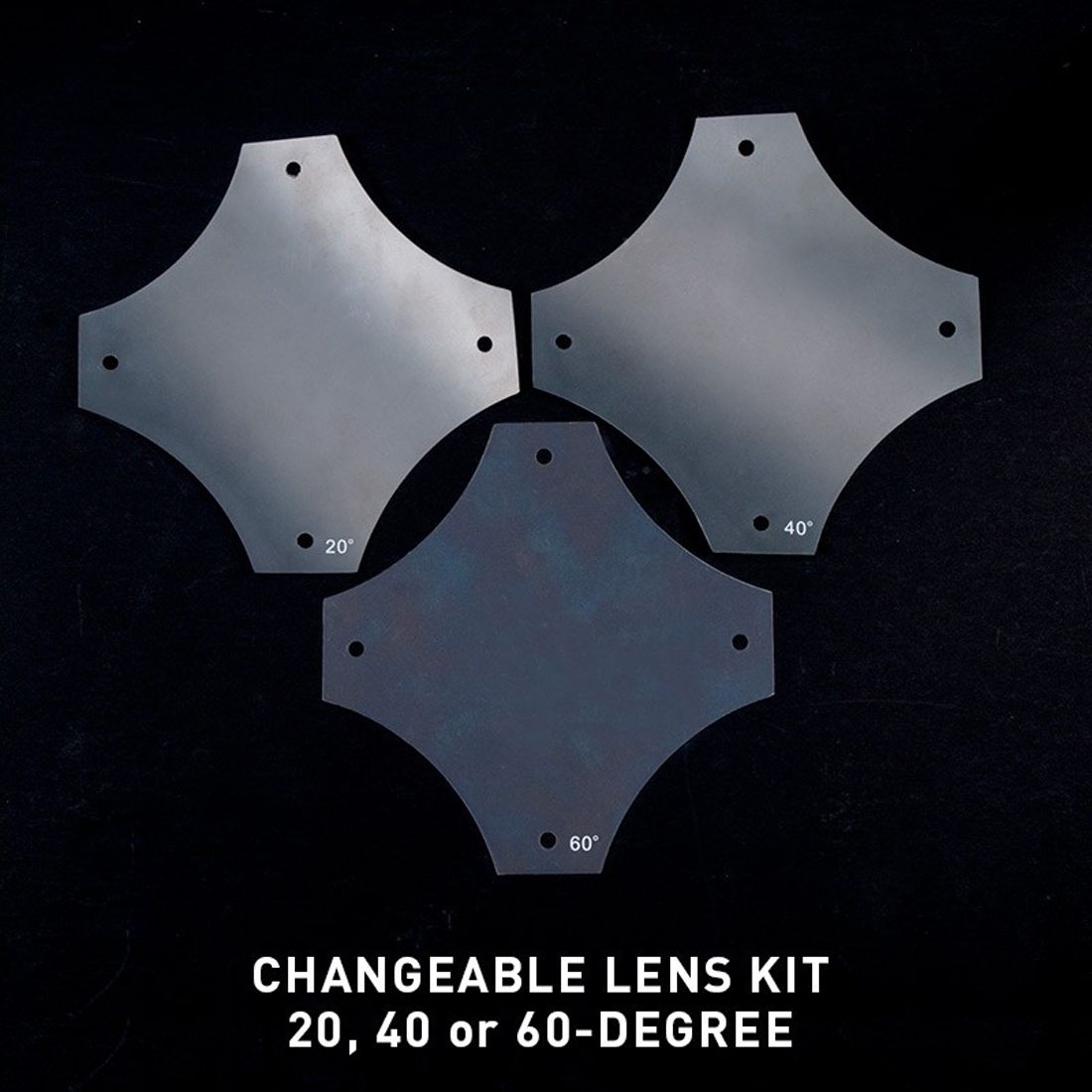

  • • 3 additional lenses included: 20, 40 and 60 degrees
  • • Optional Barndoors available (Code 1226100355 MOD BARN DOORS BLK/1226100356 MOD BARN DOORS WH)

  • • 5 operational Modes: Manual CW/WW/A Dimming, Macro Colors, Autorun, Sound Active and DMX
  • • 4 DMX channel modes: 3, 4, 5, 8 or 9 channels
  • • 5 Dim Curves: Standard/Stage/TV/Architectural/Theatre
  • • Built-In Programs
  • • Strobe & pulse effects
  • • LCD display with 4-button control

  • • CW/WW/A Color Mixing
  • • 32 Color Macros

  • • Interchangeable Black Gloss Metal housing

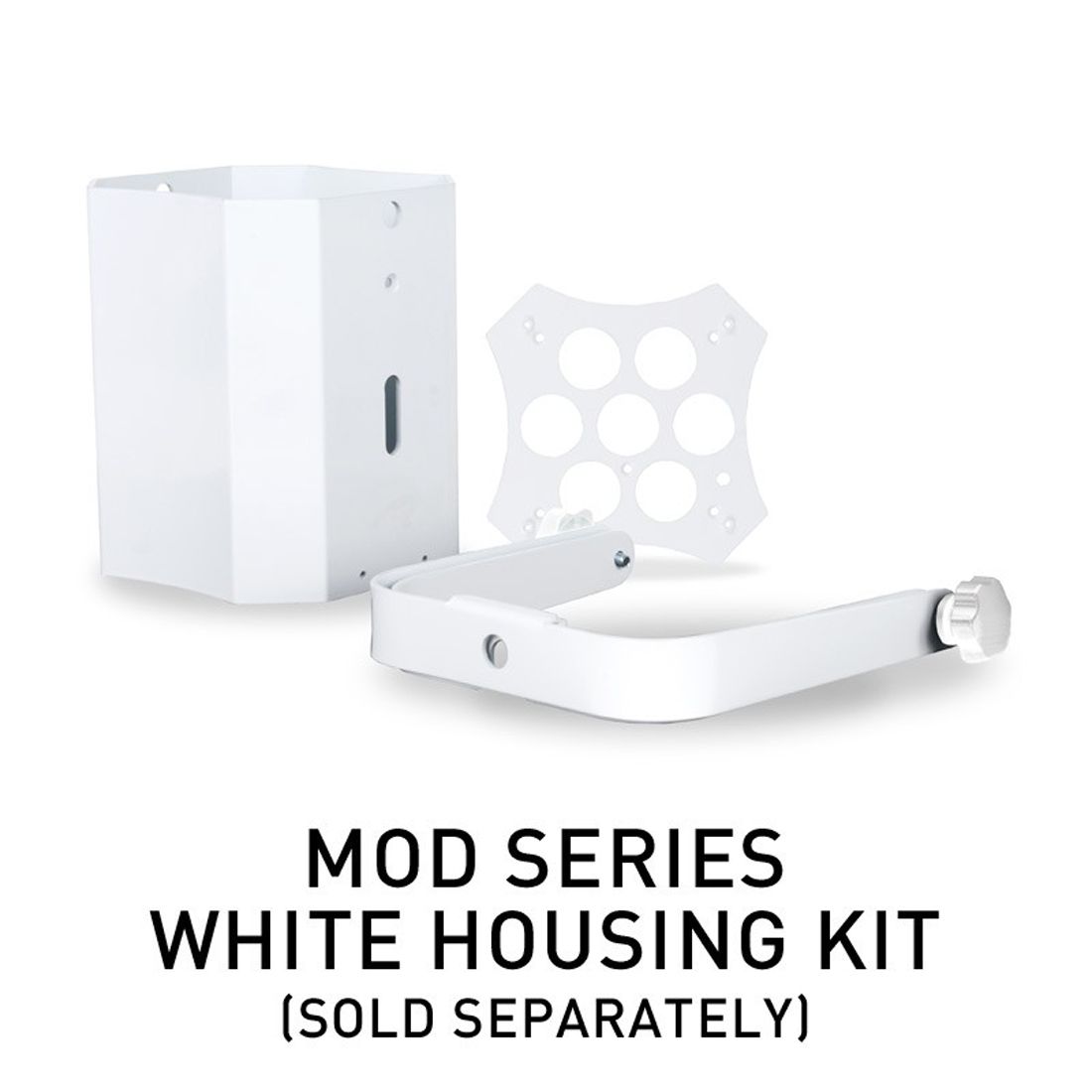

  • • Optional White Housing Kit Available (Code 1226100354 MOD 100 KIT Pearl)
  • • Unique modular design: metal housing moves to offer a snoot to eliminate side glare
  • • Scissor yoke

  • • Multi-voltage operation: 100-240V, 50/60Hz
  • • Maximum power draw: 105W

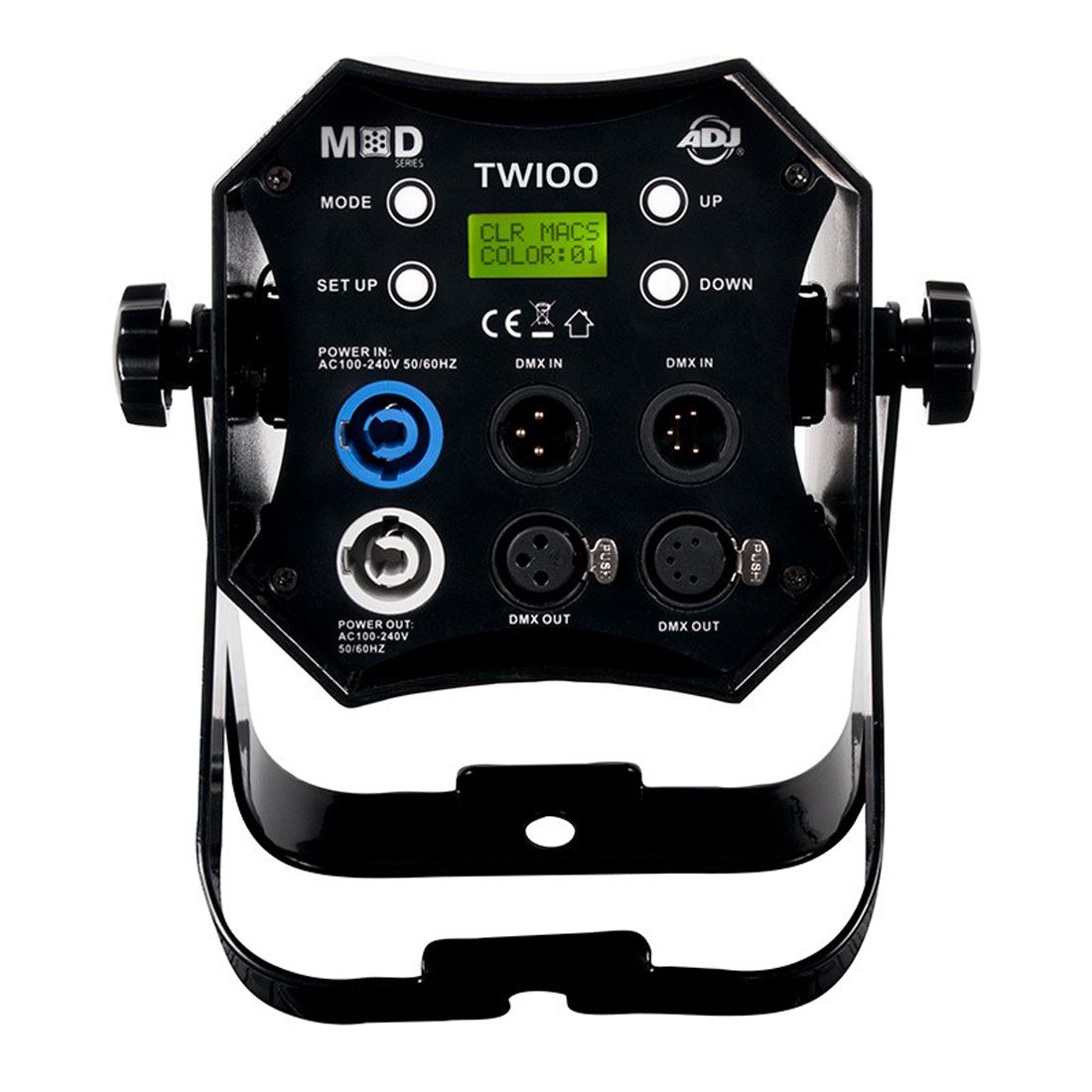

  • • Data In/Out: Locking 3 & 5-pin DMX
  • • Power In/Out: Locking Power

  • • Dimensions (LxWxH): 140 x 140 x 251mm
  • • Weight: 2,6 kg.

Videos

Downloads

Specifications Sheet

DMX Traits

Additional Downloads

Photometric IES File

Photometric Data

User Manual
