XLT2000 Archive

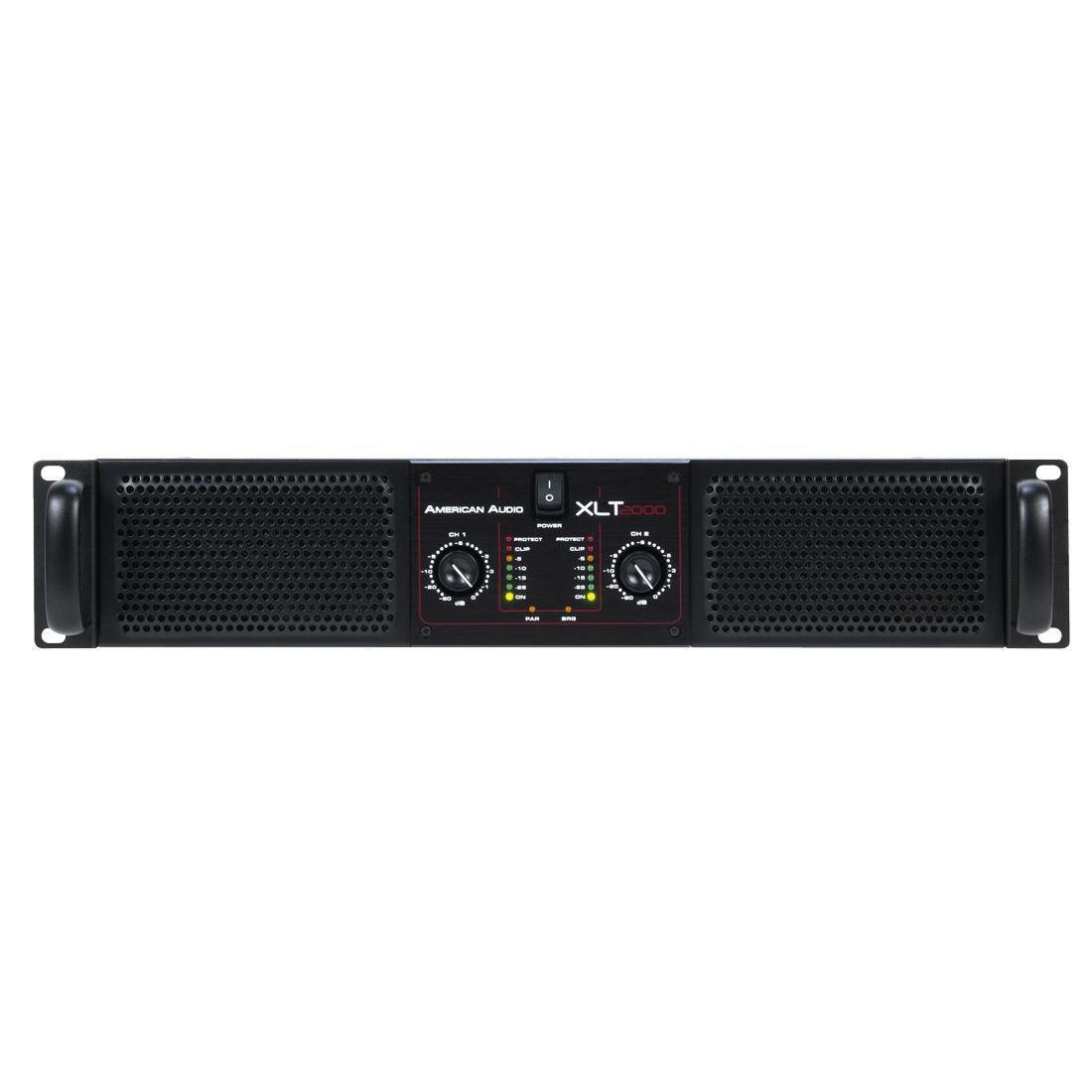

The XLT Series of Power Amplifiers from American Audio provide the power and performance professionals are looking for at an affordable price. The XLT Series offers the latest in amplifier technology allowing them to be lighter in weight than traditional amps.
Product Information
The XLT Series of Power Amplifiers from American Audio provide the power and performance professionals are looking for at an affordable price. The XLT Series offers the latest in amplifier technology allowing them to be lighter in weight than traditional amps.
Gallery
Specification
Output Power:
450W RMS Per Channel @ 8 Ohms, 1K Hz, 1% THD
750W RMS Per Channel @ 4 Ohms, 1kHz, 0.1% THD
1500W RMS @ 8 Ohms, 1kHz, 0.1% THD
(Bridge Mode, Mono)
2000W RMS @ 4 Ohms, 1kHz, 0.1% THD
(Bridge Mode, Mono)
Specifications:
- Total Harmonic Distortion: Less Than 0.1% (20Hz – 20kHz @ 8 Ohms)
- Frequency Response: (+/-01db, @rated output Power, 8 Ohms): 20Hz – 20K Hz
- Slew Rate: 20V Per usec
- Damping Factor @ 8 Ohm: 200
- Impedance: 20 Ohms balanced / 10 Ohms unbalanced
- Cooling System: 2 individual fans
- Special Features: Low Pass Filter / Input Sensitivity Selector / Ground Lift

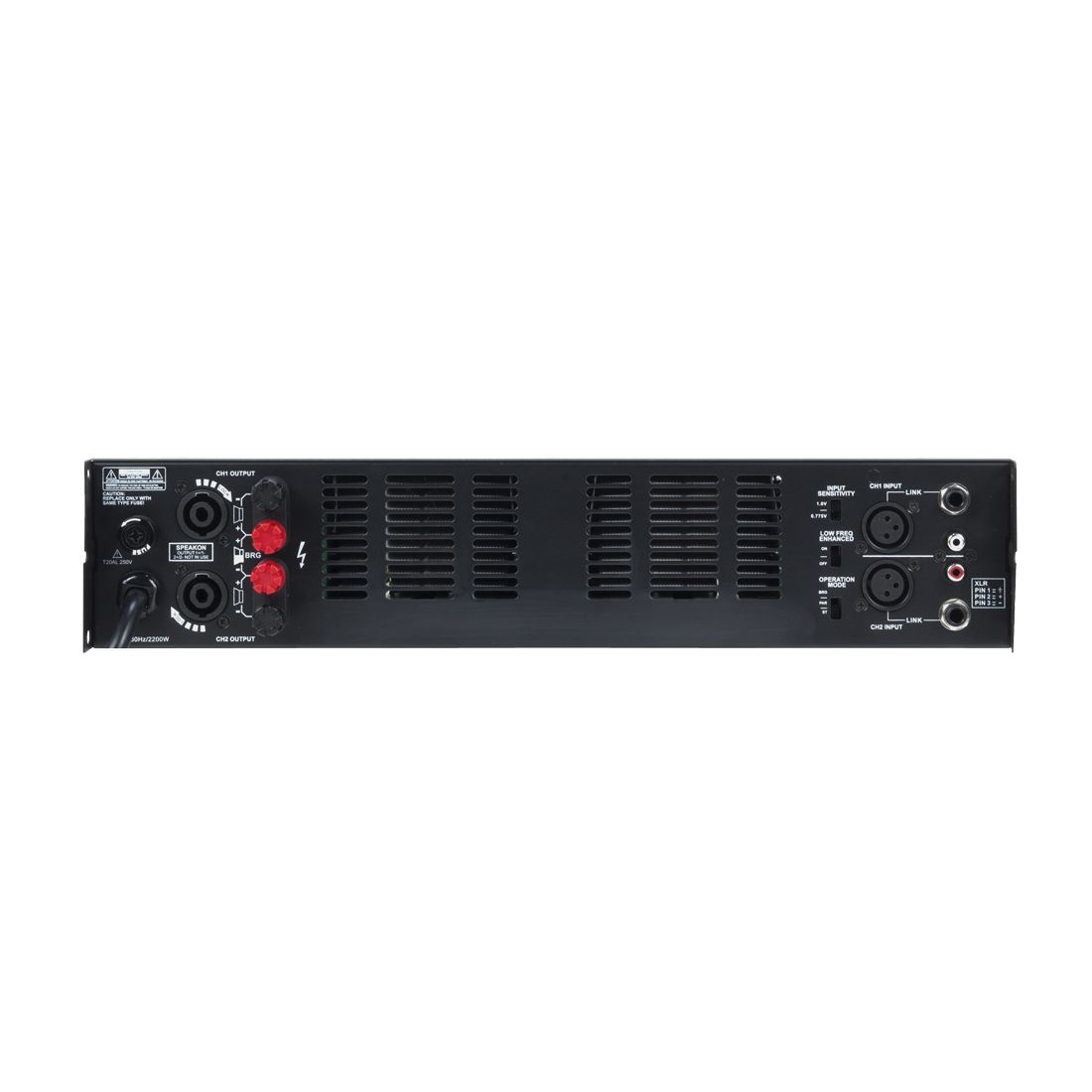

- Inputs: ¼” Stereo, Balanced XLR, RCA
- Outputs: Speaker, Binding Post
- Amplifier gain : 0,775V - 37,7dB; 1,0V – 35,5dB
- Dimensions (LxWxH): 595x510x170mm 4 rack mount space
- Weight: 11 Kg.
Specifications subject to change without notice.
