WiFly EXR QA5 IP Select Archive
The ADJ WiFLY EXR QA5 IP is an IP65 outdoor rated compact , battery powered Wash Fixture with ADJ’s WiFLY Transceiver with wireless DMX built-in. It offers the power of 5x 5-Watt RGBA Quad LEDs (Red, Green, Blue & Amber) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY Transceiver will communicate up to 2500 feet/760m (open...
Product Information
SKU: 1226100292
GTIN: 10819730014242
HS-Code: 9405423990

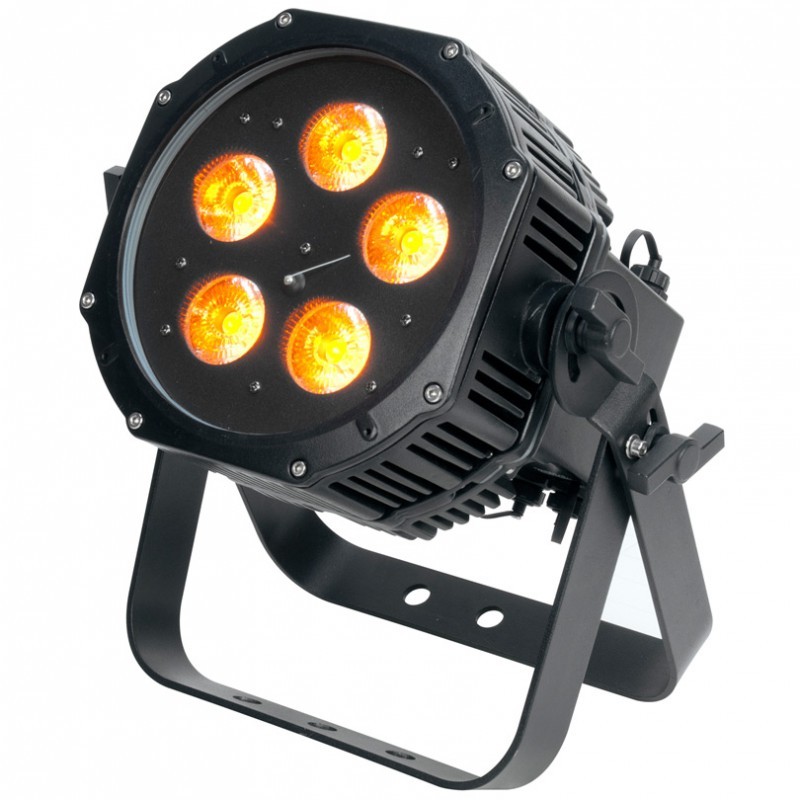

The ADJ WiFLY EXR QA5 IP is an IP65 outdoor rated compact , battery powered Wash Fixture with ADJ’s WiFLY Transceiver with wireless DMX built-in. It offers the power of 5x 5-Watt RGBA Quad LEDs (Red, Green, Blue & Amber) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY Transceiver will communicate up to 2500 feet/760m (open line of sight) with the WiFLY EXR QA5 IP.
This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 50W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFLY Transceiver.
Gallery
Specification
- • 5 RGBA QUAD LEDs
- • Individual LED Wattage: 5W
- • Average LED lifetime: 50,000 hrs
- • LED Refresh Rate 1.44kHz for flicker free operation
- • Beam Angle : 25 degrees
- • 6 Operational modes: Static Color, RGBA Dimmer Mode, Color Change, Color Fade, Auto Run (Program Run) and DMX Control
- • 5 DMX Channel modes: 4, 5, 6, 10 or 11 channels
- • 16 Color Change Modes
- • 16 Color Fade Modes
- • Electronic Dimming: 0 - 100%
- • LED pulse and strobe effect

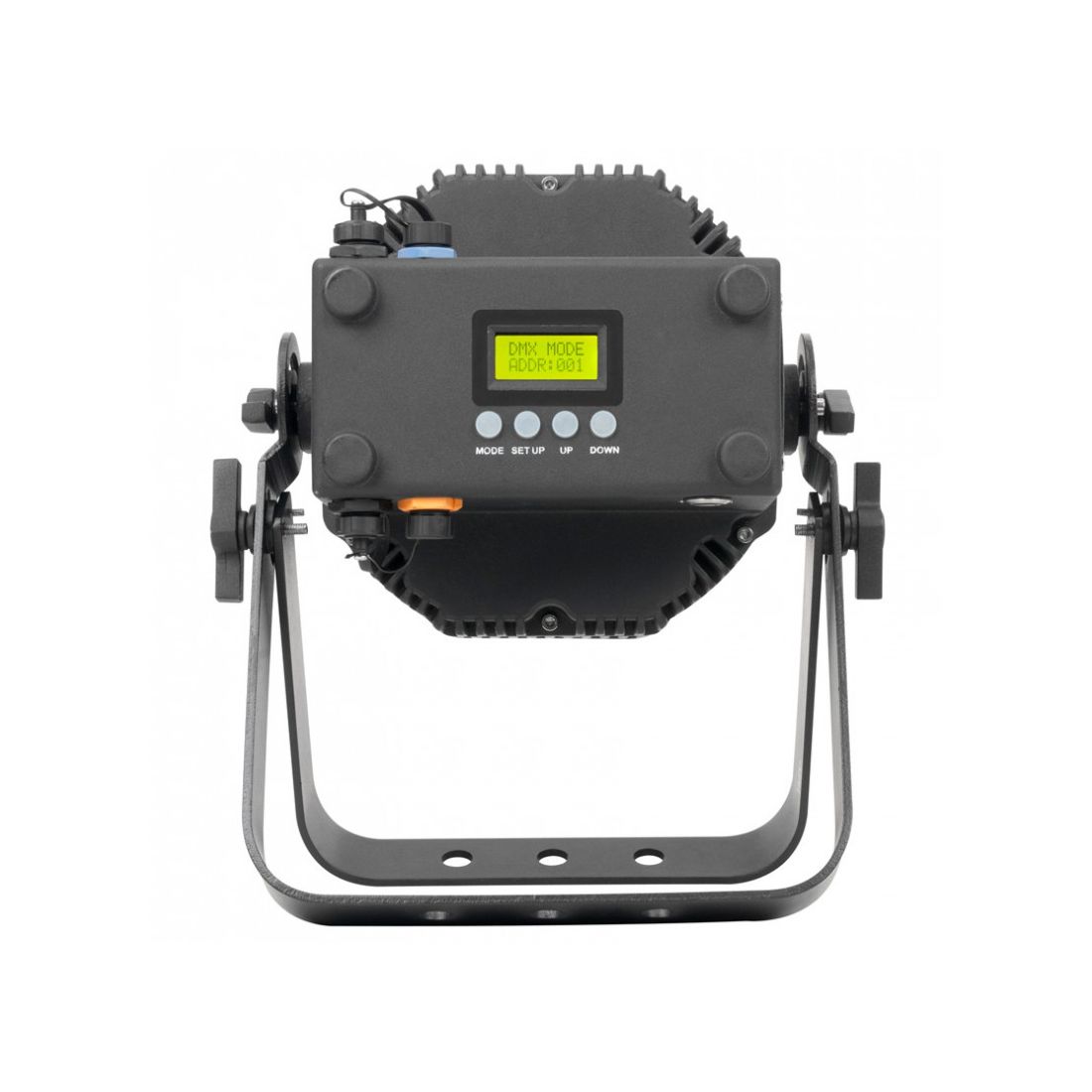

- • 4-button DMX menu display on rear panel
- • Built-In WiFly EXR wireless DMX
- • Compatible with optional ADJ RFC wireless RF remote control (Code 1223200026)
- • RGBA Color Mixing
- • 63 built-in Color Macros
- • Aluminium Metal Housing
- • IP65 Rating

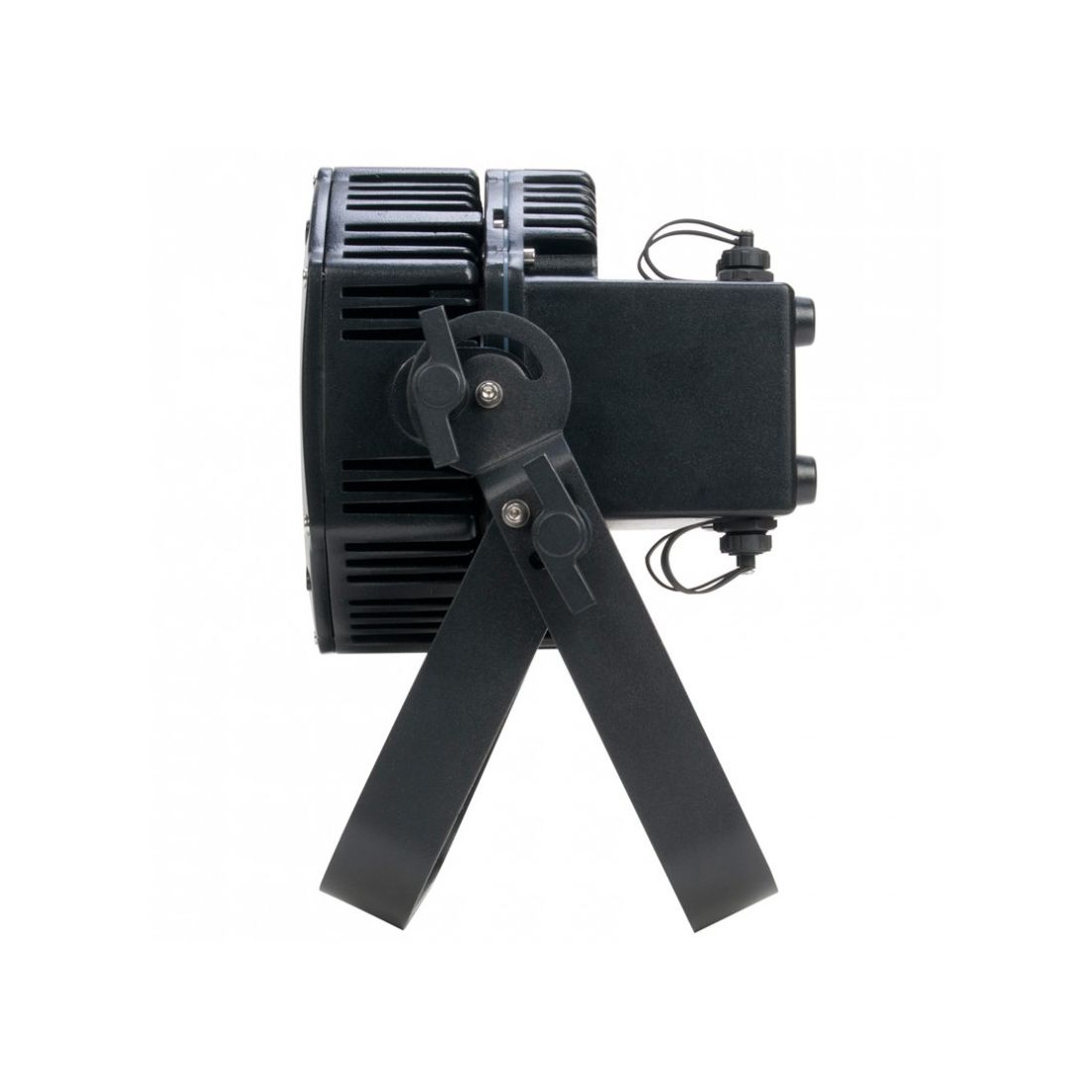

- • Scissor yoke
- • Multi-voltage operation: AC 100-240V, 50/60Hz
- • Power Draw: 50W total (All LED's @ Full On)
- • Energy Saving Mode
- • Battery
- Battery Type: Fixed Lithium Battery
- Battery Energy: 146.52WH (Watt Hours)
- Battery Weight: 0.84kg
- Battery Voltage: 22.2V
- Battery Capacity: 6.6AH
- Total Lithium Ion Cells: 18pcs
- Battery Wrap Material: PVC Sleeving + Highland Barley Paper
- Battery Charge Time: 5 Hours (With Power Switch Off)
- Battery Life: Up to 20 hours (With Full Charge)
- Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)

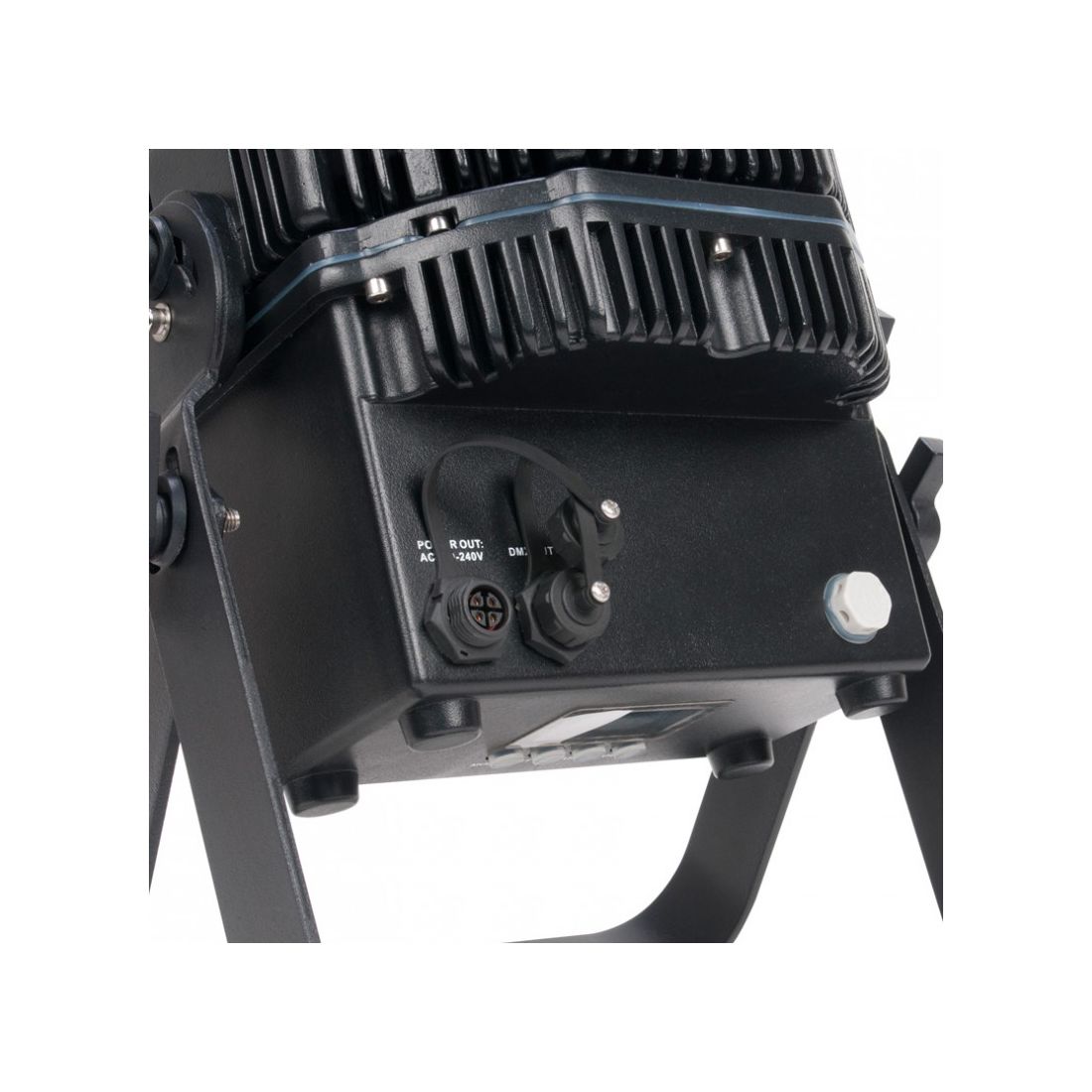

- • 4-pin proprietary Power In/Out connections
- • 3-pin proprietary IP65 DMX In/Out connections
- • 1 IP Power Cable included (Can also be ordered as spare part through the ADJ Part Shop: 9900006562)
- • Dimensions (LxWxH): 310 x 280 x 194mm
- • Weight: 5,48kg.
