Wifly EXR QA12Bar IP Select Archive
The WiFLY EXR QA12BAR IP is a 1-meter LED linear fixture made of robust metal and is IP65 outdoor rated. It features 12 Quad RGBA LEDs of 5W each, built-in WiFly EXR wireless DMX transmission up to 760M, 3 Zone RGBA control, built in programs, adjustable brackets/feet and IP65 rated DMX and Power In/Outs. It is also compatible with the wireless RF remote control RFC from...
Product Information
SKU: 1226100294
GTIN: 819730014276
The WiFLY EXR QA12BAR IP is a 1-meter LED linear fixture made of robust metal and is IP65 outdoor rated. It features 12 Quad RGBA LEDs of 5W each, built-in WiFly EXR wireless DMX transmission up to 760M, 3 Zone RGBA control, built in programs, adjustable brackets/feet and IP65 rated DMX and Power In/Outs. It is also compatible with the wireless RF remote control RFC from ADJ.
Gallery
Specification
- • 12 RGBA QUAD LEDs
- • Individual LED Wattage: 5W
- • Average LED lifetime: 50,000 hrs
- • LED Refresh Rate 1kHz for flicker free operation
- • Beam Angle : 25 degrees
- • 6 Operational modes: Static Color, RGBA Dimmer Mode, Color Change, Color Fade, Auto Run (Program Run) and DMX Control
- • 7 DMX Channel modes: 4, 6, 7, 8, 9, 12 or 14 channels
- • 3 Zone RGBA control
- • 16 Color Change Modes
- • 16 Color Fade Modes
- • LED pulse and strobe effect
- • Electronic Dimming: 0 - 100%
- • Built-In WiFly EXR wireless DMX

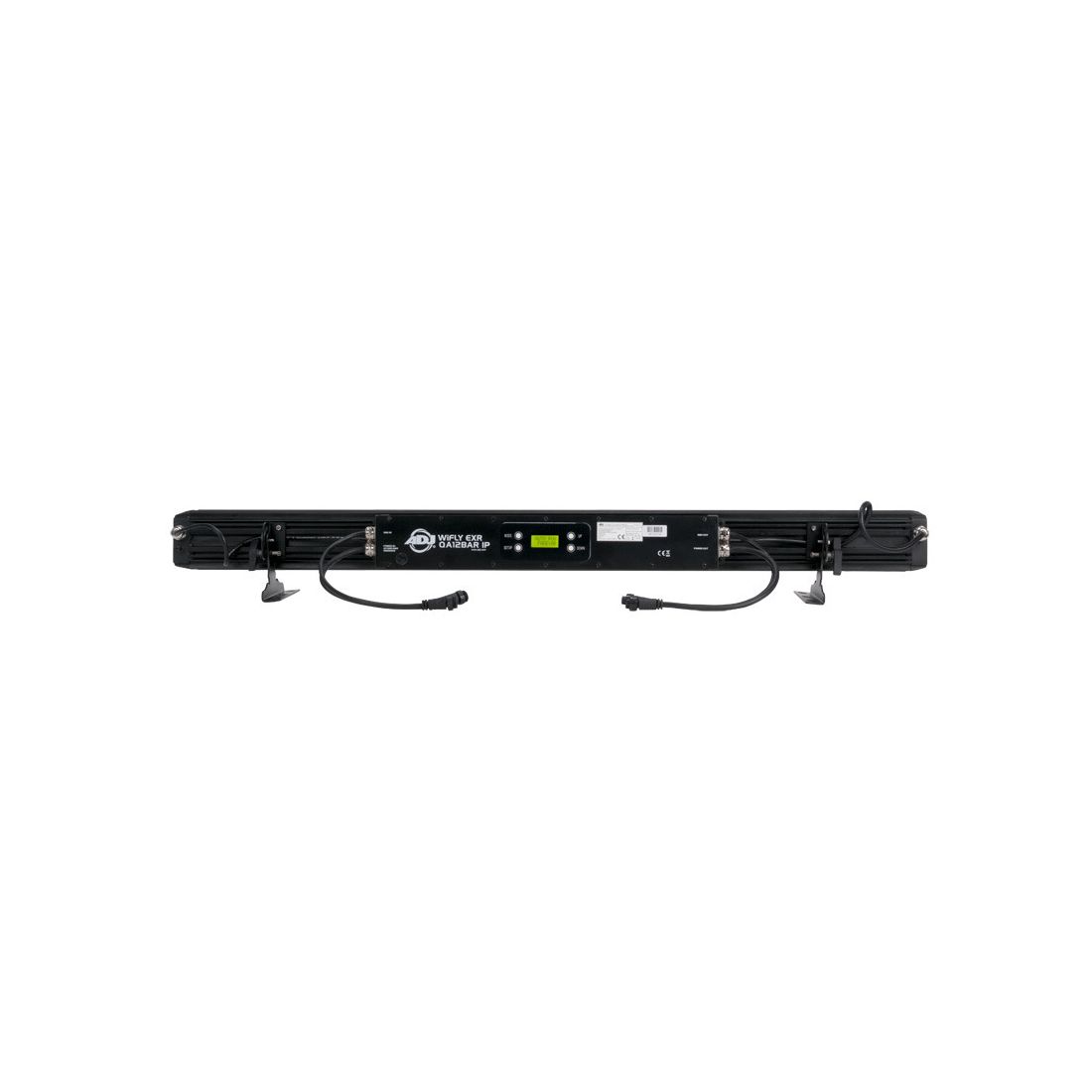

- • 4-button DMX menu display on rear panel
- • RGBA Color Mixing
- • 63 built-in Color Presets
- • Aluminium Metal Housing
- • IP65 Rating
- • 2 adjustable brackets/feet
- • Multi-voltage operation: AC 100-240V, 50/60Hz
- • Power Draw: 75W total (All LED's @ Full On)

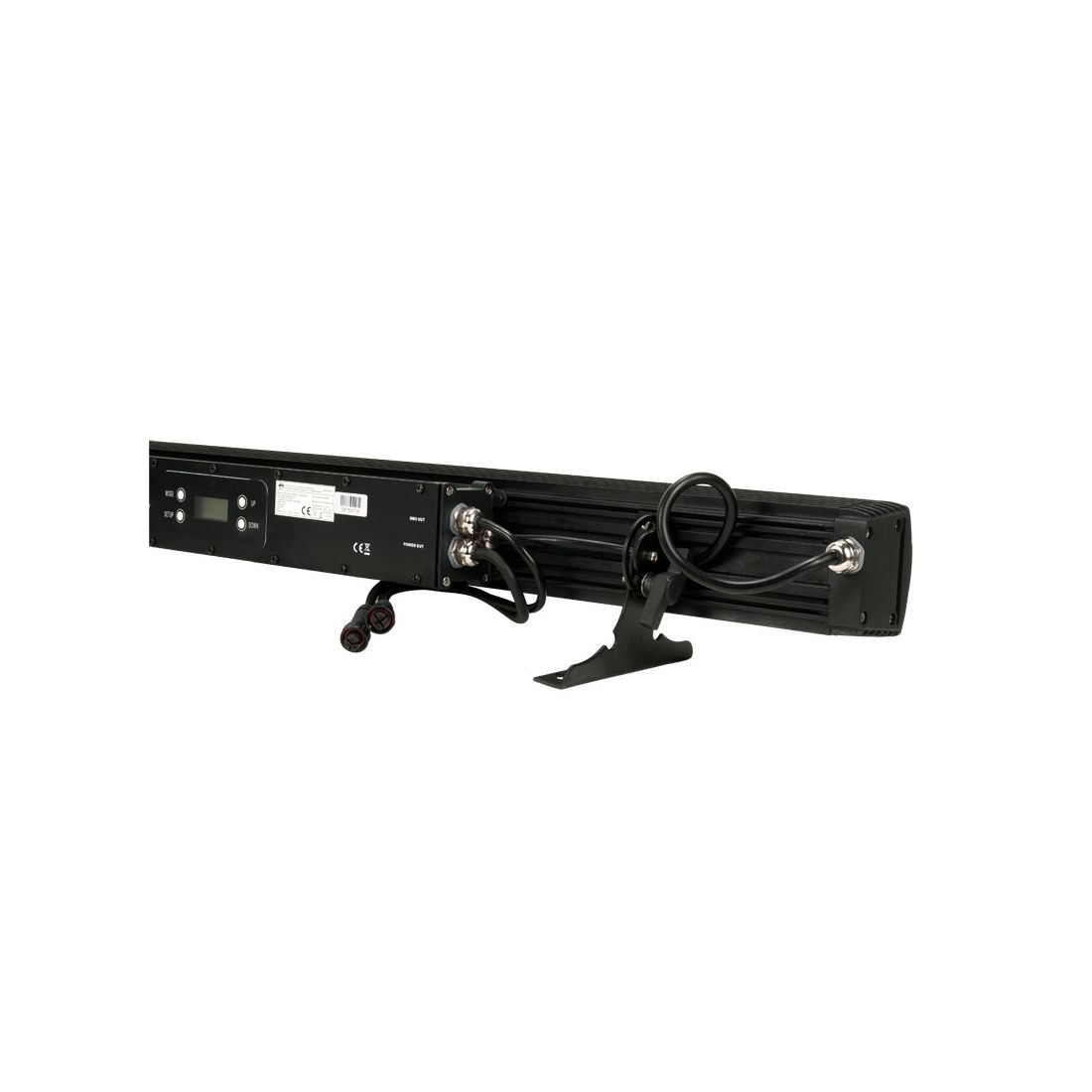

- • 4-pin proprietary IP65 Power In/Out connections
- • 3-pin proprietary IP65 DMX In/Out connections
- • Dimensions (LxWxH): 1029 x 140 x 152mm
- • Weight: 6,4kg.
