WiFly EXR HEX PAR
Archive

Brand
The ADJ WiFLY EXR HEX Par is a compact Wash Fixture with ADJ’s WiFLY EXR extended range wireless DMX built-in. It offers the power of 5x 10-Watt RGBWA+UV Hex LEDs (Red, Green, Blue, White, Amber, & UV) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY EXR Battery Transceiver will communicate up to 2500 feet/760M (open line of sight) with the WiFLY EXR HEX5 IP. This fixture uses LEDs rated at 50,000 hours with a maximum power draw of...
Read More

Product Information

SKU: 1226100313
GTIN: 819730016997
HS-Code: 9405409989

The ADJ WiFLY EXR HEX Par is a compact Wash Fixture with ADJ’s WiFLY EXR extended range wireless DMX built-in. It offers the power of 5x 10-Watt RGBWA+UV Hex LEDs (Red, Green, Blue, White, Amber, & UV) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY EXR Battery Transceiver will communicate up to 2500 feet/760M (open line of sight) with the WiFLY EXR HEX5 IP.

This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 58W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFLY Transceiver.



Gallery

Specification

    Specifications:
    - Rechargeable Lithium battery powered, with wireless DMX
    - Extended range wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
    - Built-in WiFLY wireless DMX: compatible with ADJ’s WiFLY Transceiver (sold separately)
    - Variable RGBWA+UV color mixing offers a smooth, seemingly unlimited color palette   Great for Stage or Wall Washing!
    - Compatible with ADJ RFC wireless remote control (sold separately)
    - 5 DMX Channel modes: 6, 7, 8, 11 or 12 channel modes
    - 5 Operational modes: RGBWA+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change shows, 16 color fade shows, & 1 color/fade combo show); Static Color mode; and DMX Controlled
    - 63 built-in Color Macros
    - LED pulse and strobe effect
    - Flicker Free Operation
    - Electronic Dimming: 0 - 100%
    - Beam angle: 40-degree
    - DMX linkable via 3-pin or 5-pin DMX (In/Out) on the side of the fixture

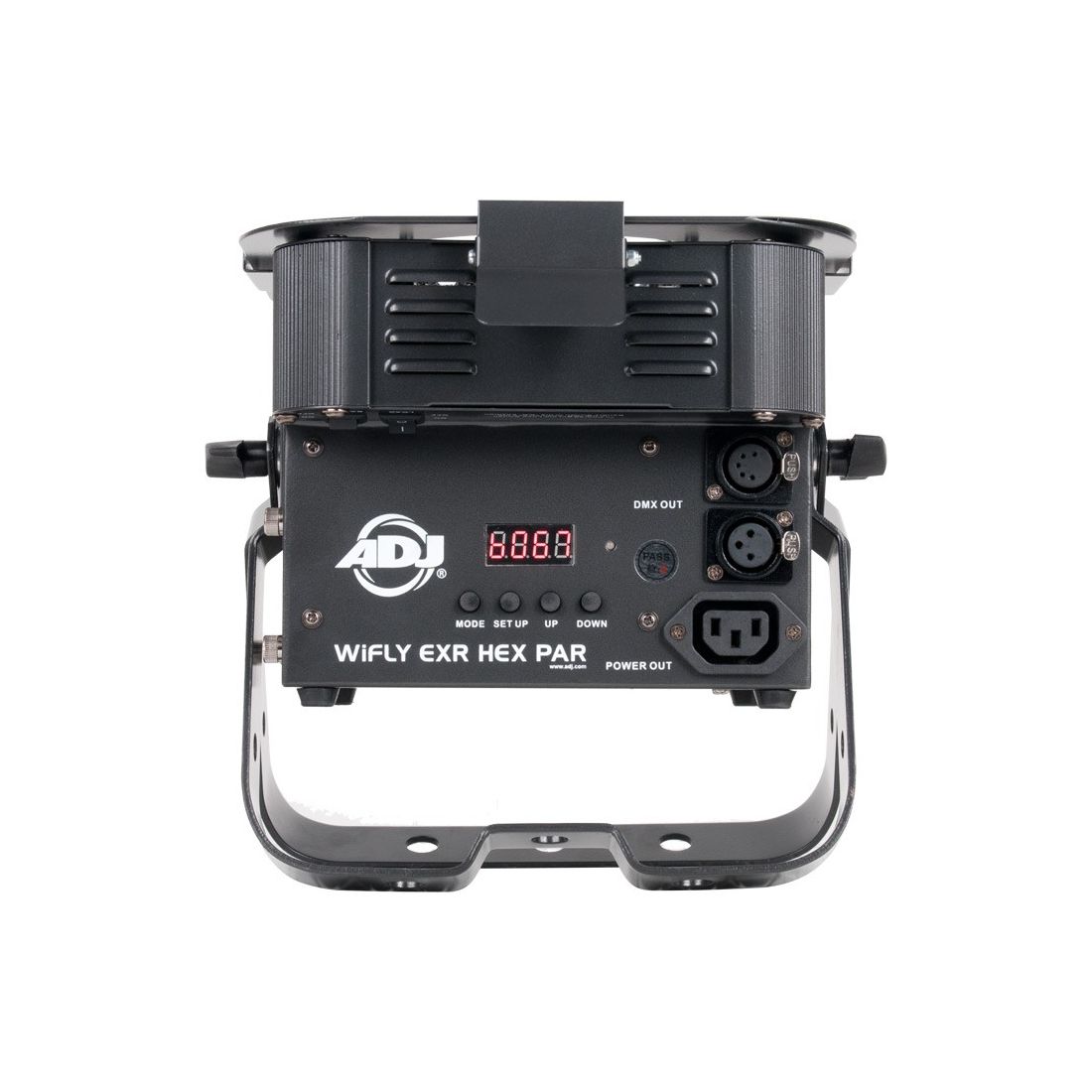

    - 4-button DMX menu display on rear panel
    - Dual bracket yoke allows fixture to be hung or set on the ground
    - IEC Power AC  IN/OUT  on the side of the fixture  to daisy chain power (up to 10 units)
    - Run all night – No duty cycle
    - LED Source: 5x 10-Watt Hex LEDs (6-in-1 RGBWA+UV- Red, Green, Blue, White,  Amber, & UV LEDs, rated at approximately 50,000 hrs)
    - Battery Charge Time: 5 Hours (With LOAD switch Off)
    - Battery Life: 6 Hours Full On, 10.5 Hours in Energy Save Mode (With Full Charge), up to 24 hours depending on color selection
    - Energy Saving Mode
    - Power Draw: 58W total (All LED's @ Full On)
    - Multi-voltage operation: AC 100-240V, 50/60Hz
    - Dimensions (LxWxH): 265 x 240 x 164mm
    - Weight:  4.42kg.

    Specifications subject to change without notice.

    Downloads

    User Manual

    WiFly EXR HEX PAR User Manual
    (Size: 1.3 MB)
