Vizi Beam RXONE Select
Key Features
Color
• 1 Color Wheel with 12 colors + CTB + UV + White
• Split Colors
• 1 Color Wheel with 12 colors + CTB + UV + White
• Split Colors
Optics
• Beam Angle: 3°
• 16-facet rotating circular prism
• 21° Frost filter
• Beam Angle: 3°
• 16-facet rotating circular prism
• 21° Frost filter
Source
• 100W Osram Sirius HRI Long Life Discharge
• Color Temperature : 9000K
• Lux: 62,500 lux @10m
• 100W Osram Sirius HRI Long Life Discharge
• Color Temperature : 9000K
• Lux: 62,500 lux @10m
Product Information
SKU: 1237000146
GTIN: 819730018281
HS-Code: 94054910

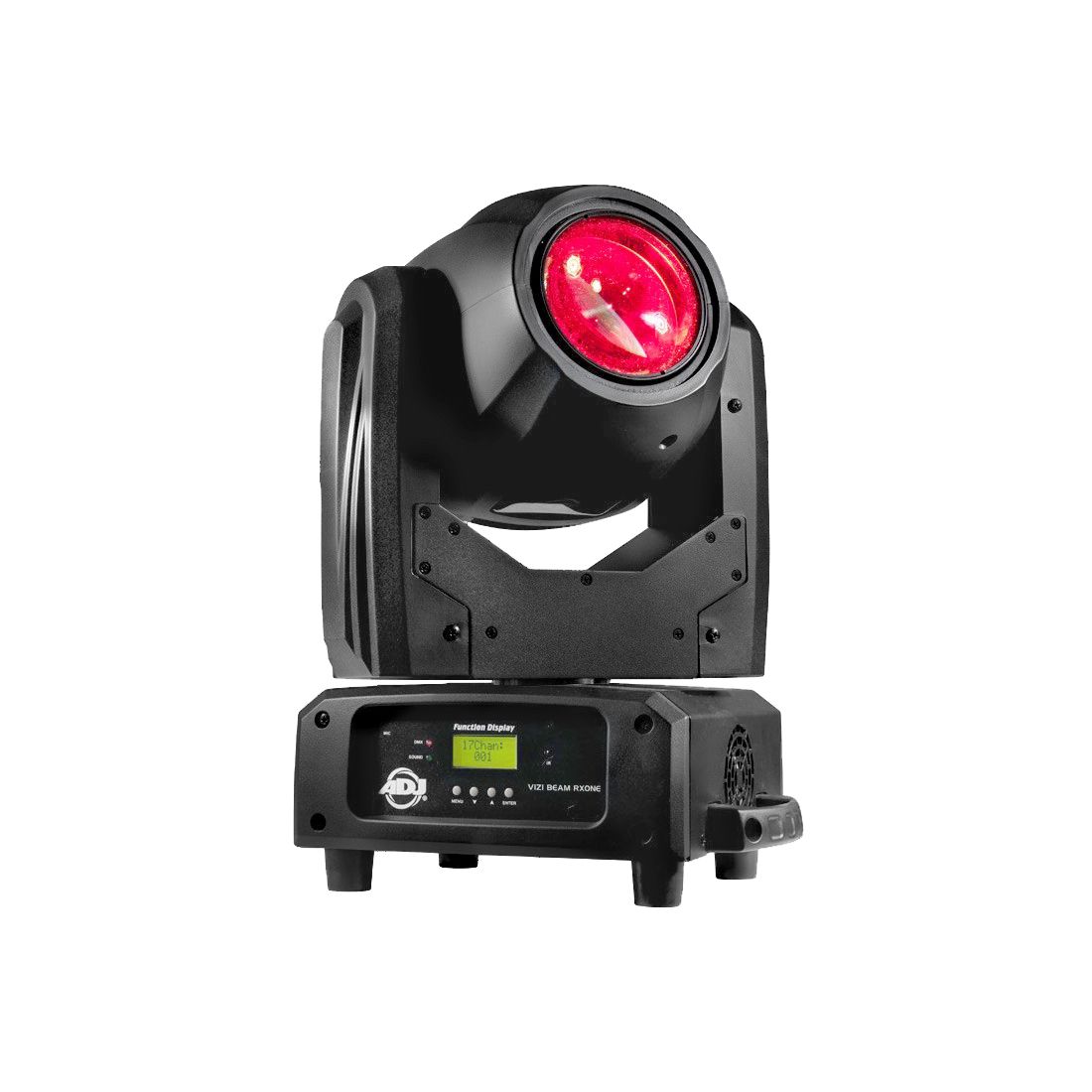

Part of ADJ’s popular Vizi Series, the Vizi Beam RXONE, is a compact and quick moving head with a potent Osram® Sirius HRI 100W discharge long life lamp (6,000 hrs.) that produces a super sharp 3-degree beam of light that travels up to 100 meters. This 16-bit, nimble mover also includes a frost filter to give the beam a wash effect of 21-degrees making this fixture very useful for a variety of portable and permanent applications.
Under the hood the Vizi Beam RXONE boasts a 16-facet prism to break apart the solid beam into 16 mini beams, 14 color + white and 15 static, fixed GOBOs. The RXONE has 2 DMX modes (15 or 17 channel mode), 3-pin DMX In/Out, Locking power In/Out connections plus a low power consumption of only 199W at max power.
Gallery
Specification
- • Osram Sirius HRI Long Life Discharge
- • Lamp Wattage: 100W
- • Average Lifetime: 6,000 hrs
- • Color Temperature : 9000K
- • Lux: 62,500 lux @10m
- • Beam Angle: 3-degrees
- • 16-facet rotating circular prism
- • 21° Frost filter
- • 3 operational Modes: Internal Programs, Sound Active or DMX Control
- • 2 DMX Channel Modes: 15 or 17 Channels
- • RDM compatible (Remote Device management)
- • 16bit Pan 540°
- • 16bit Tilt 270°
- • Various strobe effects
- • LCD display with 4-button function menu
- • 1 Color Wheel with 12 colors + CTB + UV + White
- • Split Colors
- • 1 metal Gobo Wheel with 11 static Gobos + 4 beam reducers + Open
- • PVC molding
- • Includes Quicklock Omega Bracket
- • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- • Power consumption: 199W

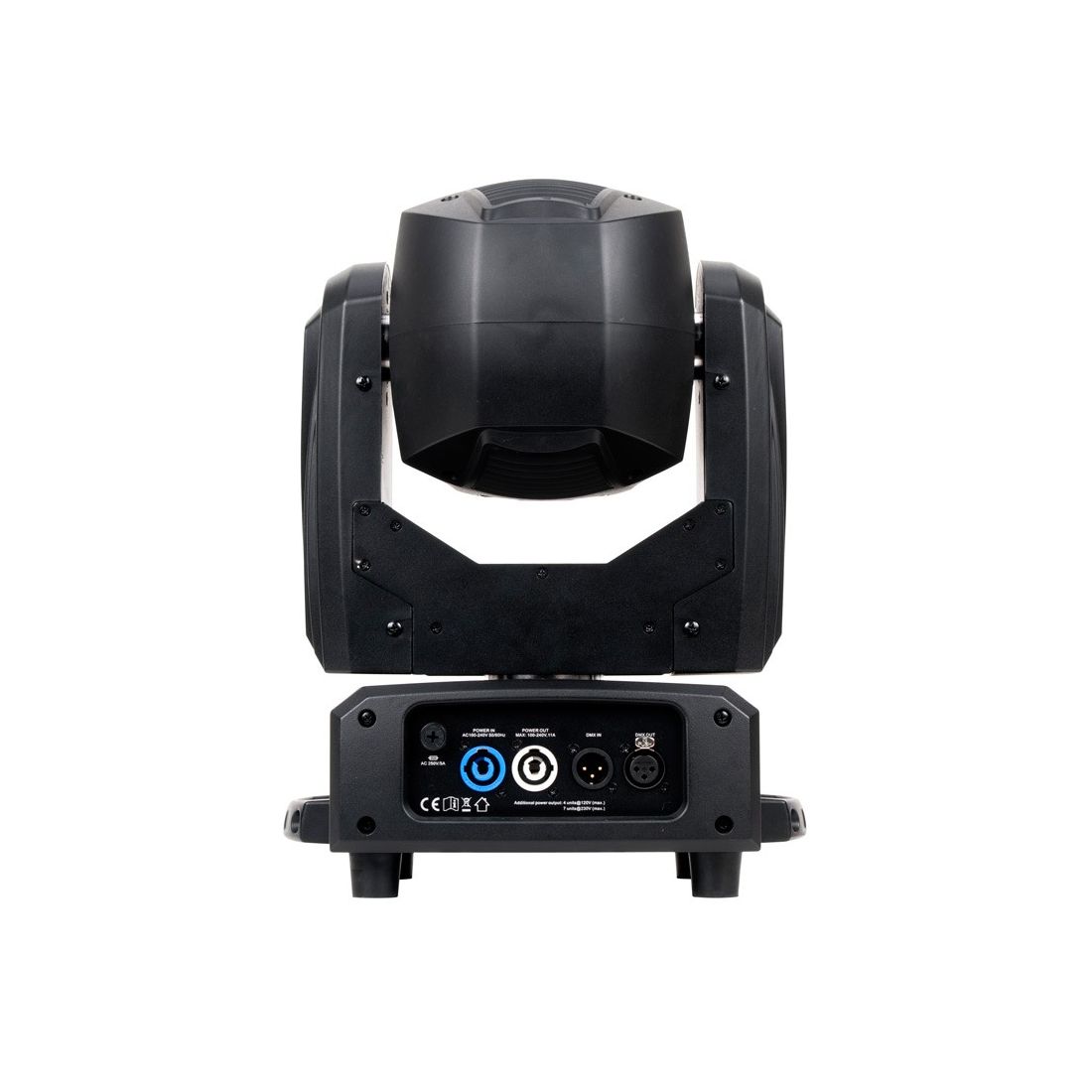

- • 3-pin Locking DMX In/Out connections
- • Locking Power In/Out connections
- • Dimensions(LxWxH): 279 × 225 × 387mm
- • Weight: 9,2 kg.
Specifications subject to change without notice
COLORS AND GOBOS
Color Wheel 1
Gobo Wheel 1 Static
