UV LED BAR20 IR
Archive

Brand

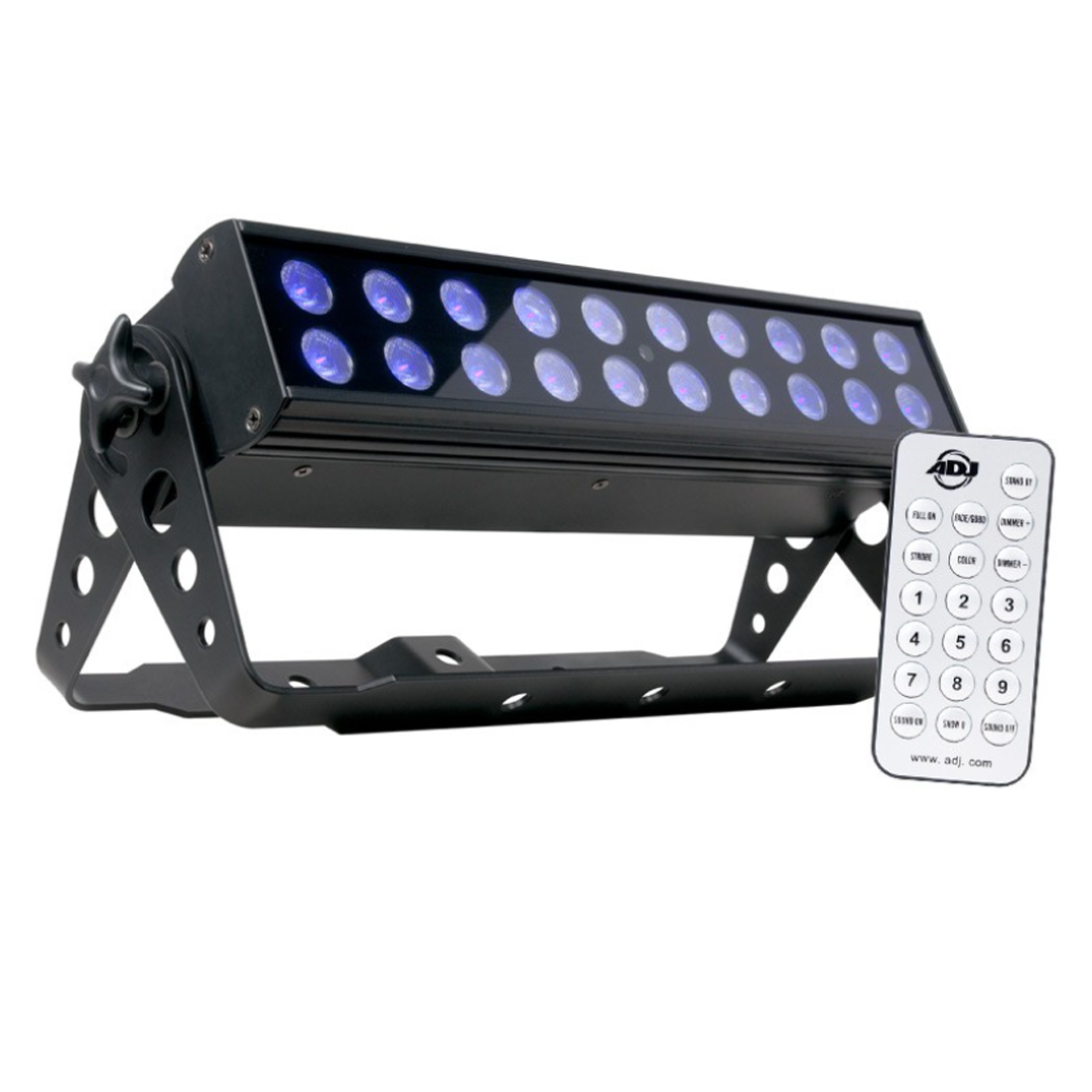

The UV LED BAR 20 IR is a high output ultraviolet LED backlight that comes with a wireless remote for easy control of On/Off and strobe speed. It’s powered by 20x 1-Watt UV LEDs with a maximum power draw of only 30W and has a beam angle of 10-degrees x 40-degrees. With a LED life of approximately 50,000 hours, the UV LED BAR 20 IR is a nearly maintenance free solution for washing stages, nightclubs, Bowling Center, Roller Rinks and Fun Centers with ultraviolet light.


Read More

Product Information

SKU: 1224100008
GTIN: 818651020366
HS-Code: 9405423990

The UV LED BAR 20 IR is a high output ultraviolet LED backlight that comes with a wireless remote for easy control of On/Off and strobe speed. It’s powered by 20x 1-Watt UV LEDs with a maximum power draw of only 30W and has a beam angle of 10-degrees x 40-degrees. With a LED life of approximately 50,000 hours, the UV LED BAR 20 IR is a nearly maintenance free solution for washing stages, nightclubs, Bowling Center, Roller Rinks and Fun Centers with ultraviolet light.

Gallery

Specification

  • - Bright, high output Ultraviolet Bar with 20x 1-Watt UV LEDs

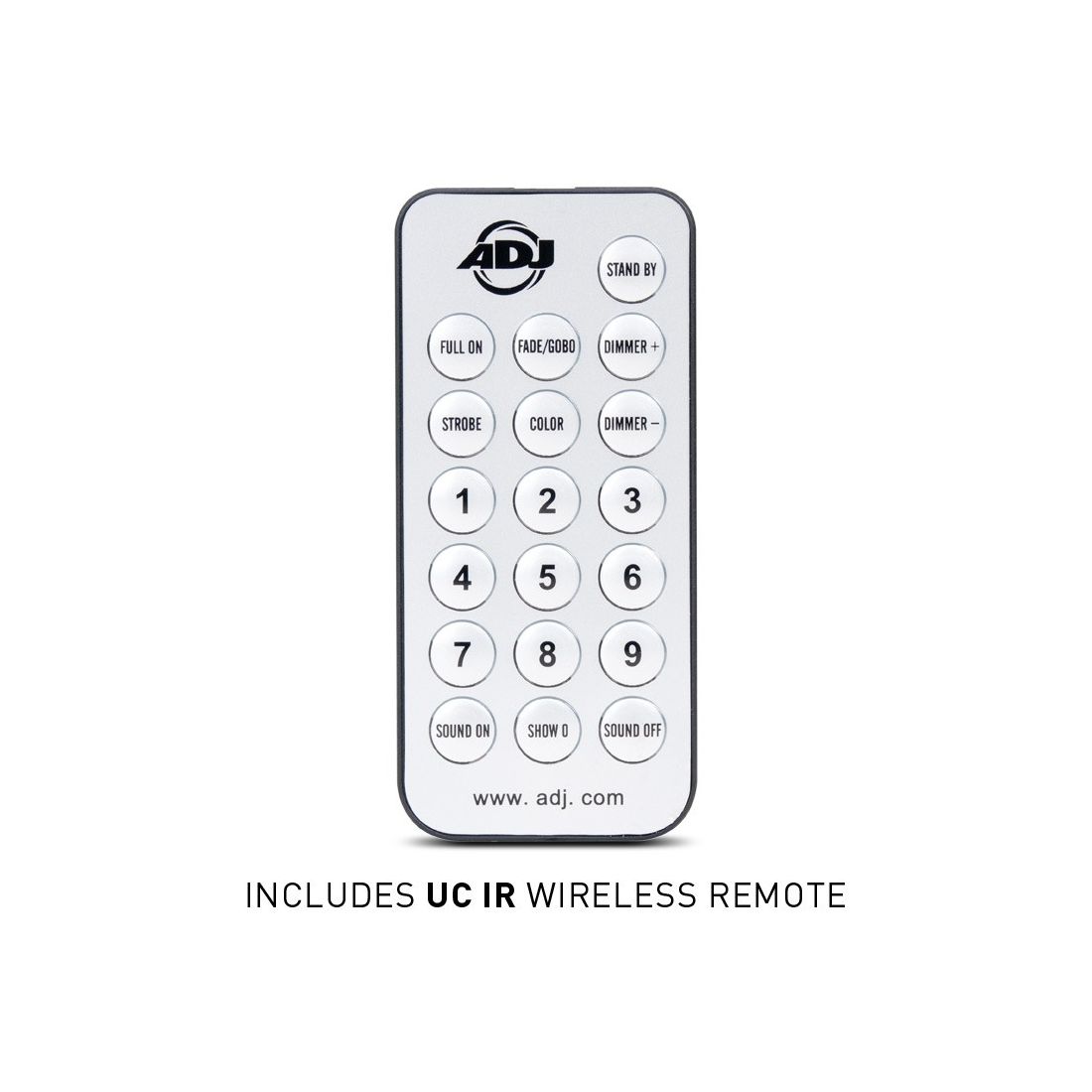

  • - Includes wireless remote control (control On/Off and strobe speed)
  • - Great for performance stages, theatrical productions and special effects installations - requires almost no maintenance - long life LED, low heat output, low power consumption & no moving parts
  • - Long Life LEDs (50,000 hrs.)
  • - Low power consumption, low heat
  • - 4 Operational Modes: Sound Active, DMX-512, Primary/Secondary or Manual
  • - 1 DMX Mode
  • - UV strobe effect
  • - Electronic Dimming: 0 - 100%
  • - Flicker Free
  • - Beam angle: 10 degrees vertical x 40 degrees horizontal linear beam angle - great for wall washing
  • - Linkable via 3-pin XLR cable and Locking PowerIn/Out

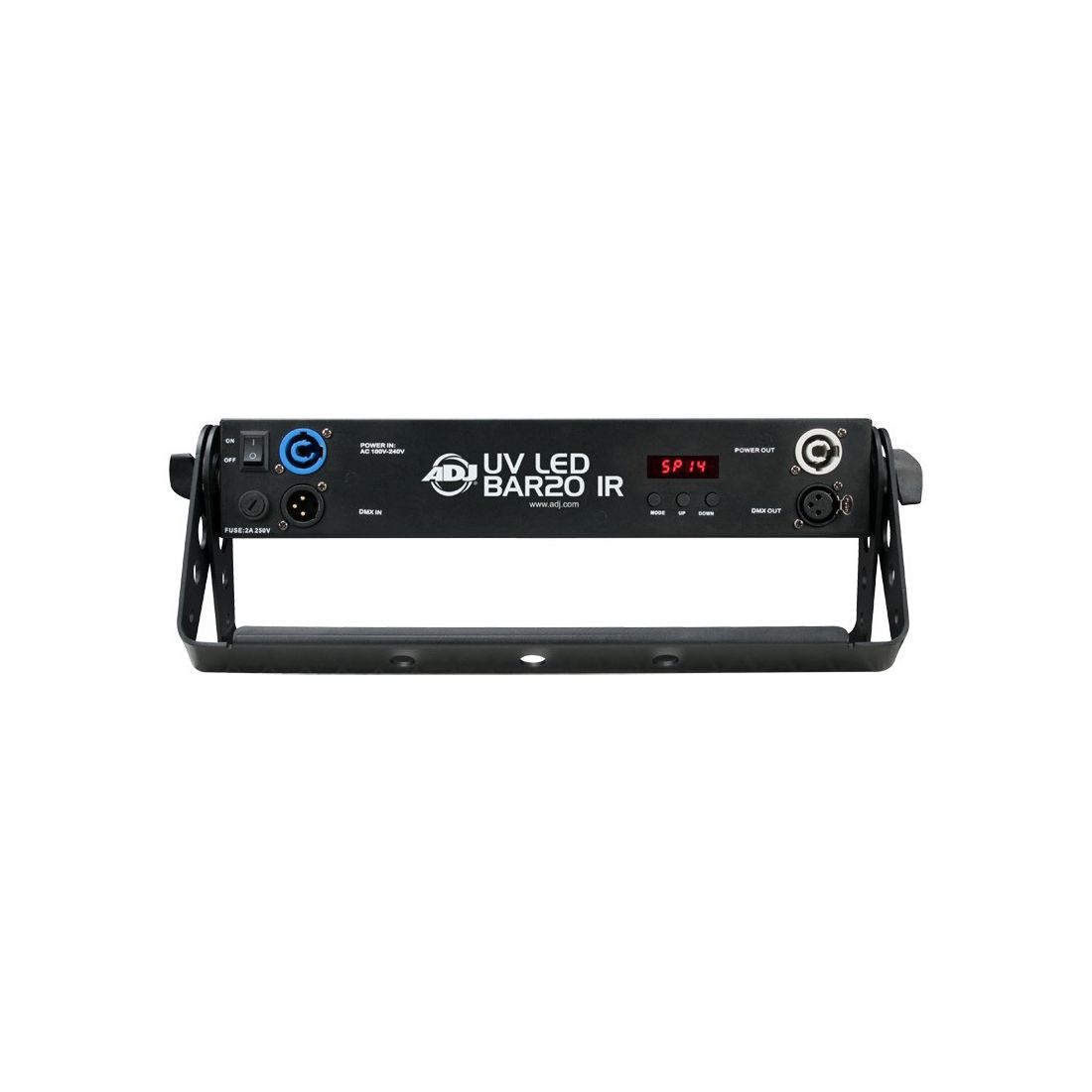

  • - 3-button LED DMX display on rear panel
  • - Dual bracket system allows fixture to be hung or set on the ground
  • - Power Draw: 30W
  • - Compatible with the UC-IR remote
  • - On/Off switch on rear panel
  • - Wavelength: 390-410 nanometers
  • - Multi-voltage Operation: AC 100-240V, 47/63Hz
  • - Dimensions (LxWxH): 334x61x175mm
  • - Weight: 2.45 kg

Downloads

DMX Traits

UV LED BAR20 IR ADJ UV LED BAR20 IR DMX Traits (Size: 79.7 KB)

Additional Downloads

UV LED BAR20 IR Fixture Libraries Download (Size: 172.4 KB)

User Manual

UV LED BAR20 IR User Manual
(Size: 944.9 KB)
