UC3 Wireless
Archive

The American DJ UC3 Wireless was designed for DJs, Bands, Bars/Clubs and Mobile Entertainers that want to control multiple American DJ lighting fixtures that are UC3 compatible, yet still enjoy the easy-of-use the single channel UC3 controller offers. This wireless pack has 4 outputs with the capability to control 4 master fixtures and an infinite number of slave fixtures. The UC3 Wireless is compact and light-weight, and can be mounted on truss, lighting stands, walls or ...
Read More

Product Information

SKU: 1321000013
GTIN: 640282001168
HS-Code: 8543900090

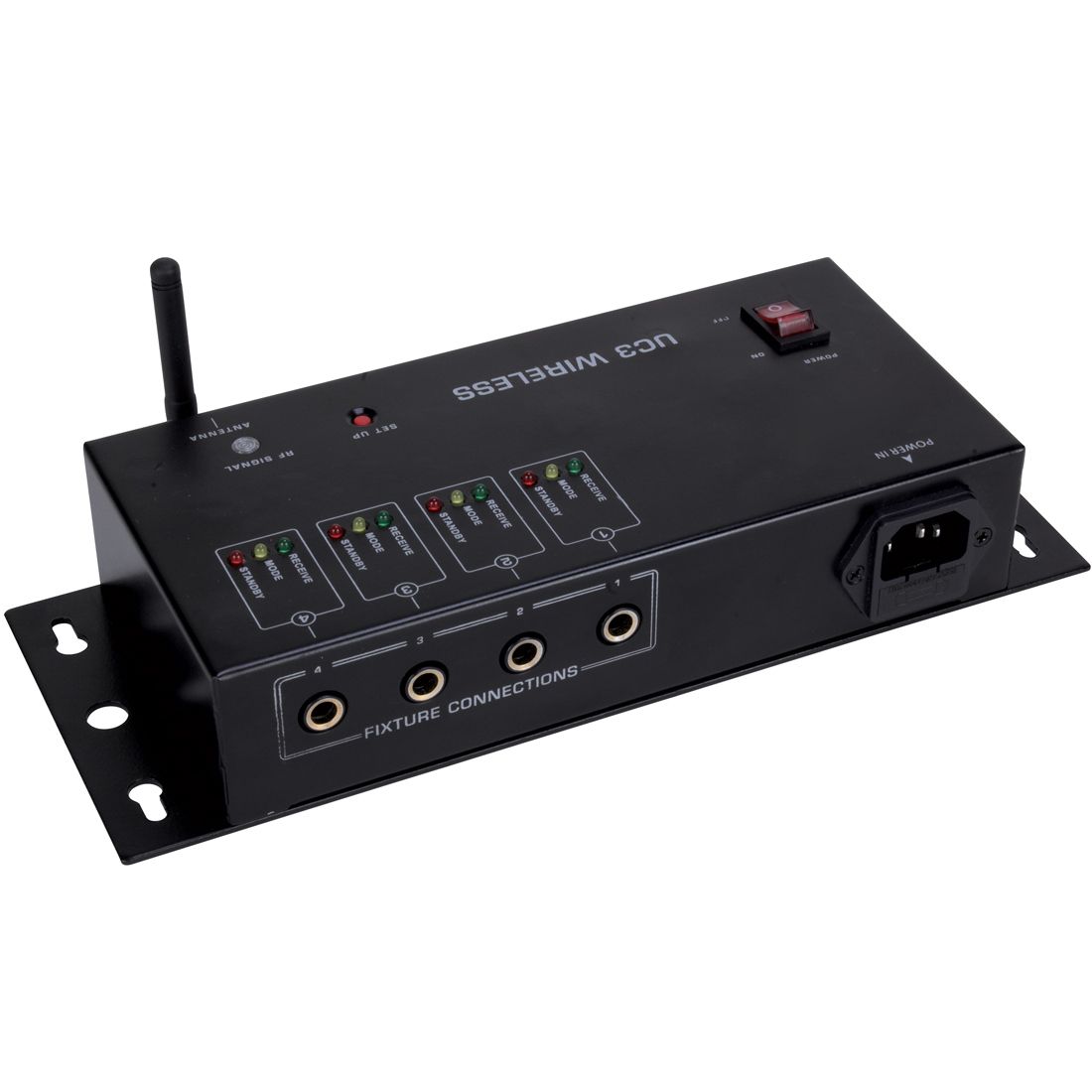

The American DJ UC3 Wireless was designed for DJs, Bands, Bars/Clubs and Mobile Entertainers that want to control multiple American DJ lighting fixtures that are UC3 compatible, yet still enjoy the easy-of-use the single channel UC3 controller offers. This wireless pack has 4 outputs with the capability to control 4 master fixtures and an infinite number of slave fixtures. The UC3 Wireless is compact and light-weight, and can be mounted on truss, lighting stands, walls or ceilings.

Gallery

Specification

    Specifications:
    - 4 Output Wireless UC3 controller
    - 1 master fixture, from each output, can run an infinite number of slave units. Use 1/4" stereo cable to link between pack and master unit, and use DMX cable to link between fixtures.
    - Includes wireless remote: Control Stand By (Black Out), Function and Mode for each output just like the single output UC3 controller
    - 4x 1/4" output jacks to connect to master fixtures
    - Lock out function
    - Wireless Transmitting Distance: 325 ft. /100M
    -  Frequency: 433.9Mhz
    - Power: AC 120V/60Hz or 220V/50Hz (IEC socket) – not switchable voltage
    - Dimensions (LxWxH): 262x100x47mm
    - Weight: 1.3 kg

    Videos

    Downloads

    User Manual

    UC3 Wireless User Manual
    (Size: 483 KB)
