Sweeper Beam QUAD LED
Archive

Brand

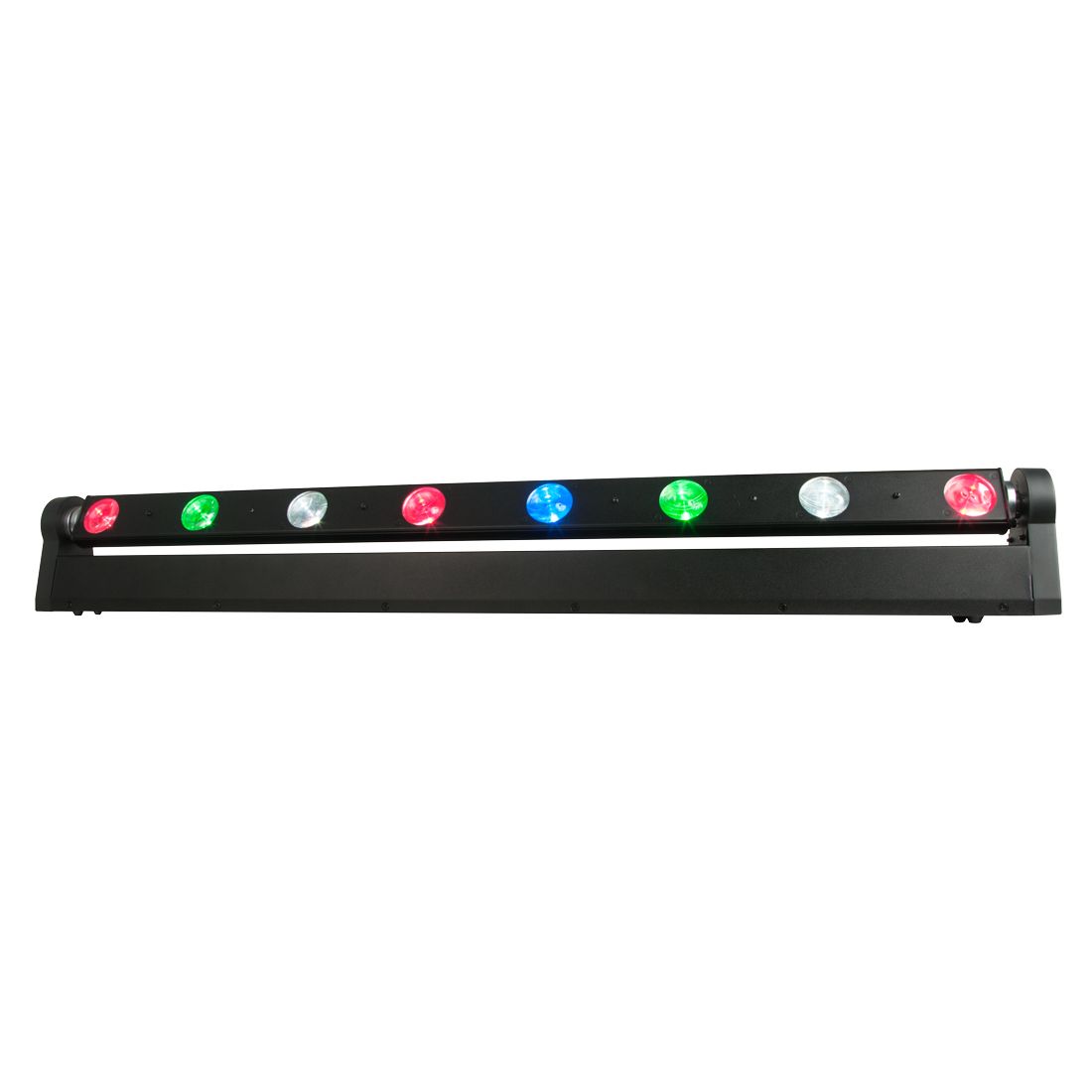

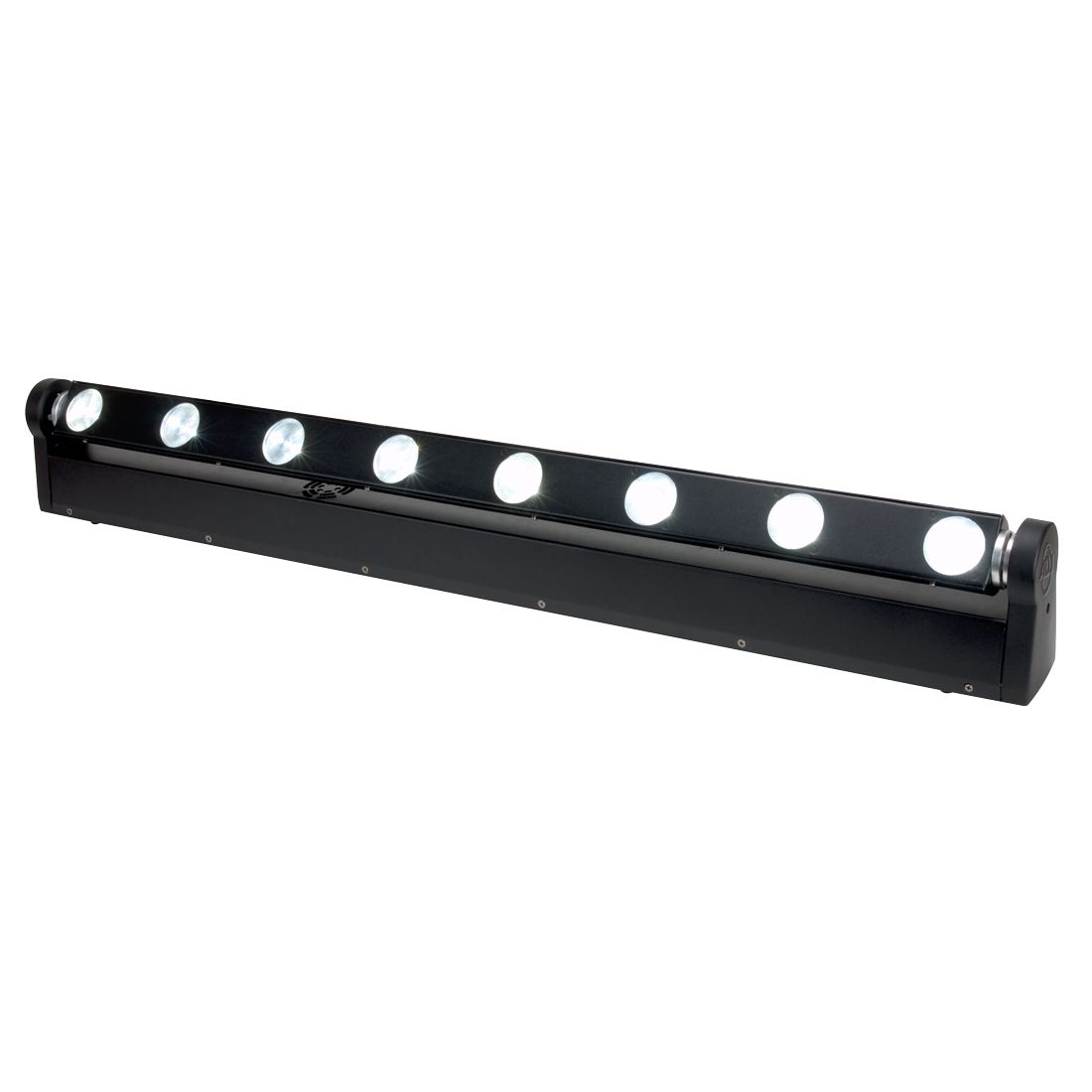

The ADJ Sweeper Beam Quad LED creates exciting lighting effects with its quick sweeping beams and its 8-Zone RGBW LED chasing, pulsing and strobing LEDs. This unique fixture features 8x 8-Watt bright, Quad RGBW LEDs with a narrow 3.4 degrees beam angle, 4 DMX Channel modes and a 4-Channel LED DMX menu. The Sweeper Beam Quad LED may be controlled via it’s own built-in programs, a DMX Controller or the easy-to-use UC3 Controller. Best when used in multiples, the Sweeper...

Product Information

SKU: 1237000082
GTIN: 10819730010565
HS-Code: 94054210

The ADJ Sweeper Beam Quad LED creates exciting lighting effects with its quick sweeping beams and its 8-Zone RGBW LED chasing, pulsing and strobing LEDs. This unique fixture features 8x 8-Watt bright, Quad RGBW LEDs with a narrow 3.4 degrees beam angle, 4 DMX Channel modes and a 4-Channel LED DMX menu.

The Sweeper Beam Quad LED may be controlled via it’s own built-in programs, a DMX Controller or the easy-to-use UC3 Controller. Best when used in multiples, the Sweeper Beam Quad LED is designed for stages, nightclubs and mobile entertainers.

Specification

    Specifications:
    - Unique lighting fixture with quick sweeping narrow beams combined with an 8-Zone LED chase
    - 8x 8-Watt RGBW LEDs
    - 4-Button DMX LED Display
    - 3 Operational modes: DMX controller, Primary/Secondary & Sound Active
    - 4 DMX Channel modes: 1 Channel, 6 Channels, 35 Channels, or 39 Channels
    - DMX-512 Protocol
    - Electronic Dimming: 0 - 100%
    - Includes exciting sound activate built-in programs
    - LED pulse & strobe effect
    - 270 degree tilt from smooth Stepper Motors
    - Extremely Long Life (50,000 hr. rated)
    - Beam angle: 3.4-degrees
    - Runs extremely cool! - NO Duty Cycles! – Run all night!
    - Includes mounting brackets to mount on a wall or set on the ground
    - Safety hook on rear panel
    - Very low power consumption - connect more units in a single circuit
    - IEC AC IN/OUT on rear to daisy chain power (up to 4 Sweeper Beam Quad LED’s @ 120V and 7 Sweeper Beam Quad LED’s @ 230V )
    - Compatible with ADJ UC3 Series easy-to-use controllers (sold Separately)
    - Power Consumption: 81W maximum
    - Multi-voltage operation: AC 100-240V 50/60Hz- IEC socket
    - Dimensions (LxWxH): 973 x 73 x 132mm
    - Weight: 6.3 kg.
      Specifications subject to change without notice.
