RDM XS8 Select New
![Brand](/media/brand/adj.png)
Key Features
Connections
• 1x 5-pin XLR Input
• 1x 5-pin XLR Thru
• 8x 5-pin XLR Outputs
• 1x 5-pin XLR Input
• 1x 5-pin XLR Thru
• 8x 5-pin XLR Outputs
Construction
• 19 inch Rack Mount (1 rack space)
• 19 inch Rack Mount (1 rack space)
Control
• DMX512
• RDM
• DMX512
• RDM
![](https://www.adj.eu/media/catalog/product/r/d/rdm-20xs8-front-53669.jpg)
Product Information
SKU: 1321000087
HS-Code: 8537109899

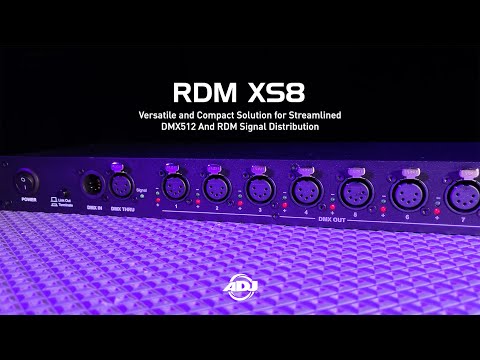

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter.
With one 5-pin input, one 5-pin thru and eight 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet.
Its slim 1U configuration includes 1x 5-pin XLR input, 1x 5-pin XLR thru, 8x 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
Gallery

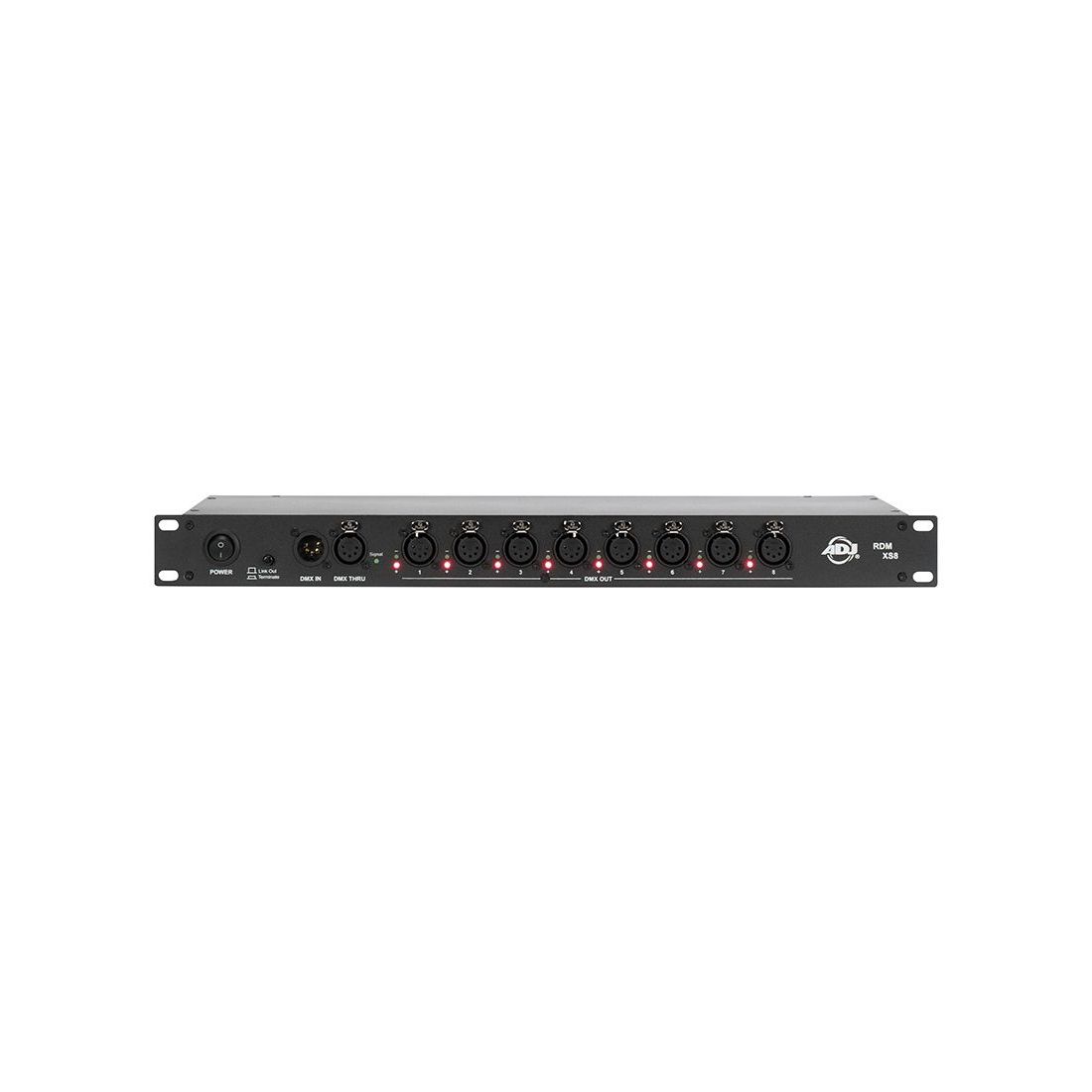

![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/r/d/rdm-20xs8-front-53669.jpg)

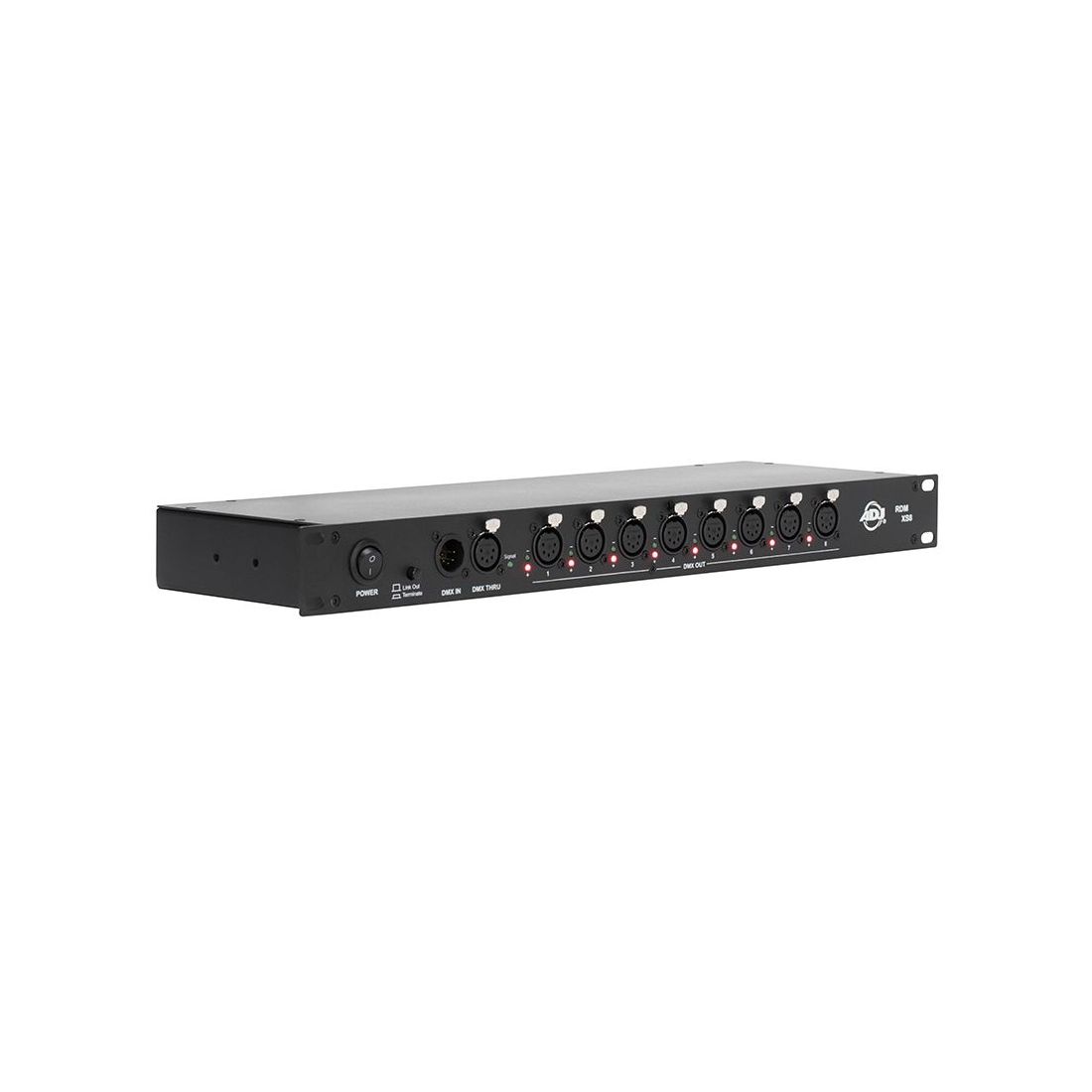

![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/r/d/rdm-20xs8-right-53670.jpg)

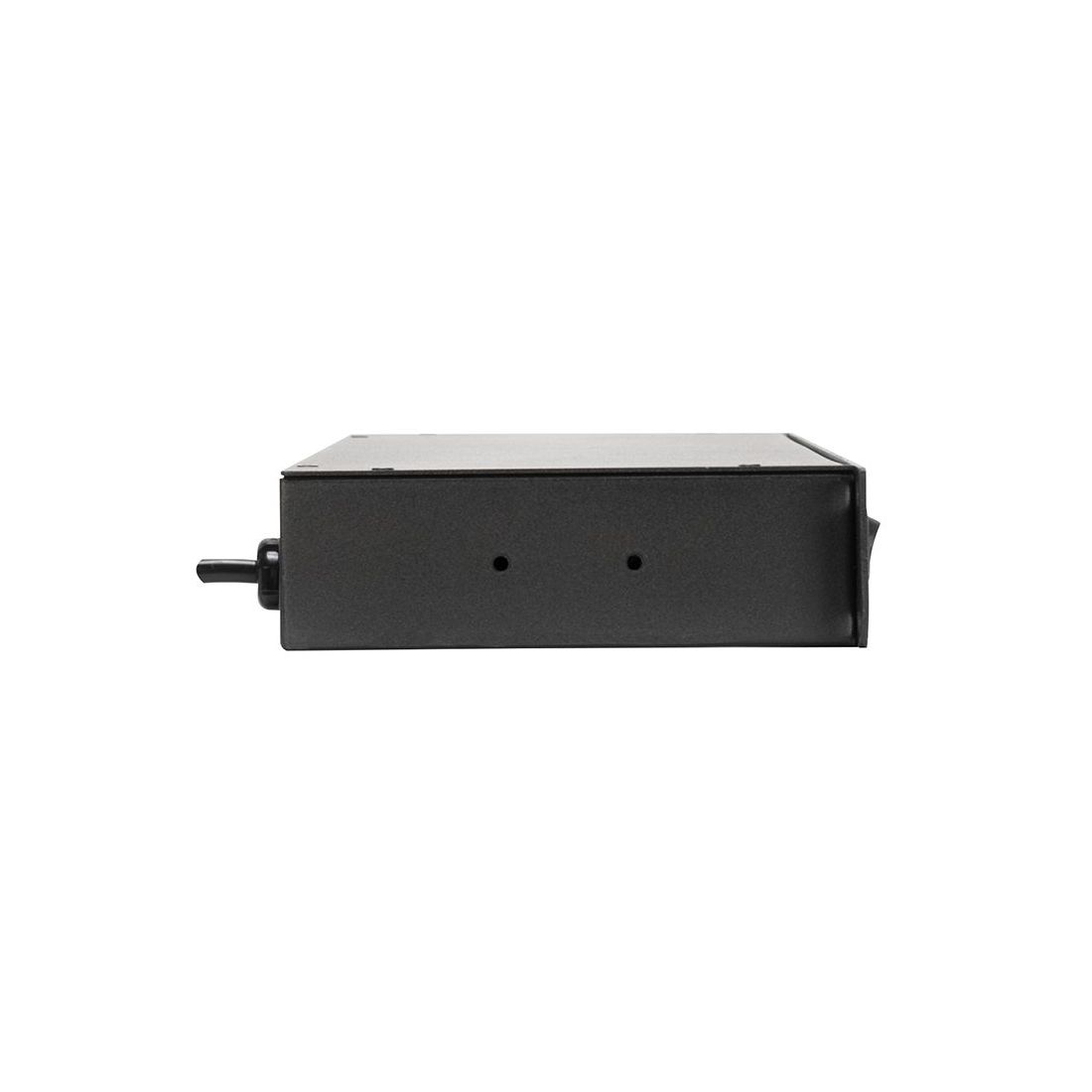

![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/r/d/rdm-20xs8-side-53671.jpg)

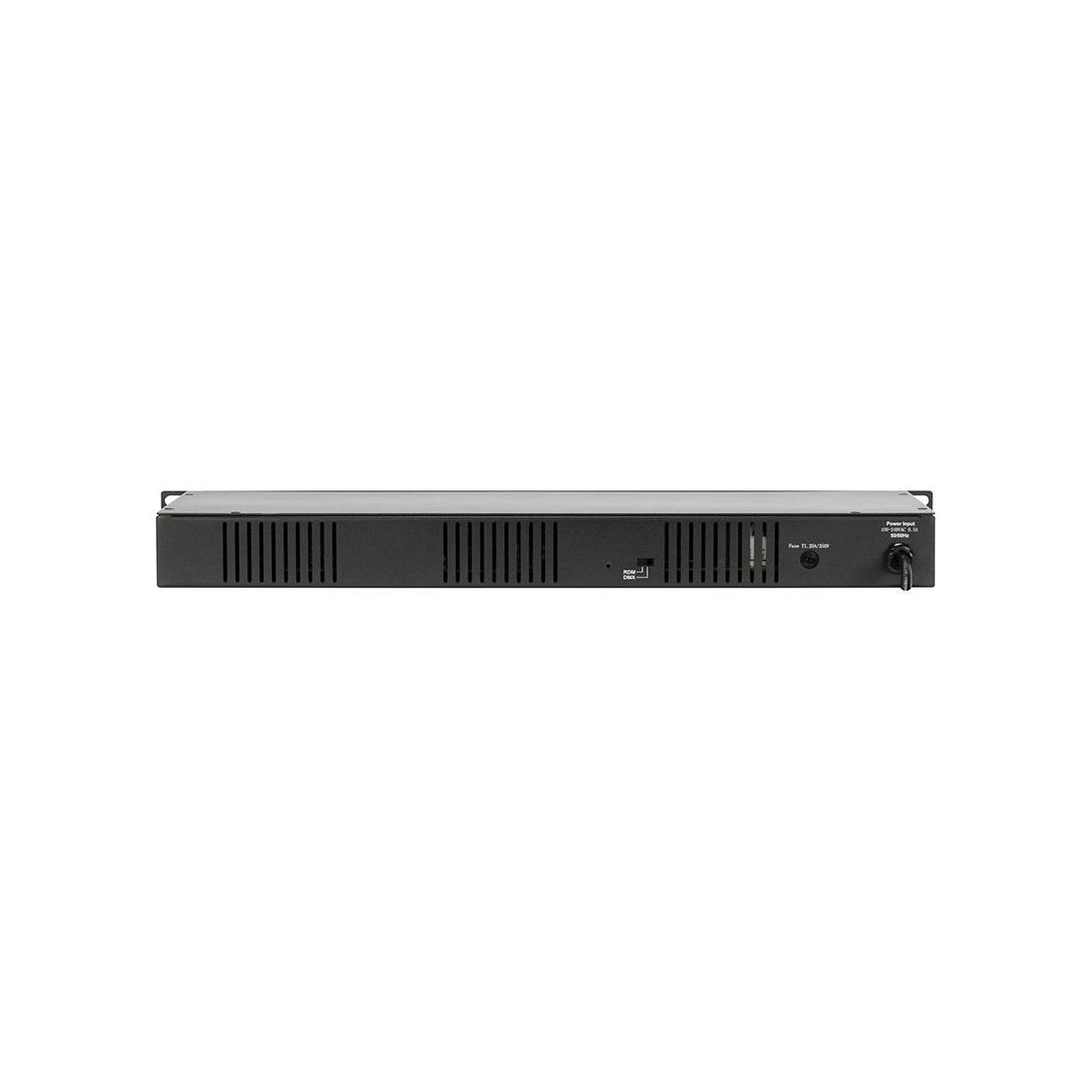

![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/r/d/rdm-20xs8-rear-53672.jpg)

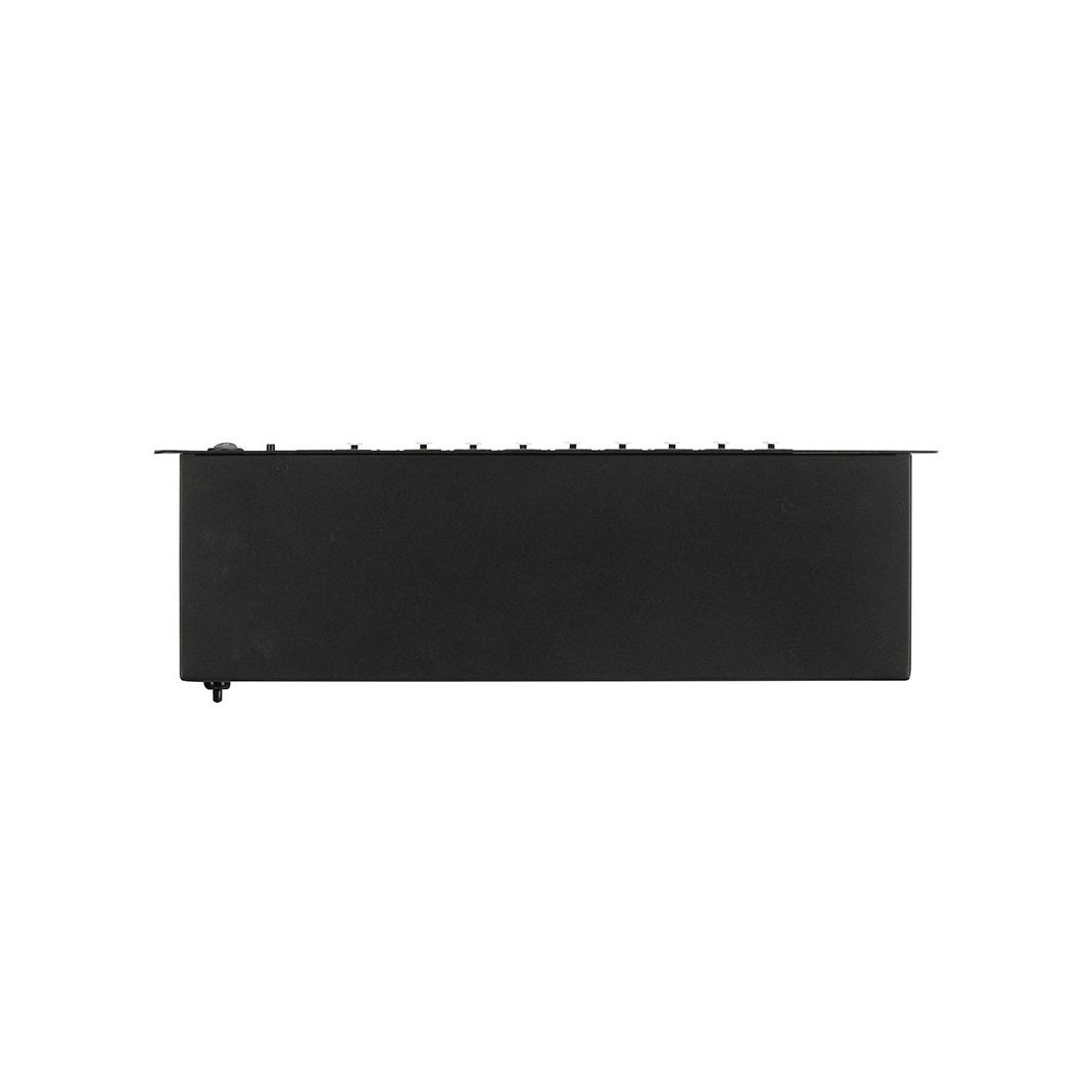

![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/r/d/rdm-20xs8-bottom-53673.jpg)
Specification
- • DMX512
- • RDM
- • 19 inch Rack Mount (1 rack space)
- • 1x 5-pin XLR Input
- • 1x 5-pin XLR Thru
- • 8x 5-pin XLR Outputs
- • Link Out Termination Switch
- • DMX / RDM Protocol Switch
- • Length: 152.4mm
- • Width: 482mm
- • Height: 44mm
- • Weight: 2.21kg
- • AC Input: 100-230V 50/60Hz
- • Power Consumption: 3.3W @ 230V
- • Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
- • Ambient Operational Temperature: -20°C to 45°C
- • Humidity: <75%
- • Storage Temperature: 25°C
Specifications subject to change without notice
