Pixie Driver 2000 V3 Select
Product Information
Pixie Driver 2000 V3 is designed specifically for the ADJ's Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 2,040 max pixels via Kling-Net, Art-Net or sACN (streaming ACN) protocols.

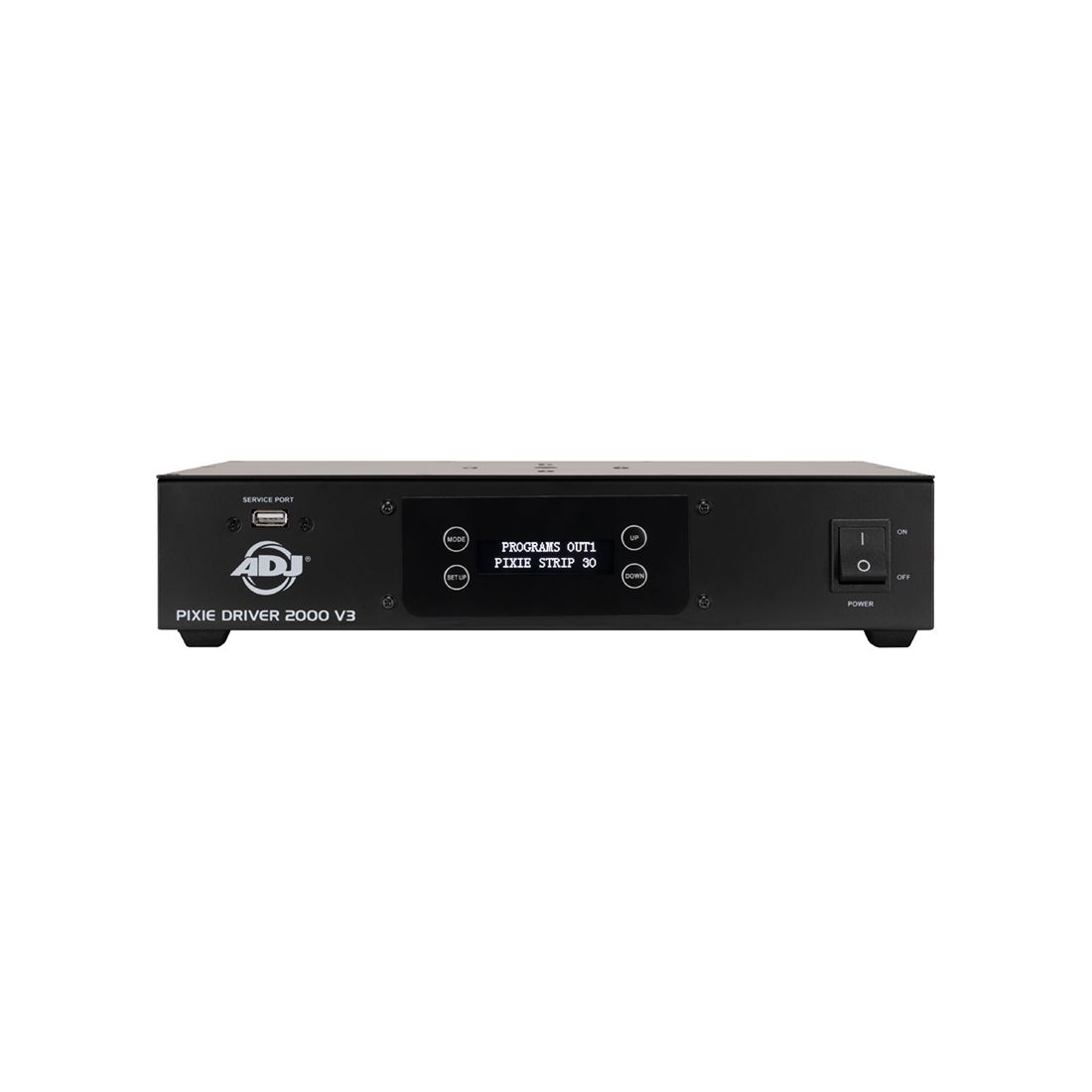

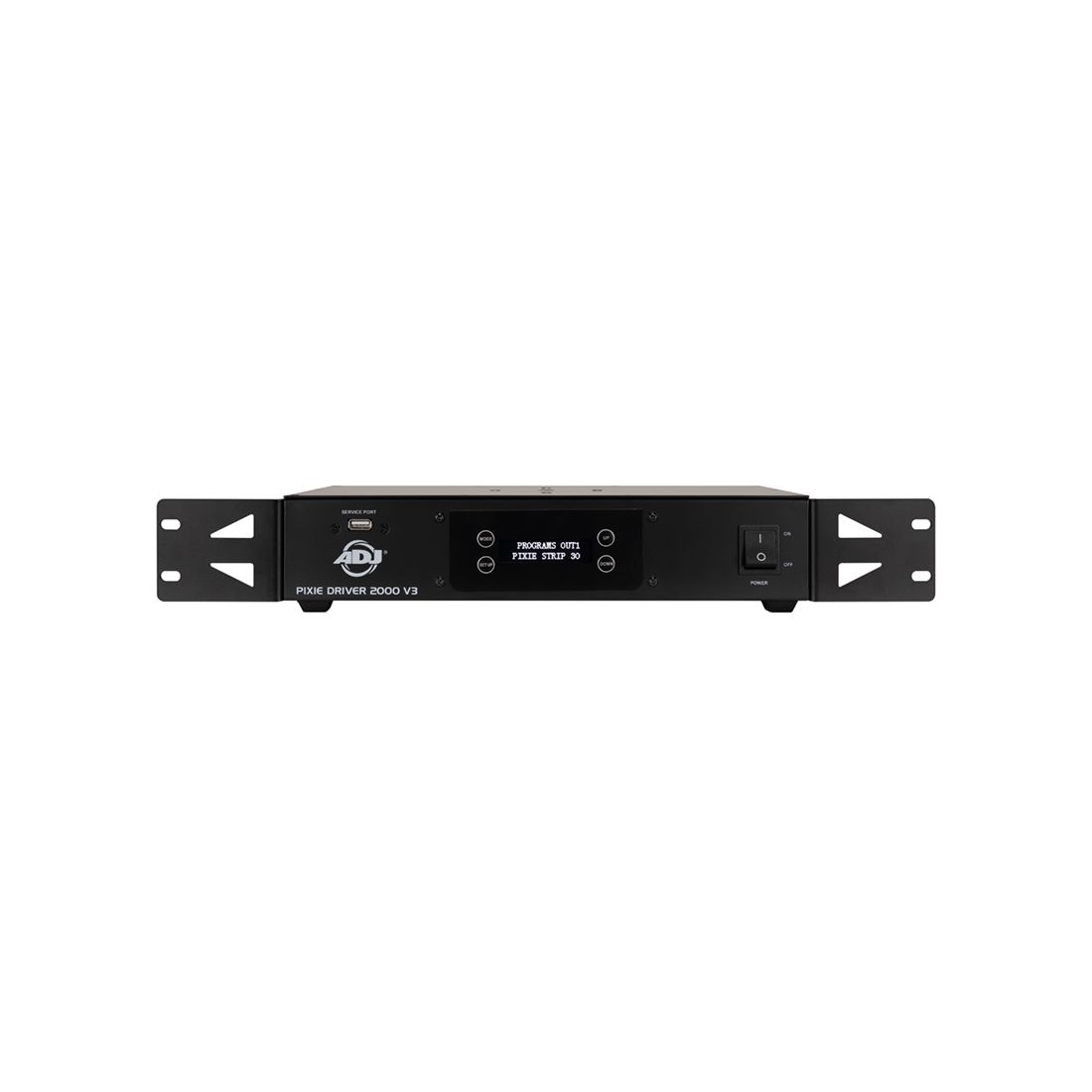

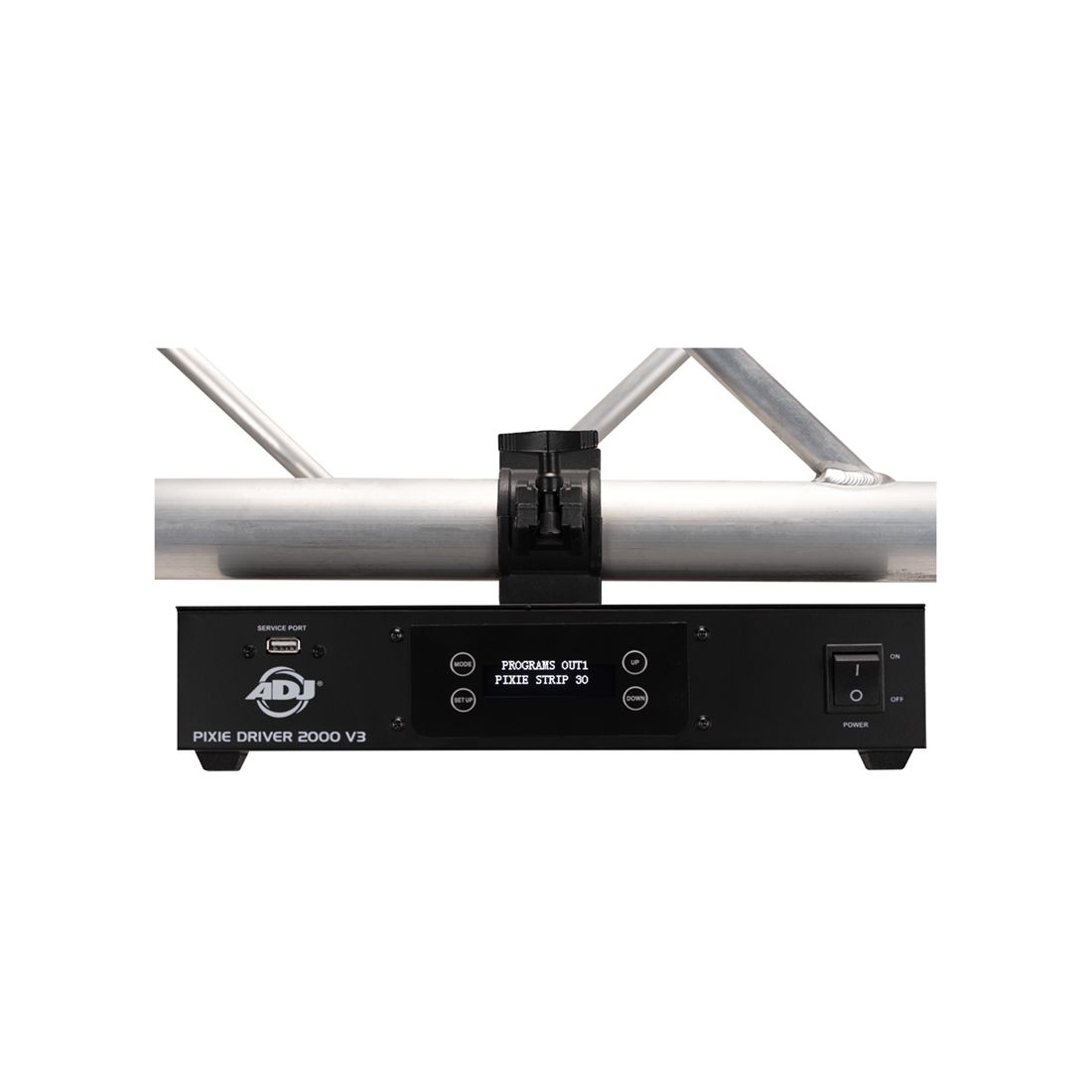

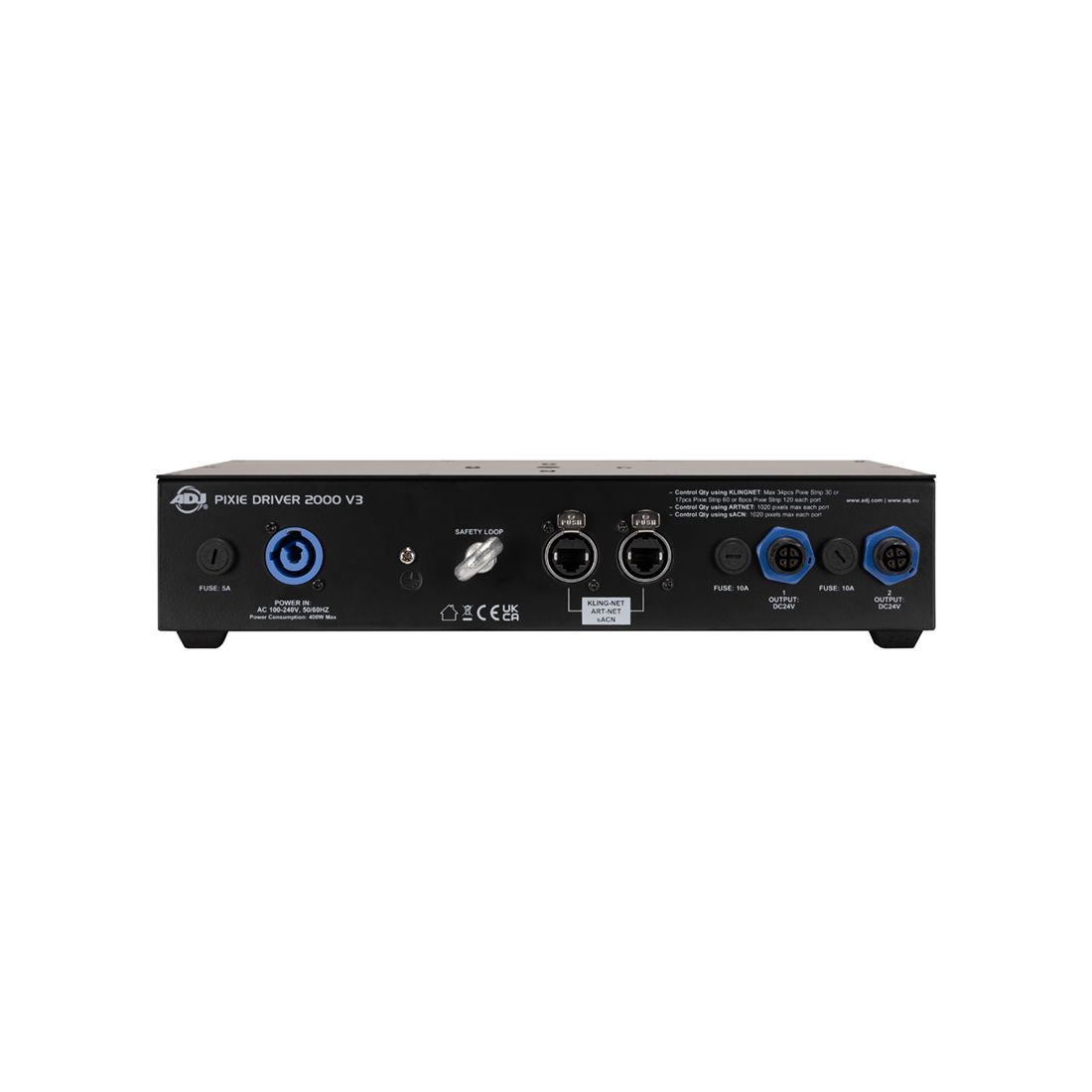

The Pixie Driver 2000 V3 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, locking RJ45 Ethernet in/out ports, and (2) outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixel strip (available in lengths from 30 cm to 15 m). The Pixie Driver 2000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included). There is a USB port on the front panel to easily make updates to the firmware.
Gallery
Specification
- • Art-Net
- • sACN
- • RDM compatible
- • Default subnet mask: 255.0.0.0
- • Control of up to 2,040 pixels via Art-Net or sACN
- • Maximum capacity per output port: 1,020 pixels
- • Maximum 34 x Pixie Strip 30 units per port
- • Maximum 17 x Pixie Strip 60 or Pixie Curve 60 units per port
- • Maximum 8 x Pixie Strip 120 units per port
- • Mixed configurations must not exceed 1,020 pixels per port
- • OLED display with 4-button menu
- • USB port for firmware updates
- • Manual RGB mode
- • Internal programs
- • Manual dimming control
- • Full pixel mapping control
- • Power and data supply for ADJ Lighting Pixie Strip 30
- • Power and data supply for ADJ Lighting Pixie Strip 60
- • Power and data supply for ADJ Lighting Pixie Strip 120
- • Power and data supply for ADJ Lighting Pixie Curve 60
- • Indoor locking power input
- • 2 locking RJ45 ports
- • 2 x 4-pin DC 24V power/data outputs for Pixie Strip fixtures
- • Input voltage: AC 100-240V, 50/60Hz
- • Maximum power consumption: 400W
- • Operating temperature: -20°C to 45°C
- • Mounting bolt for attaching a clamp and suspending the unit from truss
- • Clamp and truss not included
- • Includes 19-inch rack mount ears
- • Safety eye
- • Dimensions (L x W x H): 480 x 180.8 x 74mm
- • Weight: 2.5 kg
- • Twist-lock power cable
- • 19-inch rack mount ears
- • 4-pin data cable
- • PSLC1 (PIX158): 0.3m Pixie Strip Link Cable
- • PSLC3 (PIX174): 0.9m Pixie Strip Link Cable
- • PSLC5 (PIX188): 1.5m Pixie Strip Link Cable
- • PSLC10 (PIX200): 3m Pixie Strip Link Cable
- • PSLC15 (PIX213): 4.6m Pixie Strip Link Cable
- • PSLC25 (PIX229): 7.6m Pixie Strip Link Cable
- • PSLC50 (PIX242): 15.2m Pixie Strip Link Cable
