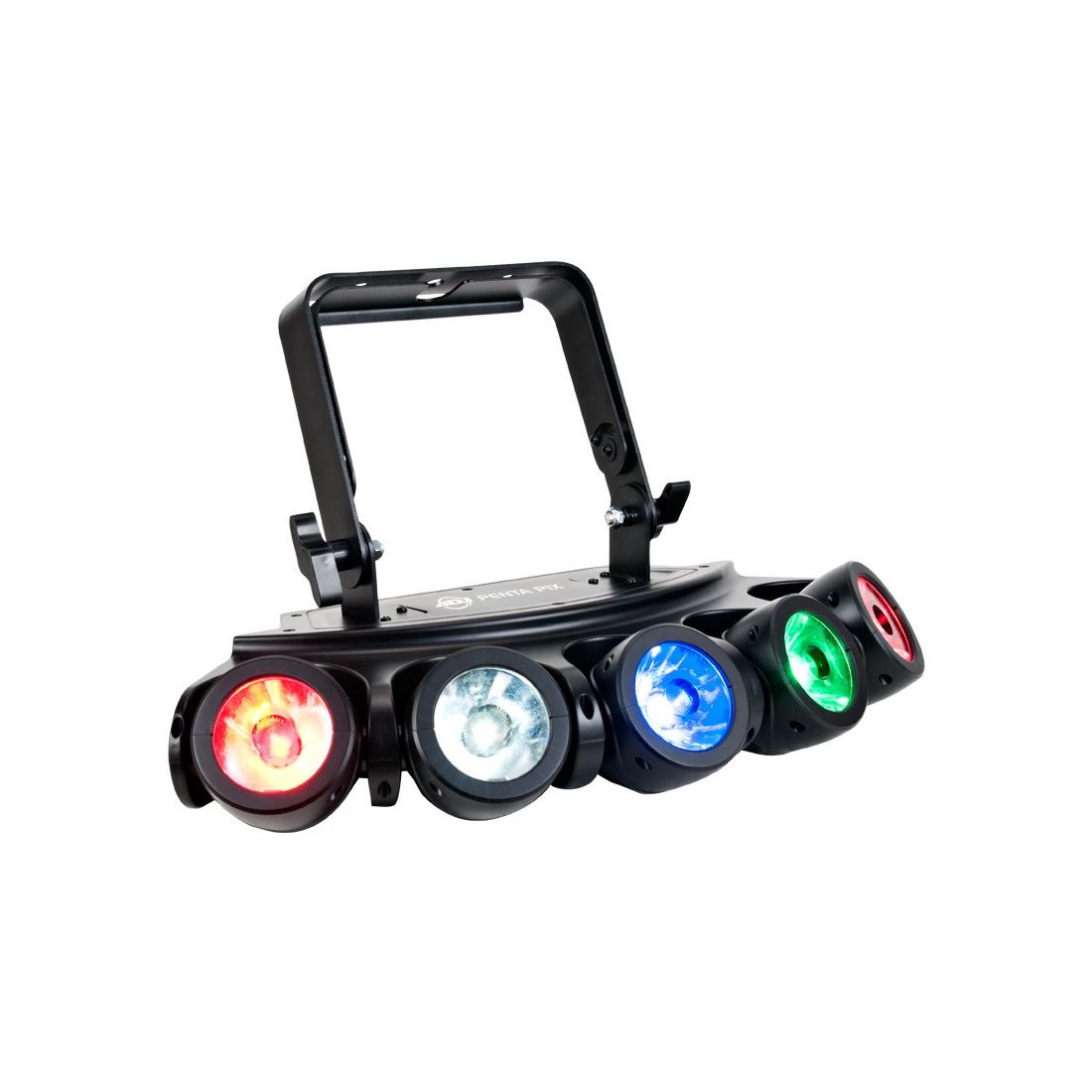

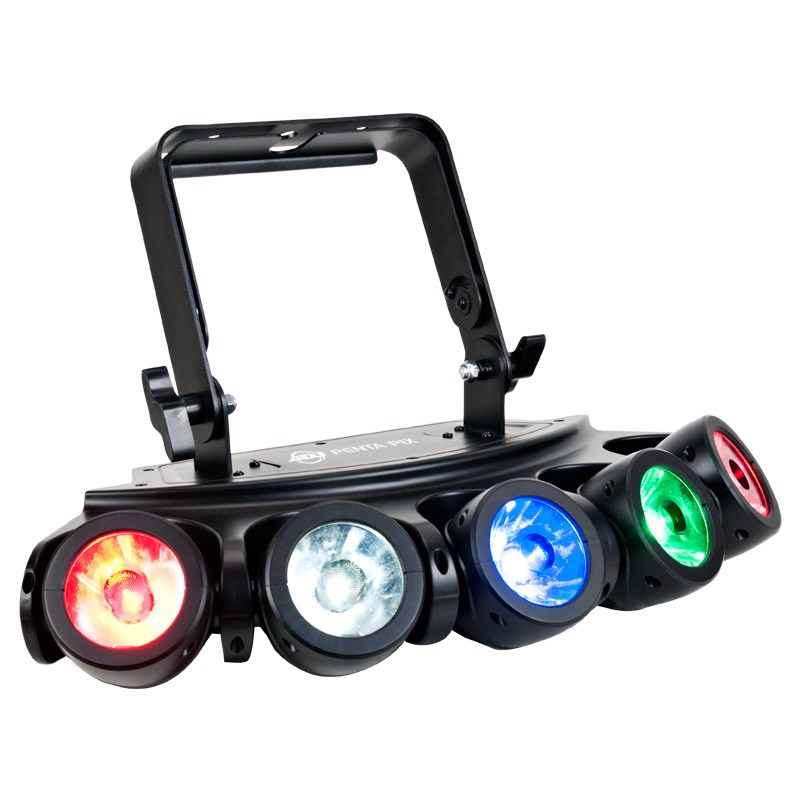

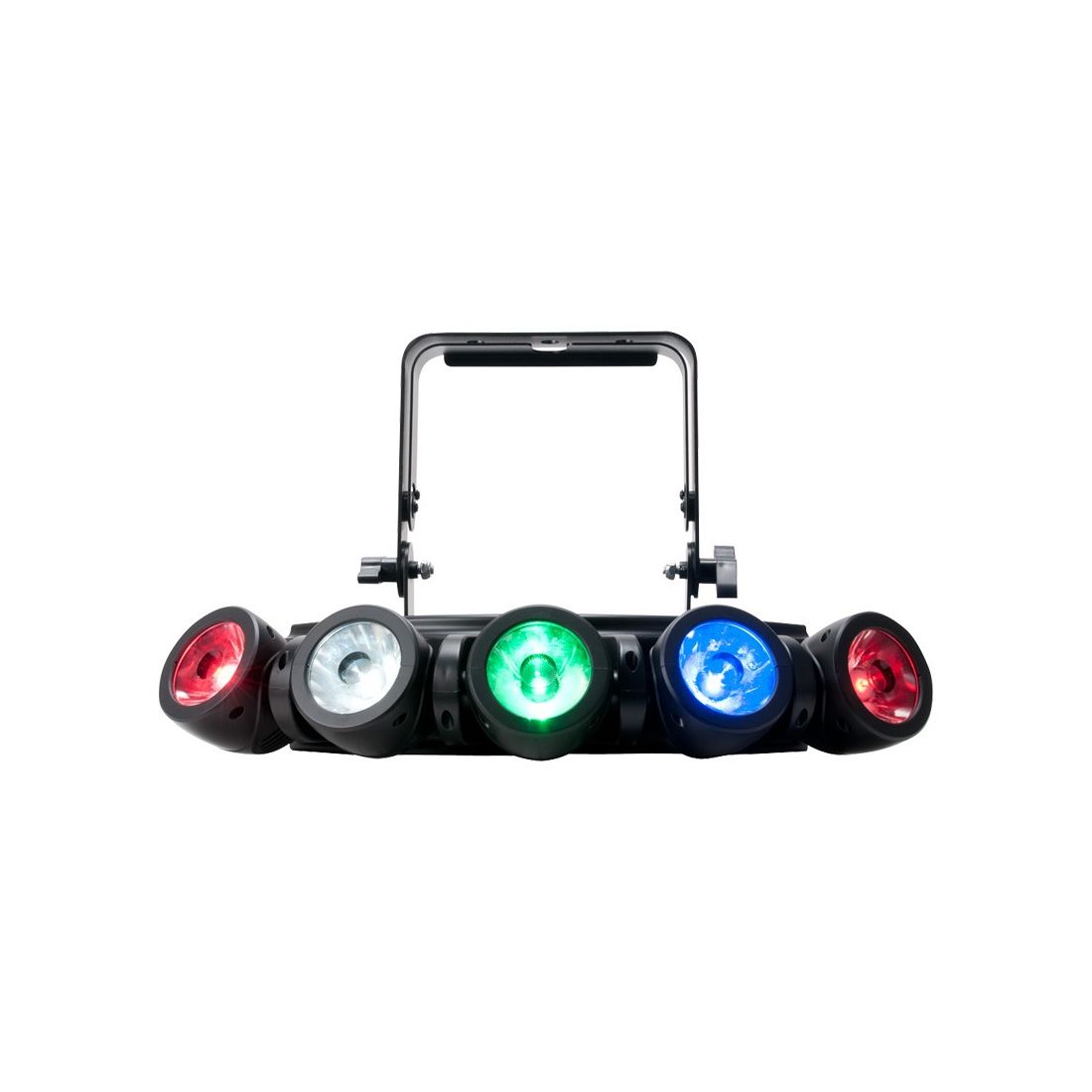

The ADJ Penta Pix is a 5-head beam effect with pixel zone control. Create quick chasing sharp beam effects from its five 15W 4-IN-1 RGBW LEDs with new ACL lens (Advanced Collimator Optic Lens) for crisp, sharp beams. Each head may be manually positioned on a X axis.
The Penta Pix features 63 color macros, 5 DMX channel modes, 5 selectable dimming curves and 15 exciting built-in lightshows. It has a 4-button DMX menu, 3-pin DMX In/Out, Locking Power In/Out...
Product Information
SKU: 1237000164
GTIN: 819730019769
HS-Code: 9405409989
The ADJ Penta Pix is a 5-head beam effect with pixel zone control. Create quick chasing sharp beam effects from its five 15W 4-IN-1 RGBW LEDs with new ACL lens (Advanced Collimator Optic Lens) for crisp, sharp beams. Each head may be manually positioned on a X axis.

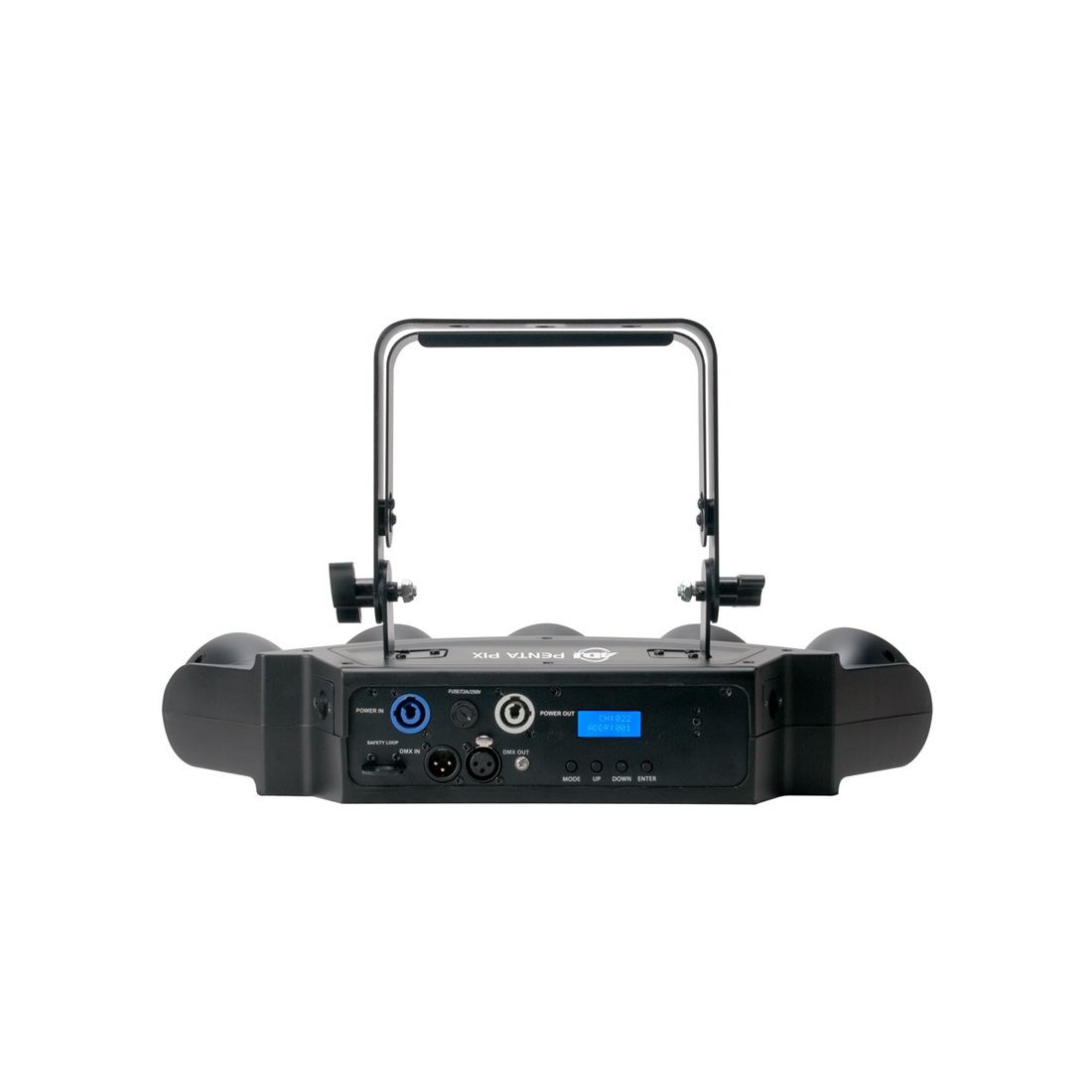

The Penta Pix features 63 color macros, 5 DMX channel modes, 5 selectable dimming curves and 15 exciting built-in lightshows. It has a 4-button DMX menu, 3-pin DMX In/Out, Locking Power In/Out and a scissor yoke.
Gallery
Specification
- • New ACL (Advanced Collimator optic Lens) for razor sharp 6-degree beams
- • 5-Zone Pixel Control
- • 15 exciting built-in Lightshows with sound active control
- • Runs extremely cool! - NO Duty Cycles! – Run all night!
- • 5 selectable Dimmer Curves
- • Includes scissor yoke + safety hook on rear panel
- • 4-Button DMX LED Display
- • 5x 15-Watt 4-in-1 RGBW Quad LEDs
- • 5 Operational modes: Sound Active, Auto Run, RGBW Dimmer Mode, Color Macro Mode, & DMX Control
- • 63 Preset Color Macros
- • 5 DMX Channel modes: 4/8/11/20/27 DMX channels
- • 3-Pin DMX In/Out connections
- • Strobe speed (Controlled via DMX)
- • 0-100% electronic dimming (Controlled via DMX)
- • Power Consumption: 77W maximum
- • AC Connection: Locking PowerIN/OUT; Daisy chain power
- • Multi-voltage operation: AC 100-240V 50/60Hz
- • Dimensions (LxWxH): 21” x 11” x 10.25” / 530 x 280 x 260mm
- • Weight: 12 lbs. / 5.4 kg.
