Novastar MCTRL 300 Select
The MCTRL300 is the Novastar’s smallest LED controller which enables LED displays to be set up within a very short time. The sending card is built into a stable metal housing and is delivered with a DVI input. In addition, the controller has a light sensor connection to which the NovaStar NS060 can be connected for automatic brightness...
Product Information
SKU: 1226300034
GTIN: 819730016591
HS-Code: 8537109899

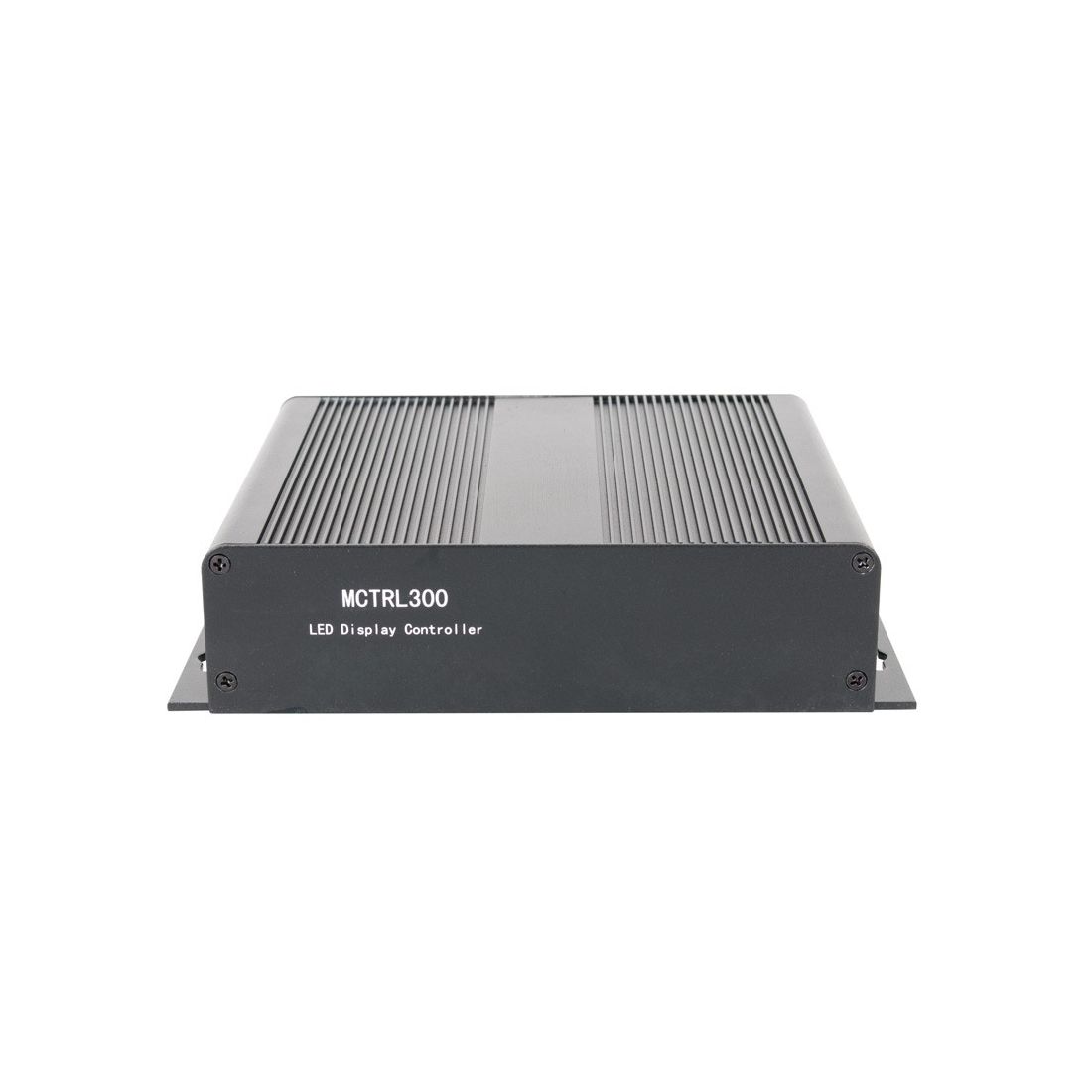

The MCTRL300 is the Novastar’s smallest LED controller which enables LED displays to be set up within a very short time. The sending card is built into a stable metal housing and is delivered with a DVI input. In addition, the controller has a light sensor connection to which the NovaStar NS060 can be connected for automatic brightness monitoring (available on demand only).
The MCTRL300 is ideal for small to medium-sized LED displays and is compatible with all ADJ Video Panel Series : VS2/VS3/VS5/AV2/AV3/AV4IP & AV6X
This controller is supporting the following resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668.
Gallery
Specification

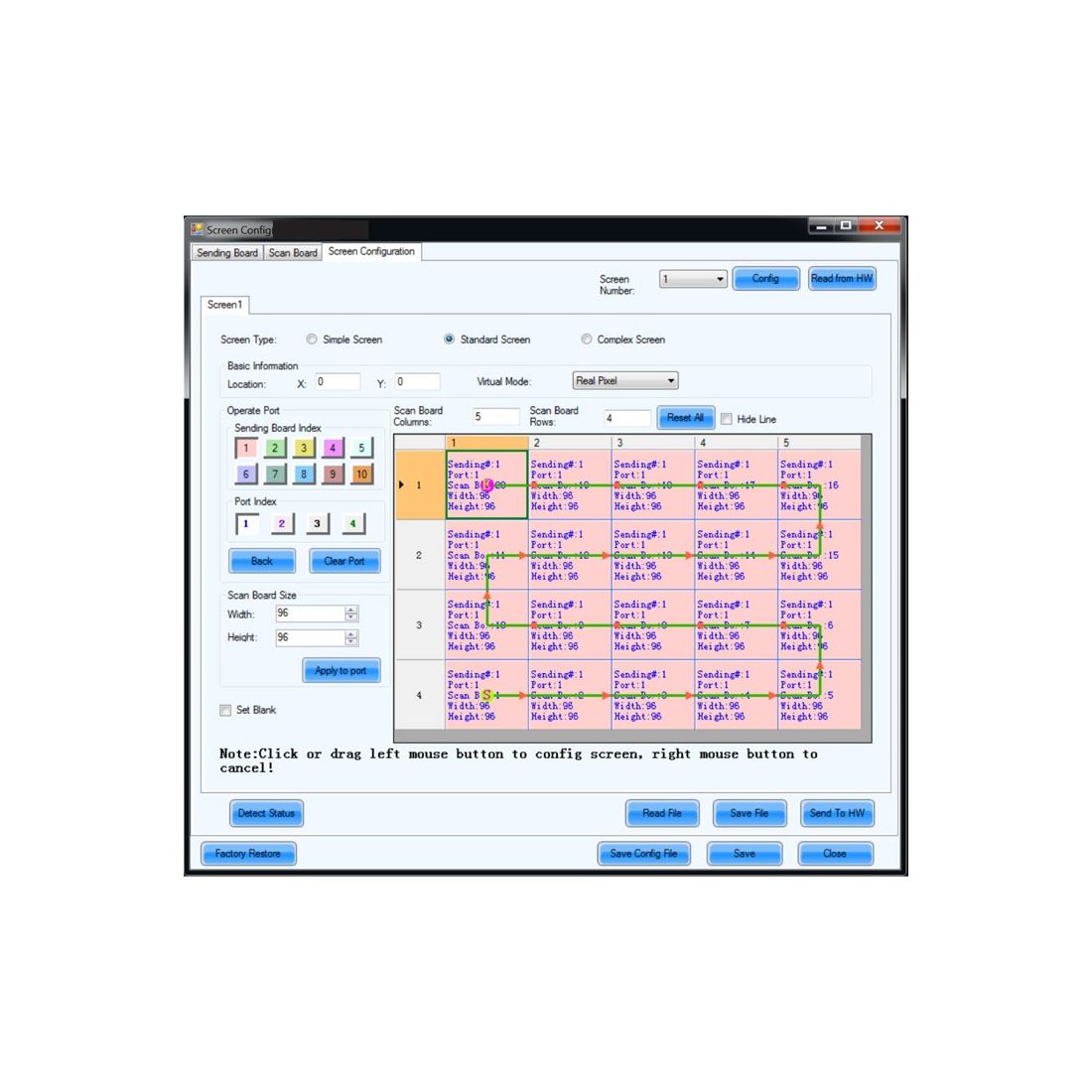

- • Detailed control of Video Walls via LCTMars PC-Software
- • Brightness Correction : Pixel, Module, Cabinet
- • Control Mode: Synchronous Display with Control PC by DVI
- • Requires Windows-PC
- • Cascading of multiple MCTRL300 via UART
- • Max resolution capacity : 1.3 million pixels
- • Supported resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668
- • Scan Mode 1/12 Duty
- • Supported Input : Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI to DVI
- • Aluminium Metal Housing
- • Multi-voltage operation: AC 100-240V, 50/60Hz
- • Power Draw: 10W

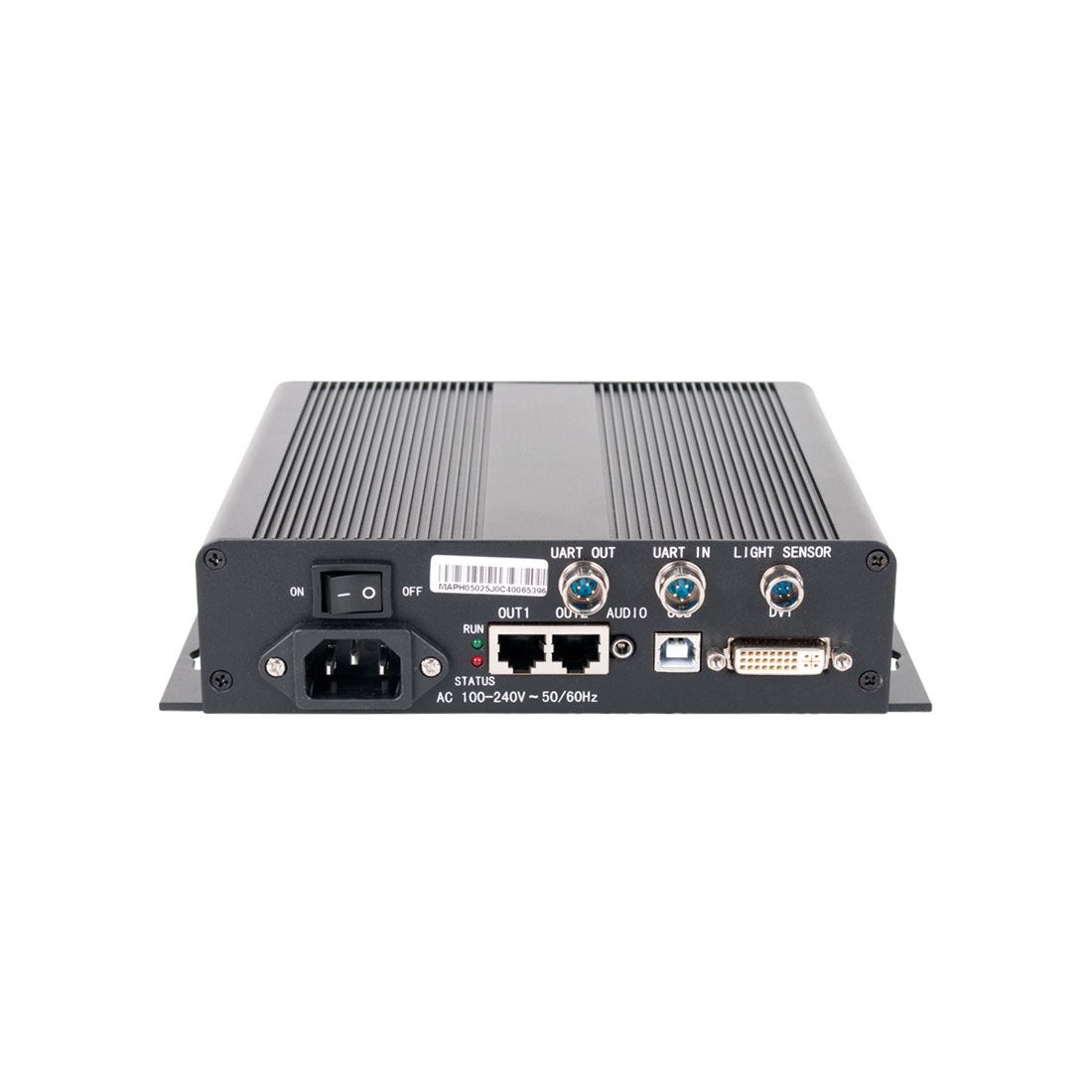

- • Inputs
- 1x DVI
- 1x IEC Power connector
- 1x Light Sensor Connector
- 1x USB Type B for PC connection
- • Outputs
- 2x RJ45 CAT6 Ethernet Screen outputs (mirrored or independent content or as redundancy)
- • Dimensions (LxWxH): 204 x 160 x 48mm
- • Weight: 1kg.
Specifications subject to change without notice
