Mirage Q6 Pak Black Select New
Key Features
Construction
• Metal Housing
• IP65 Rated for temporary outdoor use
• Metal Housing
• IP65 Rated for temporary outdoor use
Optics
• Beam Angle: 11°
• Beam Angle: 11°
Source
• 4 x 10W RGBA LEDs (Red, Green, Blue & Amber)
• LUX: 9903 @ 2M; 2303 @ 4M
• Lumen: 1185 Lumen (full on)
• 4 x 10W RGBA LEDs (Red, Green, Blue & Amber)
• LUX: 9903 @ 2M; 2303 @ 4M
• Lumen: 1185 Lumen (full on)
Product Information
SKU: 1226100422
GTIN: 810087370800
HS-Code: 9405423990

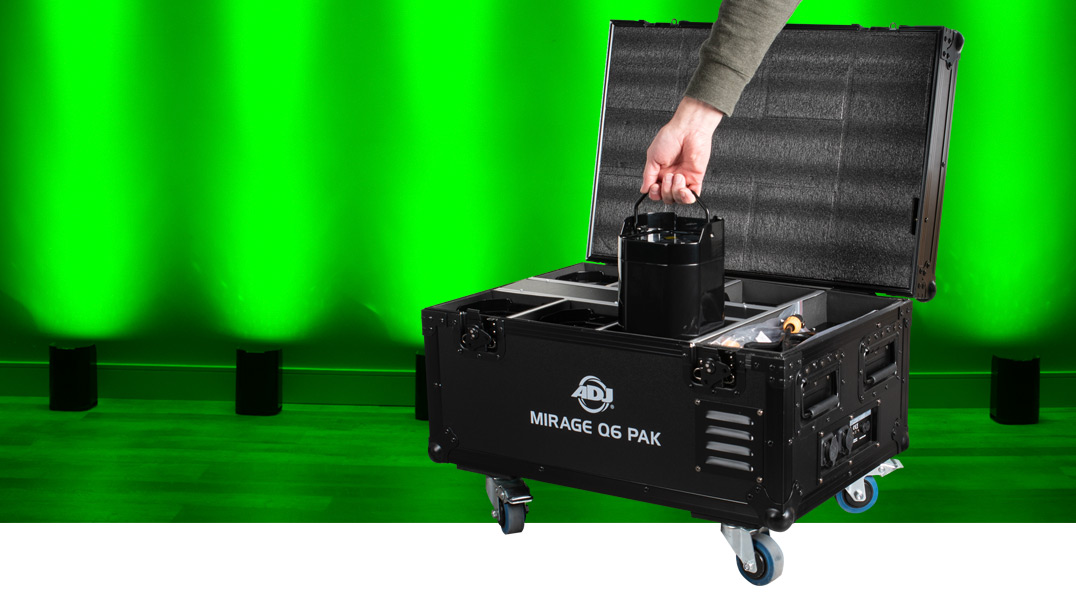

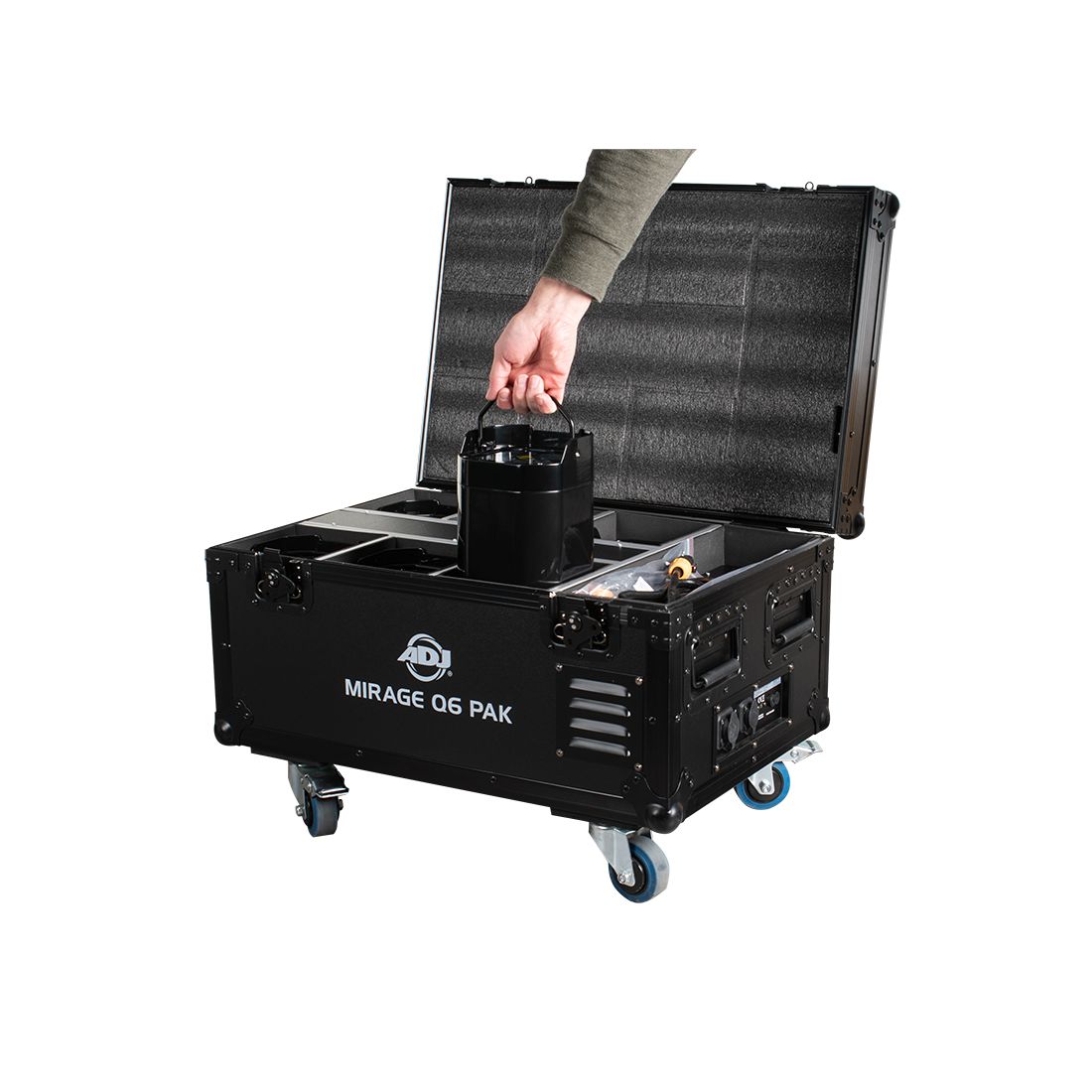

The ADJ Lighting Mirage Q6 Pak Black is an all-in-one event up lighting system with six (6) IP65 rated, for outdoor or indoor use, battery powered fixtures and a durable flight case with an on-board battery charging solution.
Each Mirage Q6 IP Black fixture is powered by four (4) 10W RGBA LEDs that produce a 11-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain, snow, dust and sand). Aria X2 Wireless Management System allows for the fixtures to communicate with a lighting controller up to 700m away.

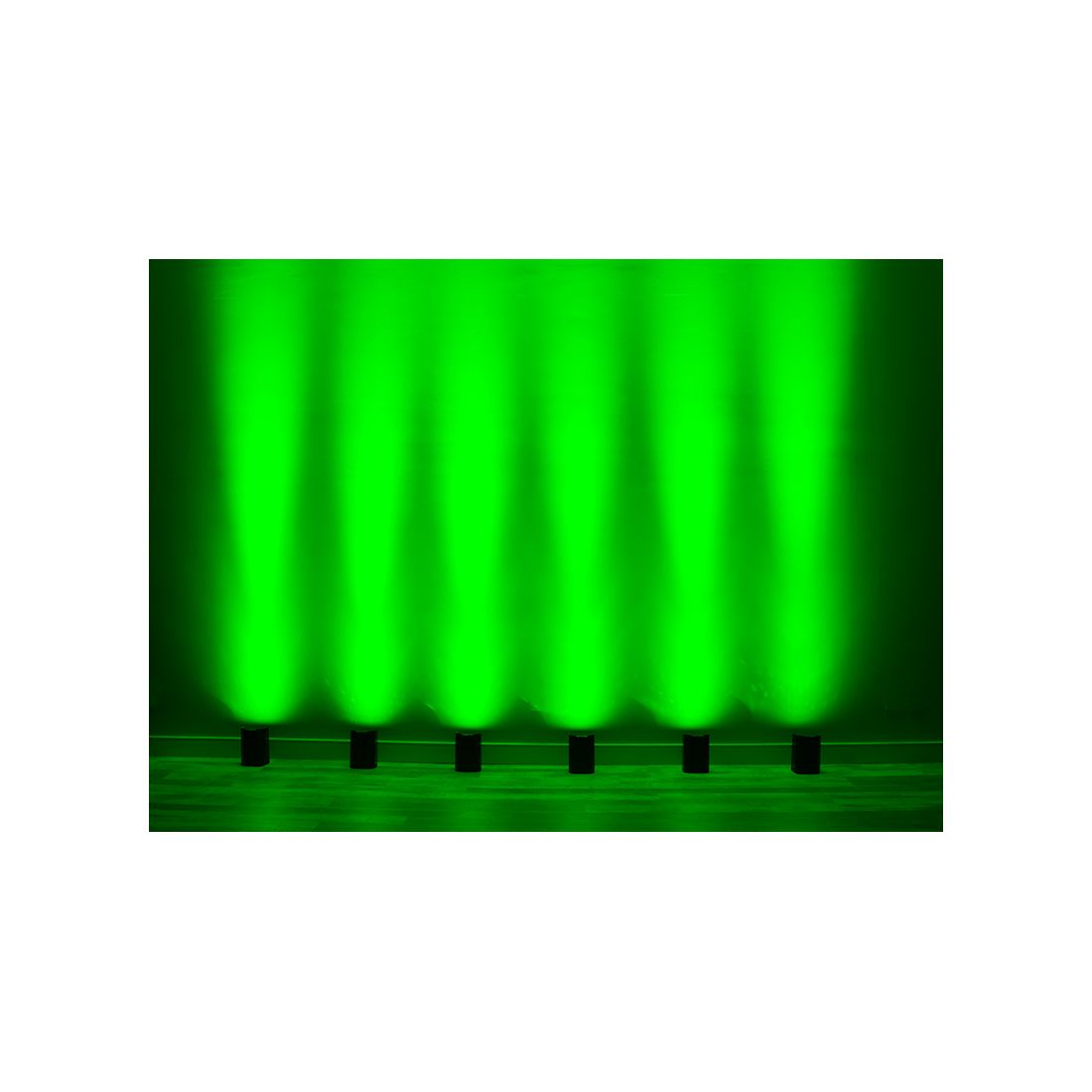

Ideal for wall washing, Mirage Q6 IP Black fixtures are all fitted with an integral carry handle and built-in feet which mean they can simply be dropped in place and are ready to go. They also feature a built-in kickstand which allows the beam to be easily angled inwards towards a wall if required. This creates a more intense wash and minimizes light spill onto the ceiling above.

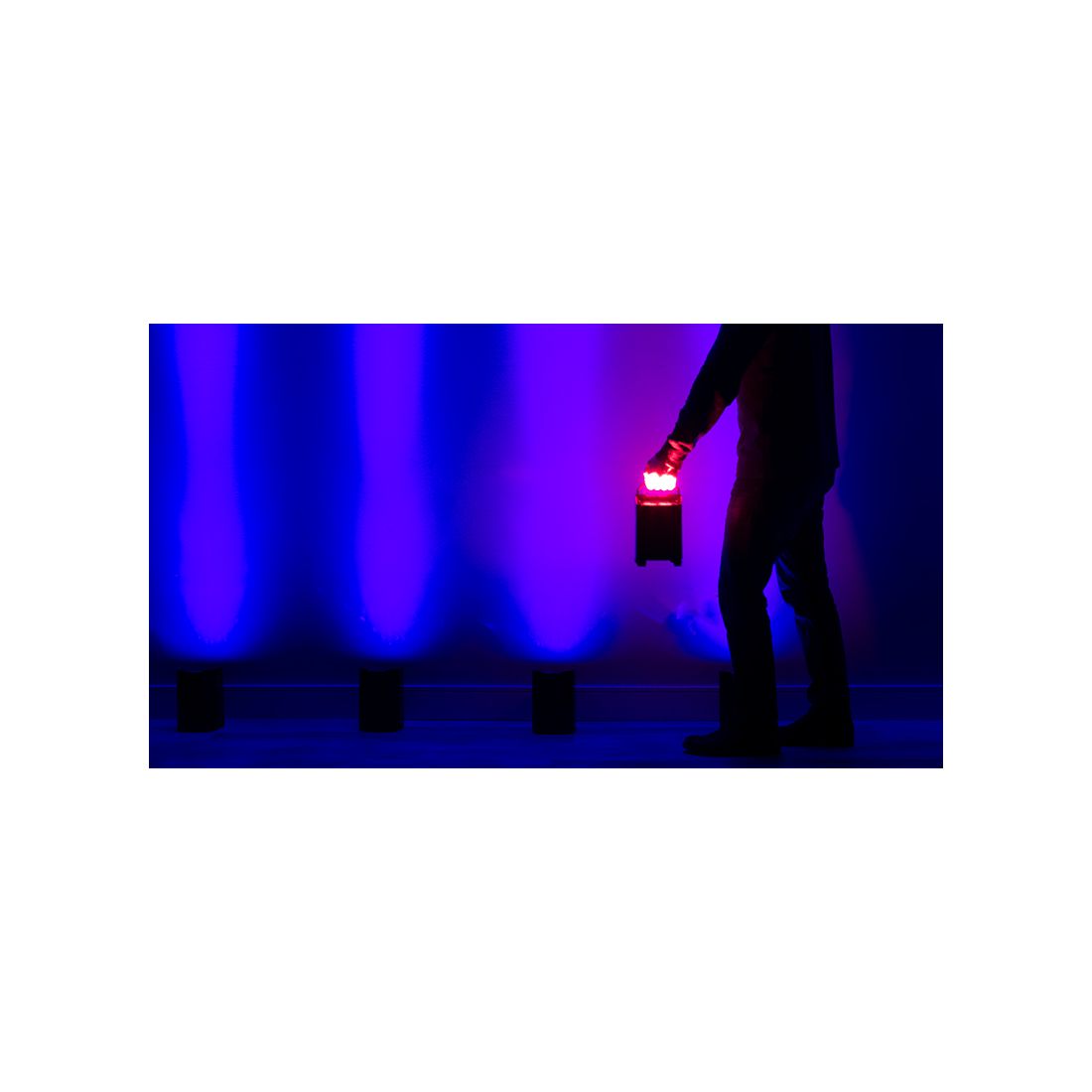

Each fixture has an alarm system with on/off controls. If someone picks up the fixture with the alarm system on, the fixture will make a beeping sound and strobe in red.
The robust battery will operate up to 40 hours on a single color (20 hours changing colors). The battery charge time is 7 hours.
Gallery
Specification

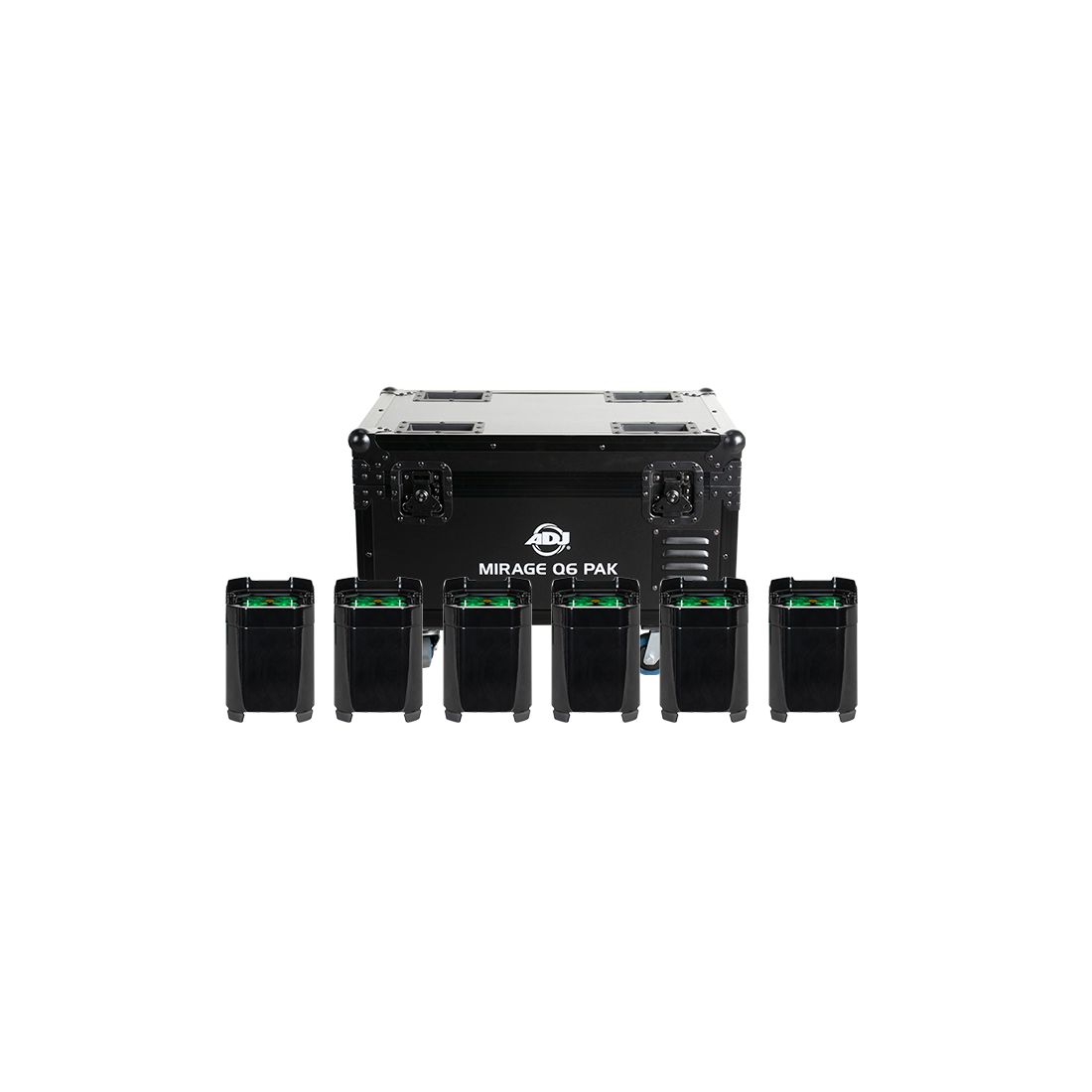

- • (6) MIRAGE Q6 IP Black Fixtures
- • (1) MIRAGE Q6 FC Flight Case
- • (6) MIRAGE Q6 IPCB Charging bases and power supplies
- • (1) UC-IR Wireless Infrared Controller
- • (1) IP65 Locking Power Cable

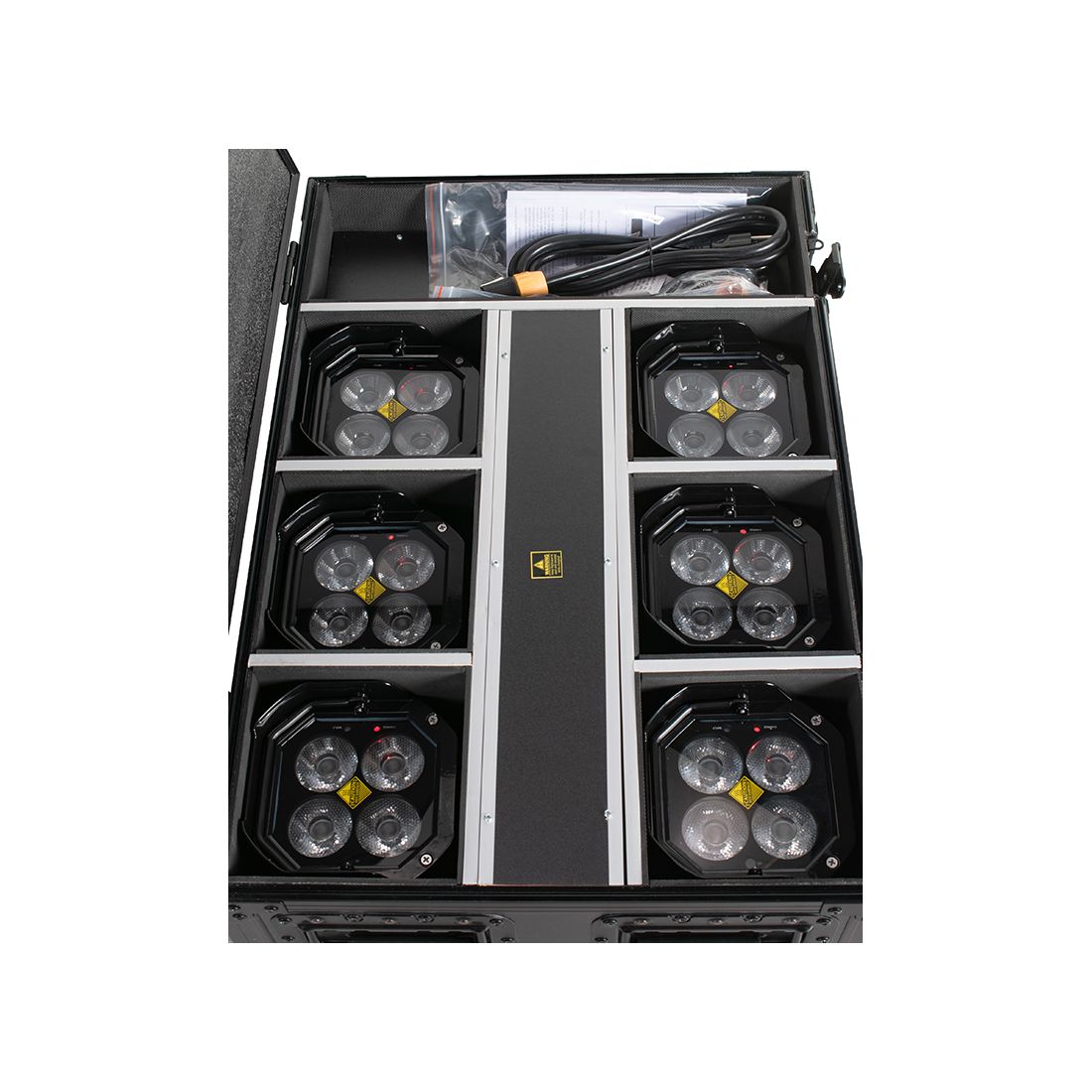

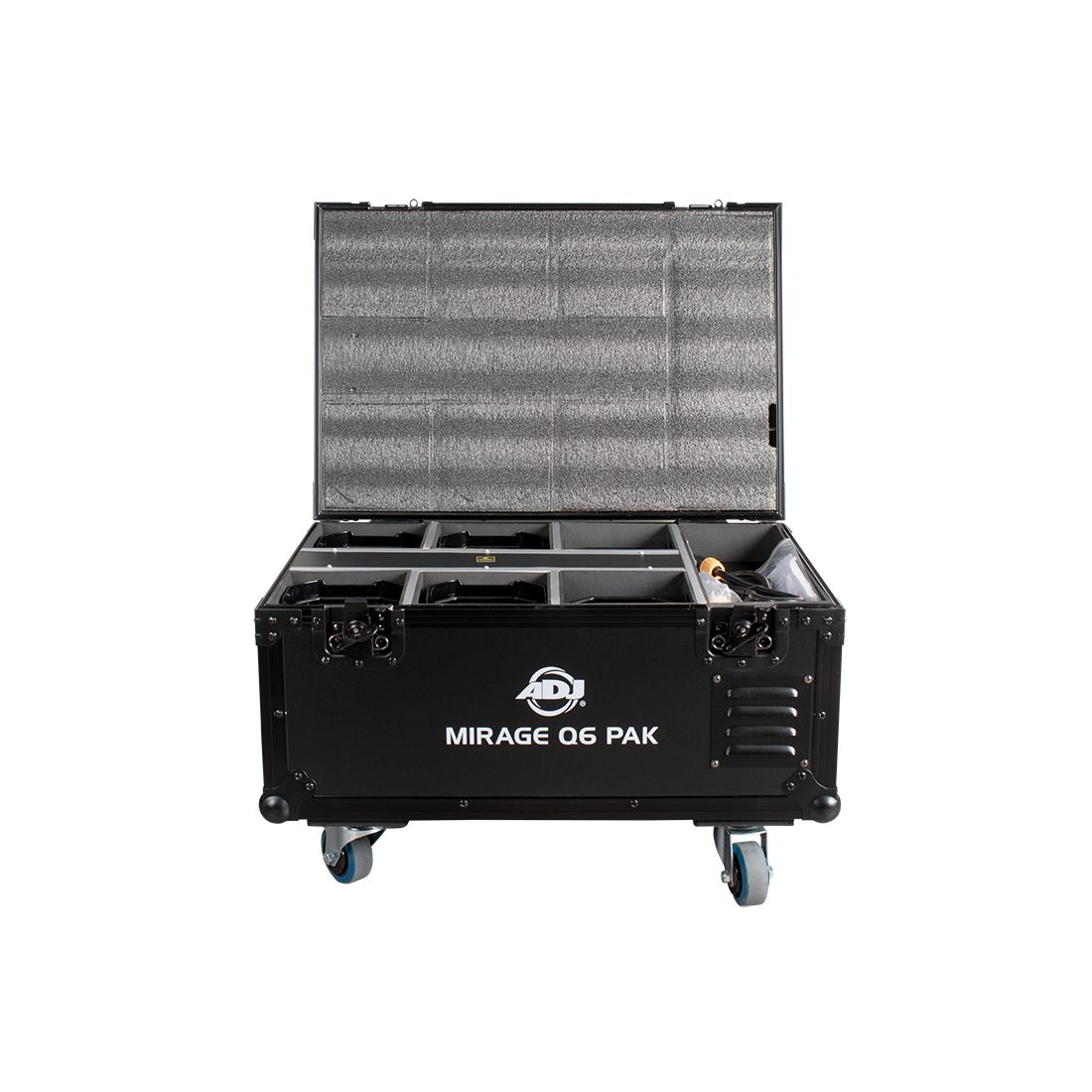

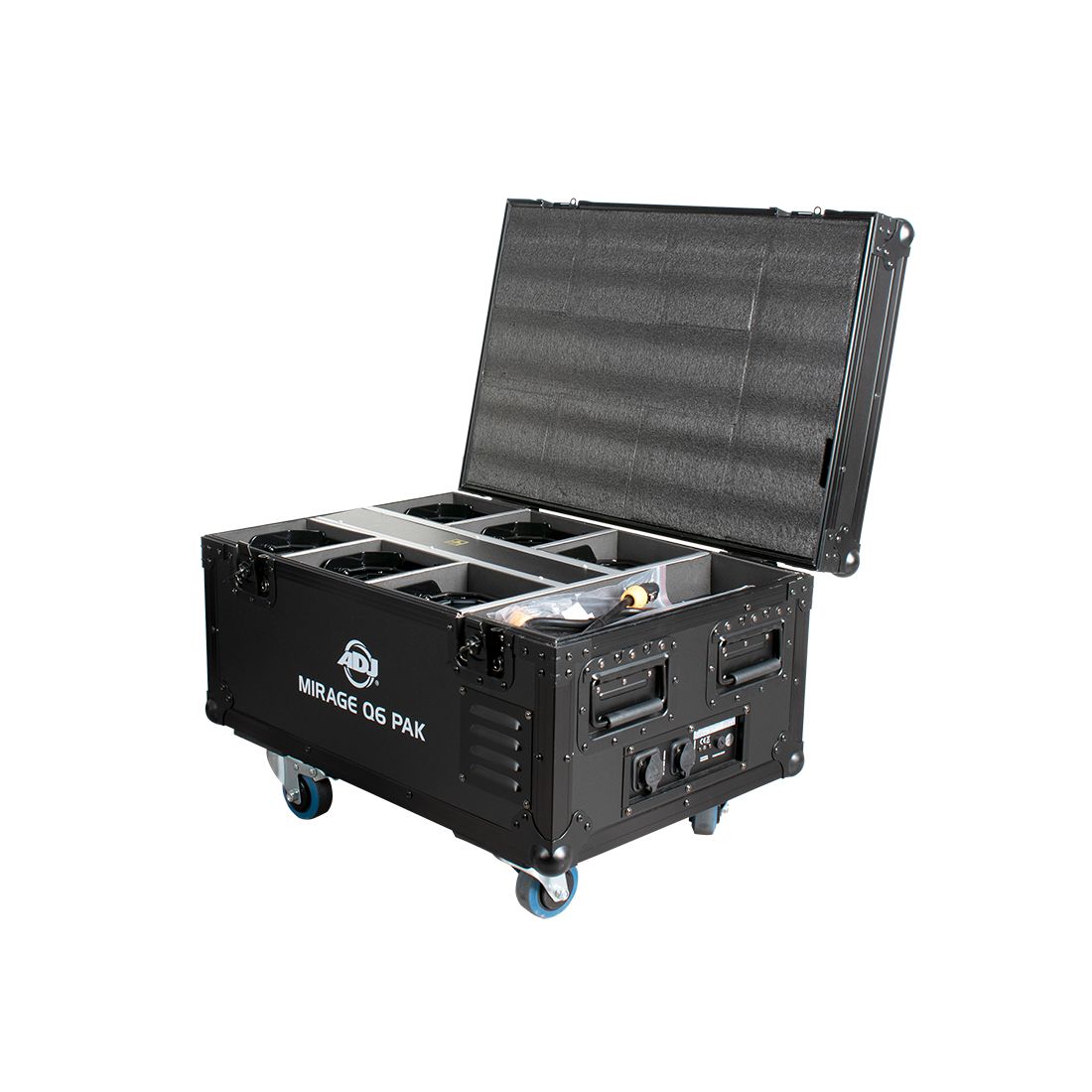

- • Houses / Transports and Charges (6) MIRAGE Q6 IP™ BLACK fixtures
- • Length: 26.4” (671mm)
- • Width: 18.2” (461mm)
- • Vertical Height: 18.1” (459mm)
- • Loaded Weight: 97.9 lbs. (44.4 kg)
- • Power Input: AC100VAC~240VAC, 50/60Hz
- • IP65 Power Locking Input and Output
- • Max Power Consumption: 400 Watts
- • Power Draw: 4A
- • Charge status indicator
- • 14°F to 113°F (-10°C to 45°C)
- • 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
- • 50,000 Hour Average Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- • LUX: 9903 @ 2M; 2303 @ 4M
- • 11-degree beam angle
- • Control protocol: Aria X2 Wireless Management System
- • 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
- • Remote control: Aria X2 BLE App and UC-IR24 (Included)
- • 5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Aria X2 Wireless Management System
- • Contact Charging system. 6x Charging bases and power supplies included in flight case
- • IP65 Outdoor Rated
- • Built-in kickstand to angle fixture when sitting on the floor
- • 4-touch button OLED display on rear panel
- • Built-in Aria X2 Wireless Management System allows for the fixtures to communicate with a lighting controller up to 760M away
- • Aria X2 BLE App (Compatible with iPhone and iPad)
- • Battery Transceiver
- • 64 built-in Color Macros
- • Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Wall Washing!
- • LED pulse and strobe effect (0.2Hz-11Hz)
- • Flicker Free Operation
- • Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
- • Run all night – No duty cycle
- • Energy Save Mode
- • Built-in alarm system with On/Off
- • Battery charge indicator on each fixture
- • Die-cast aluminum housing
- • Battery Type: Fixed lithium battery
- • Battery Energy: 162.8WH (Watt Hours)
- • Battery Weight: 0.84 kg.
- • Battery Voltage: 14.8V
- • Battery Capacity: 11000mAh (Typical Capacity)
- • Total Lithium Ion Cells: 20 pieces
- • Battery Wrap Material: PVC sleeving + highland barley paper
- • Battery Charge Time: 7 Hours
- • Battery Life: 14 hours (When color changing in Battery Saver Mode 14); 40 hours (When set to a single color in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03>
- • Length: 143.2mm
- • Width: 143.2mm
- • Vertical Height: 211mm
- • Weight: 4.01kg
- • Power Input: DC 17.3V
- • Power Draw: 2A
- • 40W Max Power Consumption (each unit)
- • -10°C to 45°C
Specifications subject to change without notice
