ADJ’s Inno Series of Intelligent lighting fixtures continues to push the boundaries of LED technology with a reputation of professional features and reliable performance.

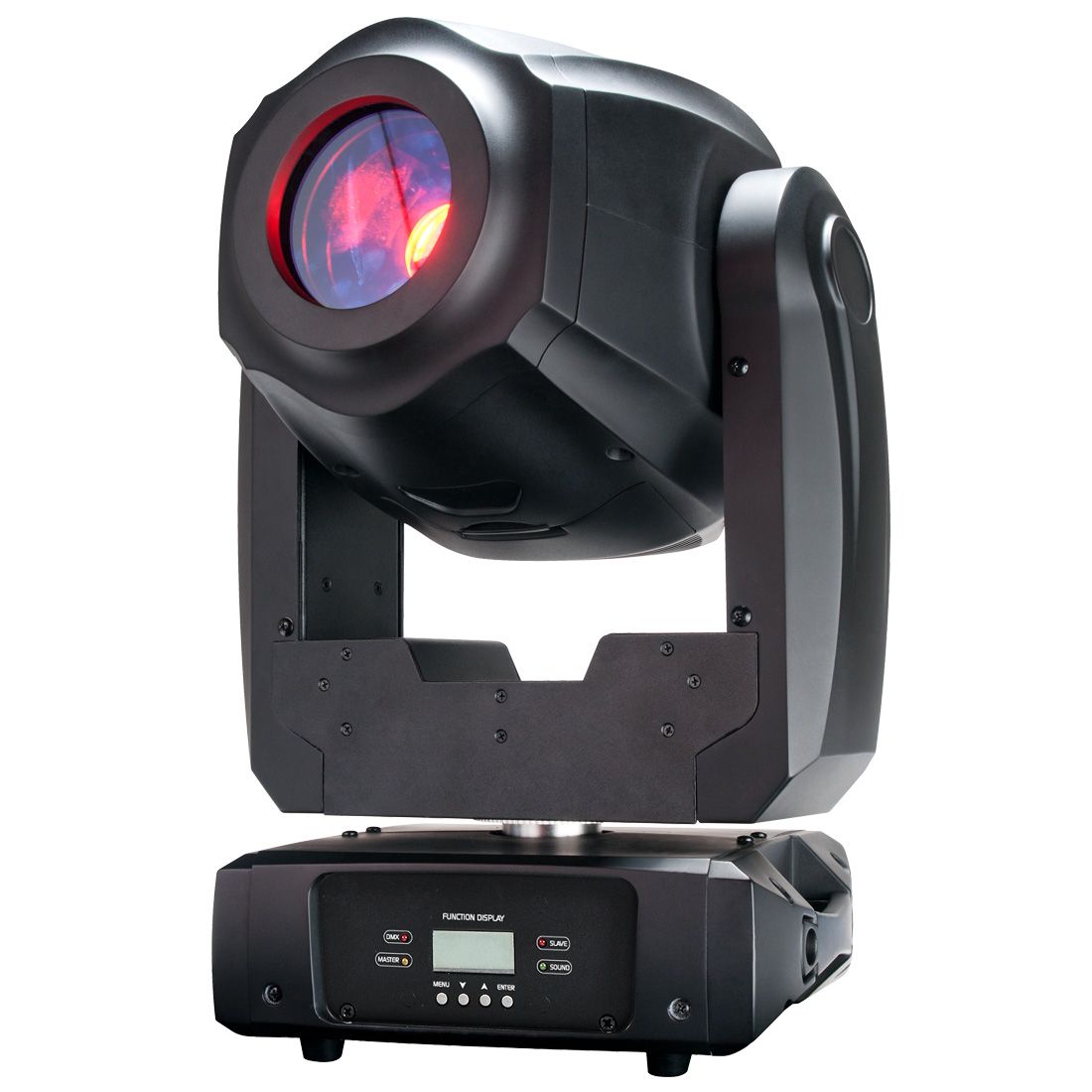

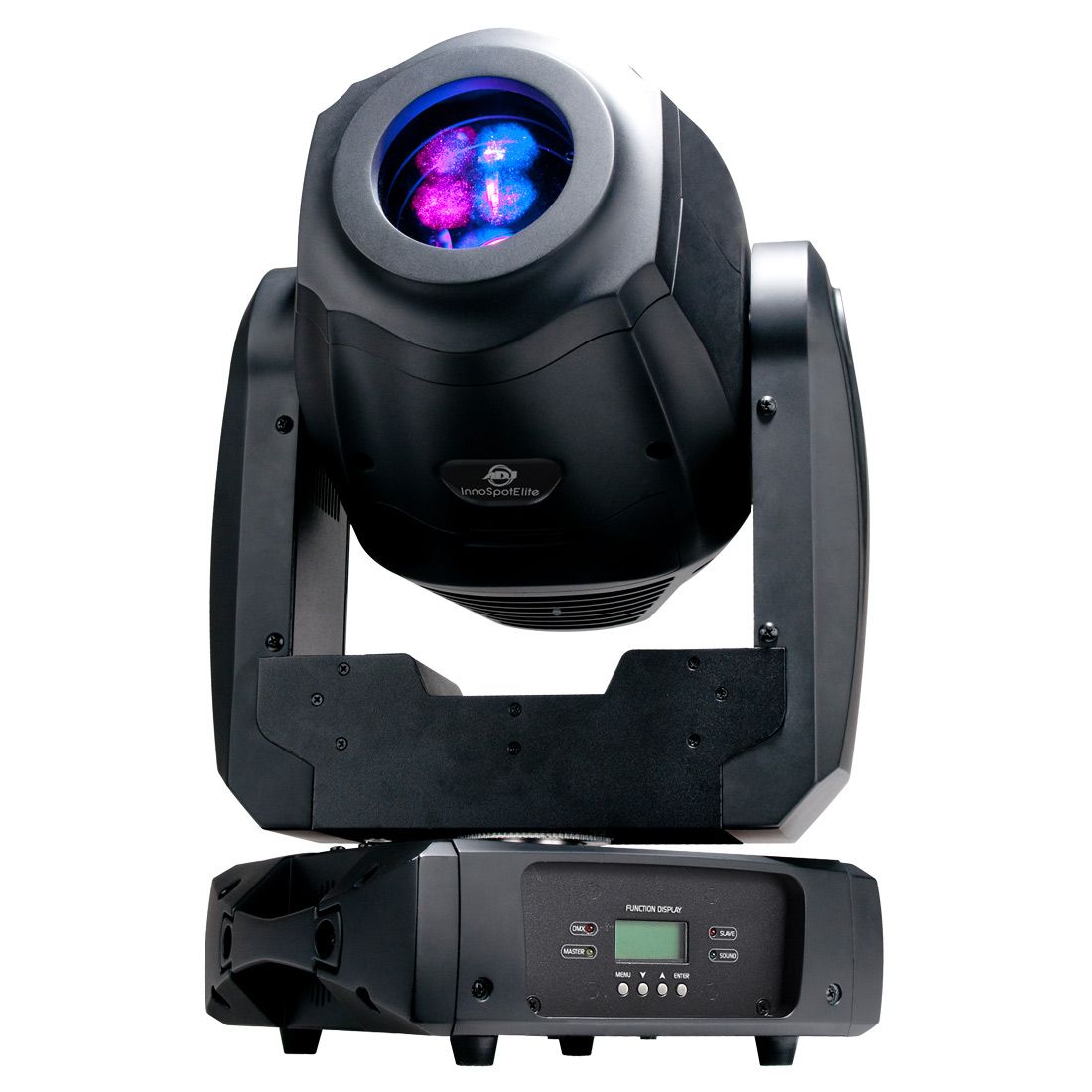

The Inno Spot Elite Intellighting Moving Head boasts an extremely bright 180-Watt LED source. Its professional features include: 7 rotating, replaceable gobos plus spot (6 are glass gobos and 1 is metal), 7 colors plus white, and separate gobo/color wheels. Its hard edge beam is similar to a traditional halogen or discharge lighting effect with a fraction of the power draw (197W) or the hassle of changing out light bulbs (LED source rated at approximately 50,000 hours).
The Inno Spot Elite is packed with exciting built-in light shows when used in Sound Active or linked in Master/Slave mode, offers 15 DMX channels, a motorized focus, 4-Button LED DMX menu, Dimming, Shutter and Gobo Shake effect. The Inno Spot Elite may be controlled via Sound Activation with its own built-in programs, a DMX Controller, or the ADJ UC3 easy-to-use controller.
Gallery
Specification
Specifications:
- High output Intelligent Moving Head with a bright white LED source
- 7 Colors + Open

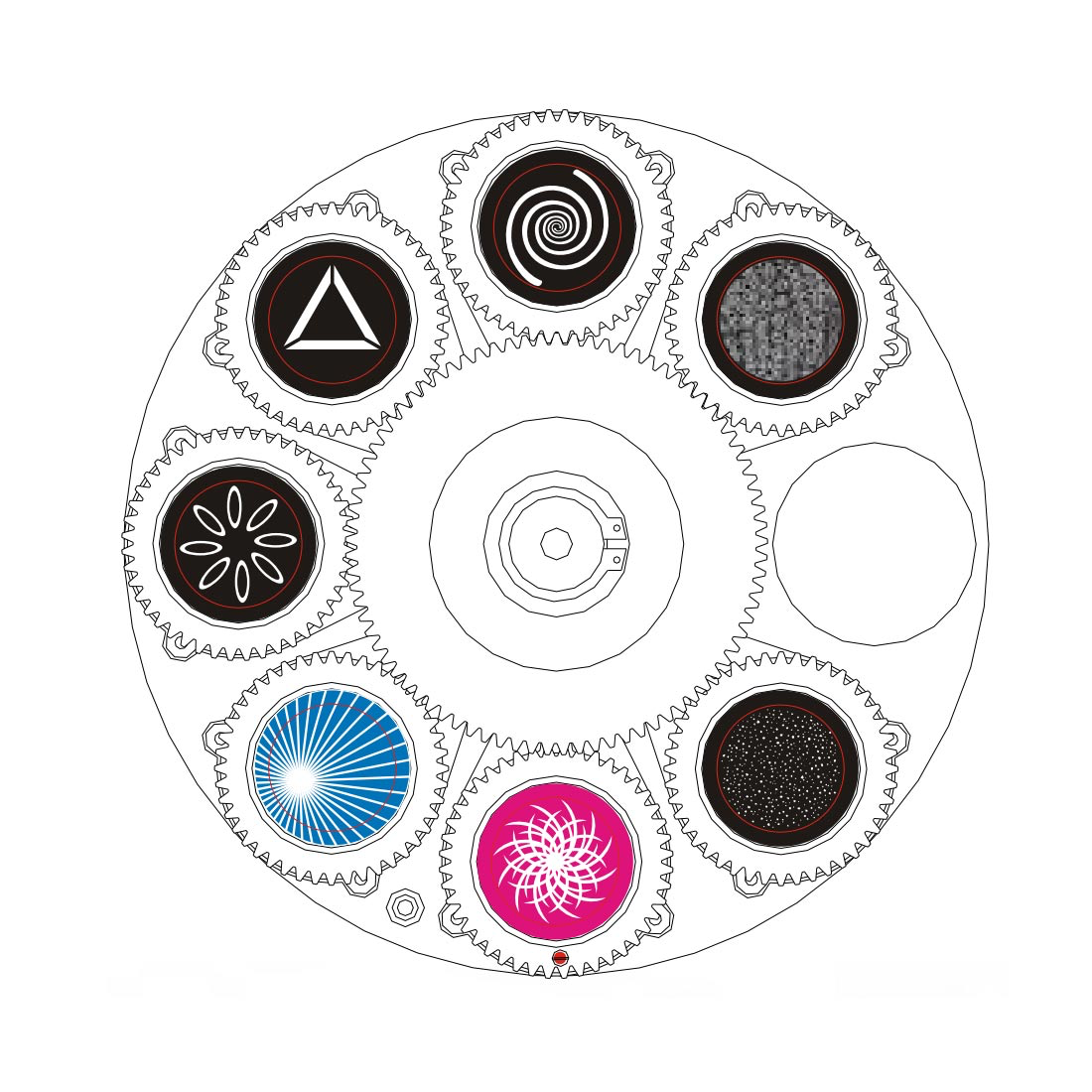

- 7 rotating, replaceable gobos + spot
- 6 Glass and 1 Metal Gobo
- 3 Operational modes: DMX-512, Sound Active or Show Mode
- Separate color & gobo wheels
- Gobo scroll mode
- Motorized focus & Iris
- 19-degree beam angle
- 15 DMX channels

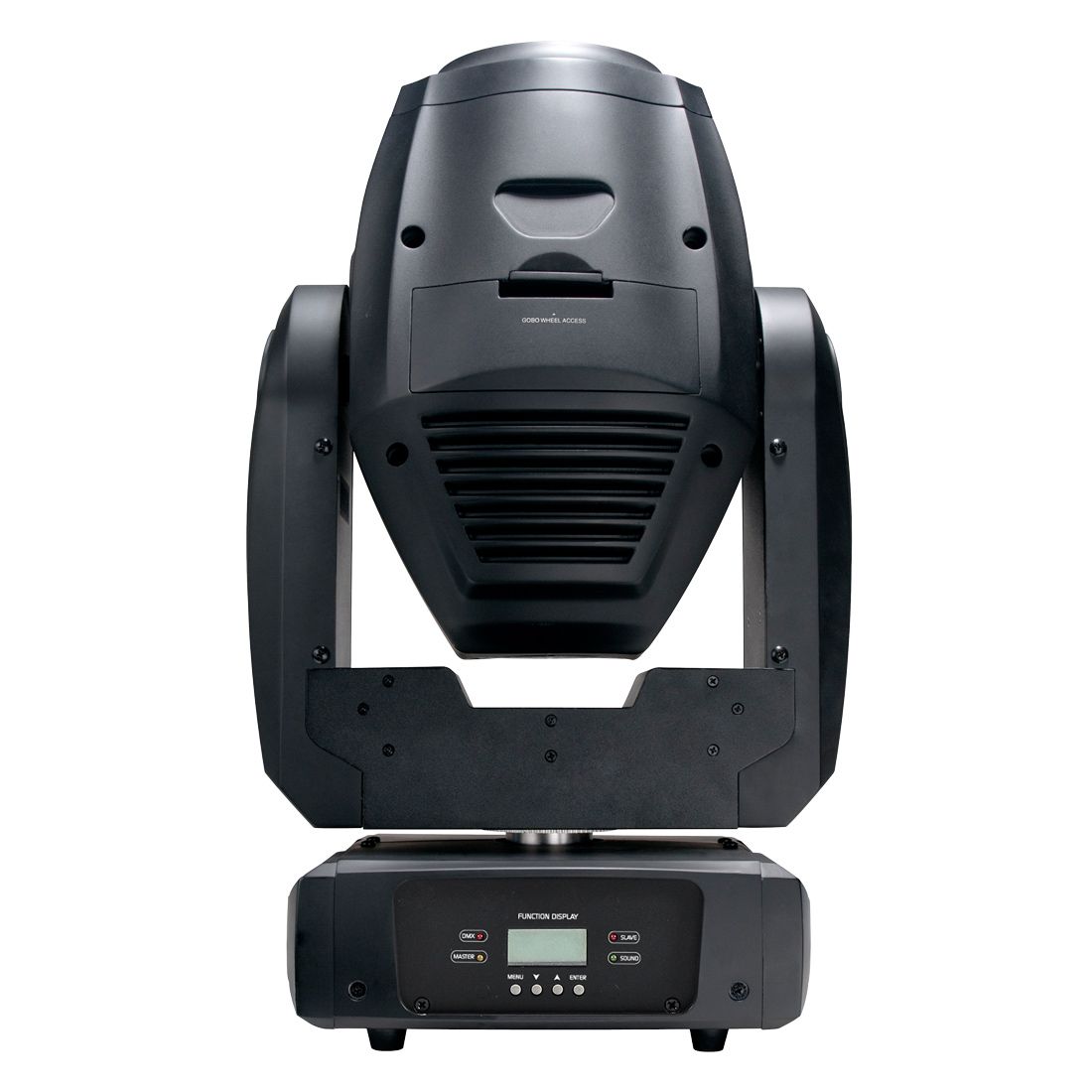

- 4-button DMX LCD display
- 4 Built-In show modes
- Gobo Shake effect
- 6-facet rotating prism effect
- Gobo size: 27mm (22mm viewable / 0.2mm thickness for metal gobo, 1.1mm thickness for glass gobo)
- 540° pan / 270° tilt (16-bit)
- Pan /Tilt Fine
- Shutter: Pulse effect; random strobe slow to fast
- Dimming: 0% - 100%
- Fan Cooled
- Stepper motors with micro stepping
- Omega Clamp Included

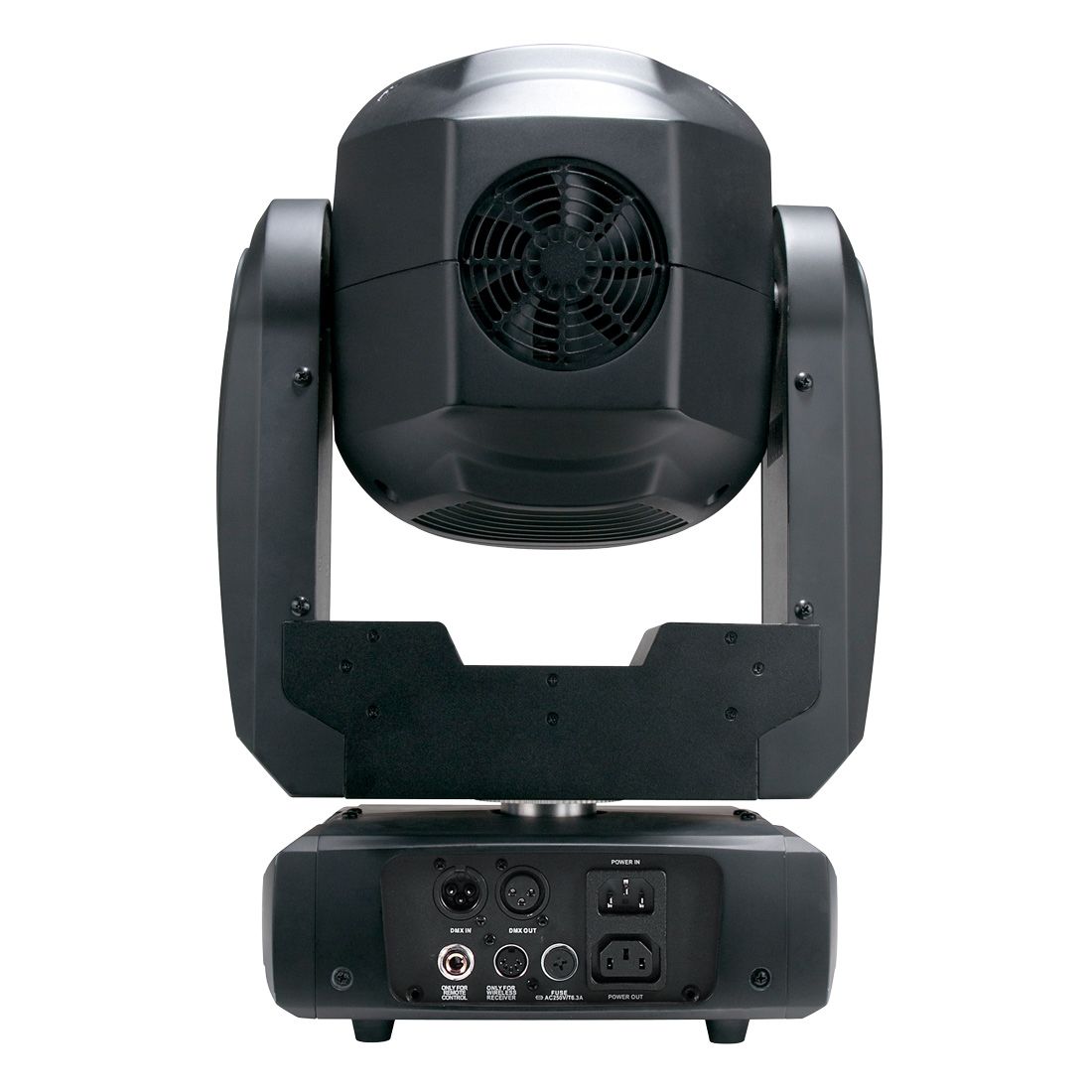

- Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 4 Inno Spot Elite’s @ 120V, 8 Inno Spot Elite’s @ 220V fixtures)
- Compatible with the ADJ UC3 Series easy-to-use controllers (sold Separately)
- Power consumption: 197W (Full on)
- Multi-voltage Operation: AC 100 - 240V, 50/60Hz
- LED Source: 180W White LED source, 8000K (Rated at approximately 50,000 hrs)
- Lux @ 3M: 4840 Lux
- Dimensions (LxWxH): 333 x 328 x 526mm
- Weight: 13 kg
Specifications subject to change without notice
