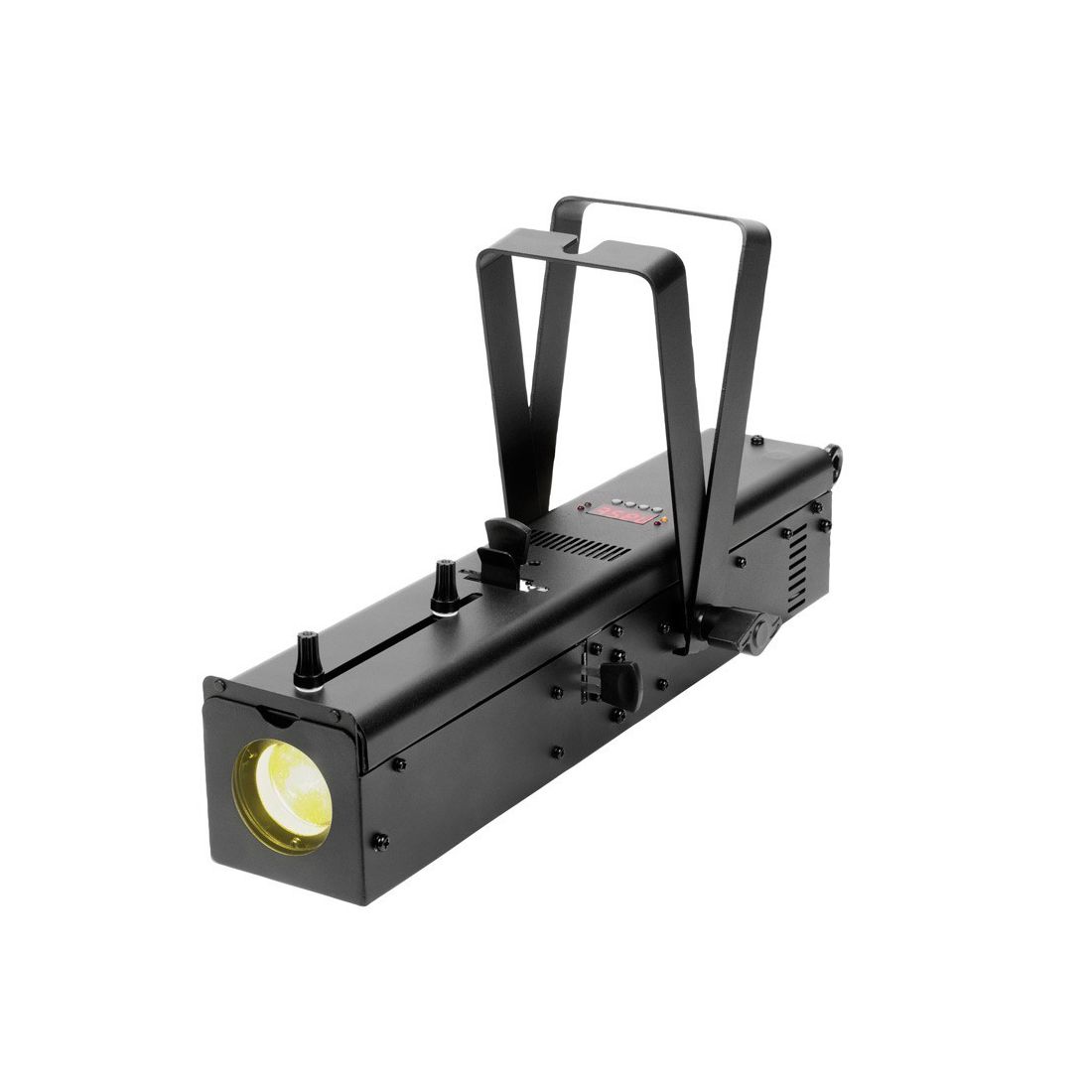

Ikon Profile WW Archive
The Ikon Profile is a high output mini profile spot powered by a bright 32W (3200K) white LED. This fixture used high quality optics for crisp, clear projection. User can adjust the LED brightness, strobe effect and dimmer curve via DMX or with the UC-IR remote (sold separately).
Product Information
SKU: 1221500030
GTIN: 819730019110
HS-Code: 9405423990
The Ikon Profile is a high output mini profile spot powered by a bright 32W (3200K) white LED. This fixture used high quality optics for crisp, clear projection. User can adjust the LED brightness, strobe effect and dimmer curve via DMX or with the UC-IR remote (sold separately).

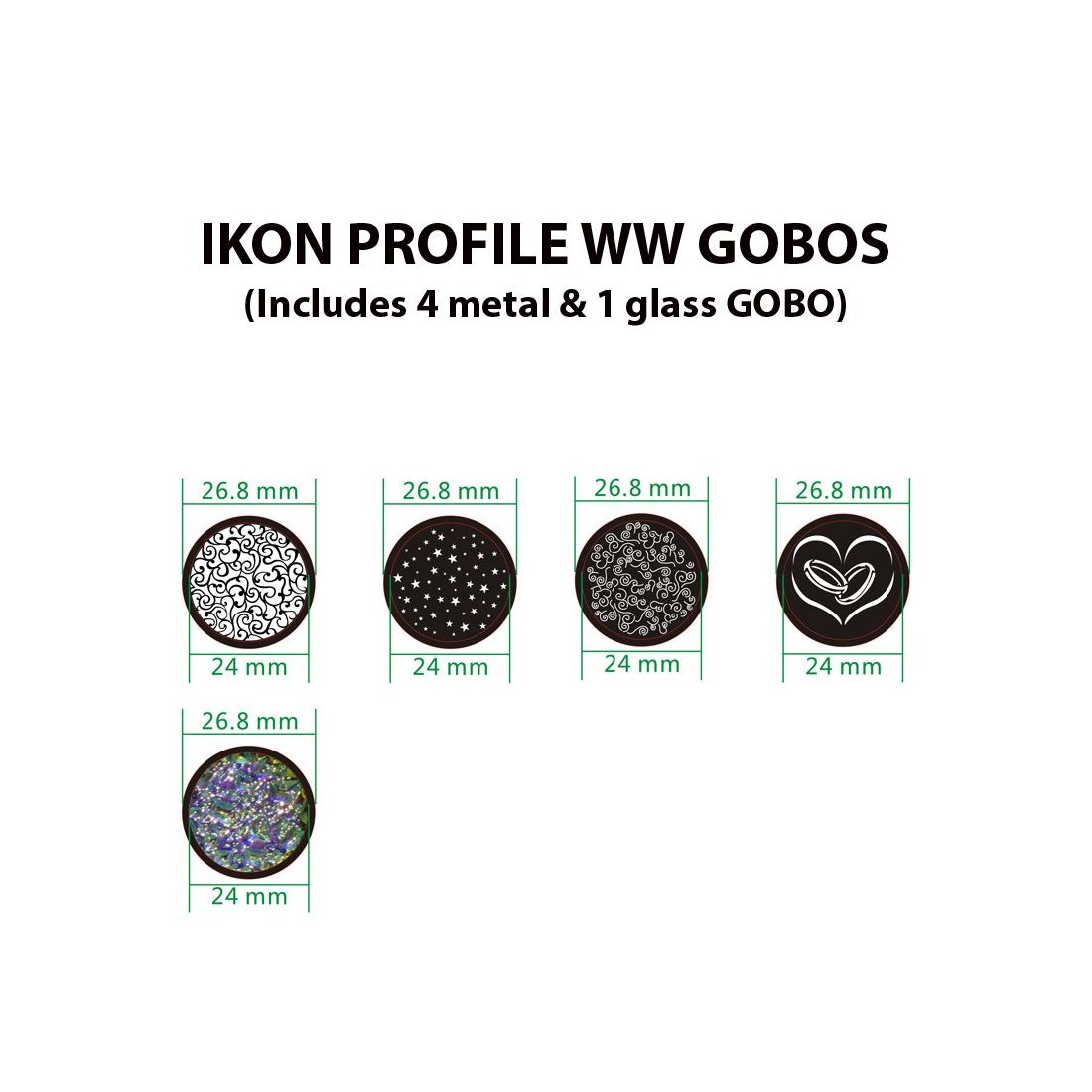

The Ikon Profile includes one textured glass GOBO and 4 metal gobos. Users may also easily insert custom GOBOs in the fixtures GOBO slot on the top of the fixture. Users may also manually control the beam angle, the focus and the 4 framing shutters
Gallery
Specification
- • 32W Warm White (3200K) LED indoor Gobo Projector
- • High quality optics - Clear powerful output

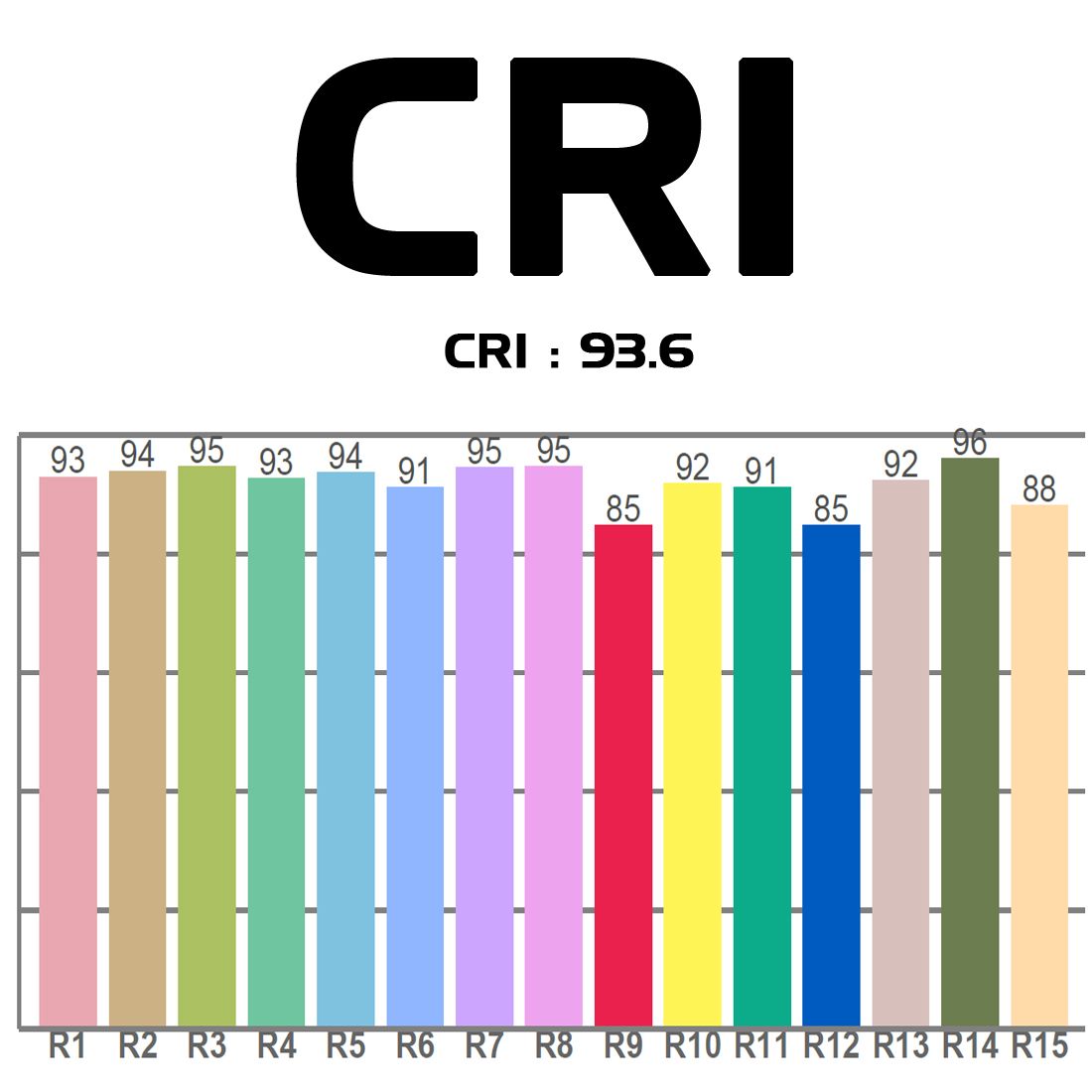

- • CRI >93, CRI R9 > 84
- • 3 DMX Channels
- • 5 Dimmer Curves
- • Beam Angle: 15-30 degrees
- • Adjustable Beam Angle and Focus
- • Manual Framing Shutters
- • Includes Textured Glass Gobo
- • One Glass Gobo Installed, 4 Metal Gobos Included
- • Gobo size: 26.8mm; Viewable size: 24mm
- • Drop in Gobo Slot for Metal or Glass Gobos
- • Color Frame For Color Filters
- • Run all night – No Duty Cycle
- • Ideal for Mobile DJs, Clubs, Bars, Retail Stores and Promotional Events
- • Very low heat output
- • Long life LED (Rated at approximately 50,000 hrs.)
- • IEC AC outlet on side to daisy chain power (up to 16 Ikon Profile’s @ 120V and 27 Ikon Profile’s @ 230V)
- • Includes yoke to mount on a wall or hang from trussing
- • UC IR Remote Control (Sold Separately)
- •Multi-voltage: 100-240V, 50/60Hz
- •Power consumption: 44W max
- • Dimensions (LxWxH): 17.75” x 6” x 5”/ 448 x 150 x 127mm
- • Weight: 6 lbs. / 2.7 kg.
