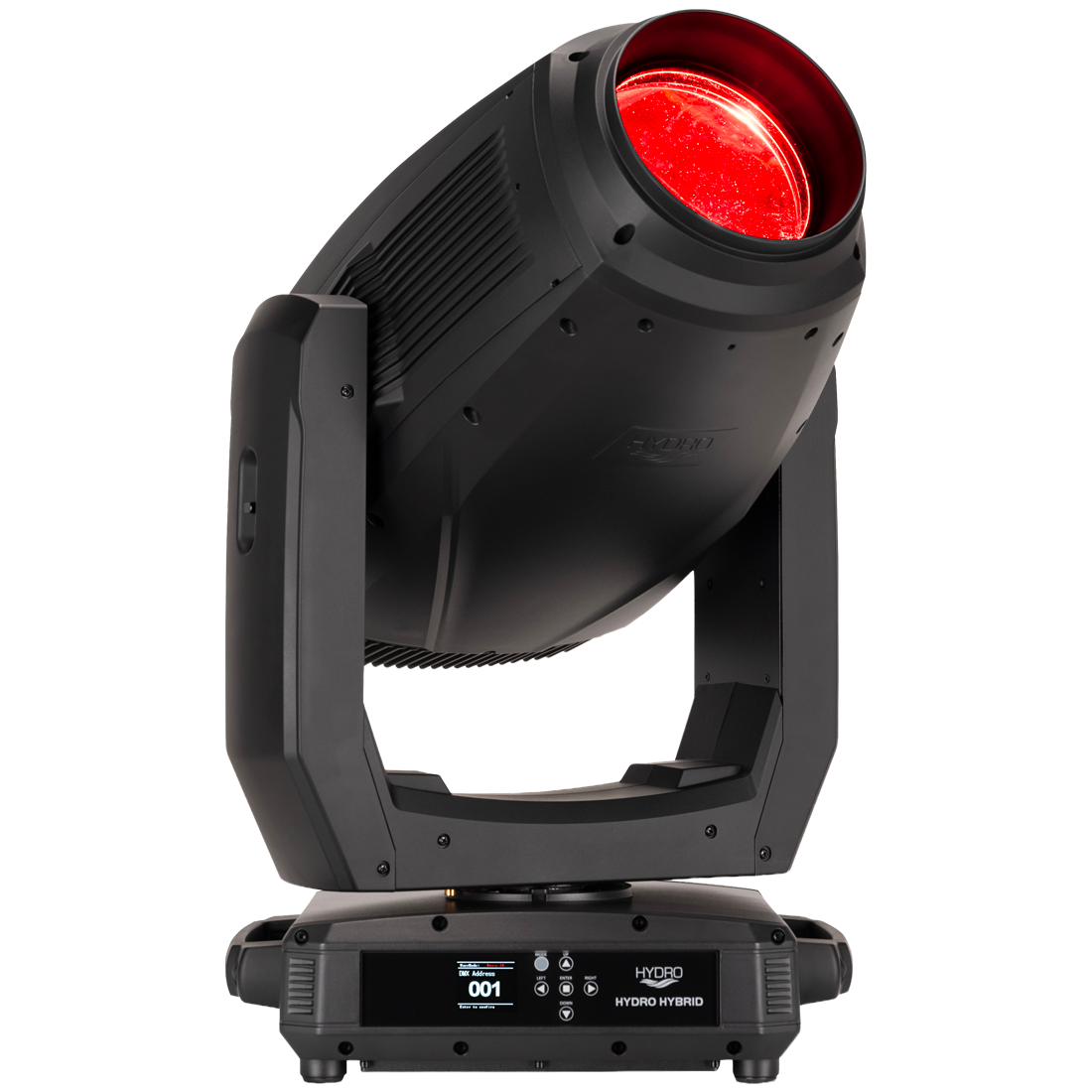

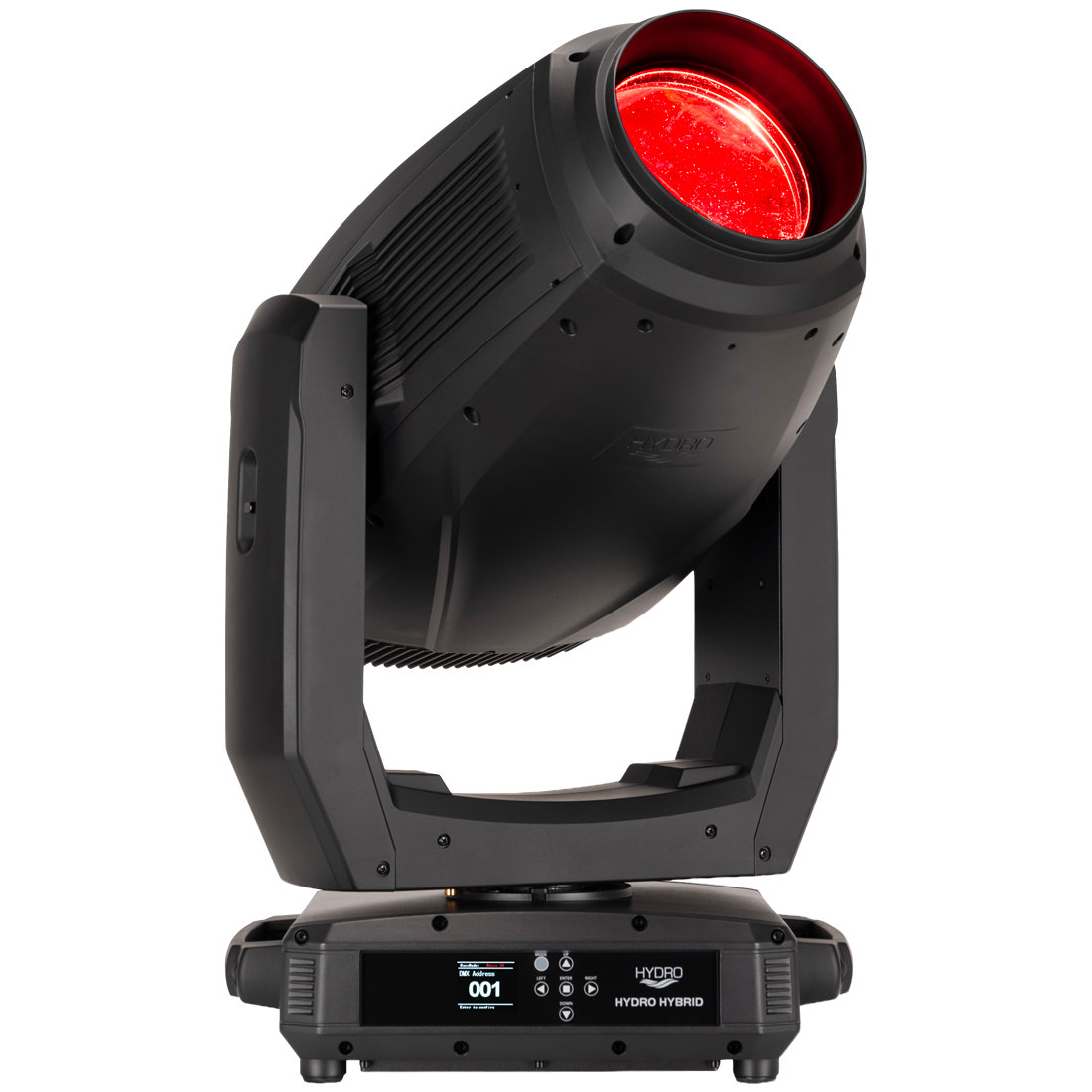

Hydro Hybrid
Select
New

Brand

Key Features

Color
Color
• Full CMY Color Mixing System
• White Color Temp Presets
• 12 Position Color Wheel (Including: UV + CTO: 2700K, 3200K, 4000K)
Effects
Effects
• Beam, Spot and Wash
• 2 Prisms on Dual Planes
• Motorized Focus
Source
Source
• Osram SIRIUS HRI 420W Discharge Lamp
• CRI: 77 +/- 5
• Correlate color temperature: 6,500K +/- 300K

Product Information

SKU: 1237000339
GTIN: 810087372507
HS-Code: 94054210

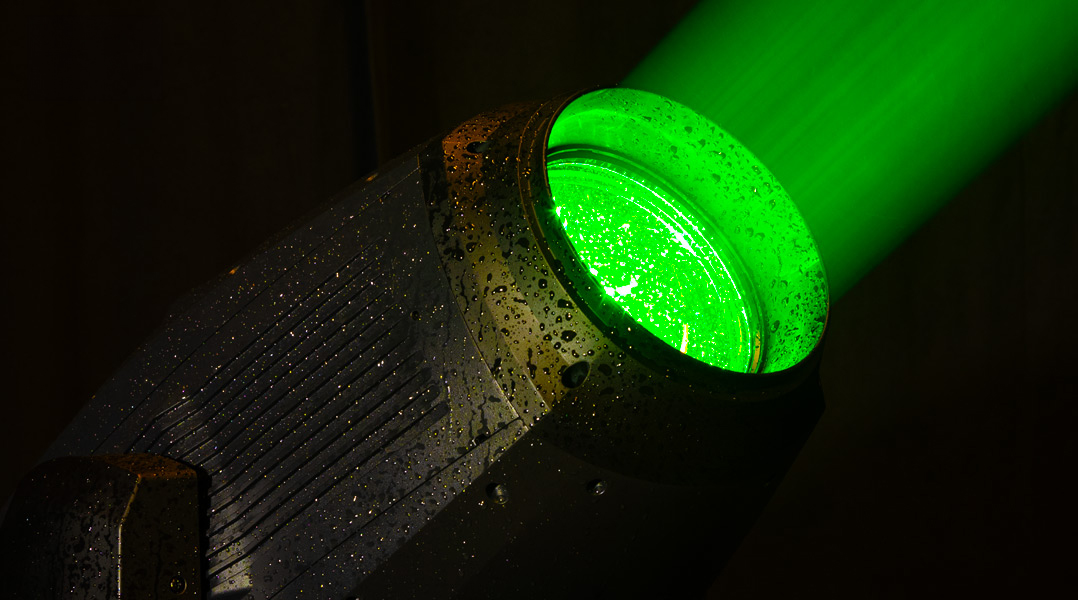

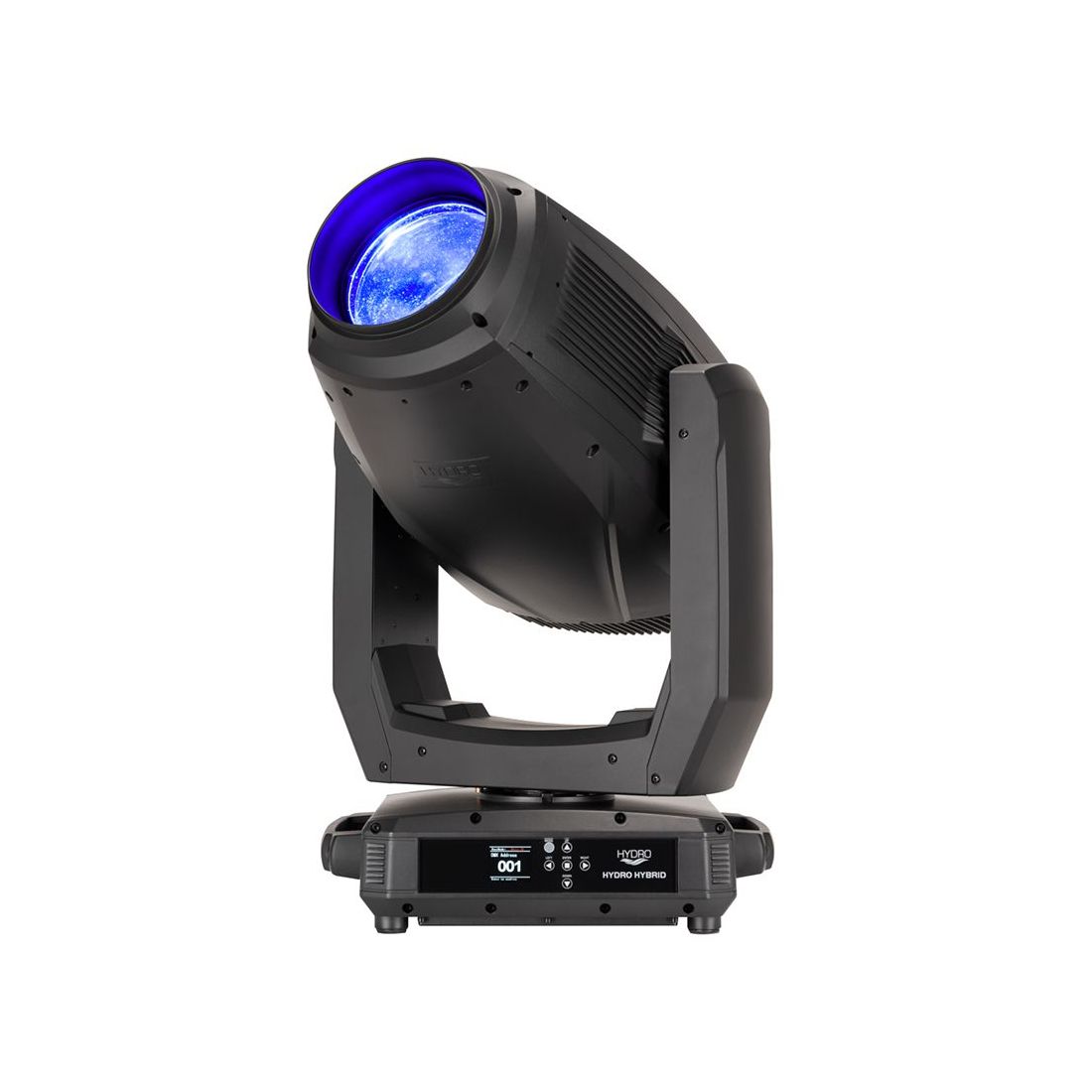

The Hydro Hybrid is one of ADJ’s most versatile fixtures, capable of producing beam, spot, and wash effects from a single unit. Its IP65-rated housing and 420-Watt Osram SIRIUS HRI Discharge lamp (6500K) with a lifespan of 2,500 hours make it perfect for both indoor and temporary outdoor event productions.

This fixture provides a range of creative beam-shaping tools sought by modern lighting designers. It includes dual-plane prisms, motorized zoom and focus, an animation wheel, and two GOBO wheels (one with 9 rotating/removable GOBOs and one with 14 fixed GOBOs).

The CMY color mixing system allows for the selection of any desired color, while the built-in color wheel offers 12 colors for quick selection. Additionally, preset white color temperature macros are available for specific shades of white that can be easily adjusted on the fly. Advanced control features of the Hydro Hybrid include 3 DMX channel modes, RDM, and an integrated Aria X2 wireless management system.

With its IP65-rating and a rich assortment of best-in-class creative options, the Hydro Hybrid offers a huge ROI for production companies and extremely artistic tool for lighting designers.

Specification

  • • Osram SIRIUS HRI 420W Discharge Lamp
  • • Full Power (420W)
  • • Up to 2,500 Hour Lamp Life **Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

  • • Lumens: Beam Mode: 12,319; Spot Mode: 14,416
  • • Lux: Beam Mode: 562,600; Spot Mode: 223,200 (@5m, zoomed out)
  • • CRI: 77 +/- 5
  • • Correlate color temperature: 6,500K +/- 300K
  • • Zoom Range: Beam Mode: 1.6°-17.7° / Spot Mode: 3.1°-39.2°

  • • Beam, Spot and Wash
  • • Motorized Zoom
  • • Frost Filter (Heavy)
  • • 2 Prisms on Dual Planes
  • • Animation Wheel
  • • CMY/Color Macros
  • • Gobo/Prism Macros
  • • Motorized Focus
  • • High Speed Shutter and Strobe
  • • Pan Degree: 540°/630°
  • • Tilt Degree: 270°

  • • Full CMY Color Mixing System
  • • White Color Temp Presets
  • • 12 Position Color Wheel (Including: UV + CTO: 2700K, 3200K, 4000K)
  • • 27 Color Macros (Color Wheel + CMY)

  • • 2 Gobo Wheels
  • • Gobo Wheel 1: 9 Interchangeable-Rotating / Indexing Glass Black & White Gobos
  • • Gobo Wheel 2: 14 Static-Stamped Metal Gobos

  • •3 DMX Channel Modes (24, 28 & 32)
  • • 1 User assignable DMX Channel Mode
  • • Aria X2 Wireless Management / DMX System
  • • (4) Button Touch Panel
  • • Full Color 180° Reversible LCD Menu Display
  • • DMX & RDM Protocols

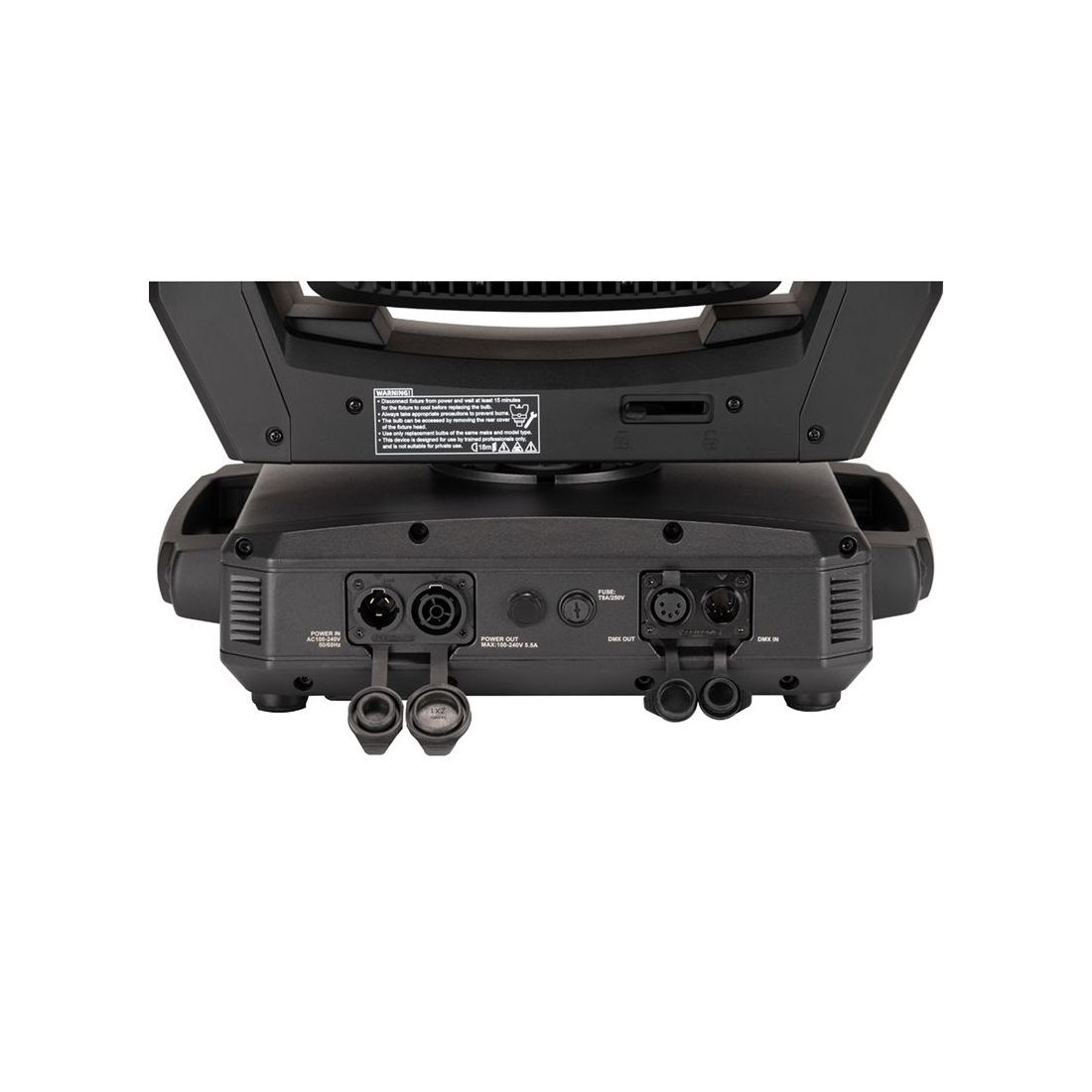

  • • Outdoor, IP65 5-pin DMX In/Out
  • • Outdoor, IP65 Locking Power In/Out
  • • Pan/Tilt Locks

  • • Length: 290mm
  • • Width: 414.27mm
  • • Height: 741mm
  • • Weight: 31.6 kg

  • • AC 100-240V 50/60Hz
  • • 580W Max Power Consumption
  • • -20°C to 45°C
  • • Min/Max Ambient Temperature: -20°C ~ 45°C

  • • IP65-Rated
Specifications subject to change without notice

COLORS AND GOBOS

Color Wheel 1

Amber
Amber
 Blue
Blue
 Green
Green
 Lavender
Lavender
 Mint
Mint
 Orange
Orange
 Pink
Pink
 Purple Red
Purple Red
 Red
Red
 UV
UV
 2700K
2700K
 3200K
3200K
 4000K
4000K

Gobo Wheel 1 Static

Gobo 1
 Gobo 2
 Gobo 3
 Gobo 4
 Gobo 5
 Gobo 6
 Gobo 7
 Gobo 8
 Gobo 9
 Gobo 10
 Gobo 11
 Gobo 12
 Gobo 13
 Gobo 16
 Gobo 101

Gobo Wheel 2 Rotating

Gobo 93
 Gobo 108
 Gobo 109
 Gobo 110
 Gobo 111
 Gobo 112
 Gobo 113
 Gobo 114
 Gobo 115

Animation Wheel

Animation Wheel 1

Downloads

Specifications Sheet

DMX Traits

User Manual
