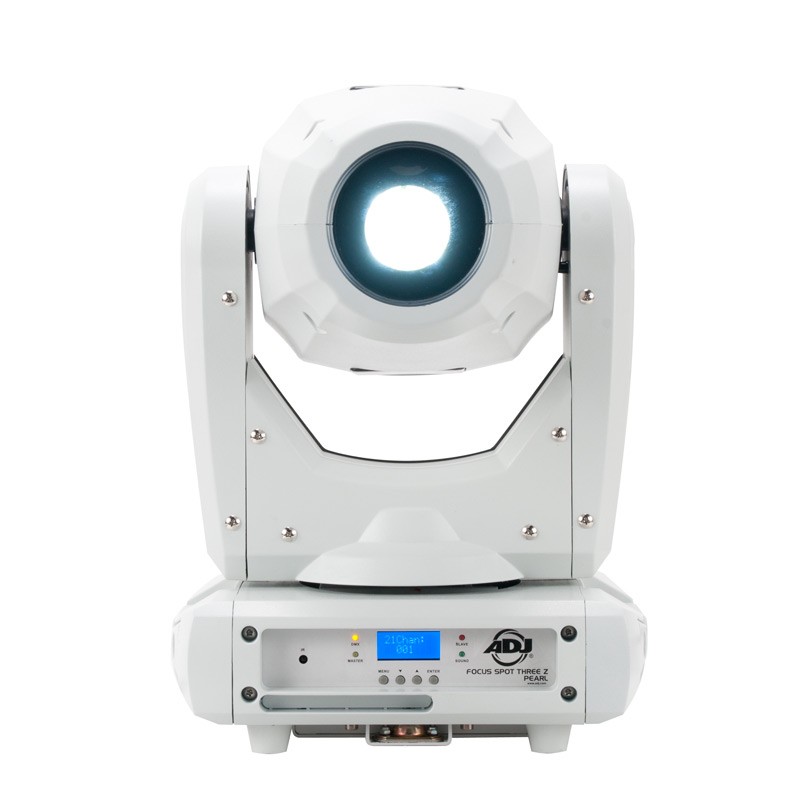

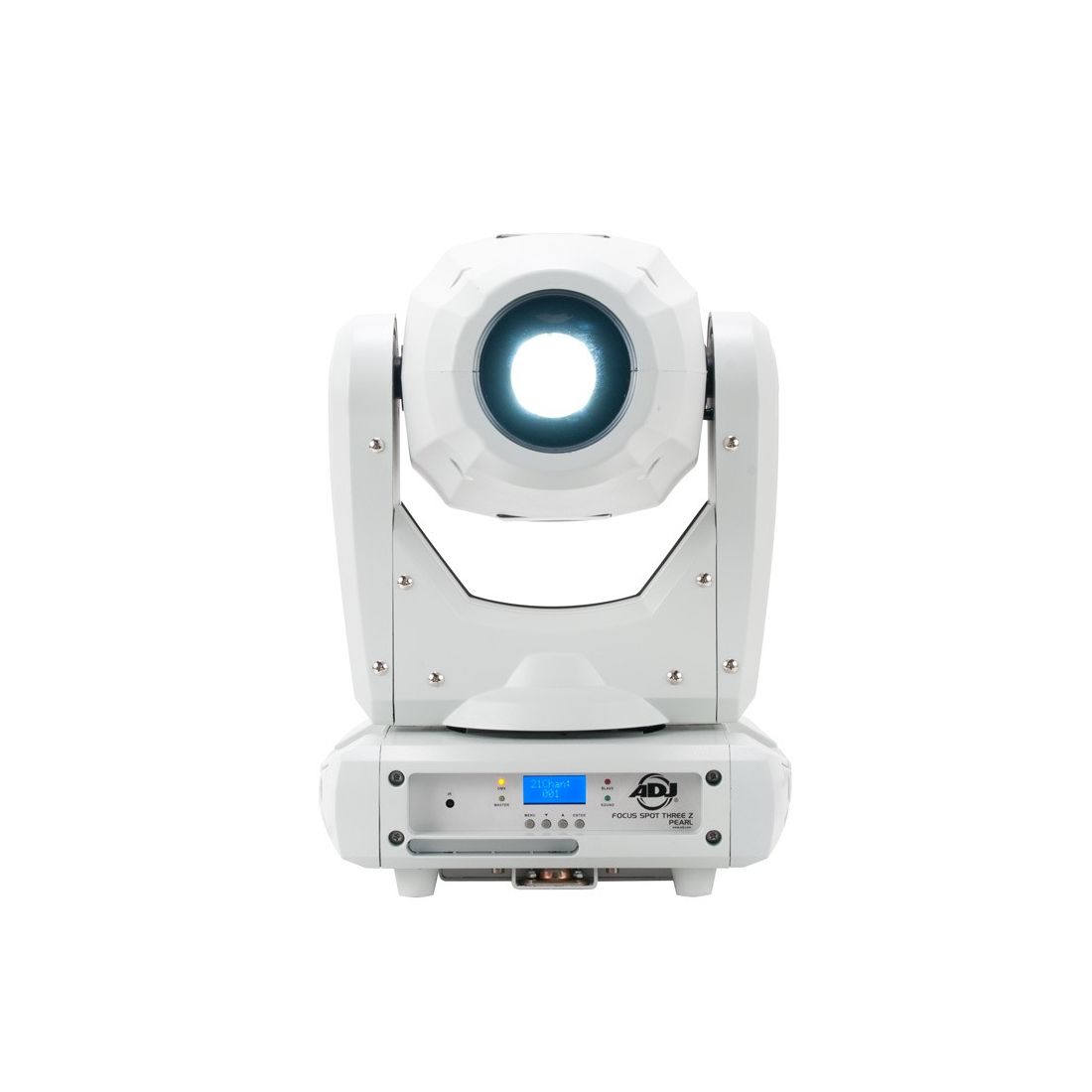

FOCUS SPOT THREE Z Pearl Select Archive
The Flag ship of the Focus SPOT SERIES of moving heads in white exterior finish with premium technology at an affordable price.
Product Information
SKU: 1237000158
GTIN: 819730019240
The Flag ship of the Focus SPOT SERIES of moving heads in white exterior finish with premium technology at an affordable price.
Gallery
Specification
- Features...
- • Exterior White housing
- • High Output 100W LED Moving Head spot with motorized zoom
- • Motorized Focus
- • Motorized Zoom: 12 ~ 18-degree beam angle
- • 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
- • 4 Built-in lighting shows
- • Electronic Dimming: 0% - 100%
- • Electronic Strobe/Pulse effect; random strobe slow to fast
- • 5 Dimming Curves
- • Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
- • Fast Pan Tilt Movement
- • Gobo Shake effect
- • Two 6-facet rotating prism effects (one circular & one linear)
- • 16-Bit Fine Pan/Tilt control
- • Stepper motors with micro stepping
- • 3-pin XLR In/Out
- • 4-Button DMX LCD menu with 180° Inverse View mode
- • Includes Omega bracket for truss mounting
- • Fan cooled
- • Light Source: 100W High Output LED
- • LUX : 12 Degrees: 13090 @ 3M / 18 Degrees: 6300 @ 3M
- • Variable beam angle: 12~ 18-degree beam angle
- • 18 & 21 DMX channel modes
- • 8 Colors + Spot
- • 2 Independent Gobo Wheels: Gobo Wheel 1 has 7 Static Gobo’s + Spot; Gobo Wheel 2 has 6 Rotating Gobo’s + Spot
- • Interchange Gobos on wheel 2: 23.8 mm Gobo Size; 20mm Viewable
- • Pan: 540-degree; Tilt: 270-degree
- • Locking Power AC In/Out on rear to daisy chain power (up to 3 Focus Spot Three Z’s @ 120V and 6 Focus Spot Three Z’s @ 230V )
- • PWM (Pulse Width Modulation): 1.2K
- • Strobe Rate: 0.3-20HZ
- • DB Rating @ 1Meter: Front: 52; Back: 50.4; Left: 51.1;
- Right: 50.7; Top: 52.1
- • Long Life LED (Rated at approximately 50,000 hrs)
- • Multi-voltage Operation: 100-230V, 50Hz/60Hz
- • Power Consumption: 230W
- • Dimensions (LxWxH): 7.25” x 11.25” x 19.75”/ 183 x 284 x 489mm
- • Weight: 26 lbs. /12 kgs.
