Focus Spot 7Z
Select
New

Brand

Key Features

Gobo
Gobo
• Gobo wheel 1 with 7 Interchangeable Rotating-Indexing GOBOs
• Gobo wheel 2 with 7Interchangeable Rotating-Indexing GOBOs
Optics
Optics
• Motorized Zoom: 6 ~ 48°
• Motorized Focus
• 4-Facet Circular & 6-Facet Linear Rotating Prisms
Source
Source
• 420W White LED Engine
• 20,000 Hour Average LED Life
• Lumens: 20,000

Product Information

SKU: 1237000331
GTIN: 810087371401
HS-Code: 94054210

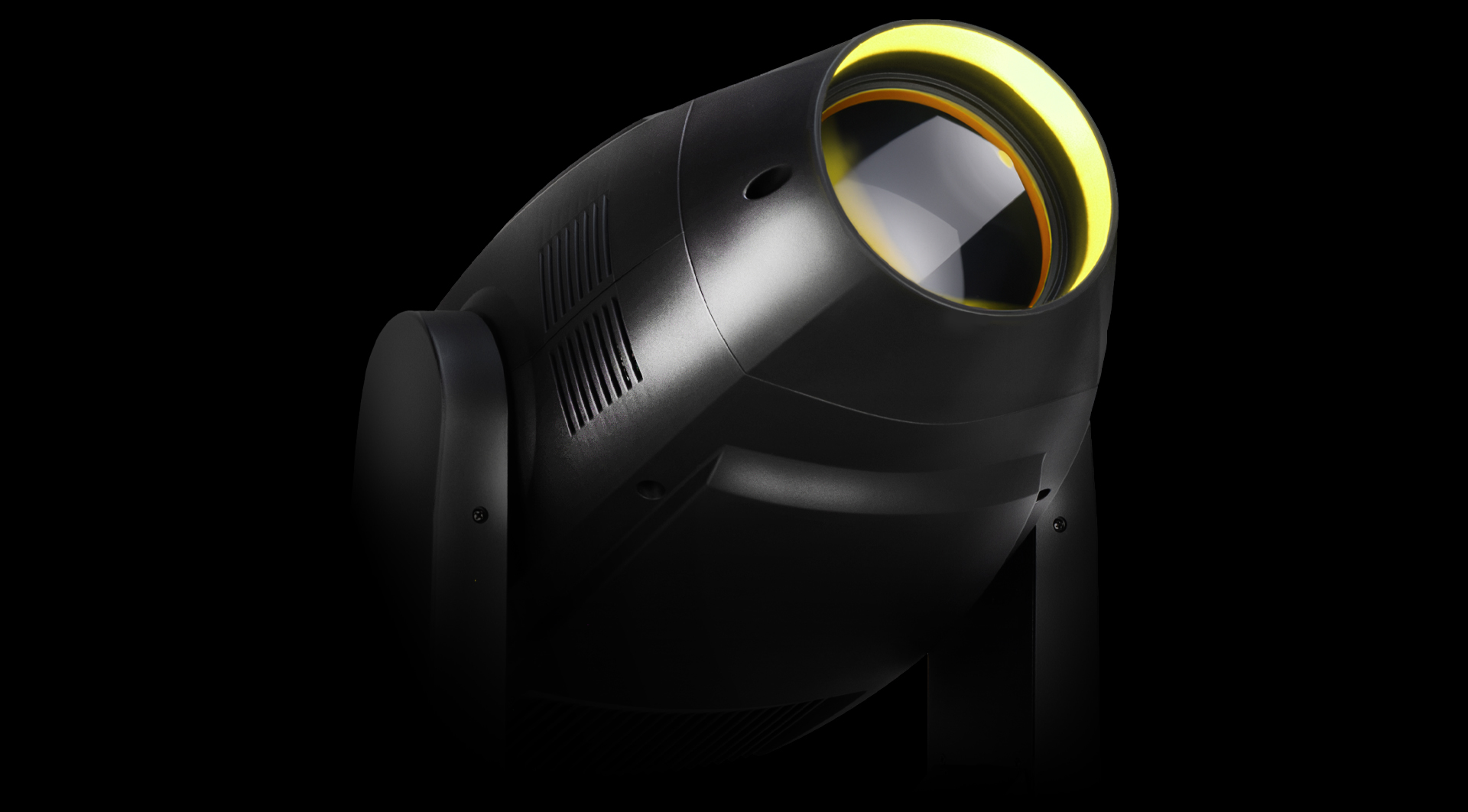

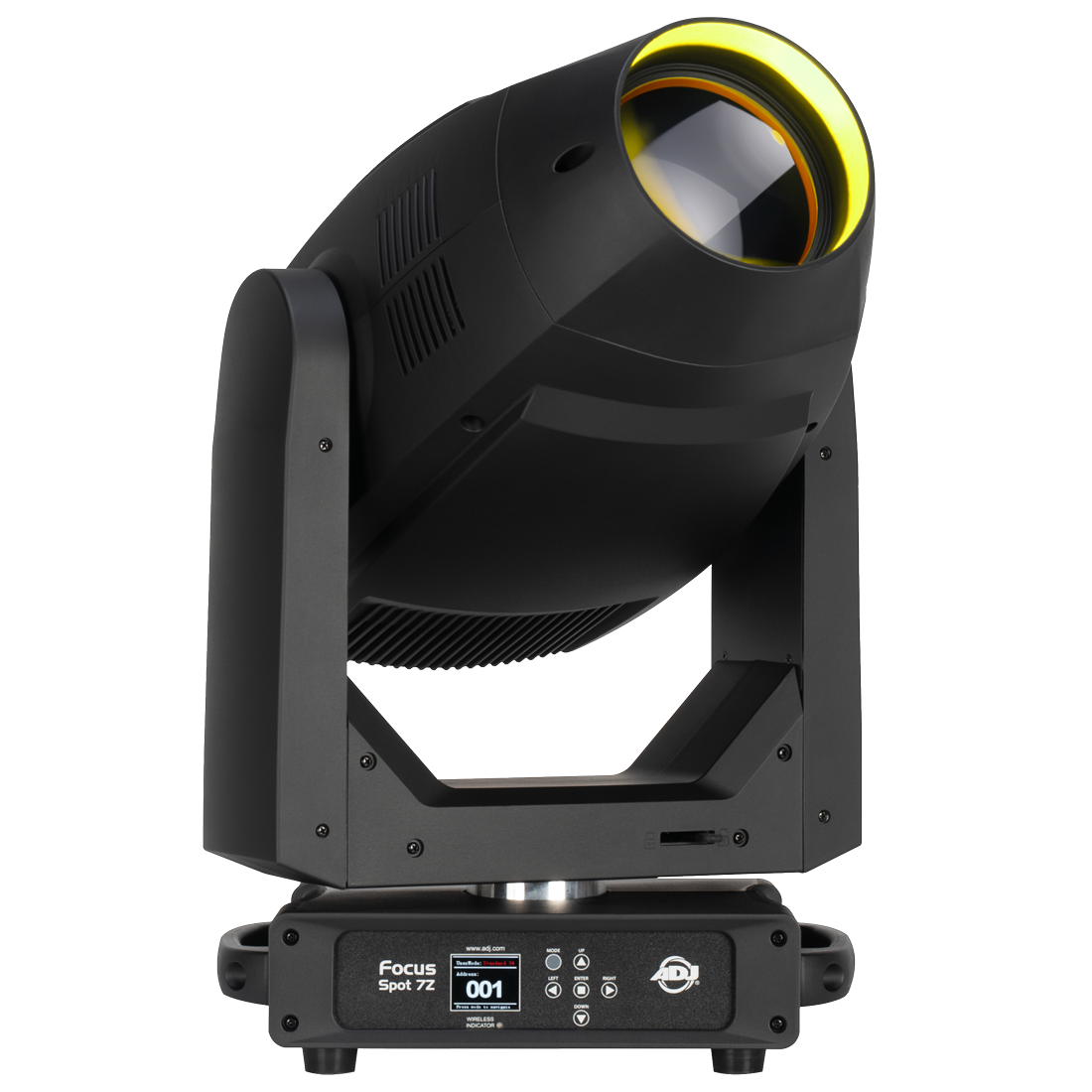

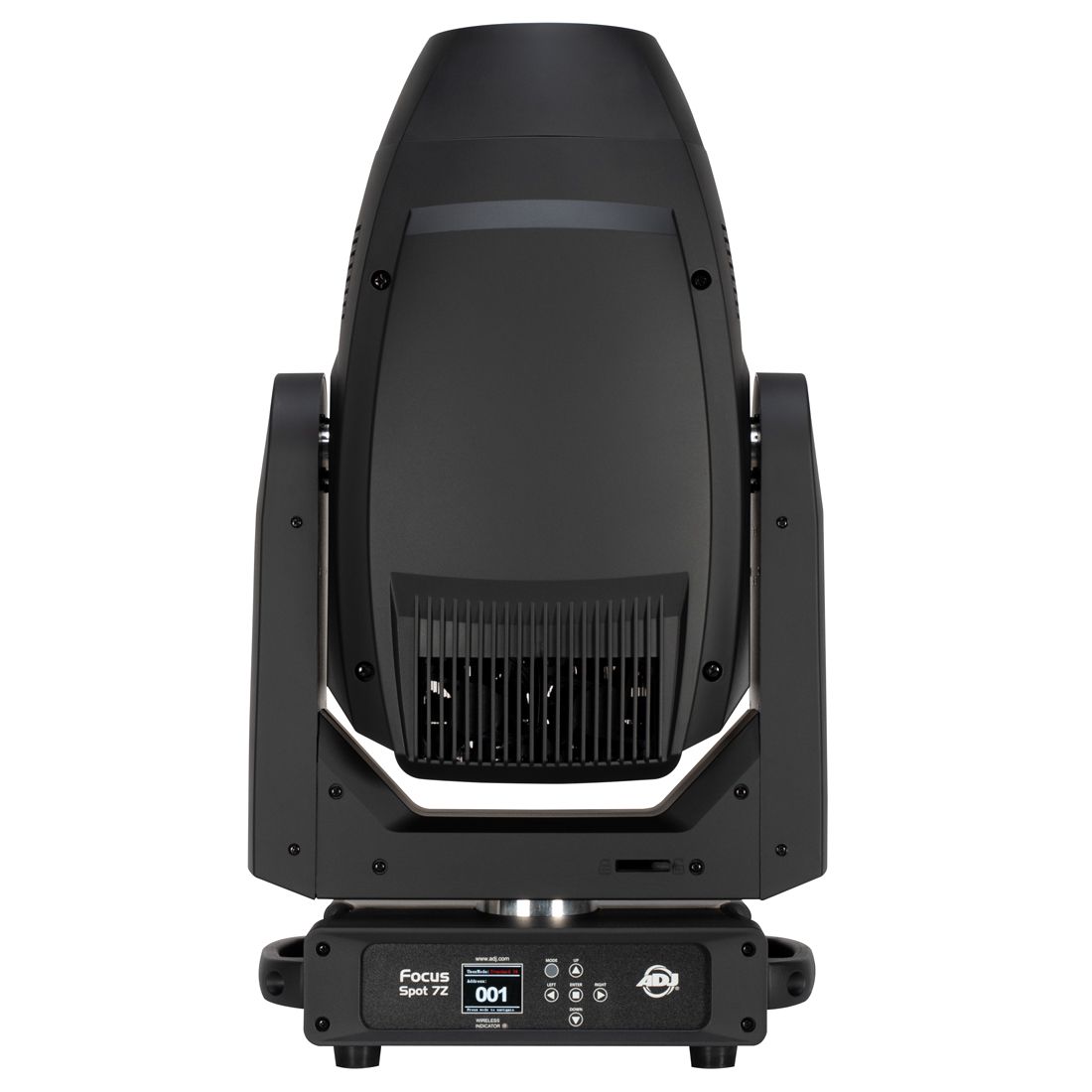

Part of ADJ’s popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (7.000K) LED engine, which has an average operational life of 20.000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 19.000 Lumens.

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2.700K to 7.200K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).

The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).

Weighting in at only 23.45kg, the Focus Spot 7Z is lighter and has a smaller footprint than other leading hybrid fixtures in its class.

Specification

  • • 420W White LED Engine
  • • 20,000 Hour Average LED Life

  • • 19.000 Total Lumens
  • • 7.0000K, >73CRI (without CRI Filter)
  • • 6.700K >85CRI (with CRI Filter)
  • • 50.528 LUX @5m (6° Beam)
  • • 1.799 LUX @5m (48° Beam)

  • • 4-Facet Circular & 6-Facet Linear Rotating Prisms
  • • 2 Frost Filters (Light & Heavy)
  • • Animation Wheel (Rotatable and Indexable)
  • • Motorized Zoom (6° ~ 48°)
  • • Motorized Focus
  • • Motorized Iris
  • • Electronic Dimming & Strobe (1-20Hz)

  • • Full CMY color mixing
  • • Variable CTO (2.700K to 7.000K)
  • • Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
  • • CMY and Color Wheel preset macros

  • • (2) Gobo Wheels
  • • #1 - (7) Interchangeable Rotating-Indexing Glass Gobos
  • • #2 - (7) Interchangeable Rotating-Indexing Glass Gobos

  • • (3) DMX Channel Modes (30 / 34 / 45)
  • • DMX512, ArtNet and sACN protocols
  • • WiFLY Wireless DMX Built-in
  • • RDM (Remote Device Management) compliant
  • • 6 Button Touch Control Panel
  • • Full Color 180° Reversible LCD Menu Display
  • • 8 / 16 Bit Resolution Adjustable Movement

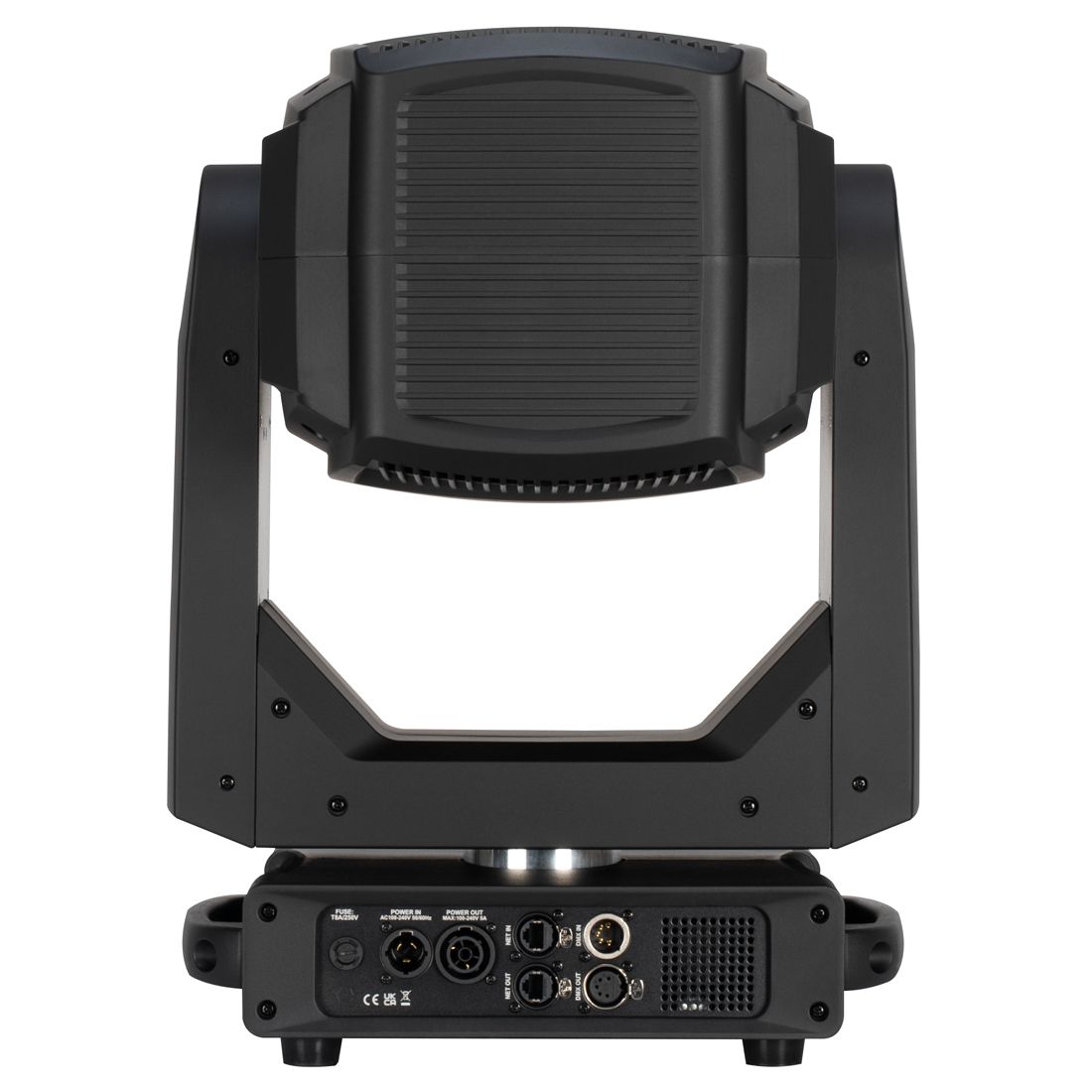

  • • 5-pin XLR DMX In/Out
  • • RJ45 connectors In/Out
  • • IP65 Locking Power In/Out connections

  • • Pan: 540-degrees
  • • Tilt: 270-degrees
  • • Pan & Tilt Locks

  • • Length: 374mm
  • • Width: 234mm
  • • Vertical Height: 630mm
  • • Weight: 23.45kg

  • • AC 100-240V - 50/60Hz
  • • Max Power Consumption: 524W
  • • Max ambient temperature: -10°C to 45°C
  • • Max housing temperature: 58°C

  • • DB Rating @ 1m.: 49dB
  • • BTU: 0.53
  • • BTU/H: 1,909.60

  • • Locking Power cable

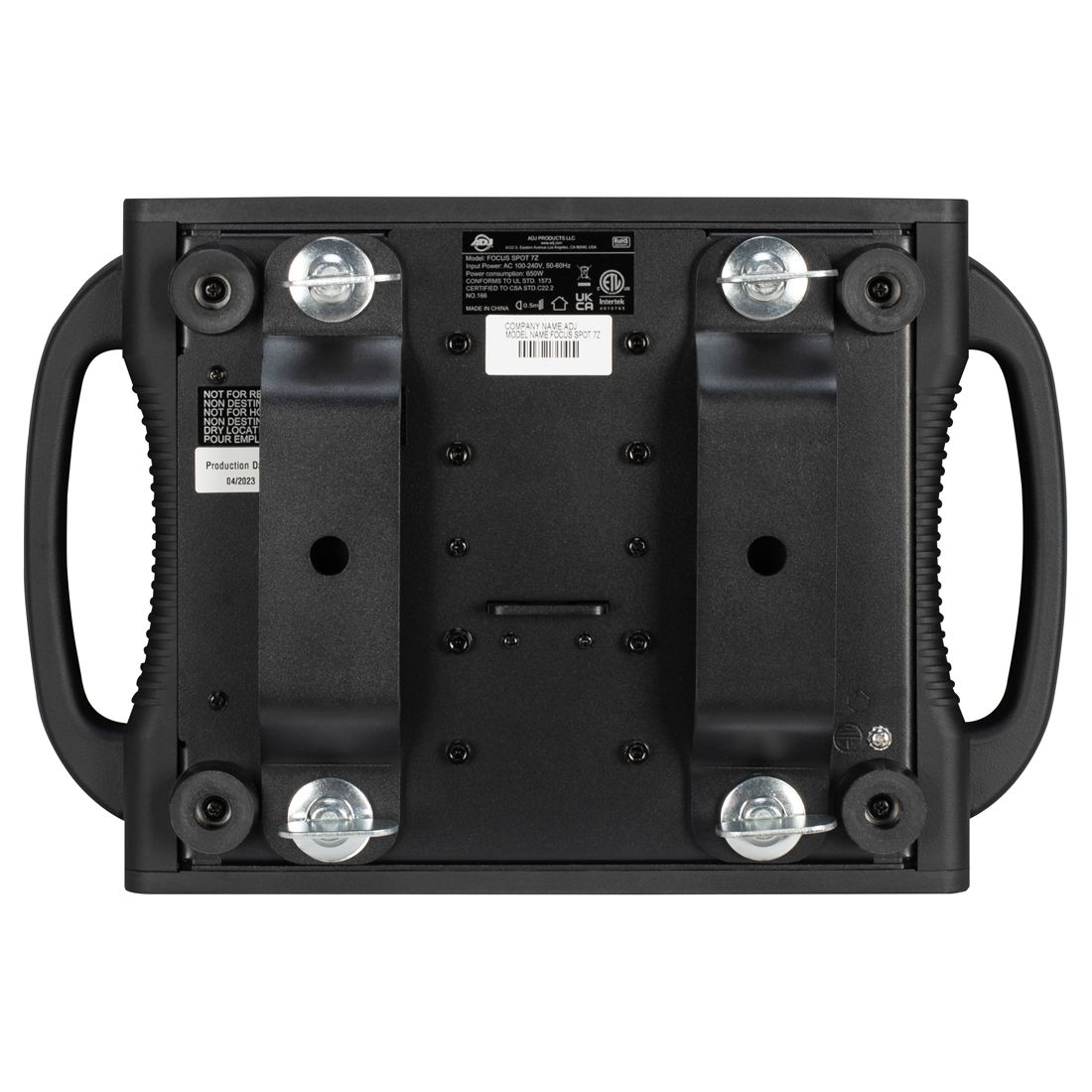

  • • 180mm Omega brackets (x2)
Specifications subject to change without notice

COLORS AND GOBOS

Color Wheel 1

Blue
Blue
 CTB 5600K
CTB 5600K
 Deep Blue
Deep Blue
 Green
Green
 High CRI
High CRI
 Orange
Orange
 Red
Red

Gobo Wheel 1 Rotating

Gobo 20
 Gobo 30
 Gobo 31
 Gobo 33
 Gobo 36
 Gobo 64
 Gobo 68

Gobo Wheel 2 Rotating

Gobo 35
 Gobo 37
 Gobo 38
 Gobo 41
 Gobo 67
 Gobo 79
 Gobo 88
