Focus Hybrid
Select
New

Brand

Key Features

Color
Color
• 1 Color Wheel with 11 dichroic colors, includes 3200 CTO Filter
Effects
Effects
• 8-Facet Circular & 6-Facet Linear Rotating Prisms
• Replaceable Frost Filter (Heavy Frost Default)
• Motorized Zoom (2° to 24°)
Source
Source
• 200W LED Engine
• 50,000 Hour Average LED Life
• 4,100 Total Lumens

Product Information

SKU: 1237000325
GTIN: 810087370909
HS-Code: 94054210

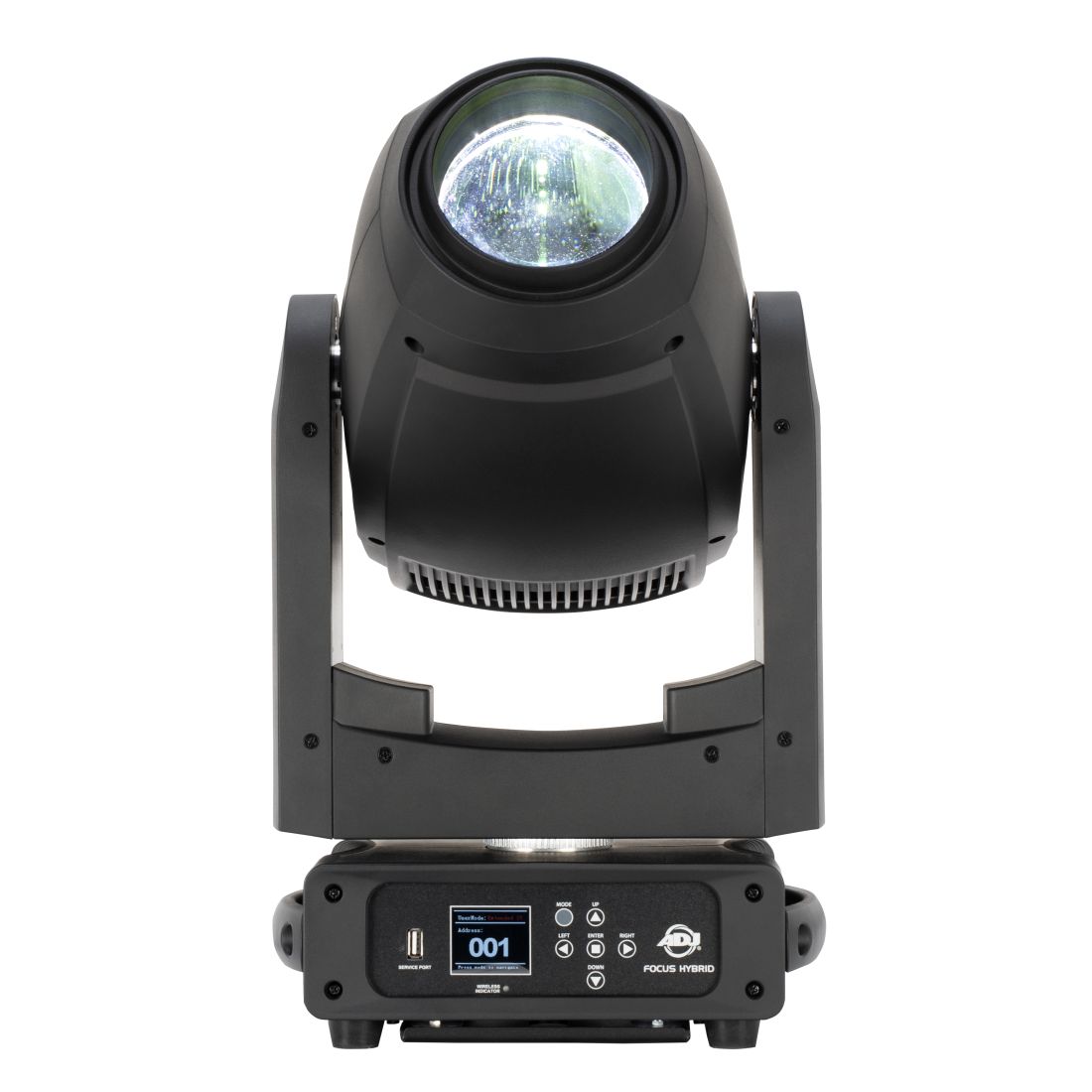

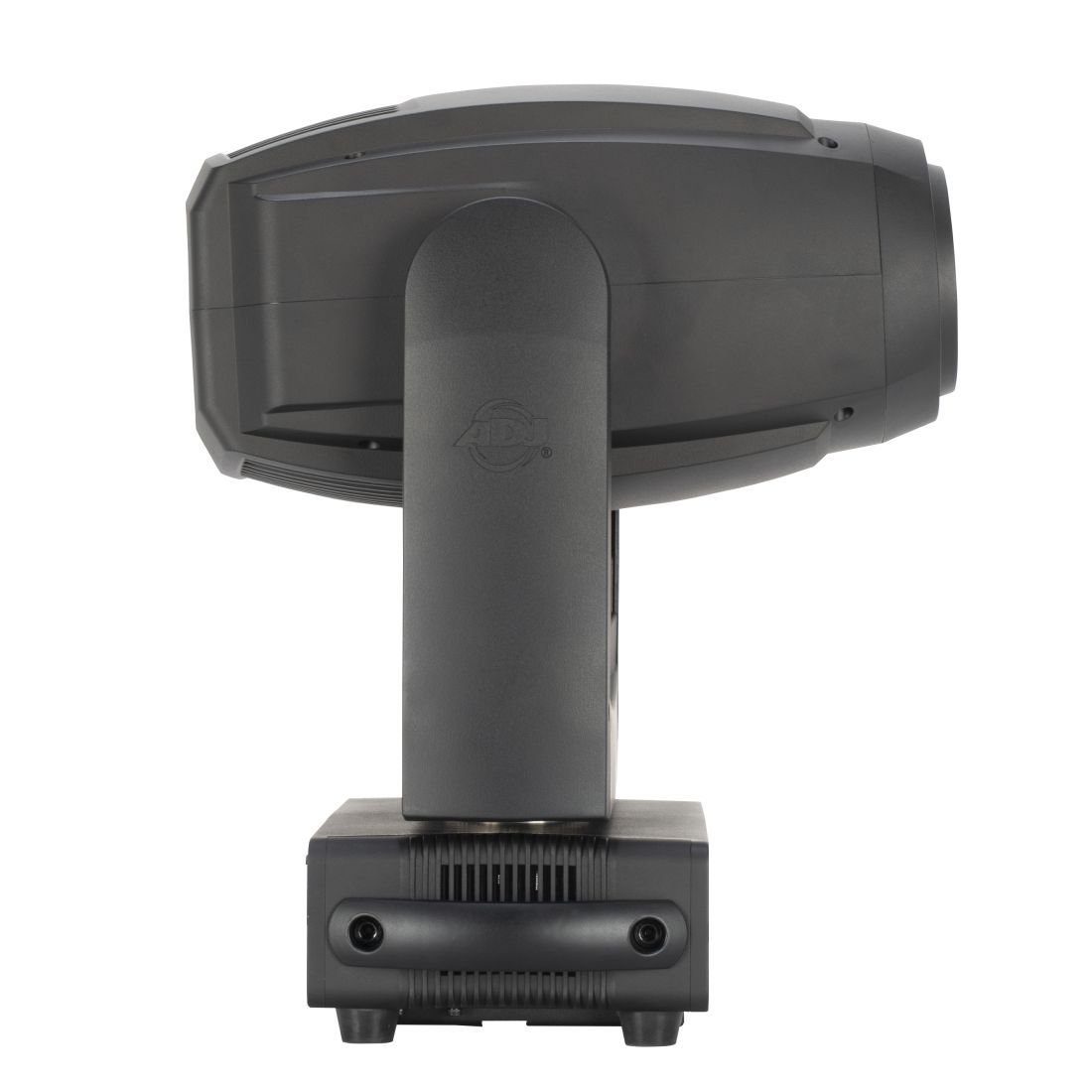

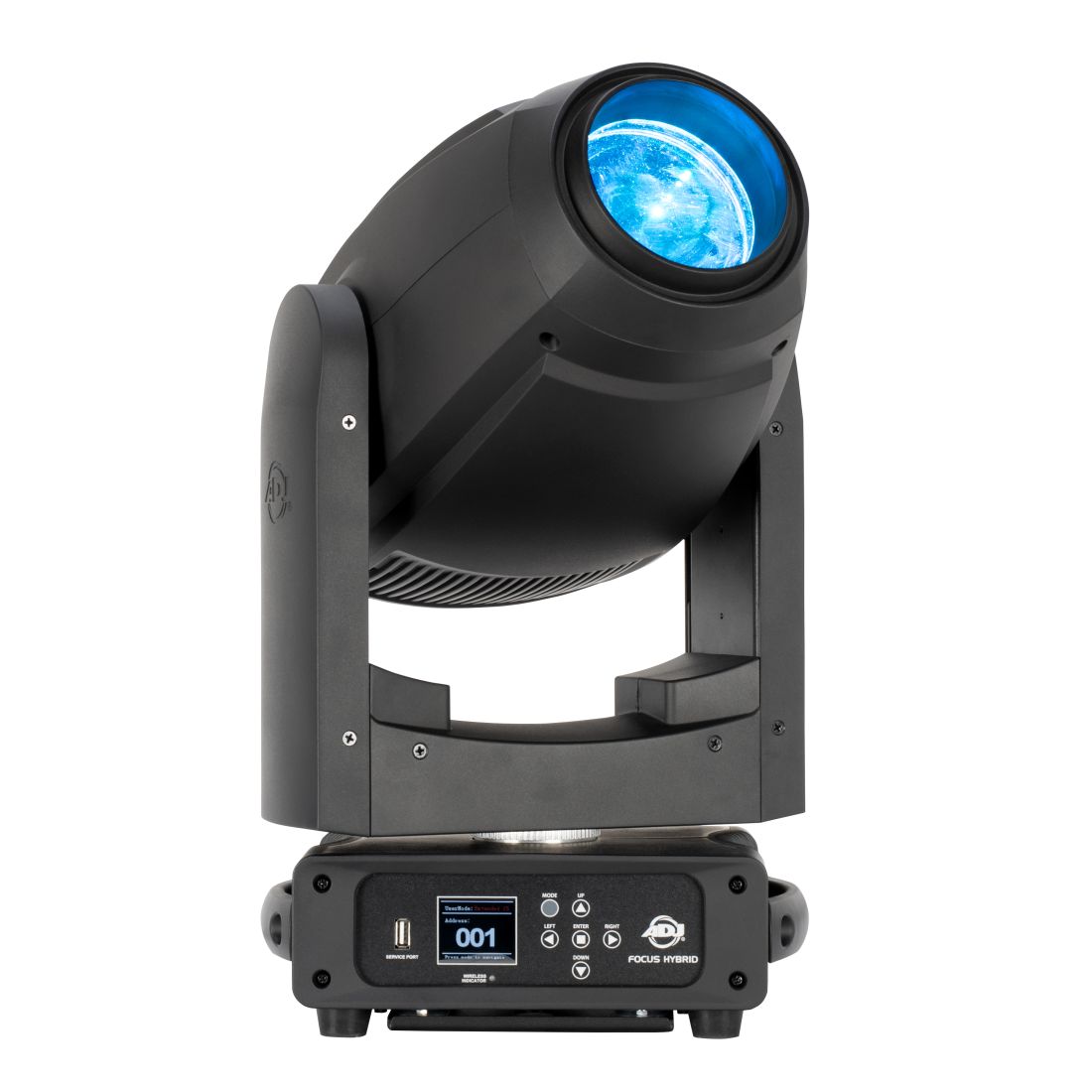

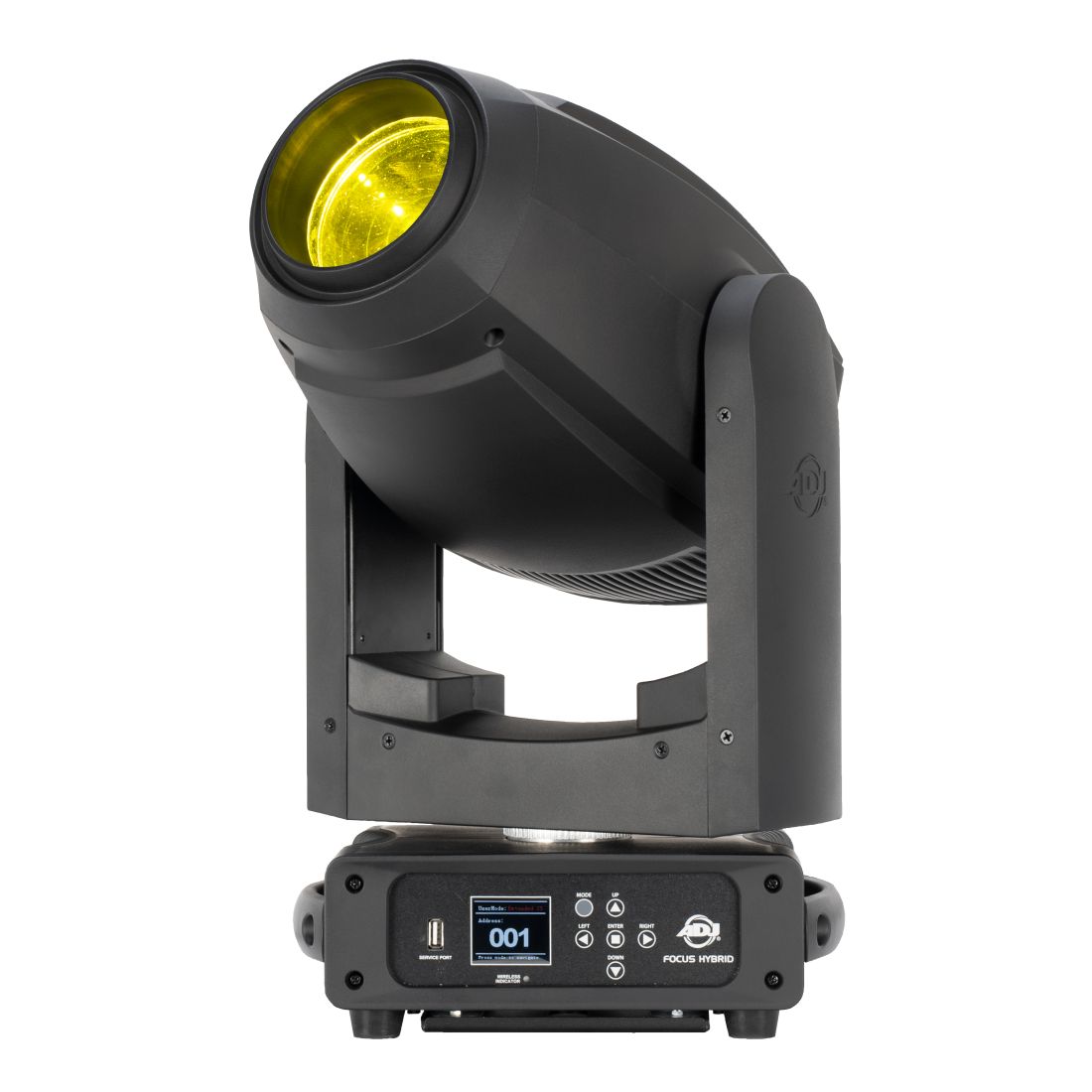

Part of ADJ’s immensely popular Focus Series of LED-powered moving heads, the Focus Hybrid is a versatile fixture which can function interchangeably as a spot, wash or beam luminaire. It features an efficient 200W cool white (7,500K) LED engine which has an average life expectancy of 50,000 hours and generates an output of 4,100 lumens. This light is focused through a precision-engineered optical system and a variety of beam-shaping elements to generate a flexible output which can be used to create aerial effects, surface pattern projections or color washes.

The Focus Hybrid offers a beam angle variable between an intense 2-degrees and a significantly wider 24-degrees, with motorized zoom providing quick and precise changes between beam angle settings. In addition, motorized focus can be used to ensure pattern projections are sharp at variable beam angles and projection distances, while a frost filter can be used to further widen the beam angle and soften the beam edge to achieve a wash output. A Heavy Frost filter is fitted as default, but this can be replaced to suit the needs of specific applications and a Medium Filter is also supplied together with the fixture as standard.

A dedicated wheel offers a choice between 11 dichroic color options (plus open), including a 3200K CTO filter for achieving a warm white output. The fixture also boasts two independent GOBO wheels, one featuring 7 slots for interchangeable indexed rotating GOBO patterns and the other featuring 15 static stamped metal GOBOs (including four beam reducers). Two rotating prism options are also provided – 8-facet circular and 6-facet linear – for creating multibeam surface textures and dynamic mid-air effects. Considering its impressive output and feature set, the Focus Hybrid is a compact fixture which weighs in at a very manageable 14.1kg.


Specification

  • • 200W LED Engine
  • • 50,000 Hour Average LED Life

  • • 4,100 Total Lumens
  • • 7,500K, >70CRI
  • • 57,433 LUX @ 5m (3.1° Beam)
  • • 1,293 LUX @ 5m (23.8° Beam)

  • • 8-Facet Circular & 6-Facet Linear Rotating Prisms
  • • Replaceable Frost Filter (Heavy Frost Default)
  • • Motorized Zoom (2° to 24°)
  • • Motorized Focus
  • • Electronic Dimming & Strobe (1-20Hz)

  • • 1 Color Wheel with 11 dichroic colors, includes 3200 CTO Filter

  • • 2 Gobo Wheels with 7 Interchangeable Rotating-Indexing Gobos and 15 Static-Stamped Gobos

  • • Pan: 540°
  • • Tilt: 270°
  • • 3 DMX Channel Modes (19 / 23 / 25)
  • • WiFLY EXR Wireless DMX Built-in (2500 ft. 700M line of sight)
  • • RDM (Remote Device Management)
  • • 6 Button Touch Control Panel
  • • Full Color 180° Reversible LCD Menu Display
  • • 8 / 16 Bit Resolution Adjustable Movement

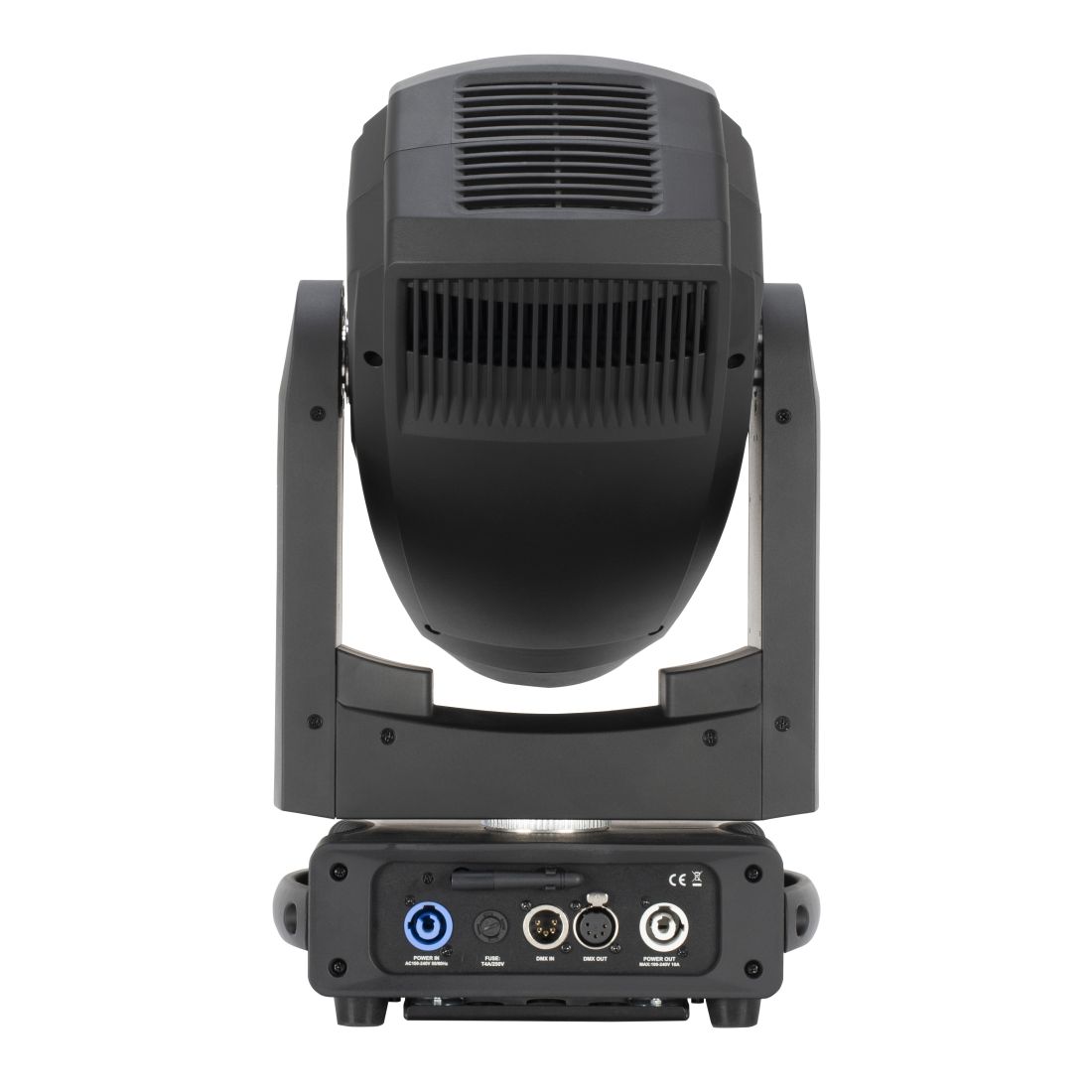

  • • 5 pin XLR DMX In/Out
  • • Locking In/Thru power connections
  • • Antenna on rear for WiFLY EXR Wireless DMX connection

  • • Length: 176mm
  • • Width: 278mm
  • • Vertical Height: 533mm
  • • Weight: 14.10kg

  • • AC 100-240V - 50/60Hz
  • • Max Power Consumption: 335W
  • • Max ambient temperature: -25°C to 45°C
  • • Max housing temperature: 58°C

  • • DB Rating @ 3ft.: 43.2dB
  • • BTU: 0.32
  • • BTU/H: 1,142.35

  • • 1 Power cable
  • • 2 Omega brackets
Specifications subject to change without notice

COLORS AND GOBOS

Color Wheel 1

Blue
Blue
 CTO
CTO
 Deep Blue
Deep Blue
 Green
Green
 Light Blue
Light Blue
 Light Green
Light Green
 Magenta
Magenta
 Orange
Orange
 Purple
Purple
 Red
Red
 Yellow
Yellow

Gobo Wheel 1 Rotating

Gobo 18
 Gobo 19
 Gobo 20
 Gobo 21
 Gobo 22
 Gobo 23
 Gobo 24

Gobo Wheel 2 Static

Gobo 1
 Gobo 2
 Gobo 4
 Gobo 5
 Gobo 9
 Gobo 10
 Gobo 11
 Gobo 12
 Gobo 13
 Gobo 16
 Gobo 25
 Gobo 26
 Gobo 27
 Gobo 28
 Gobo 29
