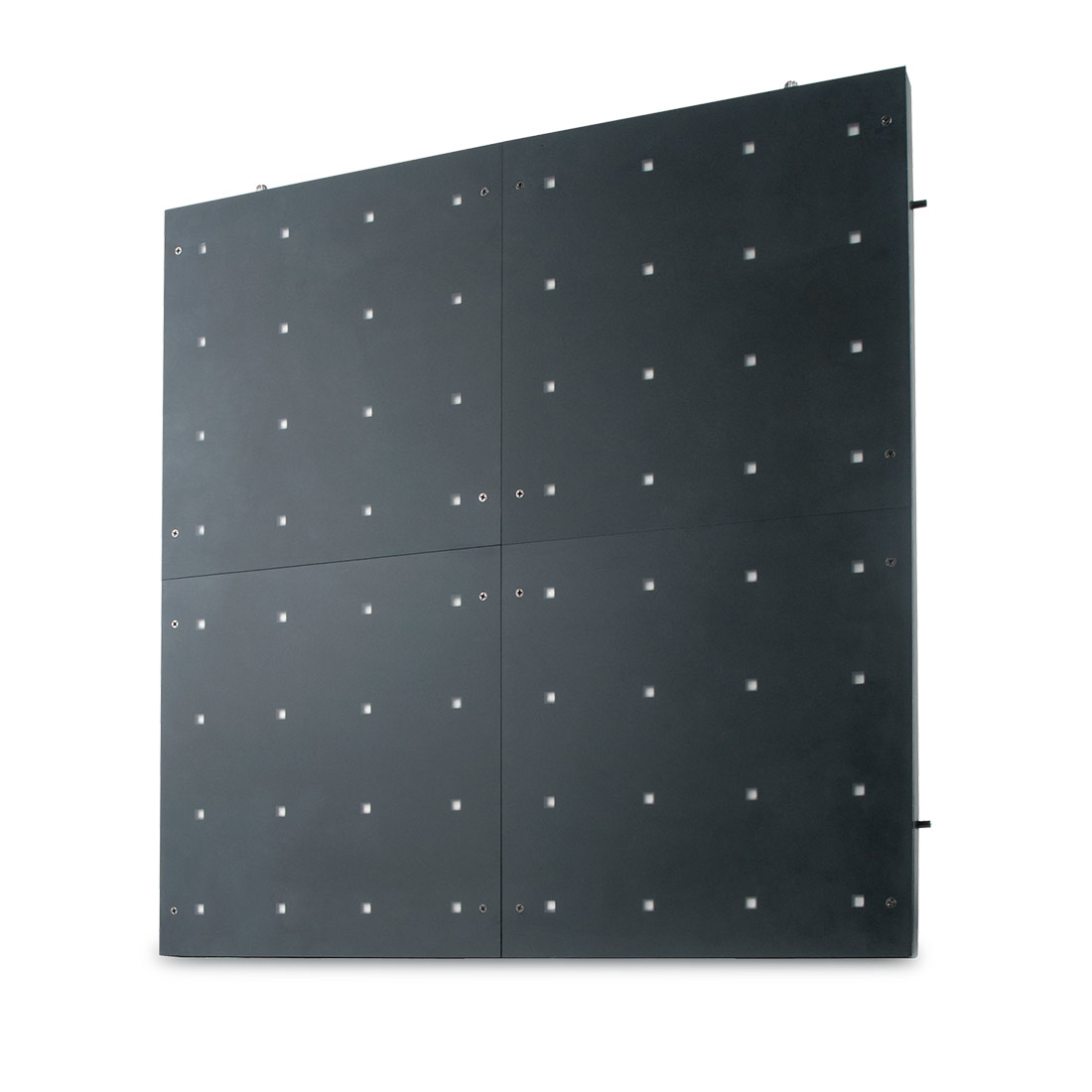

Flash Kling Panel 64
Archive

Brand

Features:
- LED Pixel panel for low resolution video displays
- 64 x SMD RGB LED’s (8x8 Matrix Configuration)
- 120-degree beam angle
-  Kling Net & Art-Net compatible


Read More

Product Information

SKU: 1226300029
GTIN: 819730012395
HS-Code: 9405423990

Features:
- LED Pixel panel for low resolution video displays
- 64 x SMD RGB LED’s (8x8 Matrix Configuration)
- 120-degree beam angle
-  Kling Net & Art-Net compatible

Gallery

Specification

     Specifications:
    - Light Source: 64 x 0.164W, SMD RGB LEDs, (Rated at approximately 50,000 hours)
    - Operational Mode: KlingNet and ArtNet compatible. Recommended control solutions; Arkaos Media Master Express, Media Master Pro and LED Master software’s (sold separately).
    - Beam Angle:120-Degrees
    - Luminance: N/A
    - Kling Net Control: Yes
    - Art-Net Control: Yes
    - RJ45 Connection: Yes In/Out
    - DMX Connections: No
    - Dimming: Electronic 0-100% (via software)
    - Flicker Free: Yes
    - Shutter / Strobe: N/A
    - Strobe Rate: N/A
    - Sound Active: No
    - Power Connection: IEC AC In/out
    - Input Voltage: AC 100V-240V 50/60Hz
    - Power Consumption: 20W (Full on)
    - RJ45 Link: Up to 50 Flash Kling Panel 64’s
    - Dimensions: Inches: Millimeter: 500 X 500 X 63mm
    - Weight: 5.6 kg
    - Optional Accessories: 1226300030 Panel lock to interlock with other Flash Kling Panels and/or Rigging Bars;  1226300031 Single rigging bar for Flash Kling Panel

    Downloads

    User Manual

    Flash Kling Panel 64 User Manual
    (Size: 752.6 KB)
