Entour Pileus Select New
Key Features
Connections
• 2 x 5.6-liter fluid tanks
• 2 x 5.6-liter fluid tanks
Construction
• Heater power: 1650W
• Heater power: 1650W
Effects
• Fog output: Approx. 1,700m³/min
• Fog output: Approx. 1,700m³/min
Product Information
SKU: 1411100035
GTIN: 810087374303
HS-Code: 8424897090

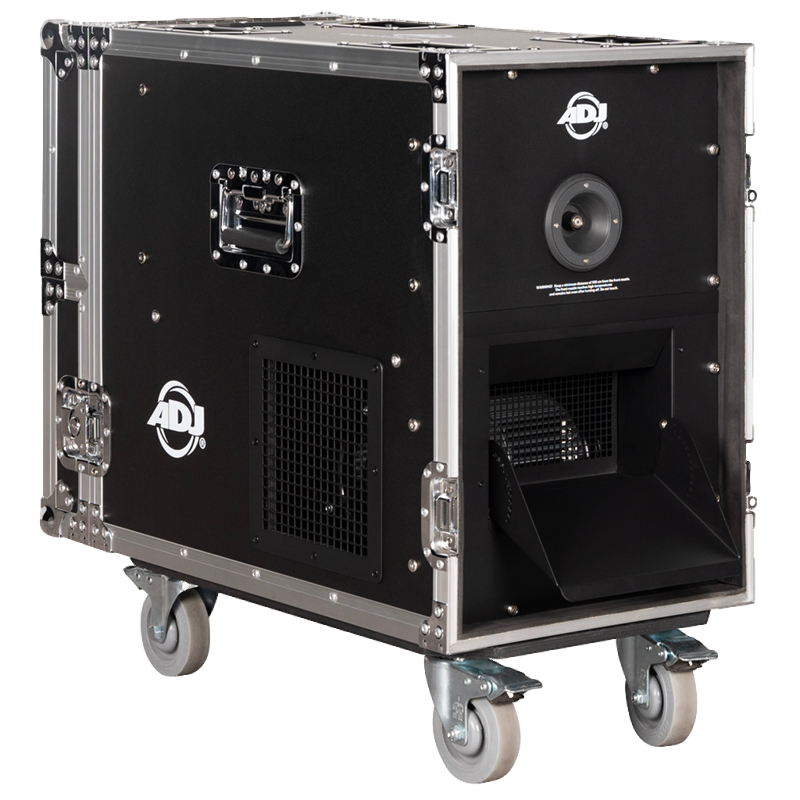

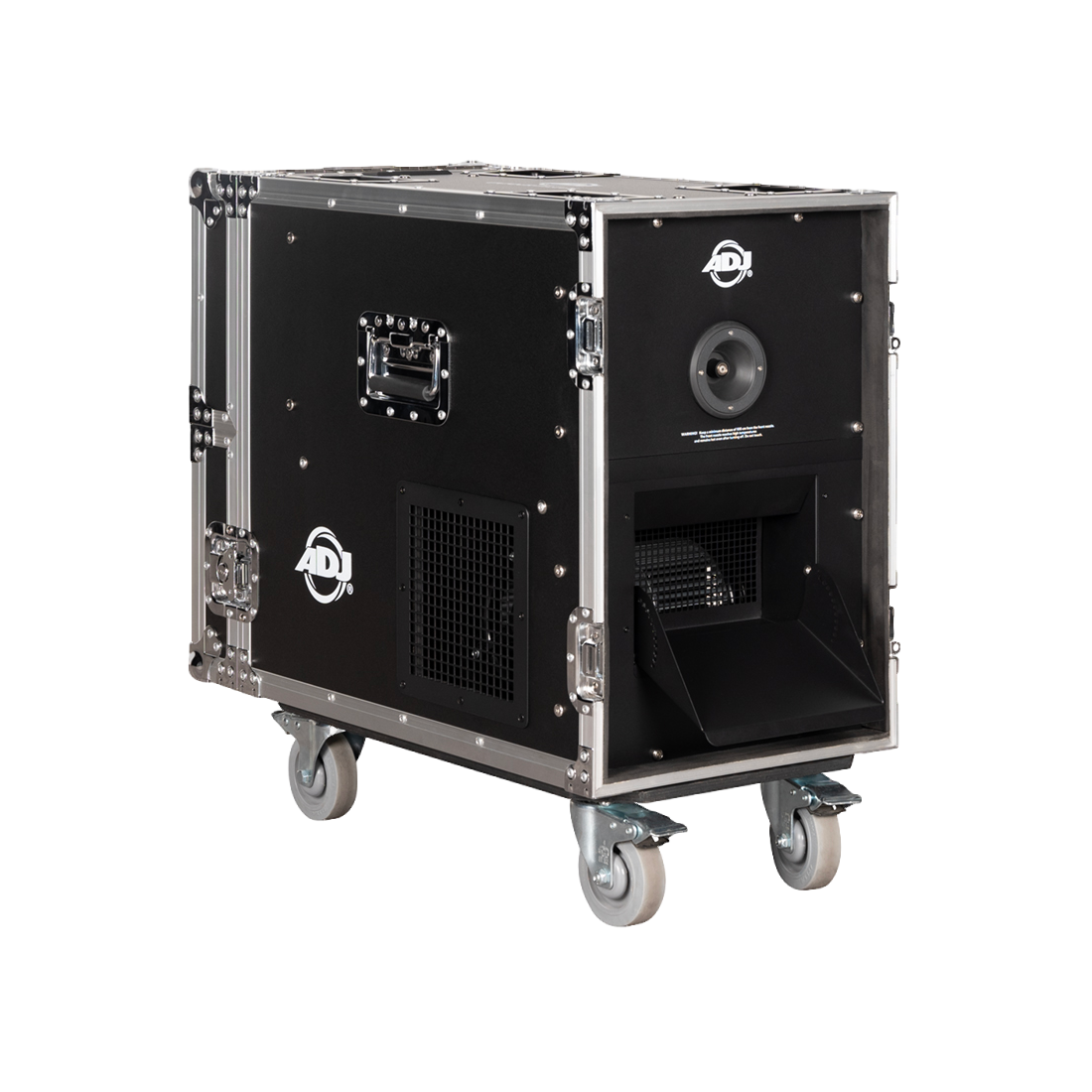

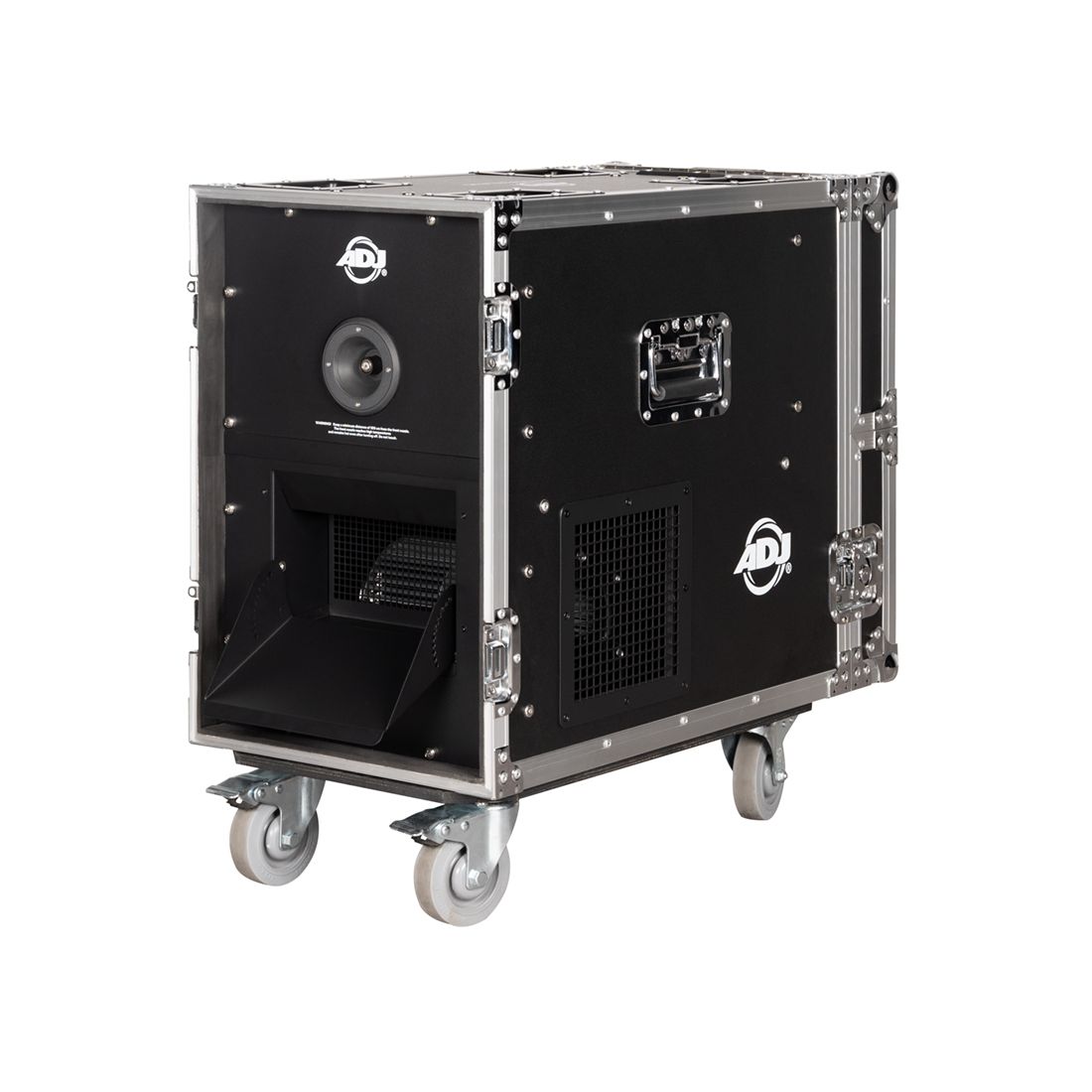

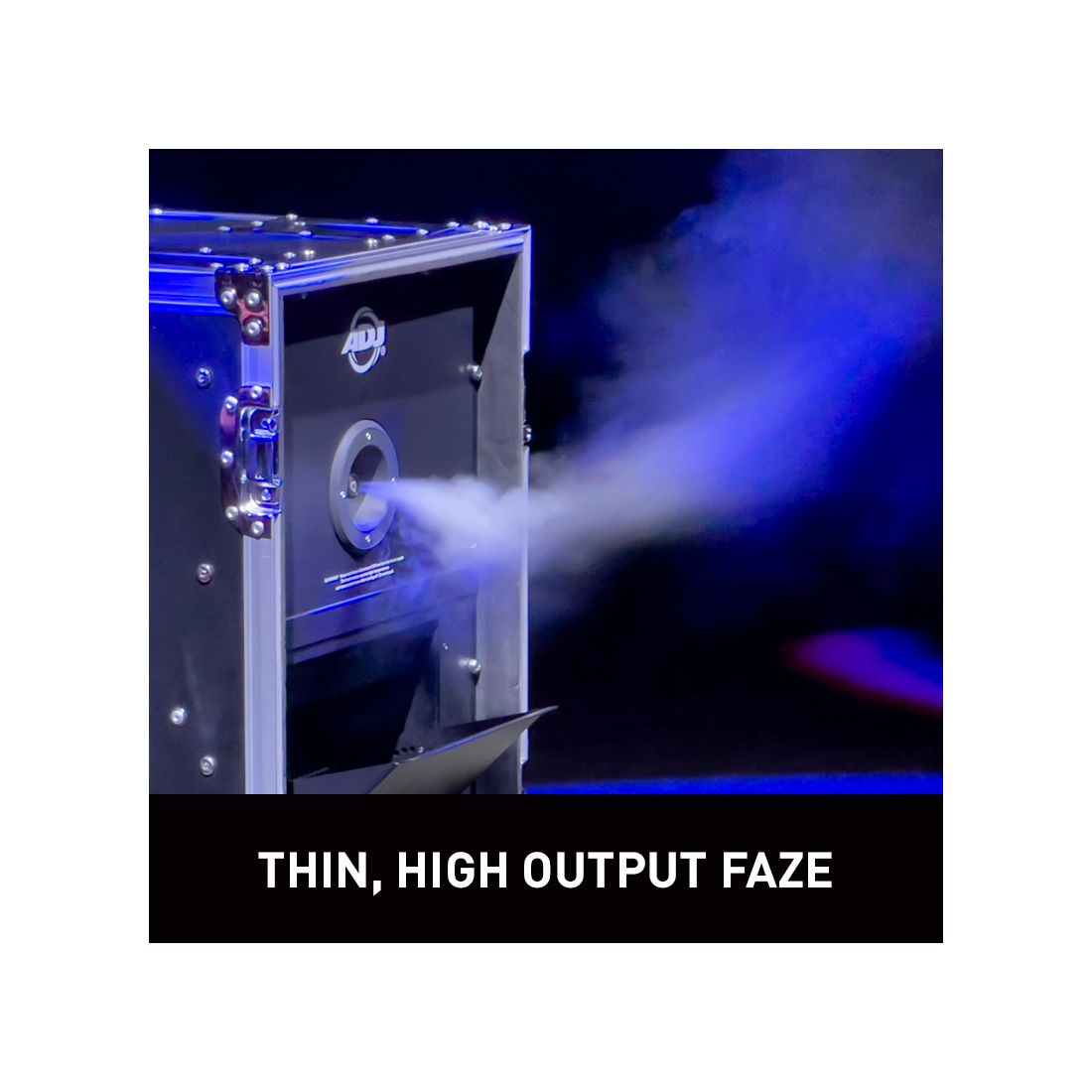

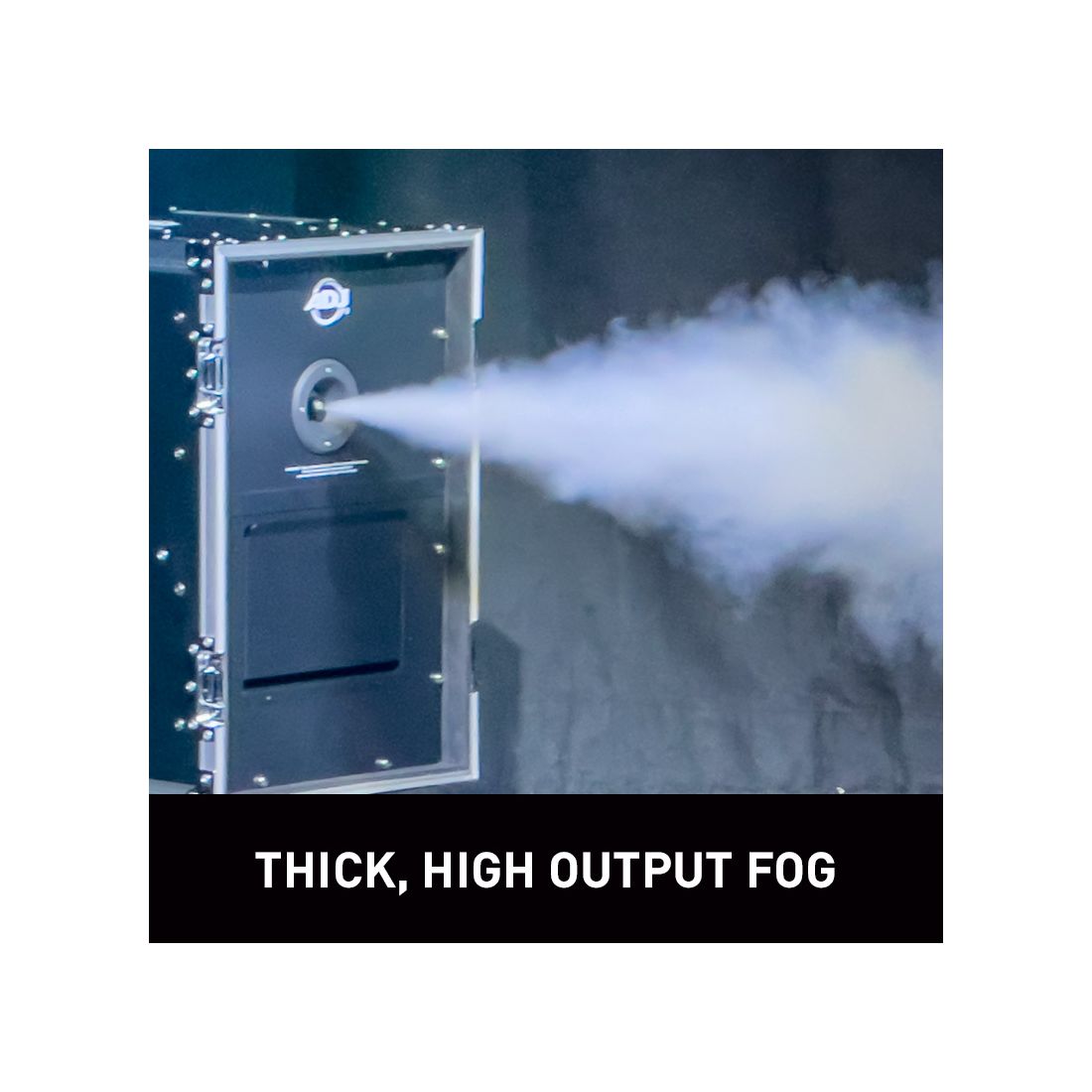

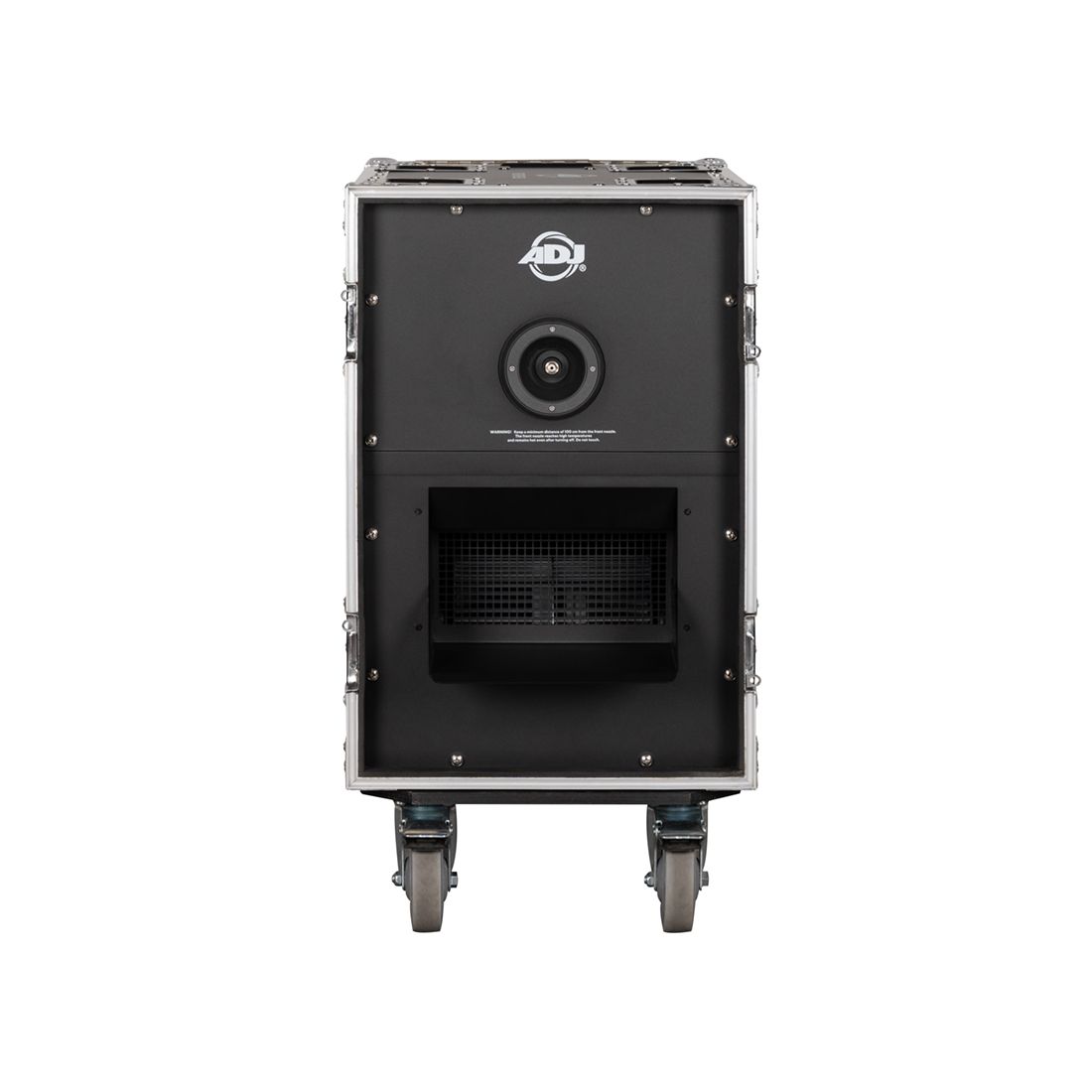

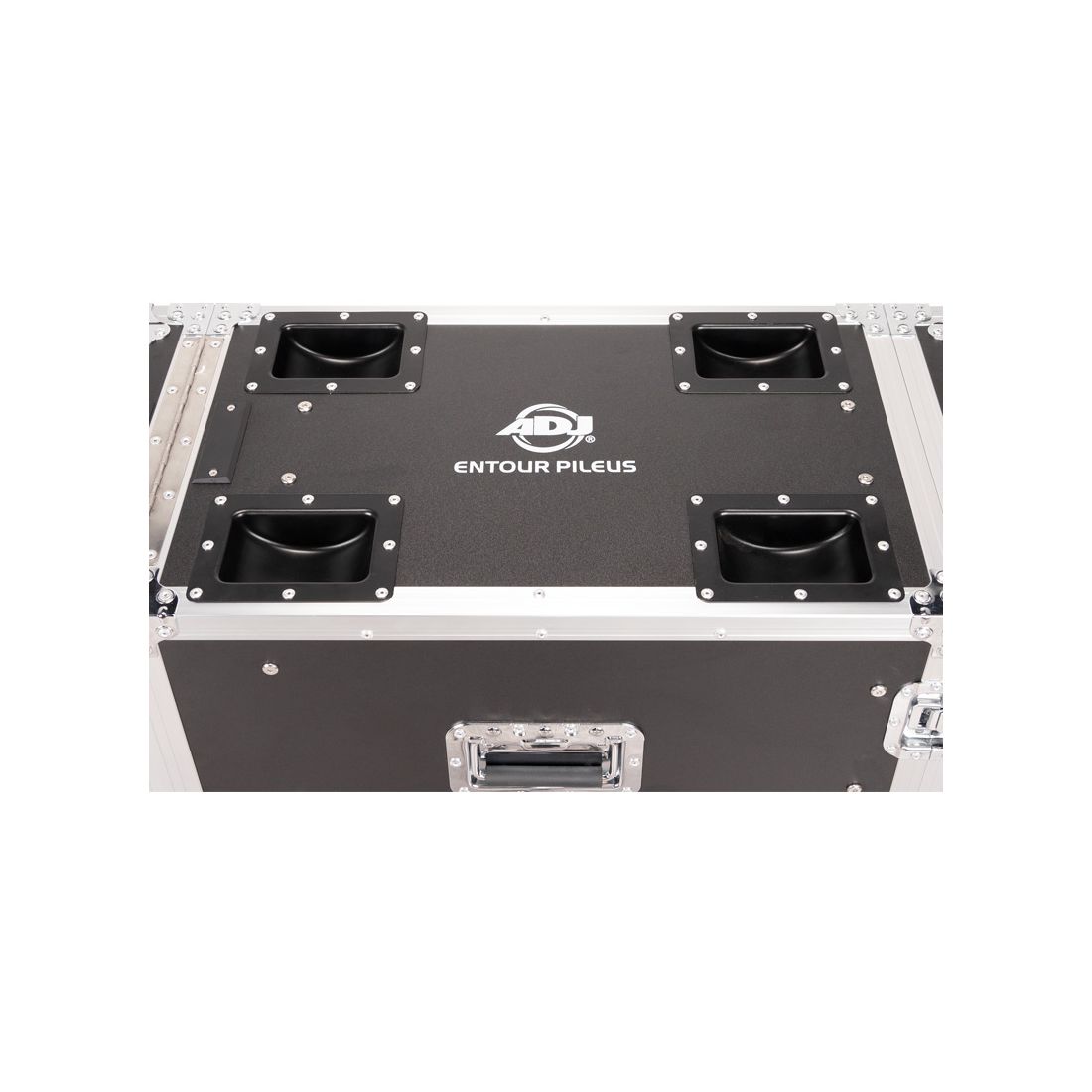

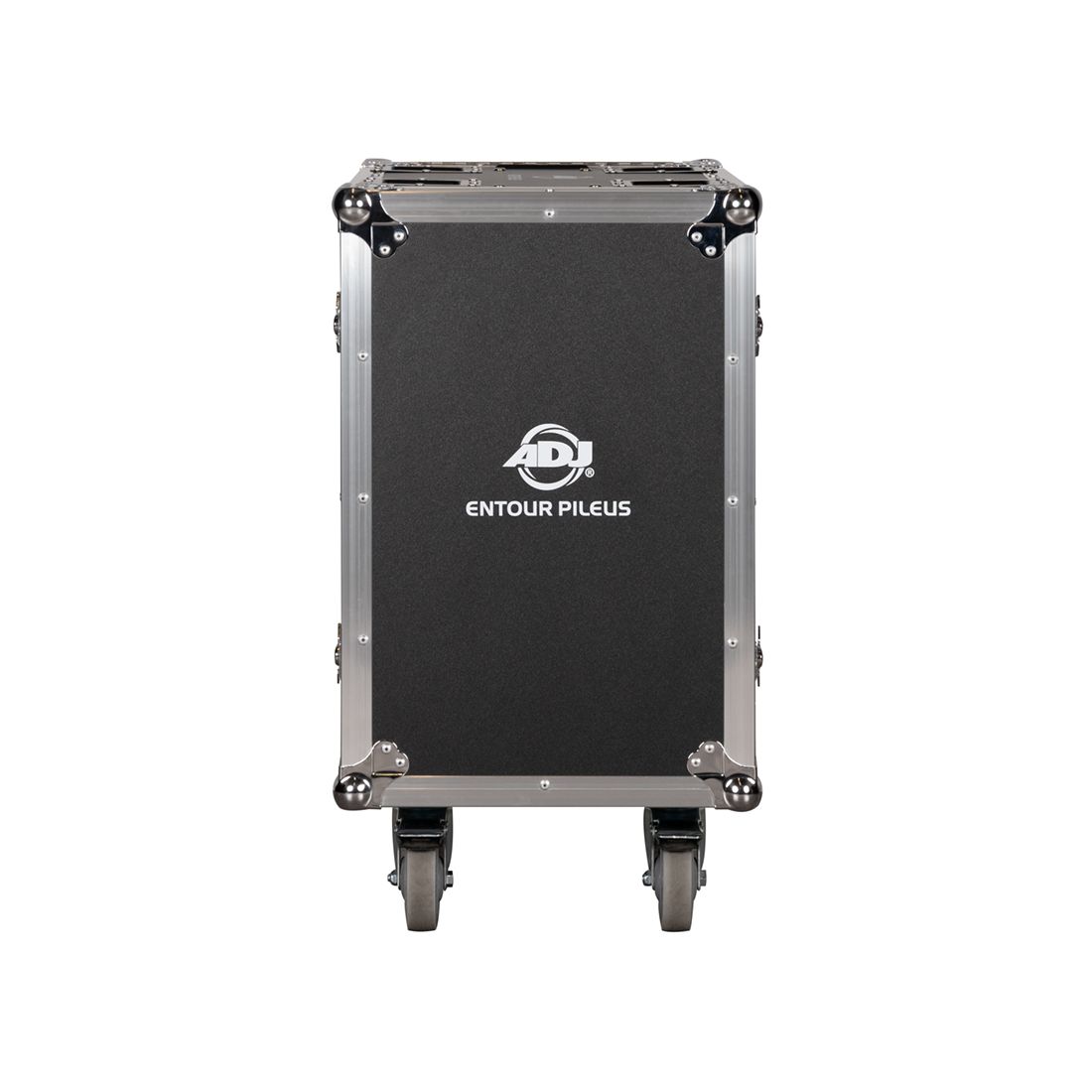

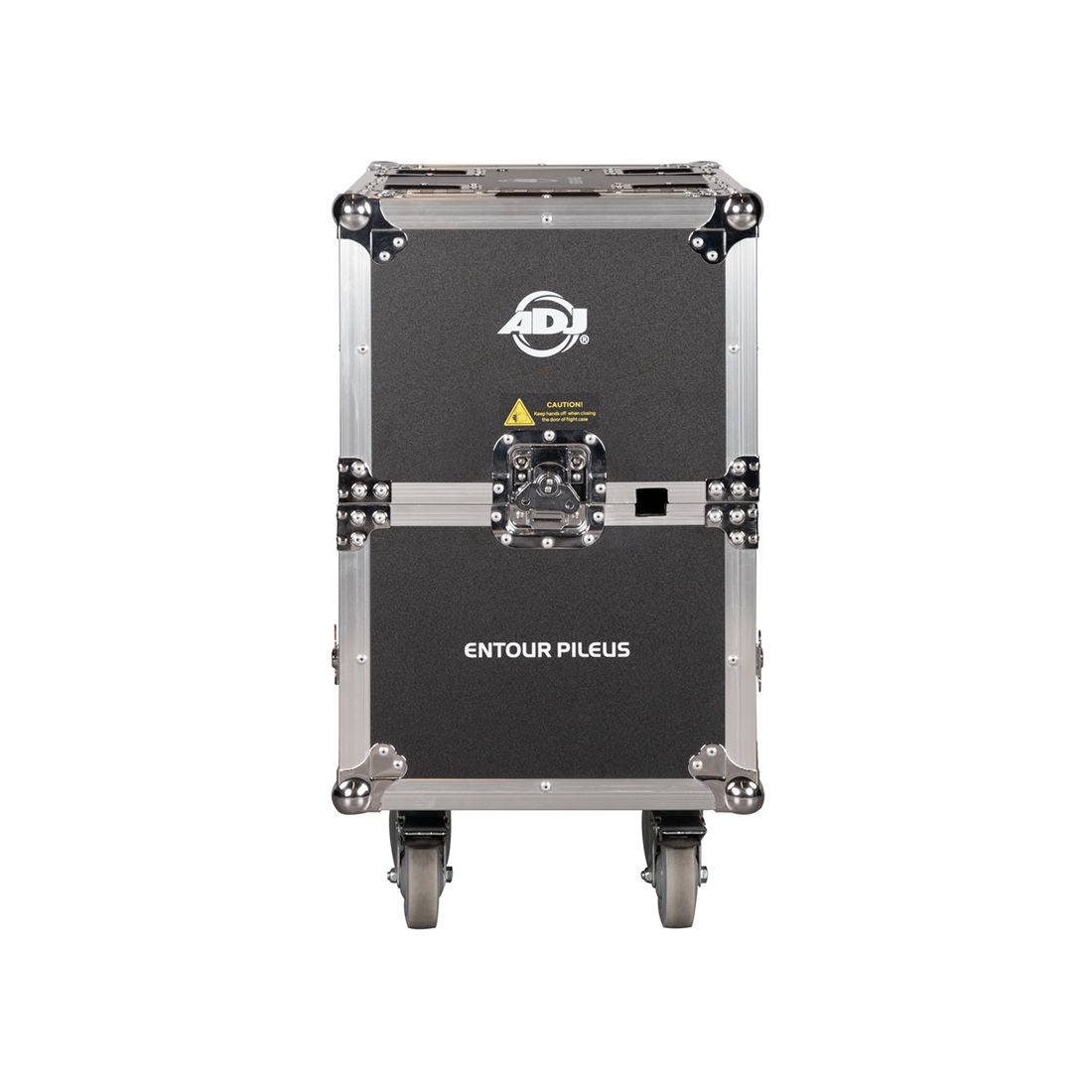

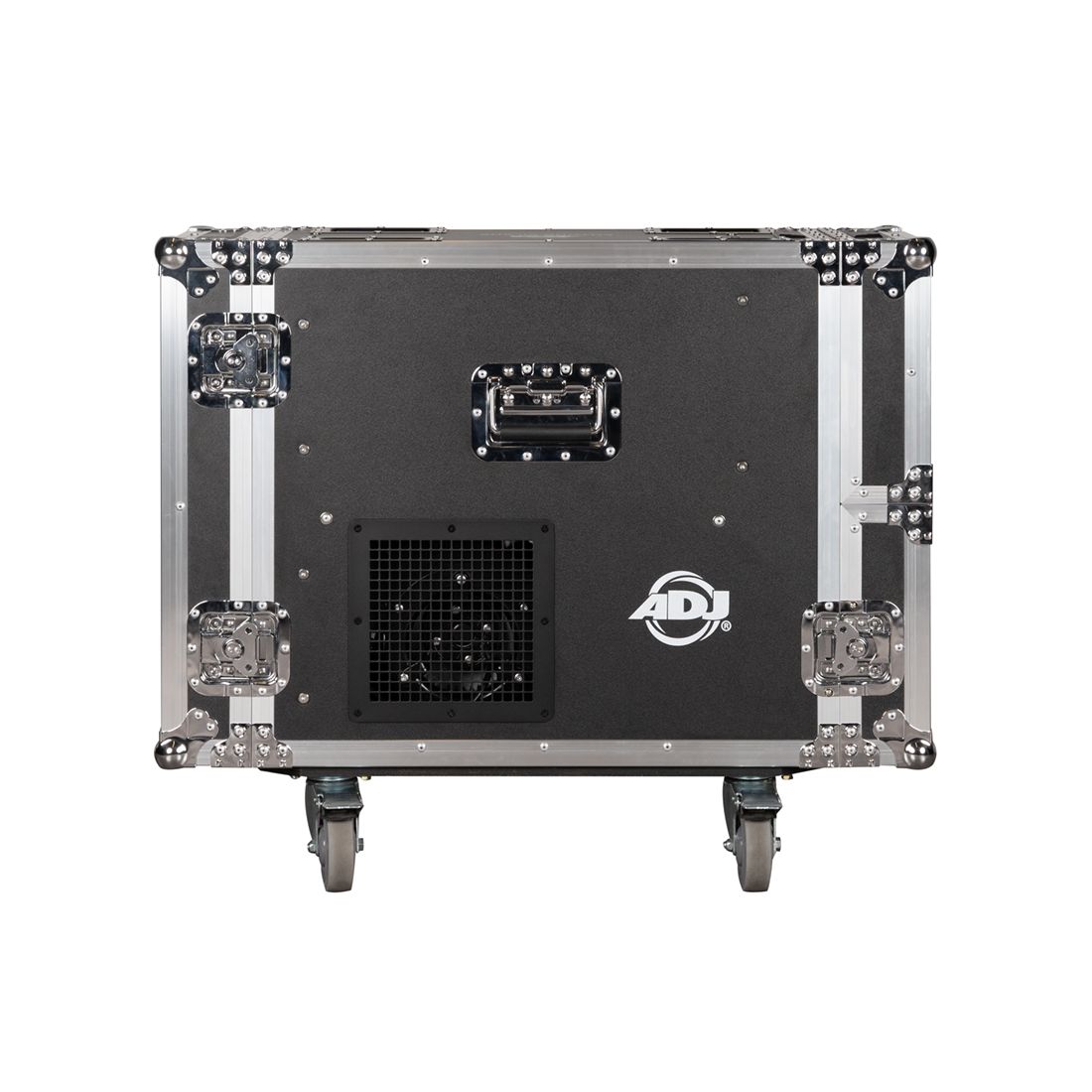

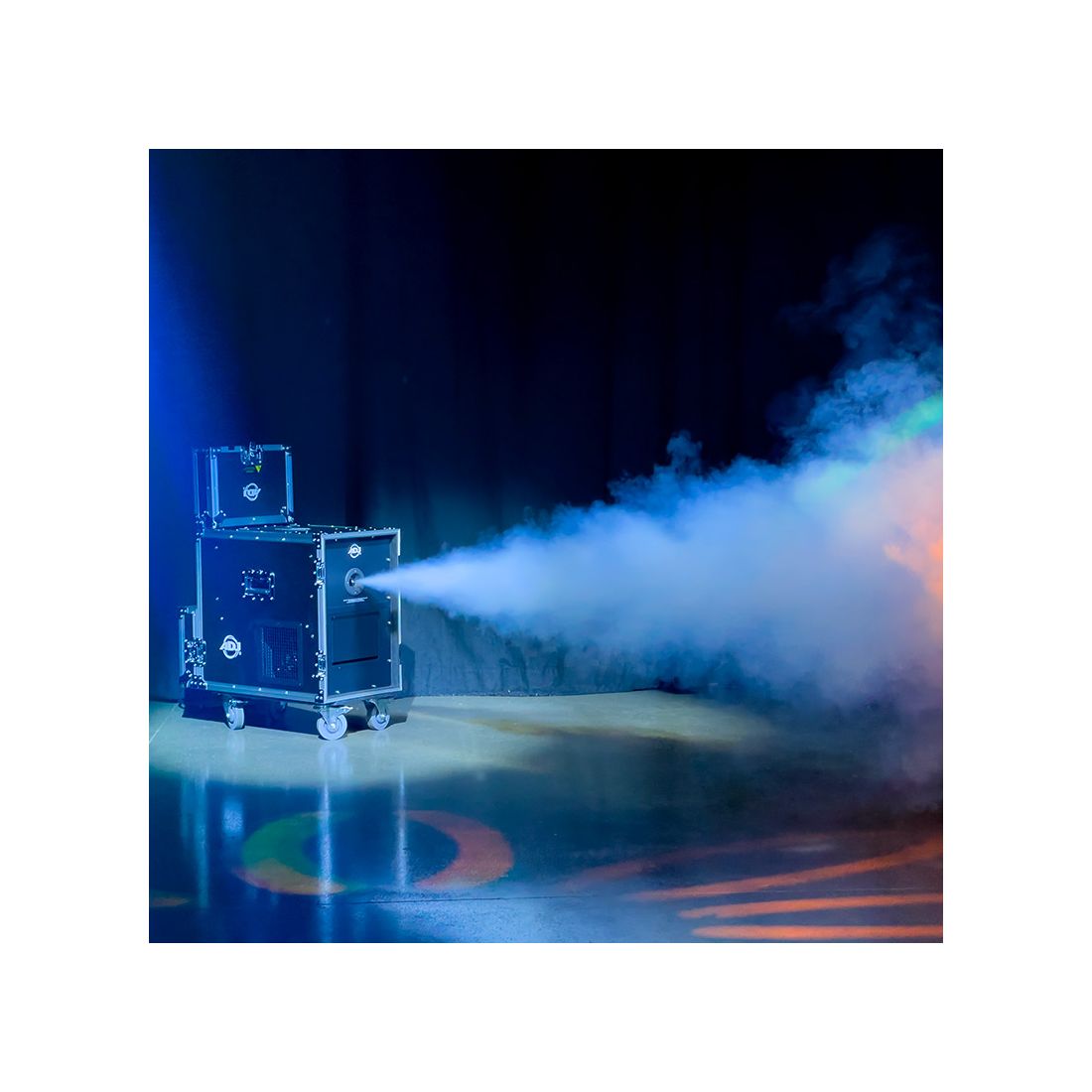

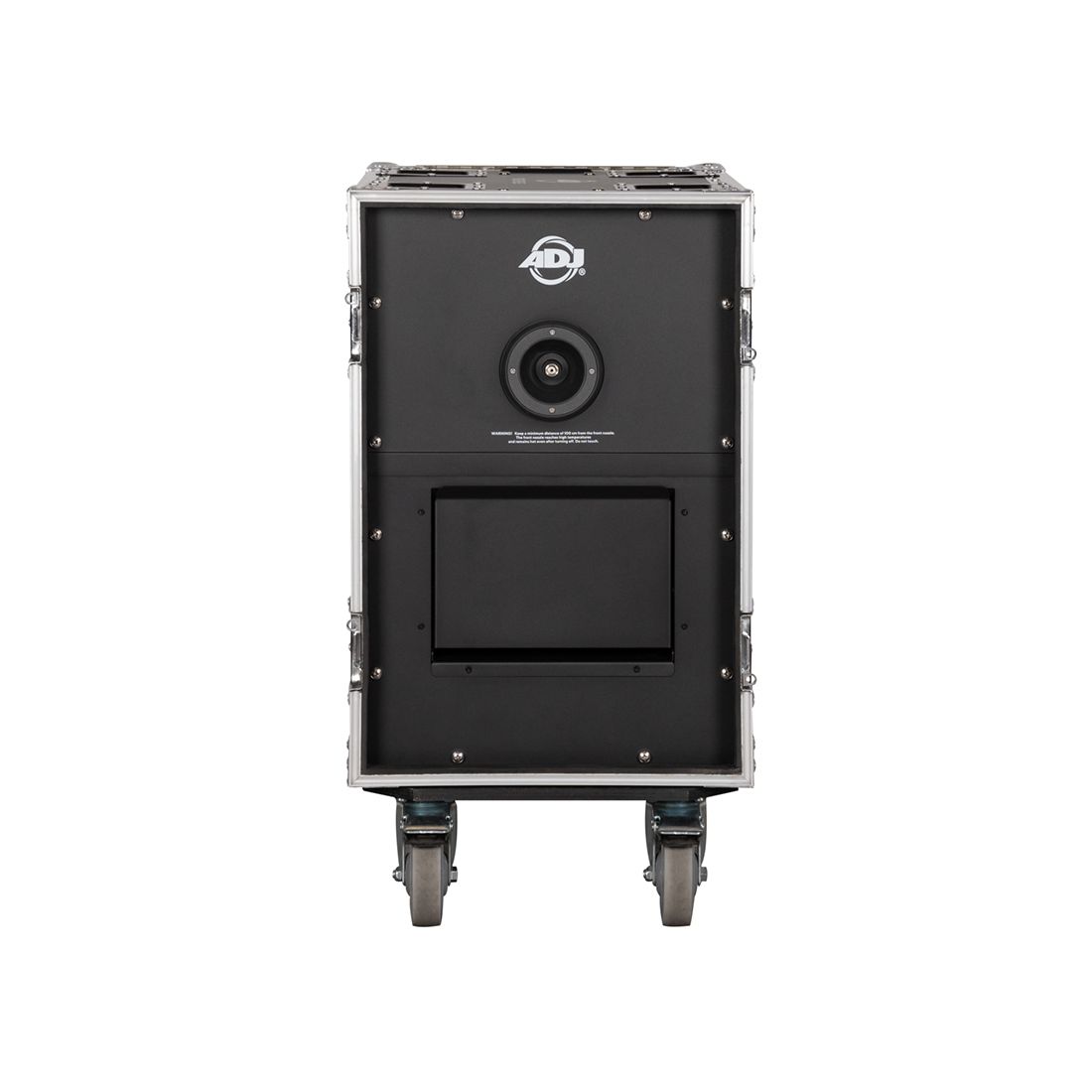

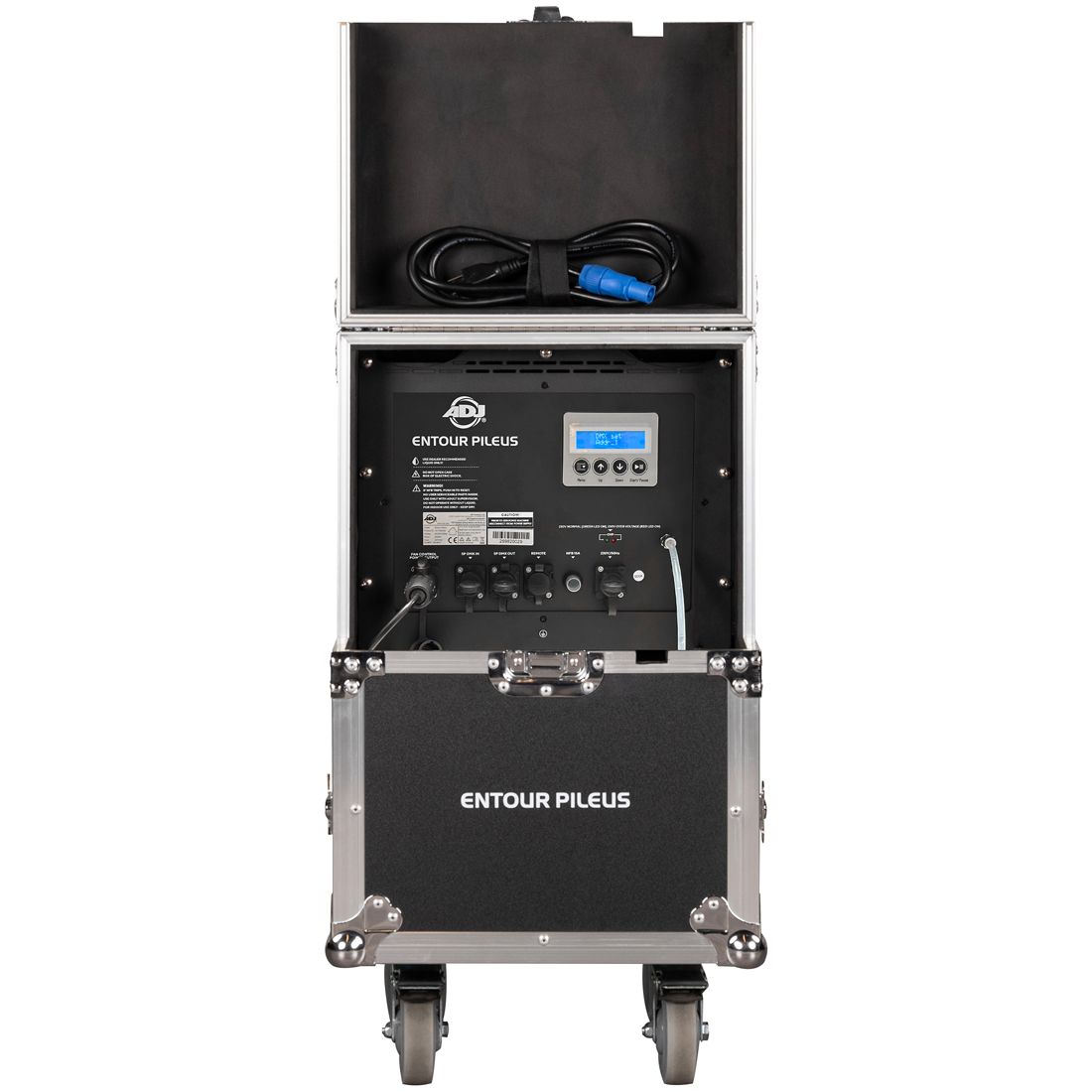

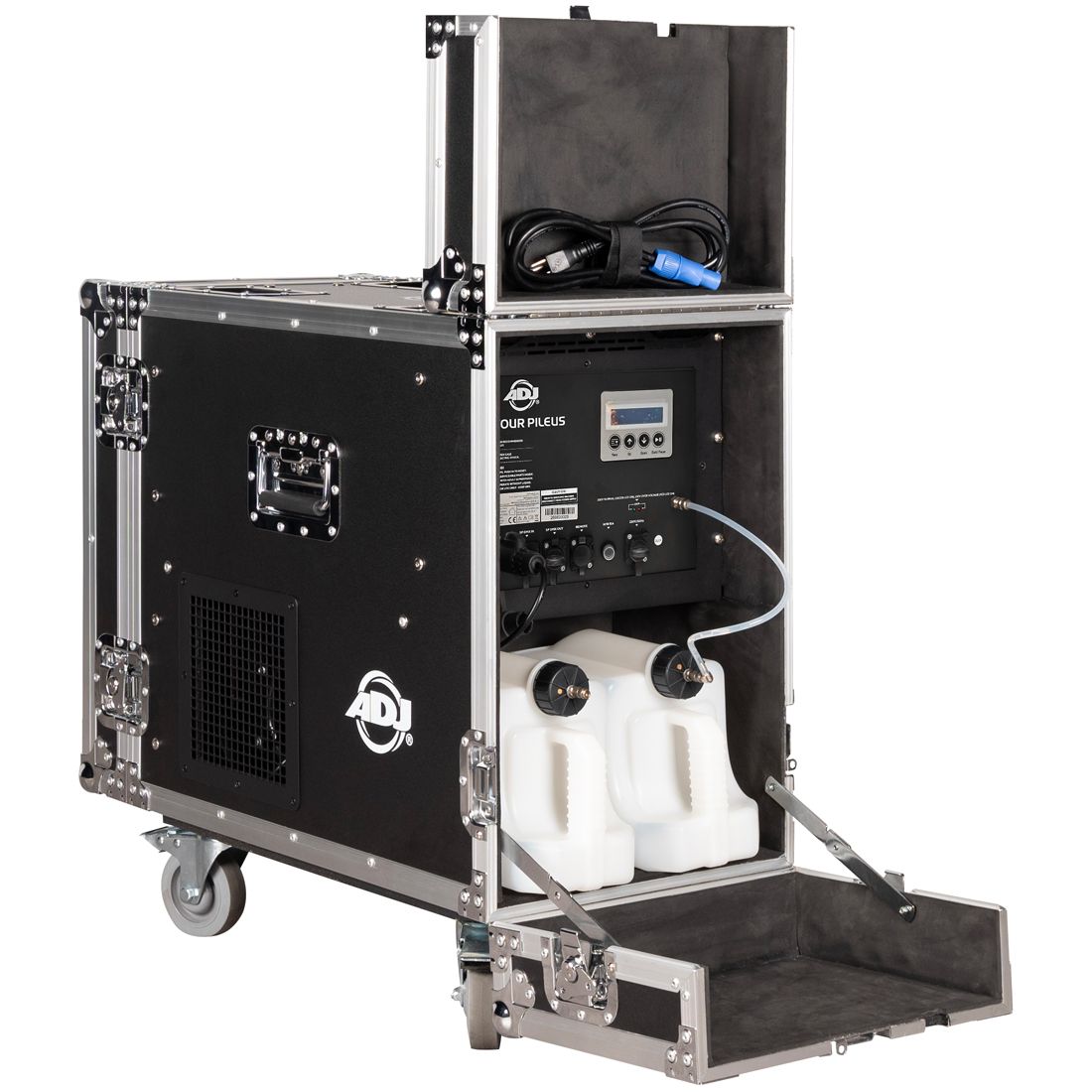

The Entour Pileus, the latest addition to ADJ’s renowned Entour Series, is a versatile, professional-grade multifunctional fog and faze machine tailored for large-scale productions. Encased in a durable flight case with locking castors, this robust machine offers the flexibility to produce either powerful fog bursts or a fine, faze-like mist using standard water-based fog fluid. Equipped with a high-performance 1650W heater, a variable-speed dispersion fan, and advanced fluid consumption management, it ensures precise output control and continuous operation for up to 35 seconds. Capable of delivering a remarkable 60,000 cubic feet of output per minute, the Entour Pileus can easily fill even the largest venues. With dual 5.6L fluid tanks, a 16.5-minutes warmup time, multiple control options, 5-pin DMX In/Out, and a cutting-edge self-cleaning system, it’s the perfect atmospheric generator for tours and large-scale events.
Gallery
Specification
- • Fog output: Approx. 1,700m³/min (60,000 cu. ft./min.)
- • Fog output adjustment: 5-100%
- • Fan speed adjustment: 5-100%
- • Disconnectable fan
- • Fluid consumption: 38-180ml/min
- • Maximum output duration with Continuous Mode disabled: 35 seconds
- • Continuous Mode automatically adjusts the output to allow longer bursts
- • Self-cleaning cycle: 30 seconds
- • Warm-up time: 16.5 minutes
- • Onboard timer control

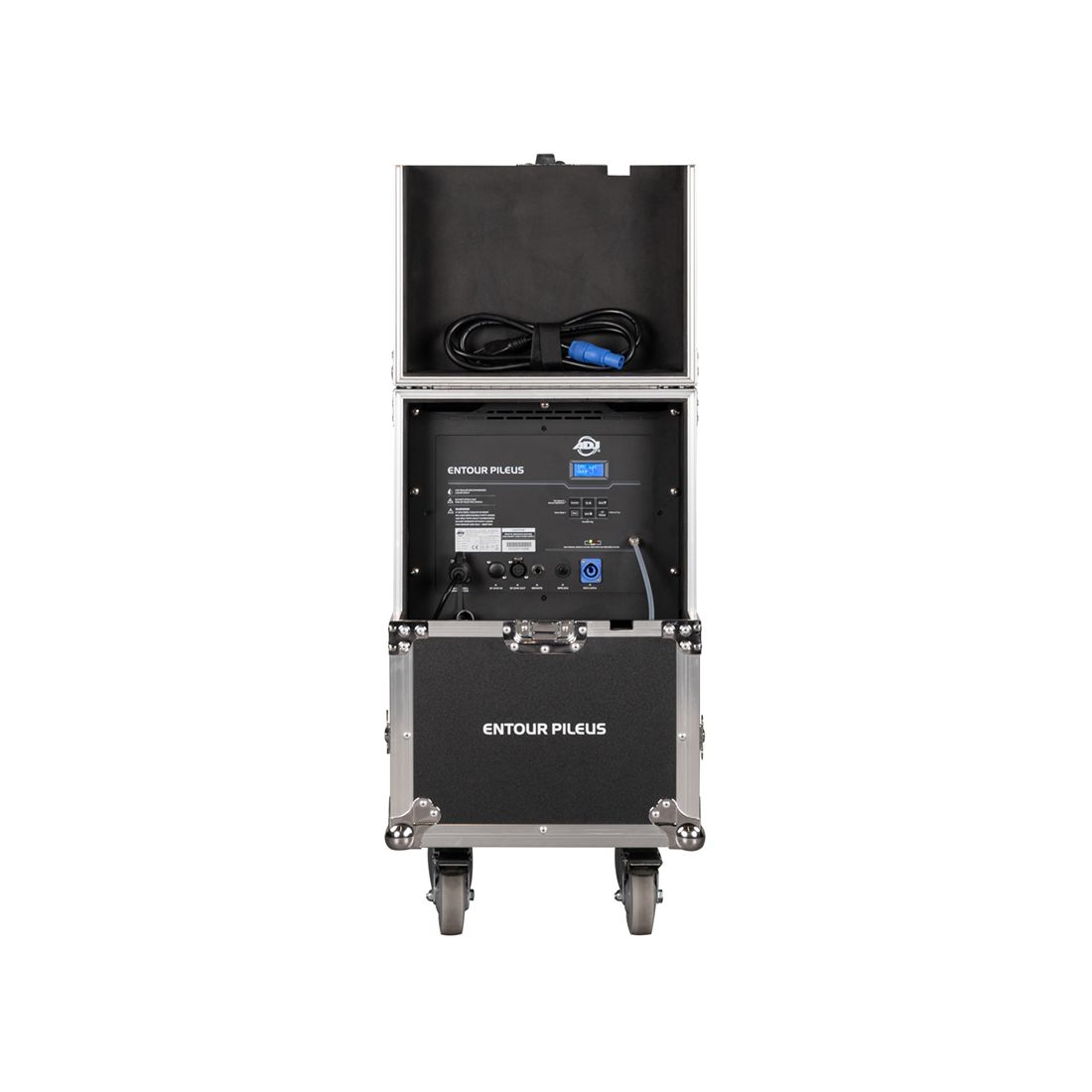

- • LCD display with 4-button control panel
- • 3 DMX channel modes: 1, 2 and 4 channels
- • 5-pin XLR DMX In/Out
- • 4-pin XLR remote controller connection
- • Locking power input connection

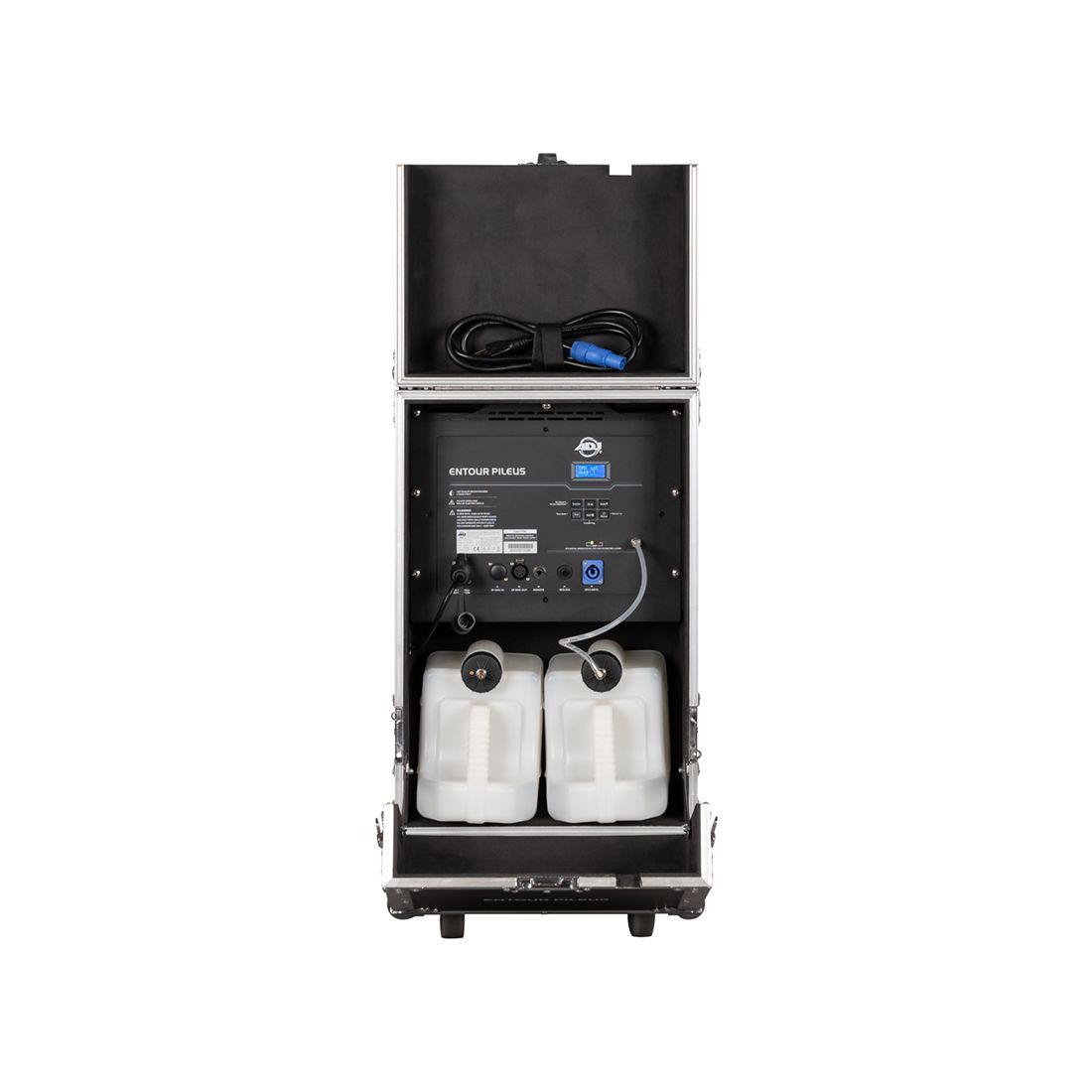

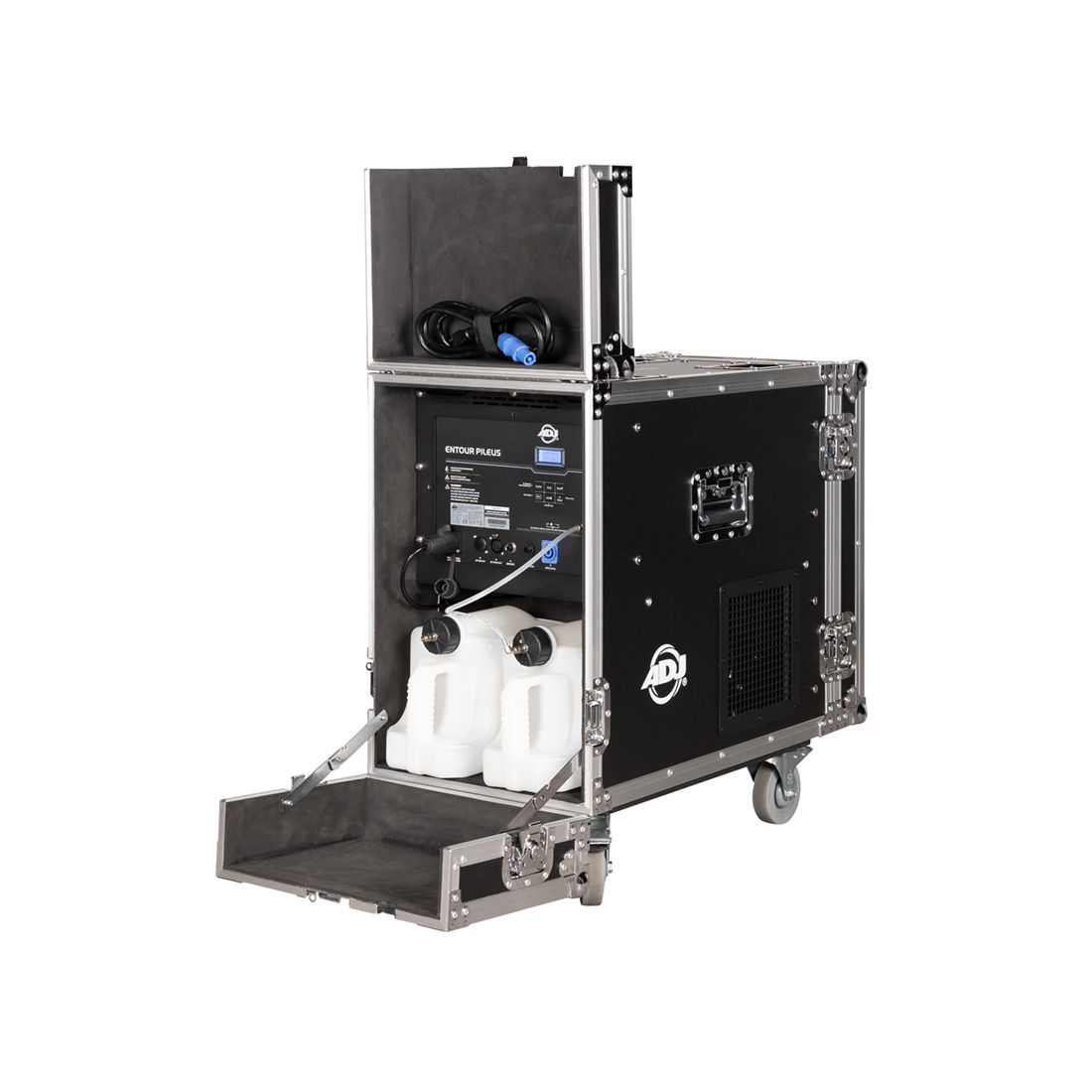

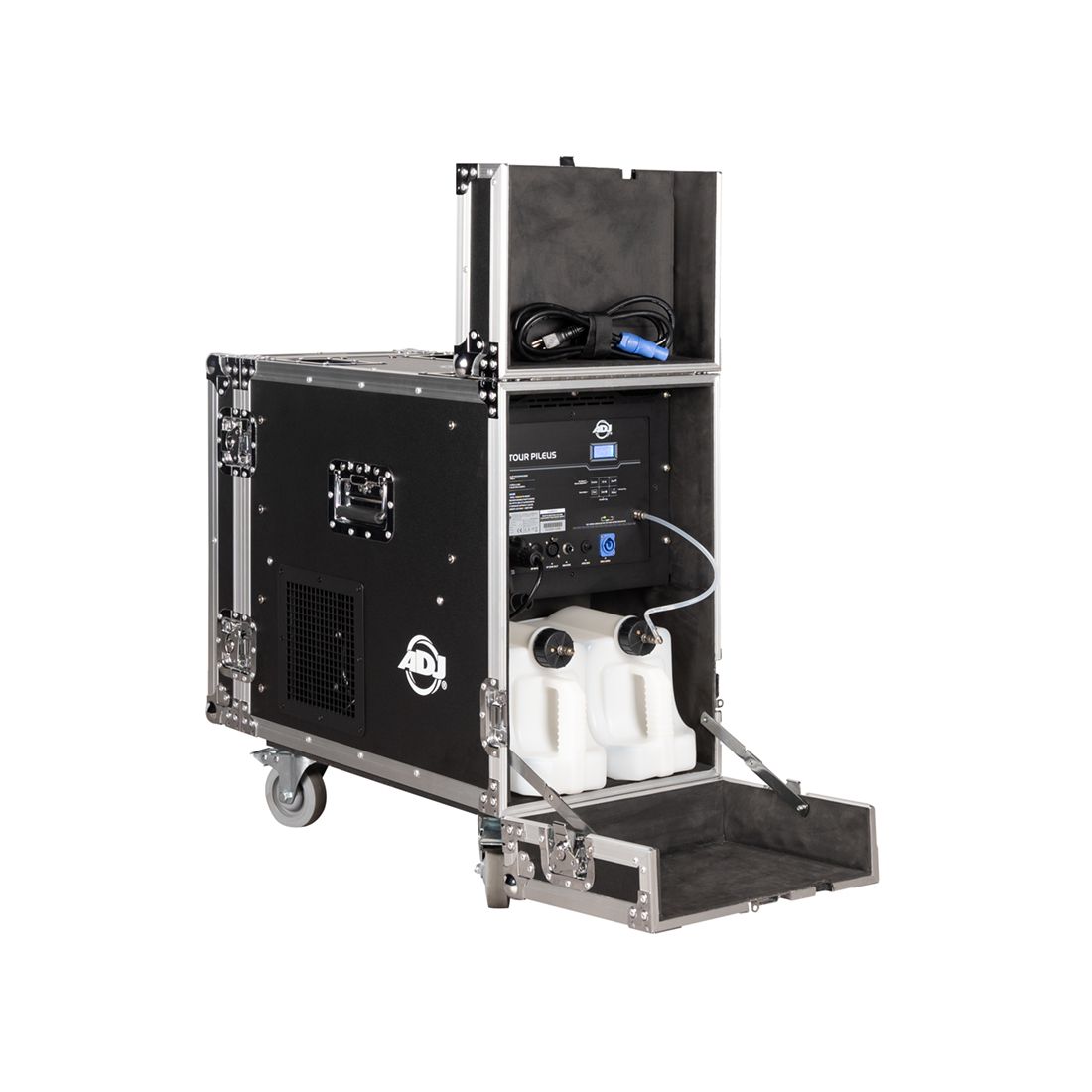

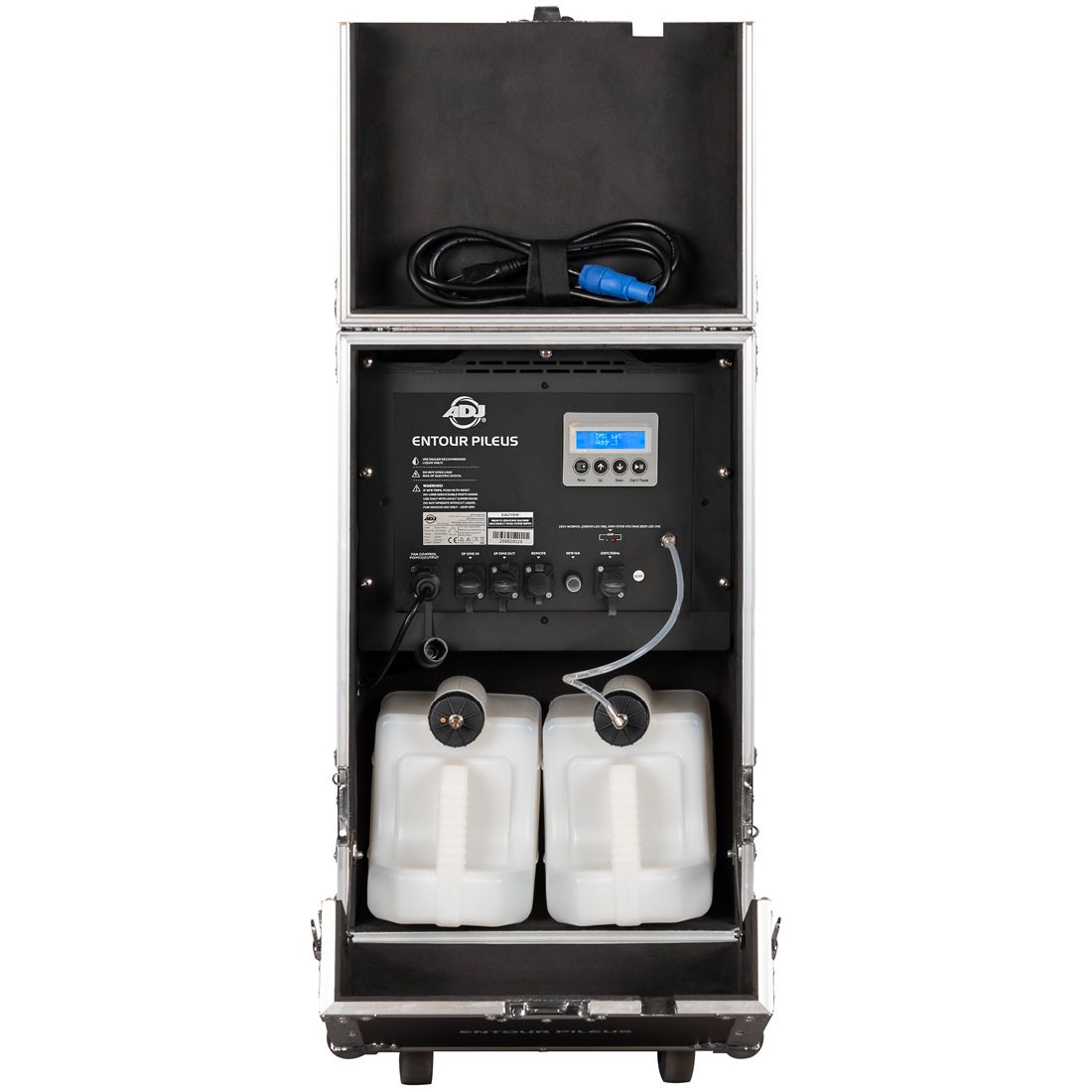

- • 2 x 5.6-liter fluid tanks
- • Total fluid capacity: 11.2 liters
- • Recommended fog fluid: ADJ Fog Juice 2 Medium
- • Heater power: 1650W
- • Maximum power consumption: 2150W
- • Power input: AC 230V, 50Hz
- • OVP (Over Voltage Protection)
- • Fan cooled
- • Maximum ambient temperature (Ta): 40°C
- • Dimensions including wheels (L x W x H): 841 x 408 x 829mm
- • Weight: 63 kg
- • Rugged road case housing
- • Heavy-duty locking castors
Specifications subject to change without notice
