Encore Burst 100 IP
Select
Archive

Brand

Key Features

Construction
Construction
• Metal Housing
• IP Rating: IP65
Optics
Optics
• Beam Angle: 50°
Source
Source
• 1x 125W WW CREE COB-LED
• Color temperature : 2700K (1200K Tungsten Mode)

Product Information

SKU: 1226100367
GTIN: 818651026023
HS-Code: 9405423990

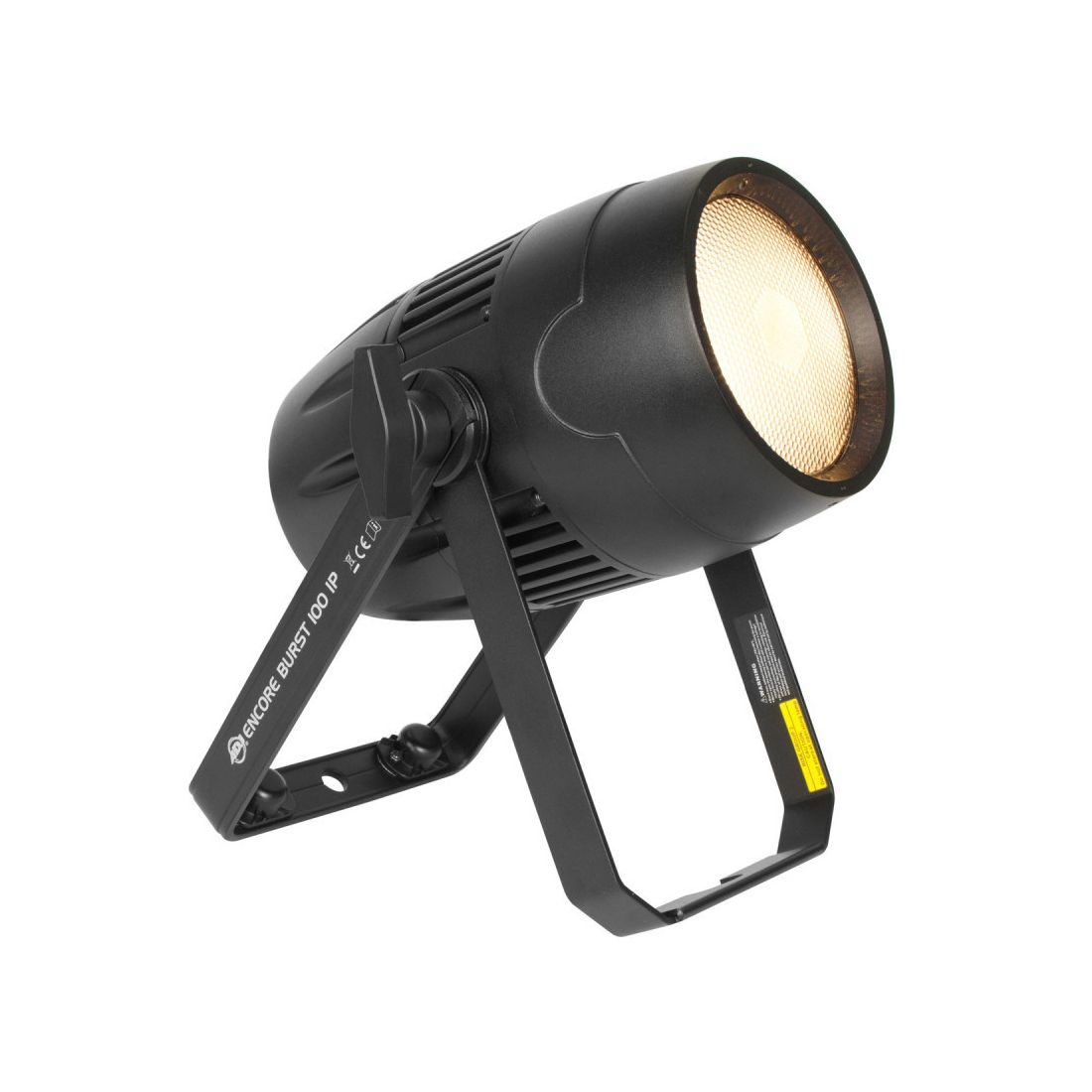

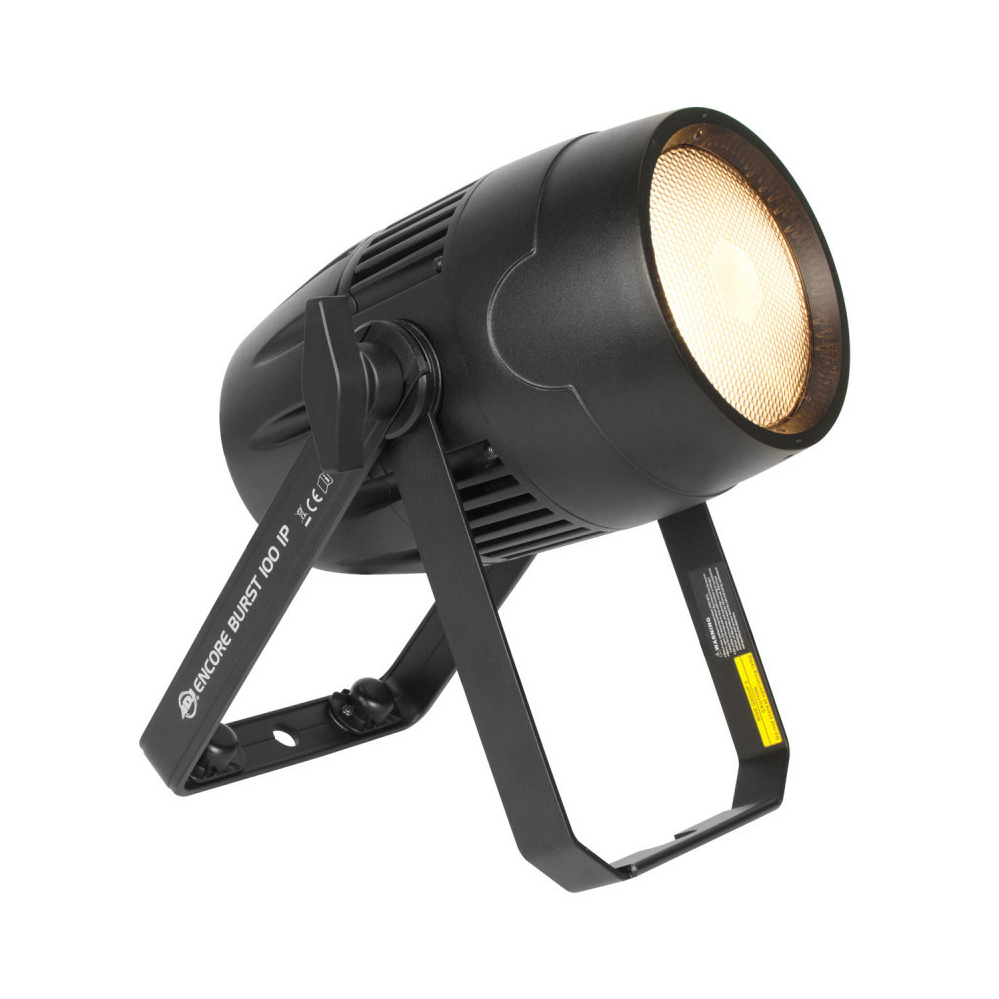

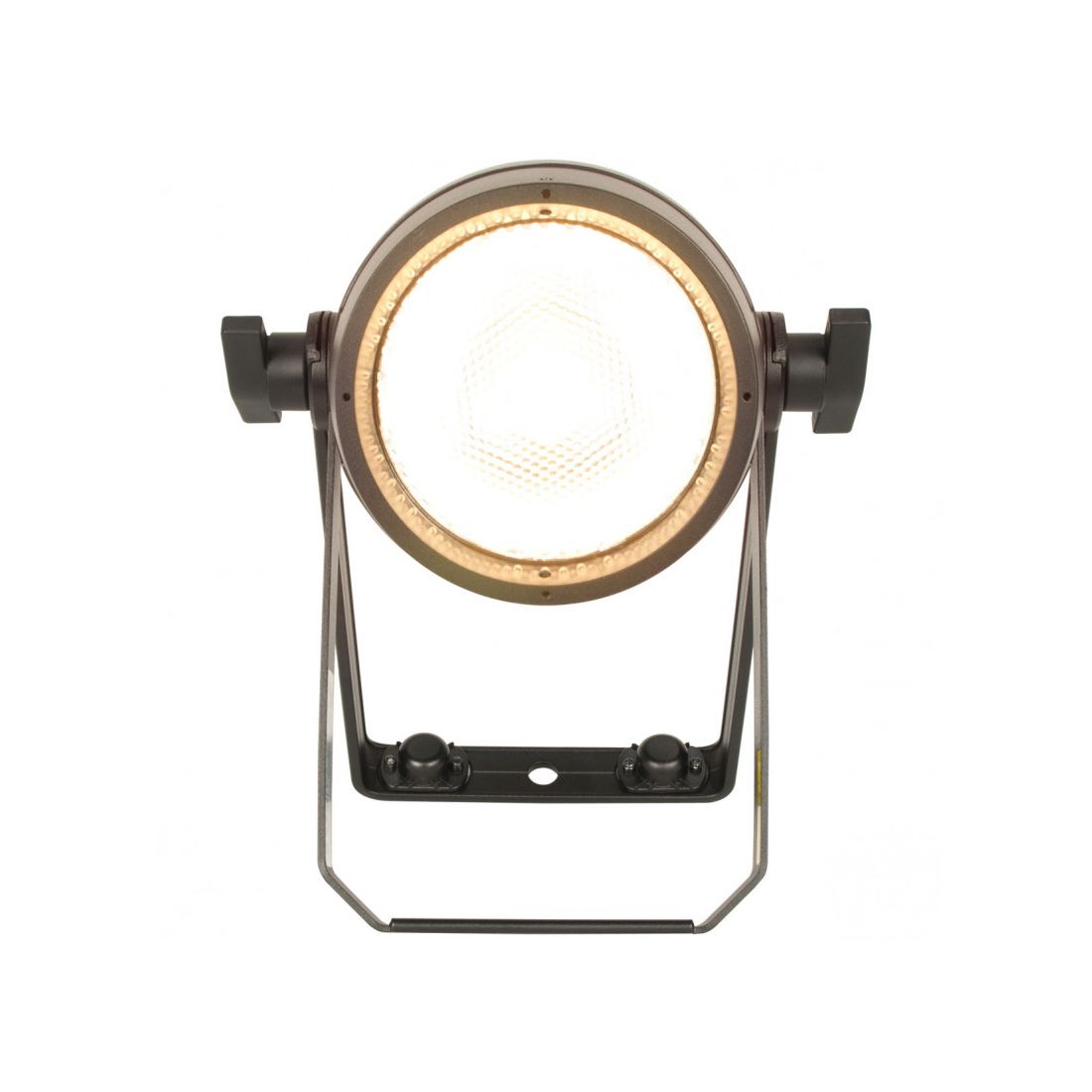

The ADJ Encore Burst 100 IP is a high intensity, IP65 outdoor rated audience blinder/strobe with 125W Warm white (2700K) CREE C.O.B. LED and Tungsten mode (dim to warm). The fixture is constructed of a rugged metal housing. The fixture features a dim to warm effect that replicates a halogen-like dimming profile with a 50-degree beam angle.

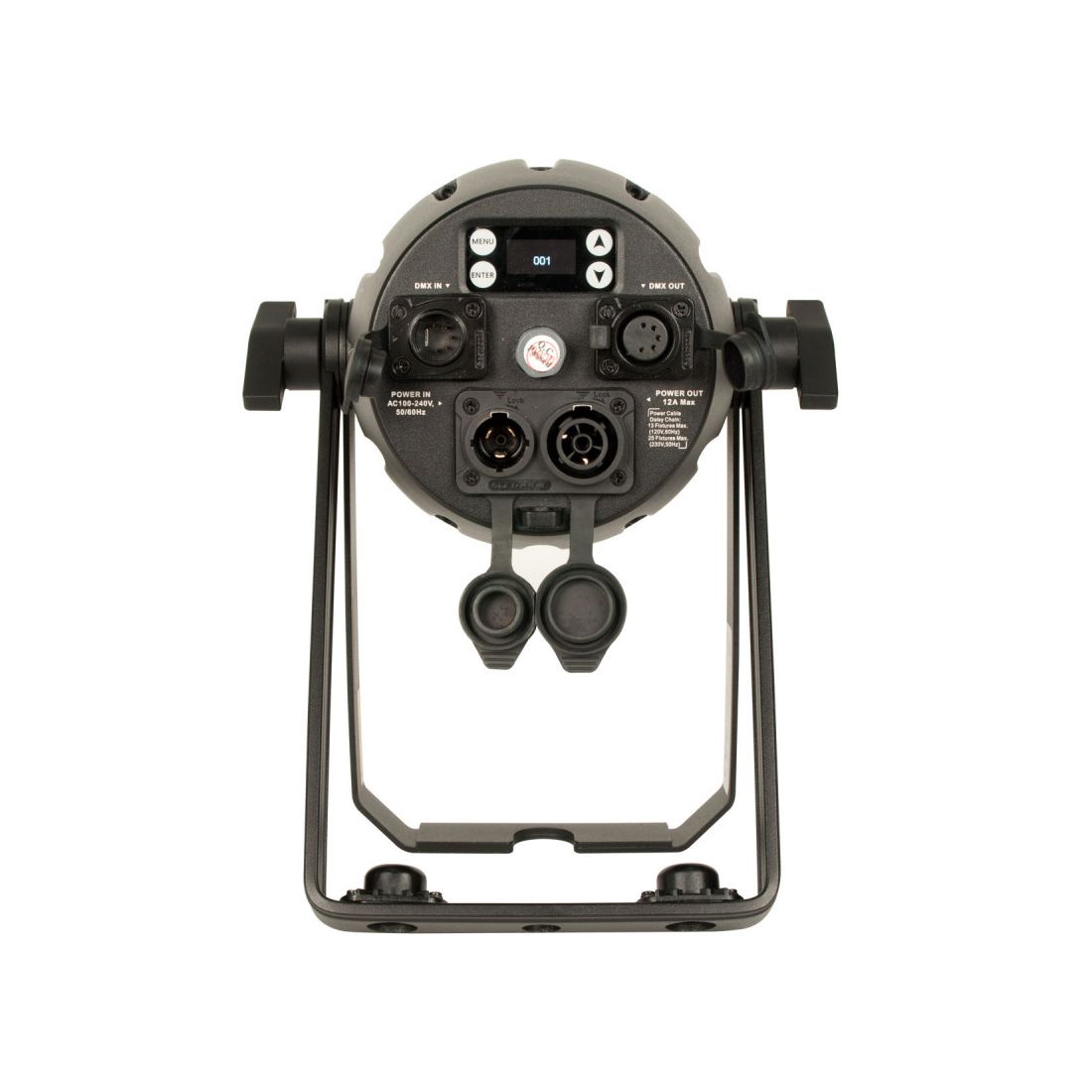

The Encore Burst 100 IP has selectable dimming curves, strobe effect, 4-button LED menu system, 5-pin IP65 DMX In/Out plus IP65 Locking Power IN/Out to daisy chain power (rubber protective covers over connections).

Gallery

Specification

  • • Light Source: 1 WW CREE COB-LED
  • • Individual LED wattage : 125W
  • • Average LED lifetime : approximately 50,000 hrs.
  • • Color temperature : 2700K (1200K Tungsten Mode)

  • • Beam Angle: 50 degrees

  • • 3 operational Modes : Manual Dimmer Mode, Tungsten Mode and DMX Control
  • • 4 DMX Modes: 1, 2, 3 & 4-channel
  • • RDM compatible
  • • 16bit Electronic Dimming: 0 - 100%
  • • 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • • Adjustable Dim Speed 0,1secs - 10secs
  • • Adjustable LED refresh Rate : 900Hz - 25kHz
  • • Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.6/2.8
  • • LED pulse and strobe effect

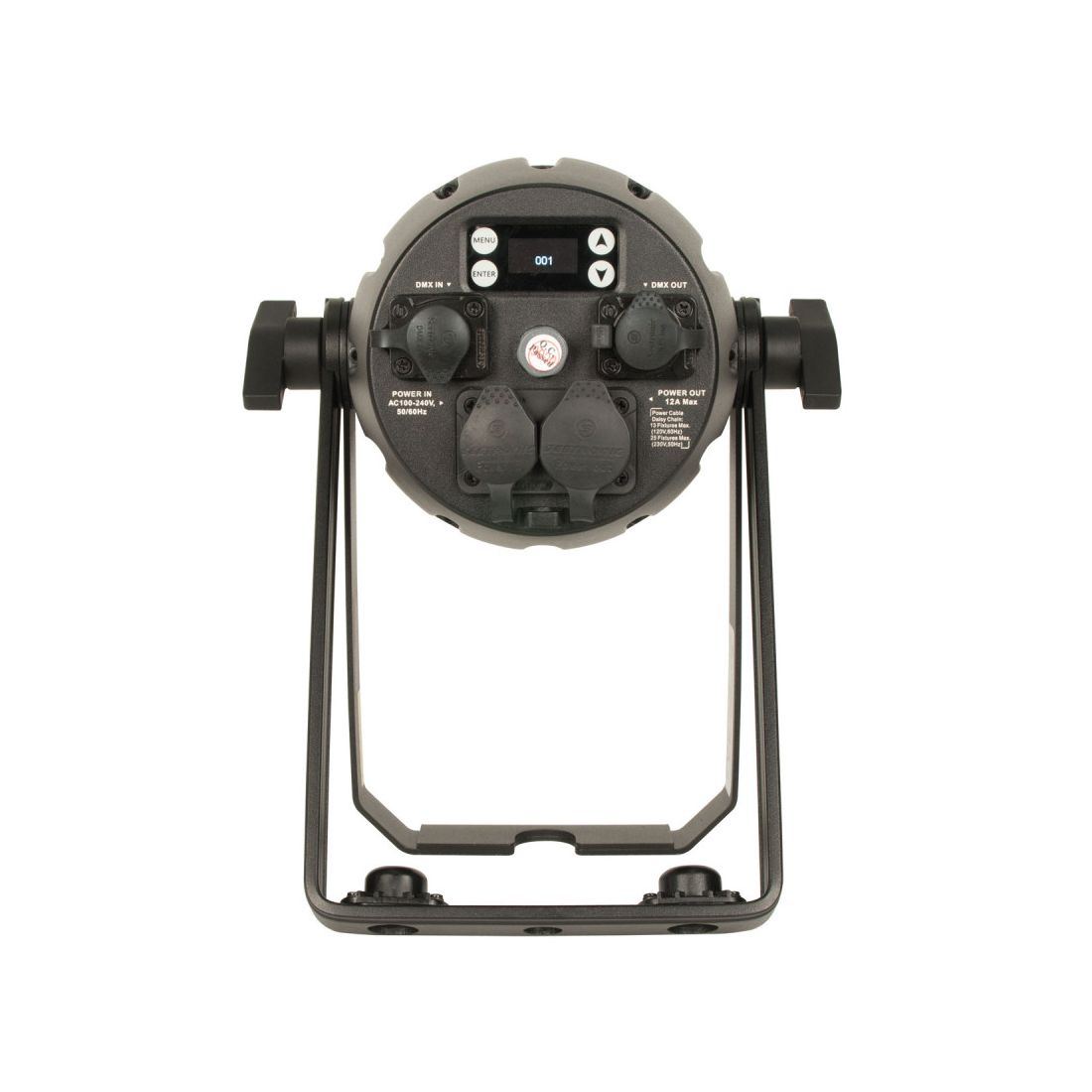

  • • 4-button, DMX digital touch OLED display on rear panel

  • • Warm White 2700K (1200K Tungsten Mode)

  • • Metal Housing
  • • IP Rating: IP65

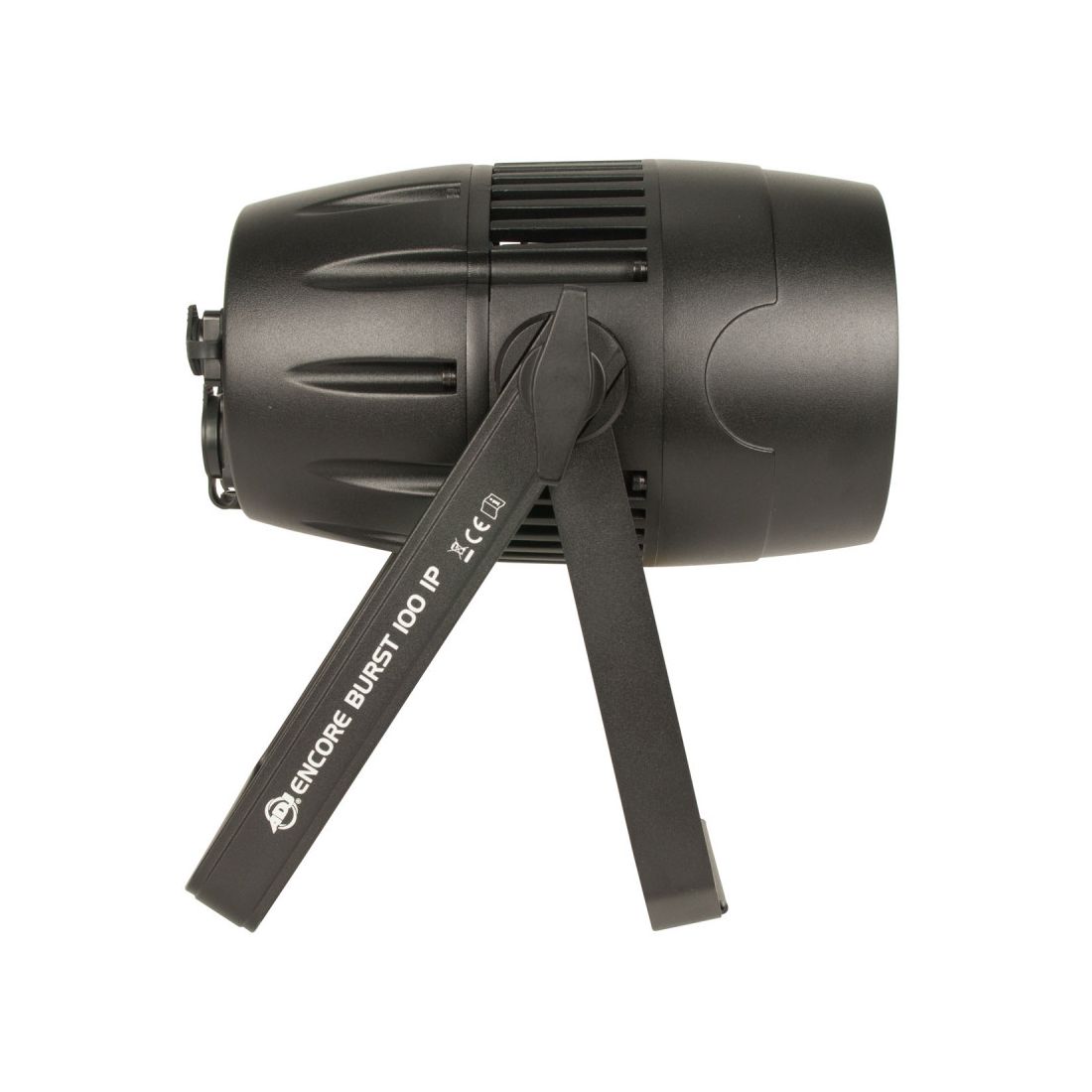

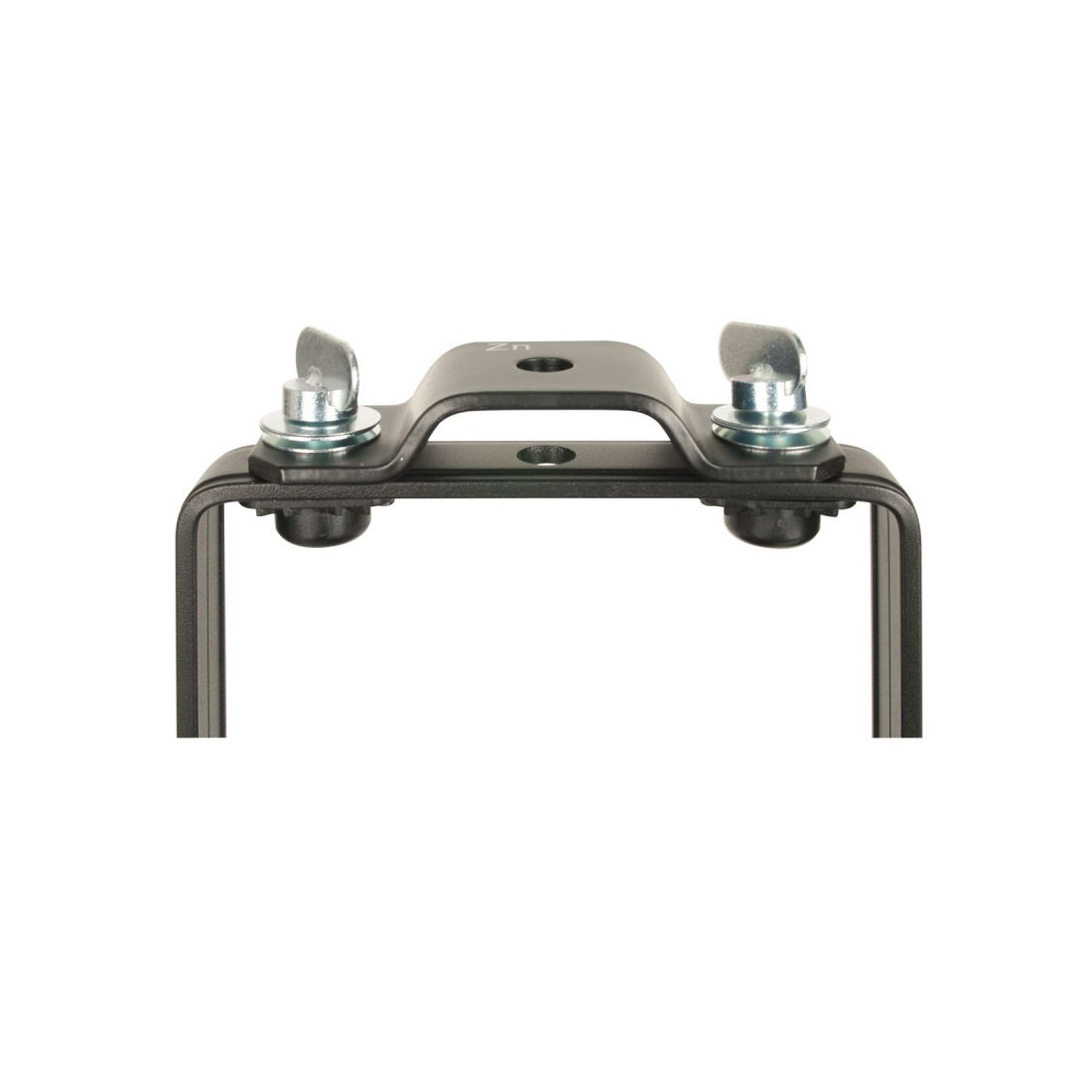

  • • Scissor yoke
  • • Optional Quicklock Bracket (order Code 9900007439 OmegaBracket 108mm)

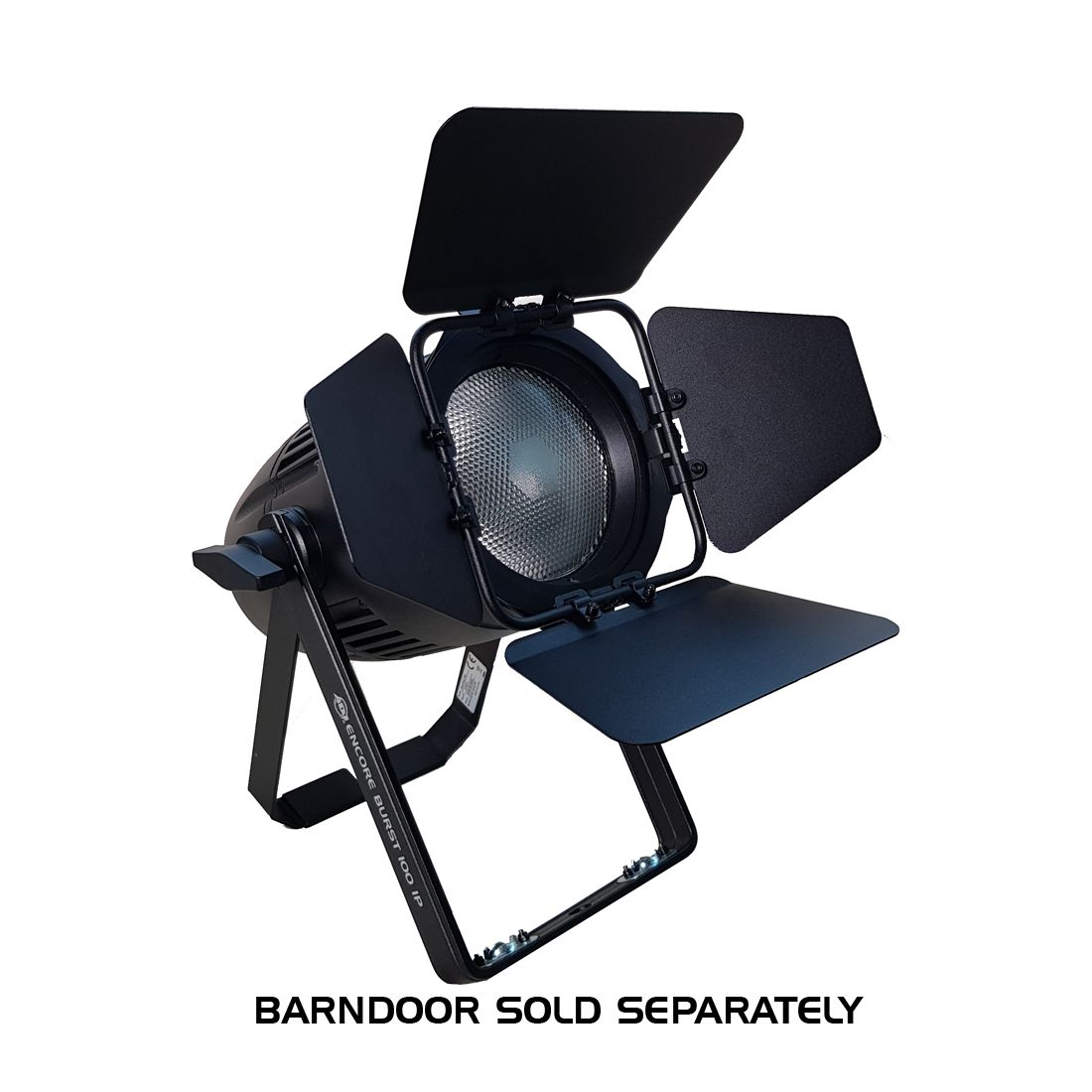

  • • Optional Barndoors (order Code 1226100380)

  • • Multivoltage 100-240V 50/60Hz
  • • Power Consumption: 115W

  • • 5-pin IP65 Locking DMX In/Out connections
  • • IP65 Locking Power In/Out connections

  • • Dimensions (LxWxH): 234 x 249 x 308mm
  • • Weight: 3,86 kg.
